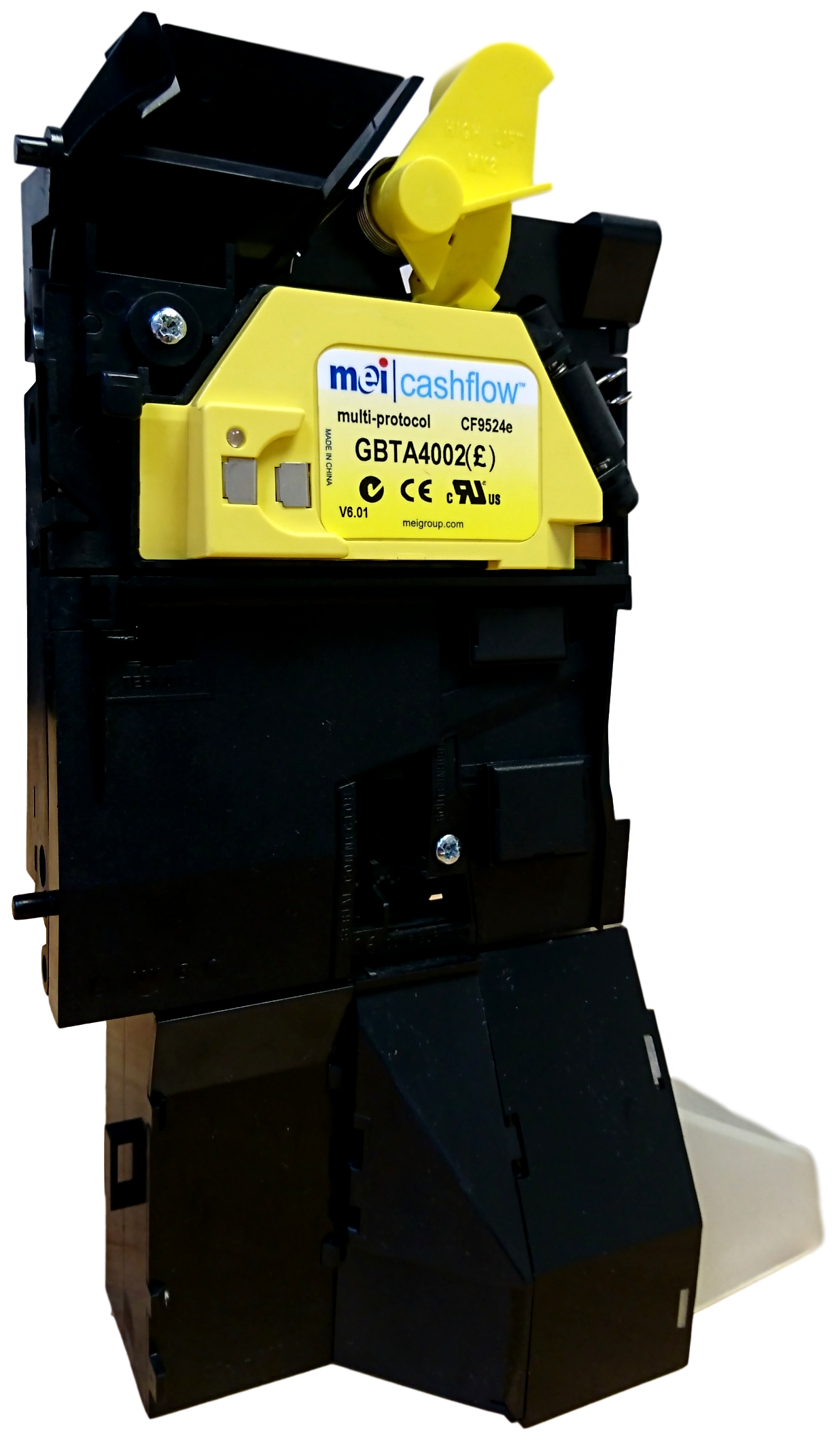

davep180 Posted August 26, 2022 Report Share Posted August 26, 2022 I recently purchased the above coin mech, pictured below. Thanks to Pete @WibbleWobbleit now works in mfme. Some of you may be familiar with @No1Stoney's diagram for the mars 126dfx. Well, using this as a base, if you do the following, the mei9524e mech will work just fine, and it's cheaper at the moment than the 126, aaaand is way easier to setup the coin routing for (no routing plug yay!) Assuming we use this diagram..... Pins start at the top as pin1 and the bottom as pin17, pin 5 is actually the empty space in the picture. So! Pin 8 (the unused square in the diagram) should be connected to your 5v or 12v feed from the pc (yellow wire for older pcs). Then, remove pin10 from the mech or ipac or both. Put all dip switches on the mech to the off position. It will then work exactly the same as the mars 126dfx! Here is the manual too, it explains how to route the coins! cashflow_952_series.pdf 1 Link to comment Share on other sites More sharing options...
MPU_FIVE Posted August 29, 2022 Report Share Posted August 29, 2022 Thank you for posting this @davep180... may well come in useful when i come to buying & installing a coin acceptor... All the best, Gary. 1 Link to comment Share on other sites More sharing options...
davep180 Posted August 30, 2022 Author Report Share Posted August 30, 2022 No problem Gary @MPU_FIVE We'll be here for you when the time comes! 2 Link to comment Share on other sites More sharing options...
woodsy Posted August 30, 2022 Report Share Posted August 30, 2022 Top lad living the dream Link to comment Share on other sites More sharing options...
EdwardFarmer Posted April 3, 2023 Report Share Posted April 3, 2023 Does this coin mech allow all coins ? As in if i put a 5p in it wpuld register it as 5p on the machine ? Link to comment Share on other sites More sharing options...
andrew96 Posted April 3, 2023 Report Share Posted April 3, 2023 (edited) 1 hour ago, EdwardFarmer said: Does this coin mech allow all coins ? As in if i put a 5p in it wpuld register it as 5p on the machine ? the mech will as the inhibits are grounded, but I guess it depends if the machine does accept 5p, if it doesn't then it wont register and will swallow the 5p Edited April 3, 2023 by andrew96 1 Link to comment Share on other sites More sharing options...
davep180 Posted July 21 Author Report Share Posted July 21 On 26/08/2022 at 18:33, davep180 said: I recently purchased the above coin mech, pictured below. Thanks to Pete @WibbleWobbleit now works in mfme. Some of you may be familiar with @No1Stoney's diagram for the mars 126dfx. Well, using this as a base, if you do the following, the mei9524e mech will work just fine, and it's cheaper at the moment than the 126, aaaand is way easier to setup the coin routing for (no routing plug yay!) Assuming we use this diagram..... Pins start at the top as pin1 and the bottom as pin17, pin 5 is actually the empty space in the picture. So! Pin 8 (the unused square in the diagram) should be connected to your 5v or 12v feed from the pc (yellow wire for older pcs). Then, remove pin10 from the mech or ipac or both. Put all dip switches on the mech to the off position. It will then work exactly the same as the mars 126dfx! Here is the manual too, it explains how to route the coins! cashflow_952_series.pdf 1.24 MB · 14 downloads Having recently reviewed the above, it looks like I got it wrong. My mech is connected as per diagram, but plugs 8 and 10 are not connected to anything. Power still goes to pin 11, not 8. Sorry for any inconvenience or misunderstanding. Link to comment Share on other sites More sharing options...
