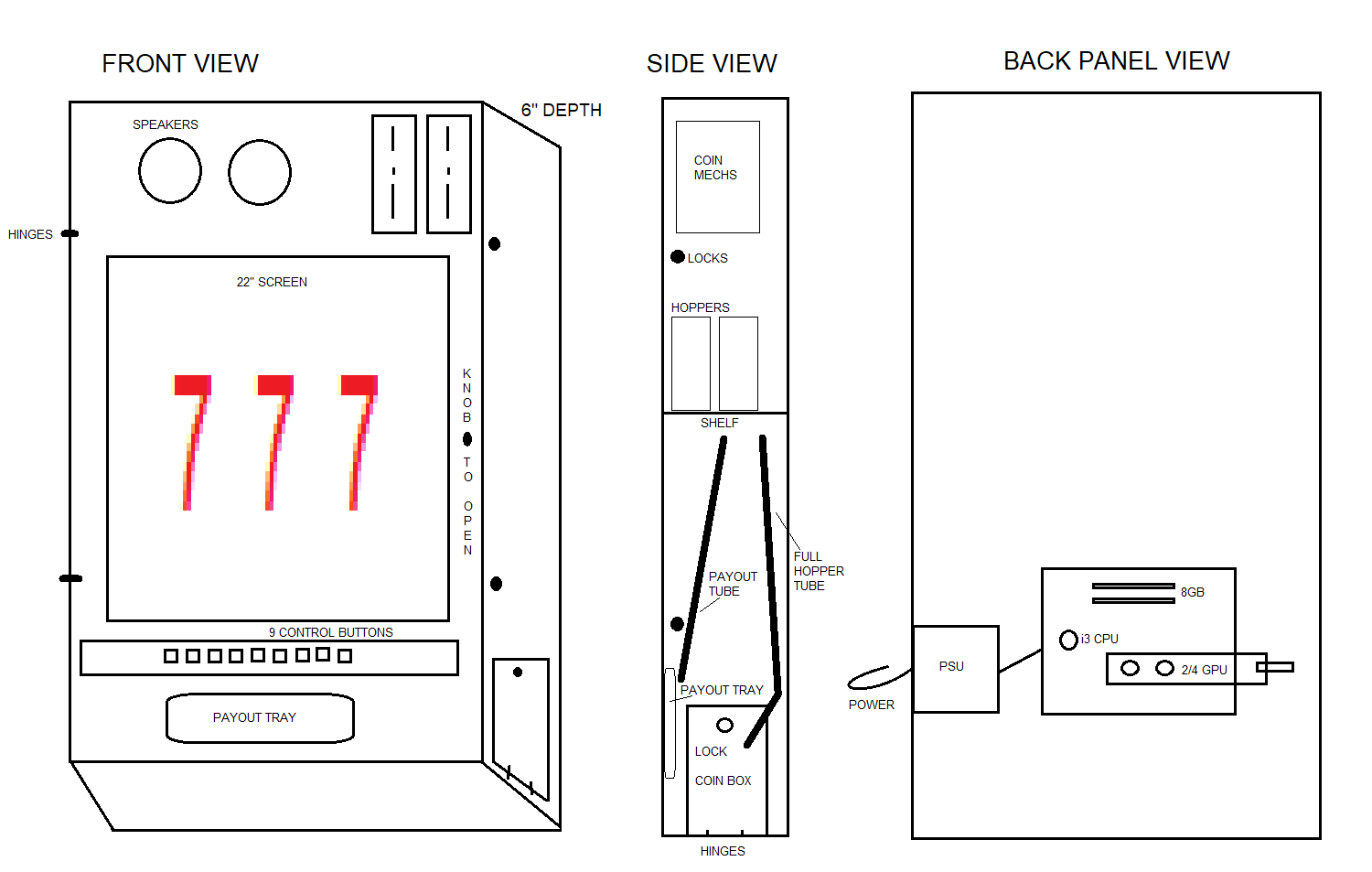

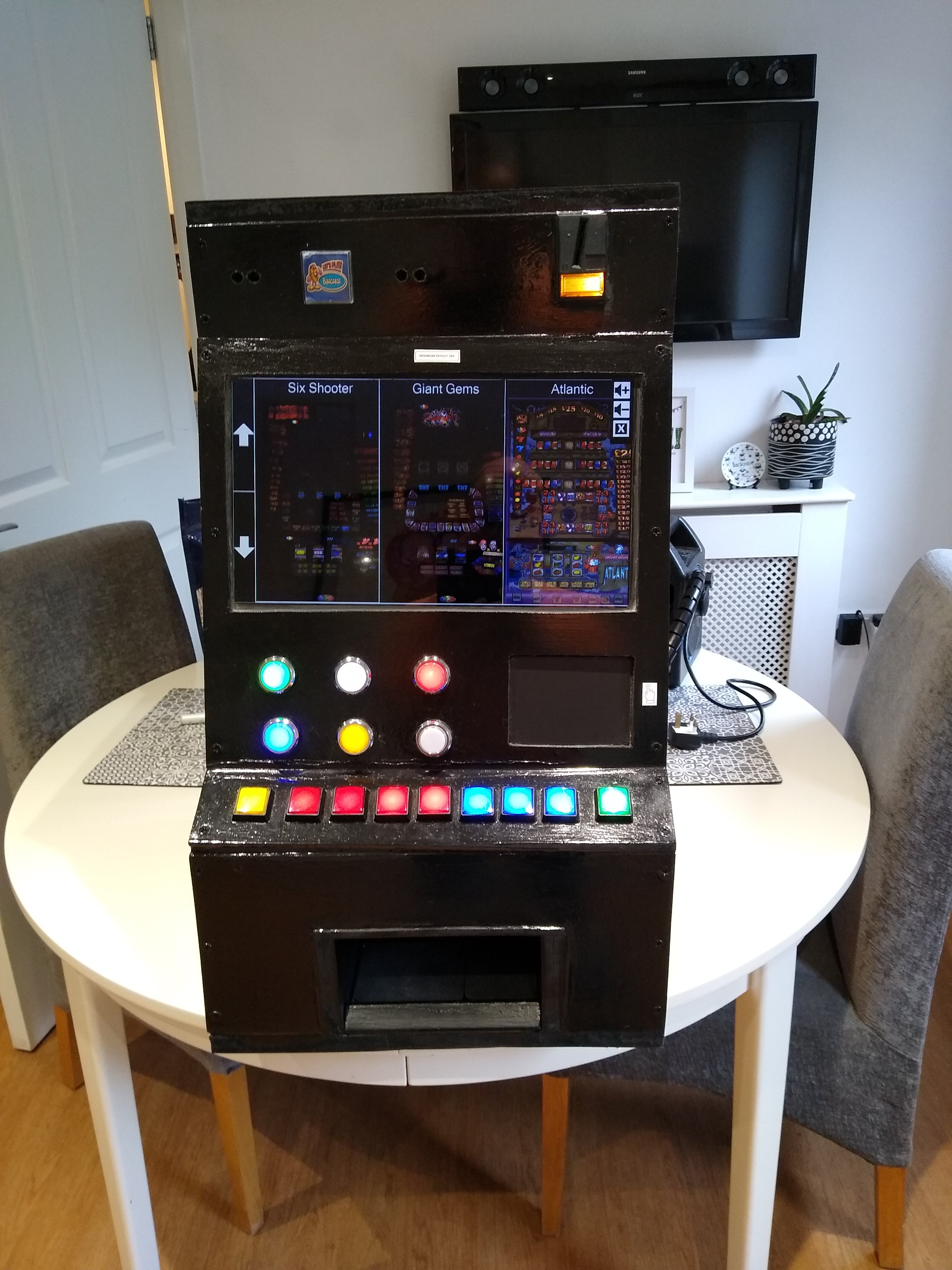

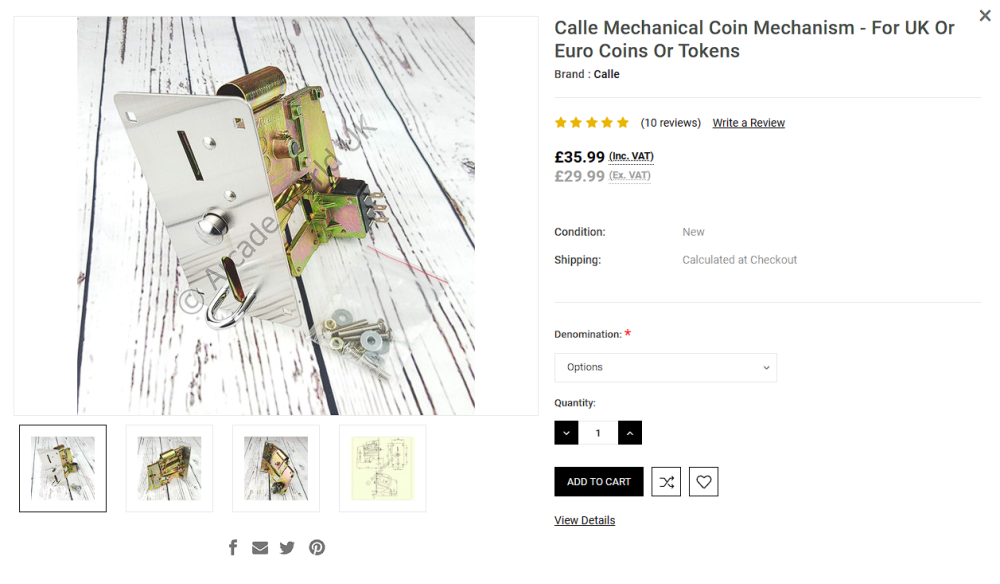

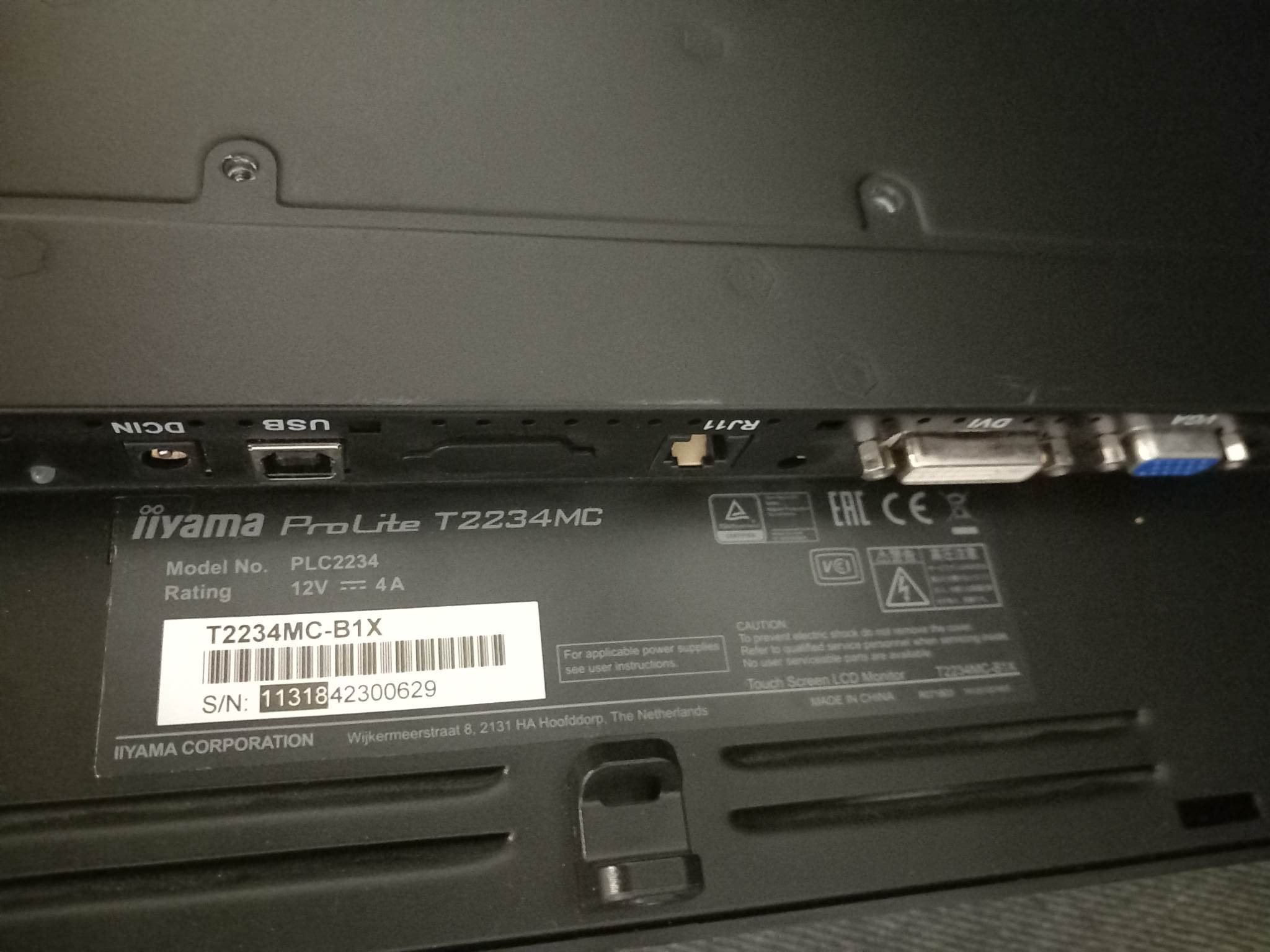

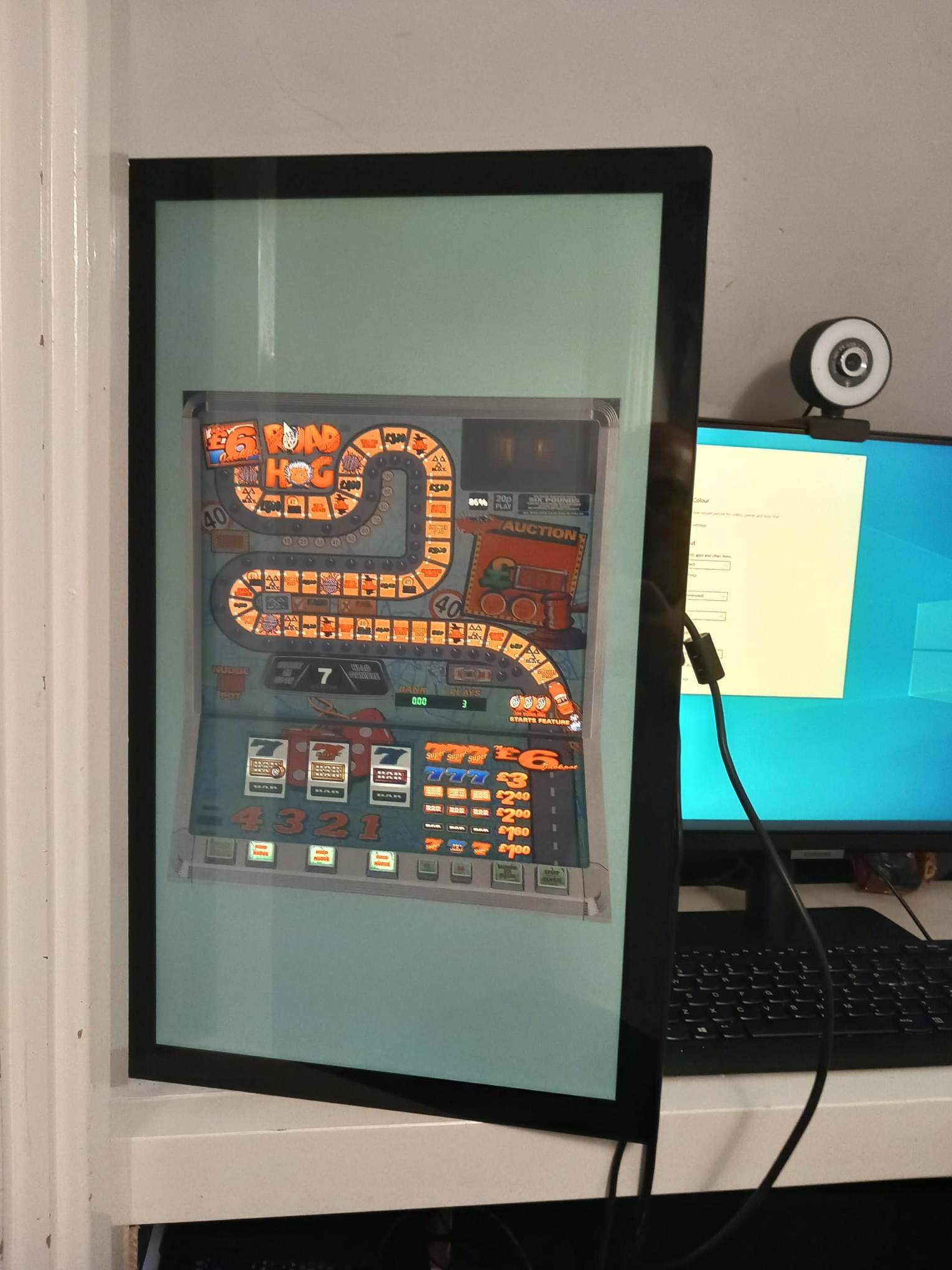

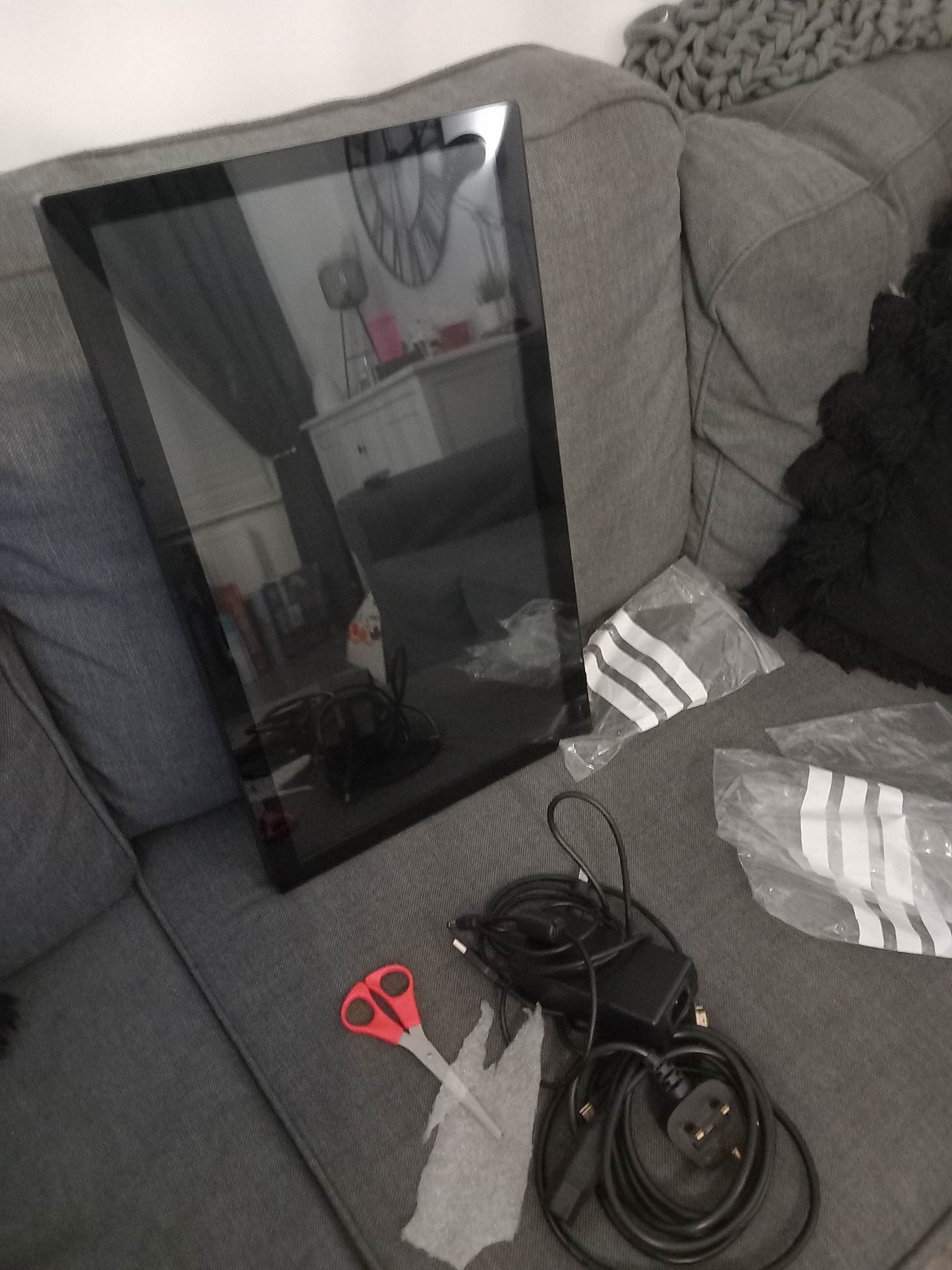

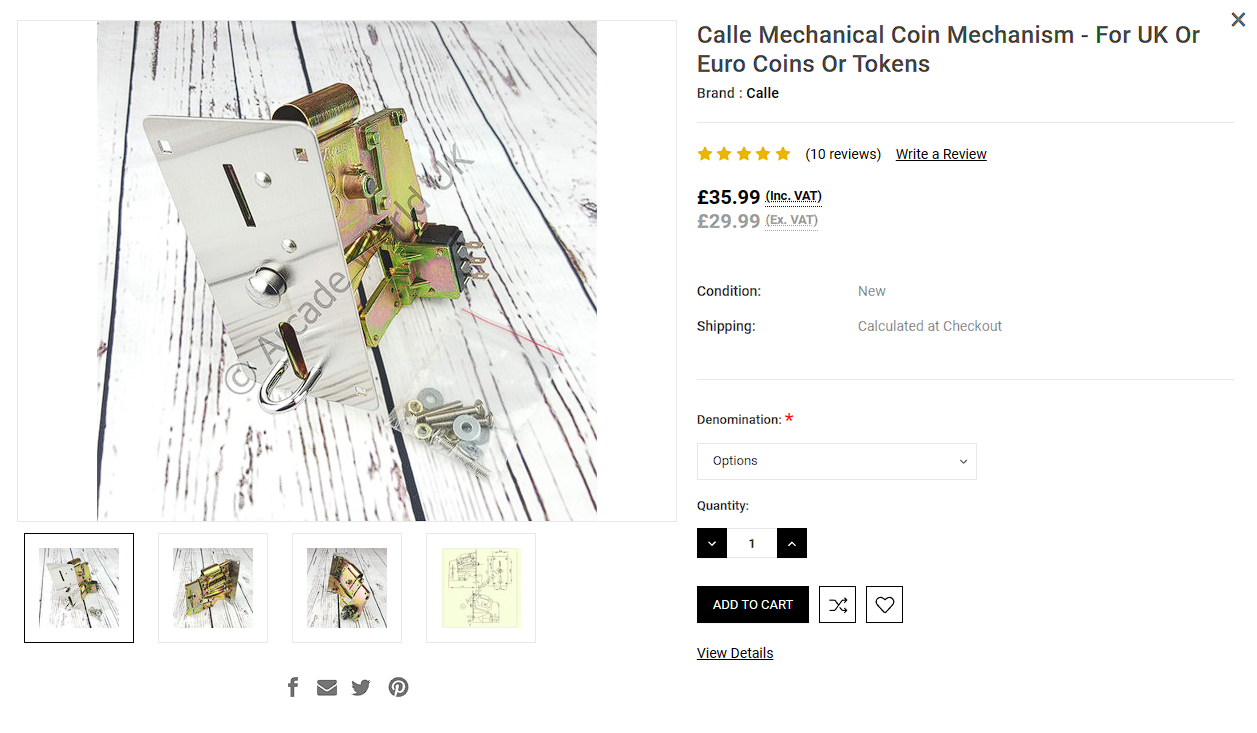

Road Hog Mad Posted January 7, 2023 Report Share Posted January 7, 2023 Ohh No... I have certainly caught the Cab Build Virus (I Blame @Reg :D) In my previous builds I had an old Paragon Pro Quiz machine converted in to a home build and a bar top machine using an old laptop. The issue I had with the other 2 builds was space (and the wife constantly moaning), they were always in the way. Upon browsing eBay like I do periodically to see how much machines are selling for I saw an old none working wall mounted fruit machine, I think it was a German design, I thought that's an idea.. a wall mounted fruit machine in my den under the stairs. After grovelling to the wife for 30 minutes, rubbing her feet and cooking tea for 4 nights in a row I was granted permission to build a wall mountable fruit machine! I have posted a few pics of where I am up to, I have done a design and already have a 22" open frame touchscreen monitor (£80 off ebay with all the wires, not a bad price if you ask me), I have also ordered some I-PAC stuff from www.arcadeworlduk.com which I have used in the past. I also thought about trying a different mech (see pic) less wiring up, I'm going to have a 20p and £1 hopper as I had endless trouble using a 10p hopper (in fact I smashed the last one up in anger). The price was £5 less for each mech when I ordered, dunno why they have jumped in price!?!? Hoppers... I'm not that keen on using the Azkoyen Hoppers again as they're bulky (cost about £60 each) and the last one wasn't reliable at all, so if anyone has used different hoppers please let me know in here, I also need them to have overflow for when they're full (Azkoyen ones don't and I had to make my own which was a pain). The depth of the wall mounted machine I am aiming for 6 inches as I should be able to squeeze everything inside. Attached: Machine Build No. 2 (Bar Top Edition) Comments and Suggestions WELCOME!! Subscribe, smash the red button, smash the blue button or whatever it is. 3 Link to comment Share on other sites More sharing options...

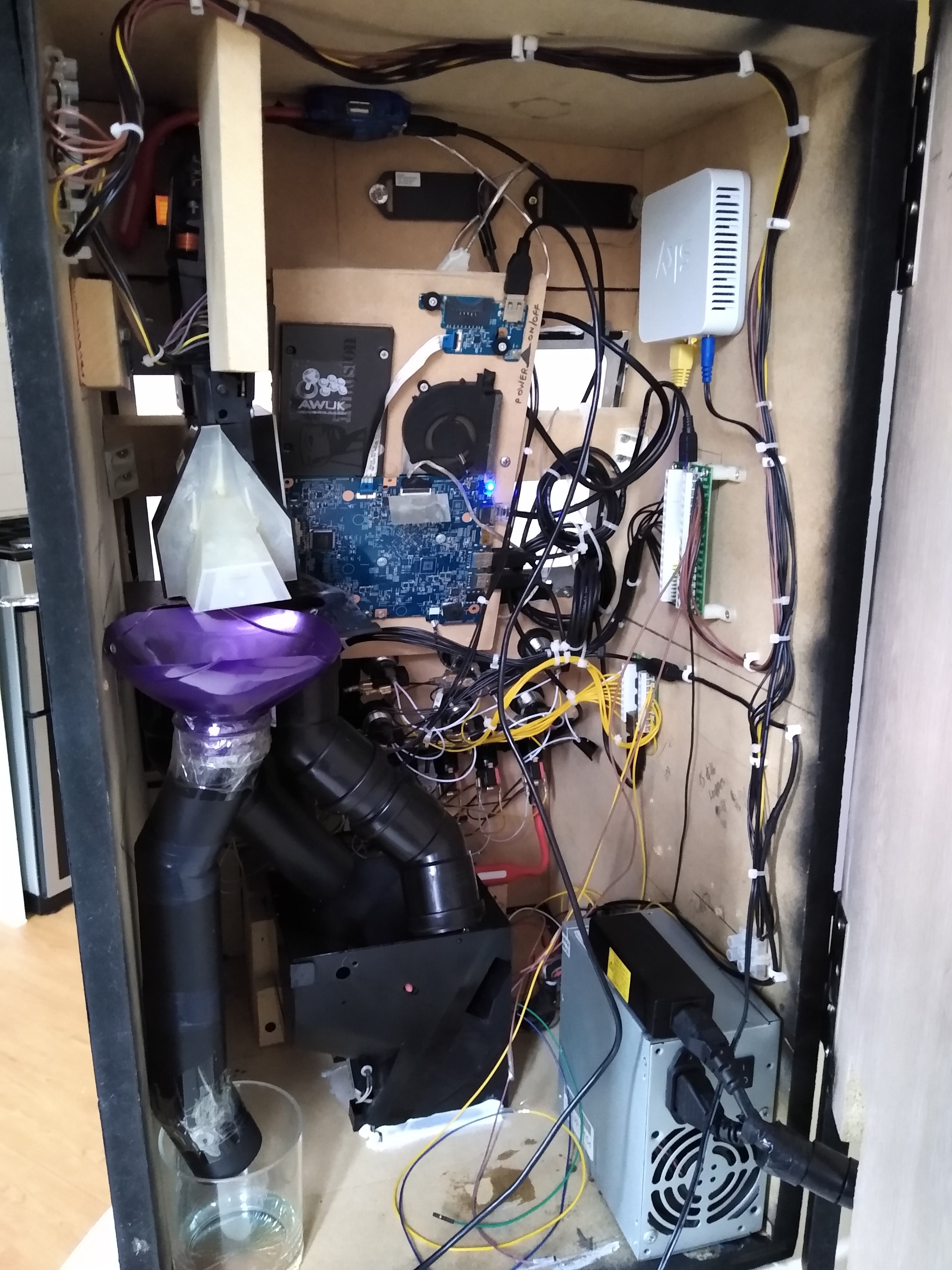

Road Hog Mad Posted January 7, 2023 Author Report Share Posted January 7, 2023 Forgot to add these.. 3 Link to comment Share on other sites More sharing options...

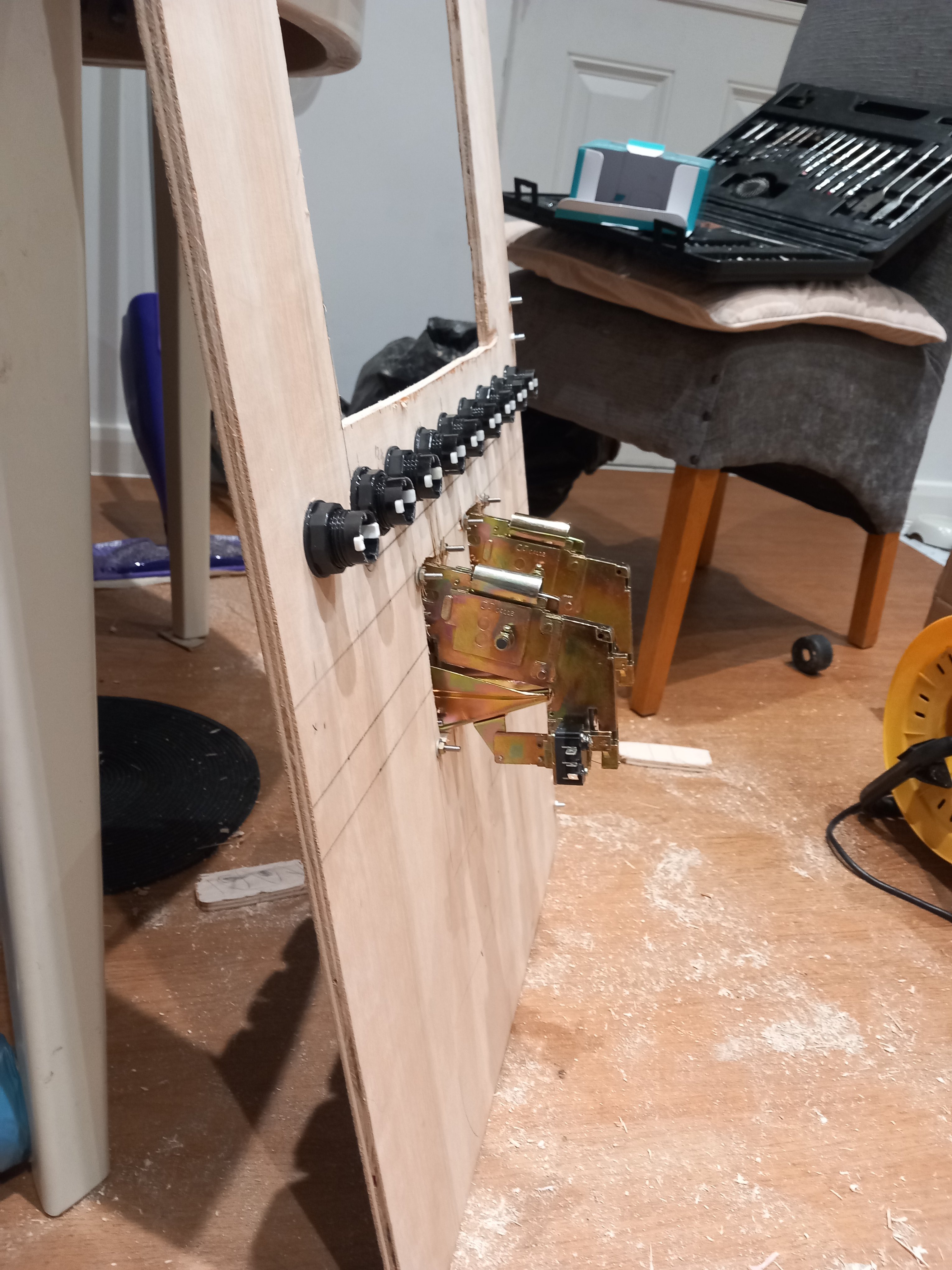

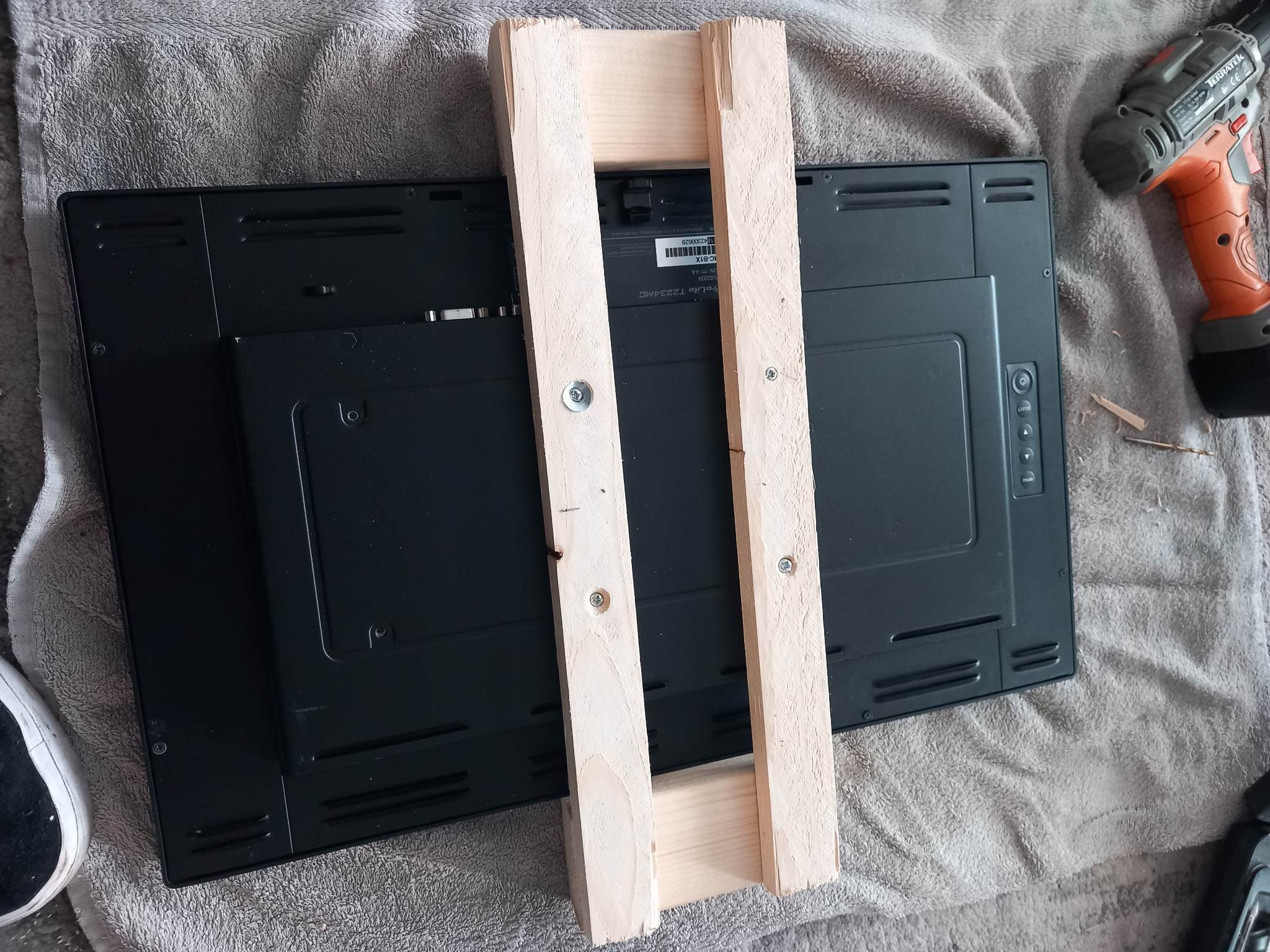

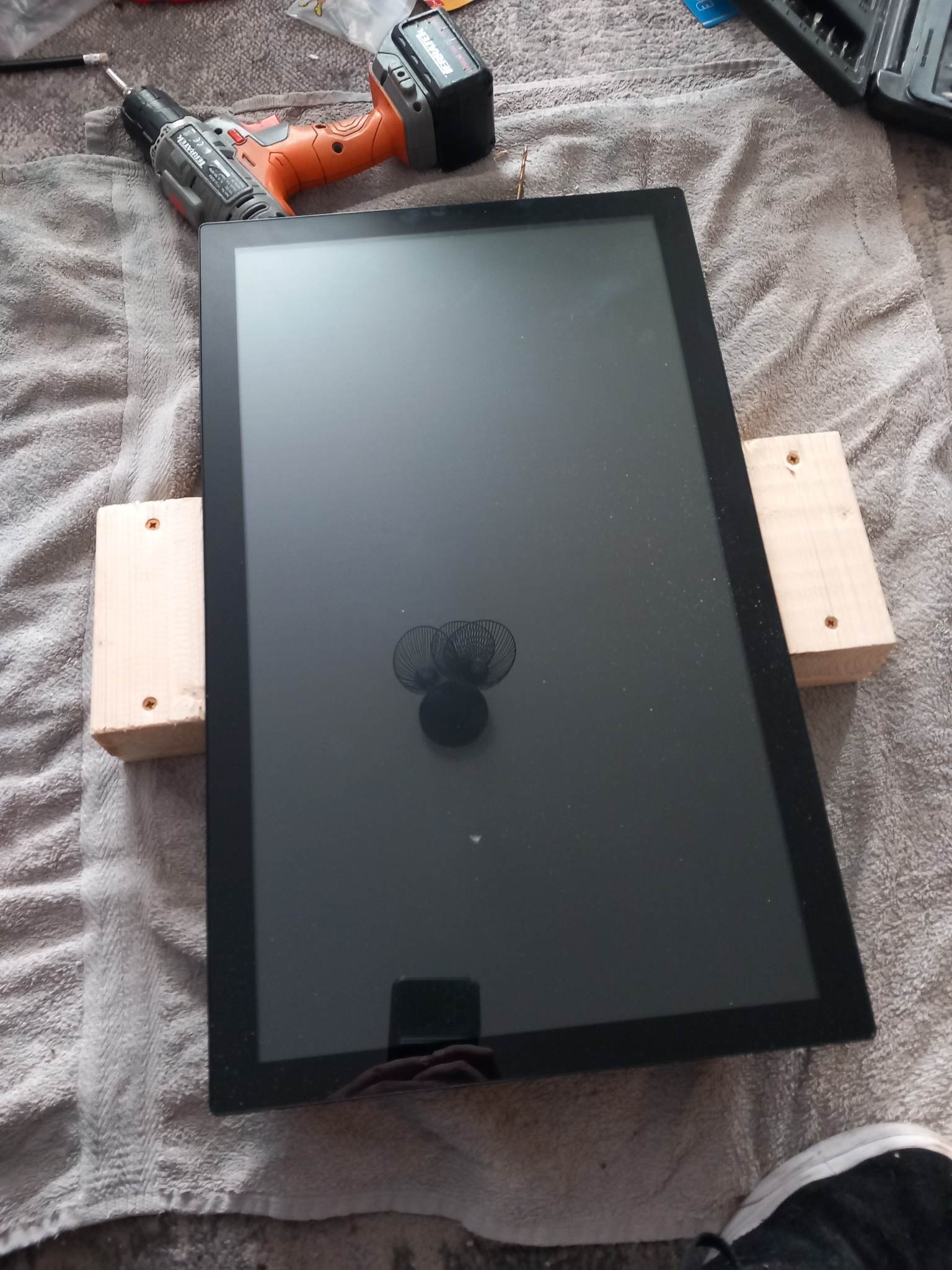

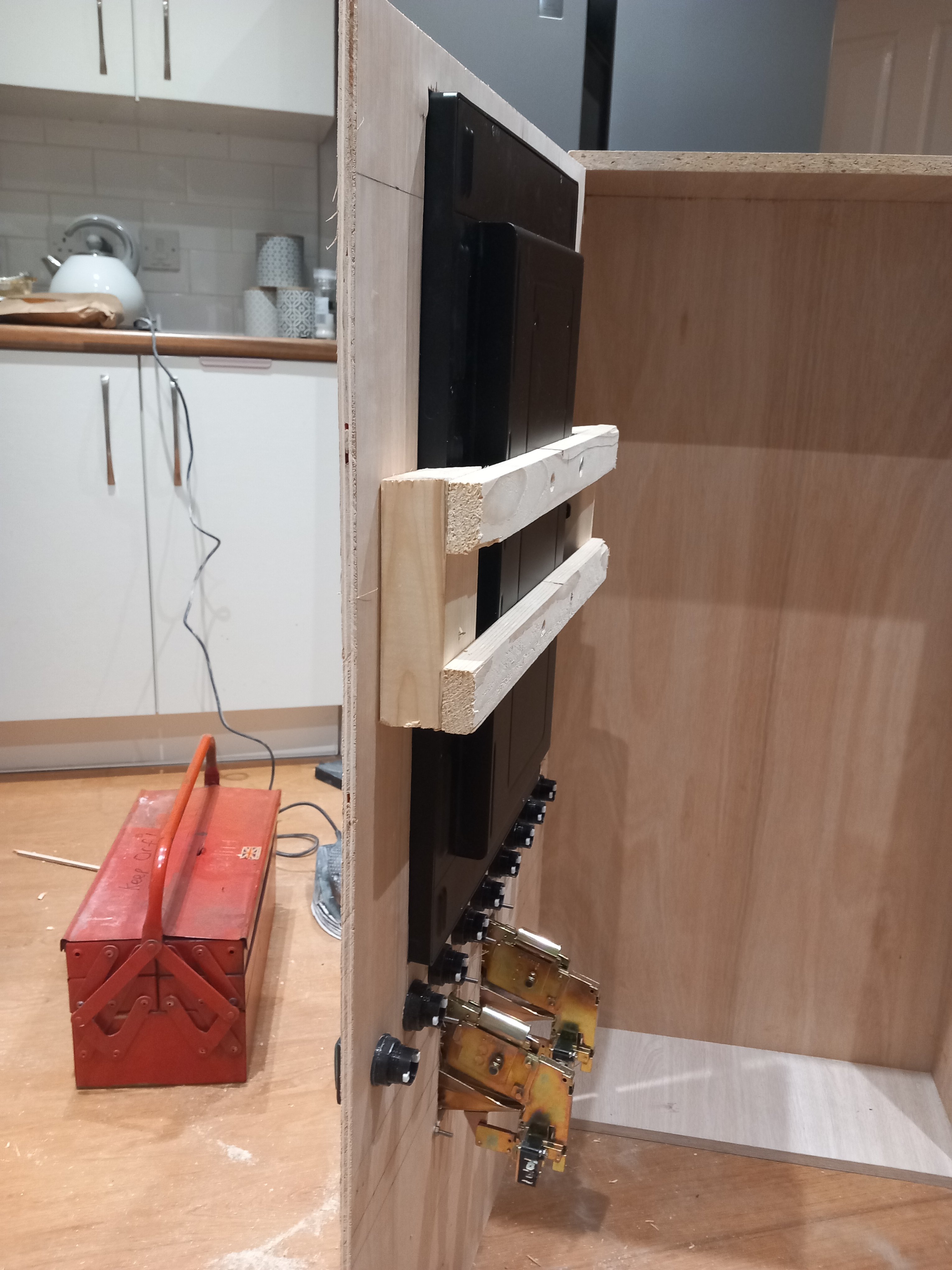

Road Hog Mad Posted January 7, 2023 Author Report Share Posted January 7, 2023 To keep the wife happy, I'm just doing a bit at a time, I'm conning her by incorporating in with other house DIY jobs lol. Today I have made a wooden bracket, this will hold the monitor in place on the front of the machine. Cost = £0.00 (wood, 2x2's left over from media wall I built and the wooden battens are from the packaging of a new tumble dryer we had delivered today). There is about 1/4" gap between the 2x2's and the top of the monitor (not flush in other words) that's because I'm going to have the screen slightly out of the front part by 1/4". So it's like a pronounced front, the play buttons will stick out 1/2" and the payout tray a lot further (unless someone has a slim line pay out tray, I'm thinking of using an old Bell Fruit Scorpion style one. Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 7, 2023 Author Report Share Posted January 7, 2023 Note. This will also help with any crud jigsaw cutting out as you can seal around the edges with silicone and when painted it will look neat! Link to comment Share on other sites More sharing options...
bullionbars2011 Posted January 7, 2023 Report Share Posted January 7, 2023 Build me one lol that's brill small compact and looks well made nice work mate Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 7, 2023 Author Report Share Posted January 7, 2023 1 hour ago, bullionbars2011 said: Build me one lol that's brill small compact and looks well made nice work mate Are you referring to the bar top one? I had a few issues getting things to work as I believe you have to use a common ground for some of the wiring and laptops don't have one. It's a good concept yeah, but fecking fiddly! Plus... the laptop kept screwing up (I think it had bad memory or something, I had to keep re-formatting and loading windows as it got stuck in a boot loop). I prefer the PC way to do things Link to comment Share on other sites More sharing options...
foiltravis Posted January 8, 2023 Report Share Posted January 8, 2023 WOW!!! I will be following this. Getting everything into a 6 inch thick box will be amazing. Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 12, 2023 Author Report Share Posted January 12, 2023 (edited) On 08/01/2023 at 20:47, foiltravis said: WOW!!! I will be following this. Getting everything into a 6 inch thick box will be amazing. Or impossible lol. I think it can be done. I've altered my original design, a lot of stuff will mounted on the front including the hoppers and coin mechs. It will also be a front opener. Gonna see if I can get a but of cutting done this evening and will of course upload some pics. Edit. Picked up some wood from b&q last night and they kindly cut it fir me. £33 a sheet of wood and nails. Edited January 12, 2023 by Road Hog Mad Link to comment Share on other sites More sharing options...

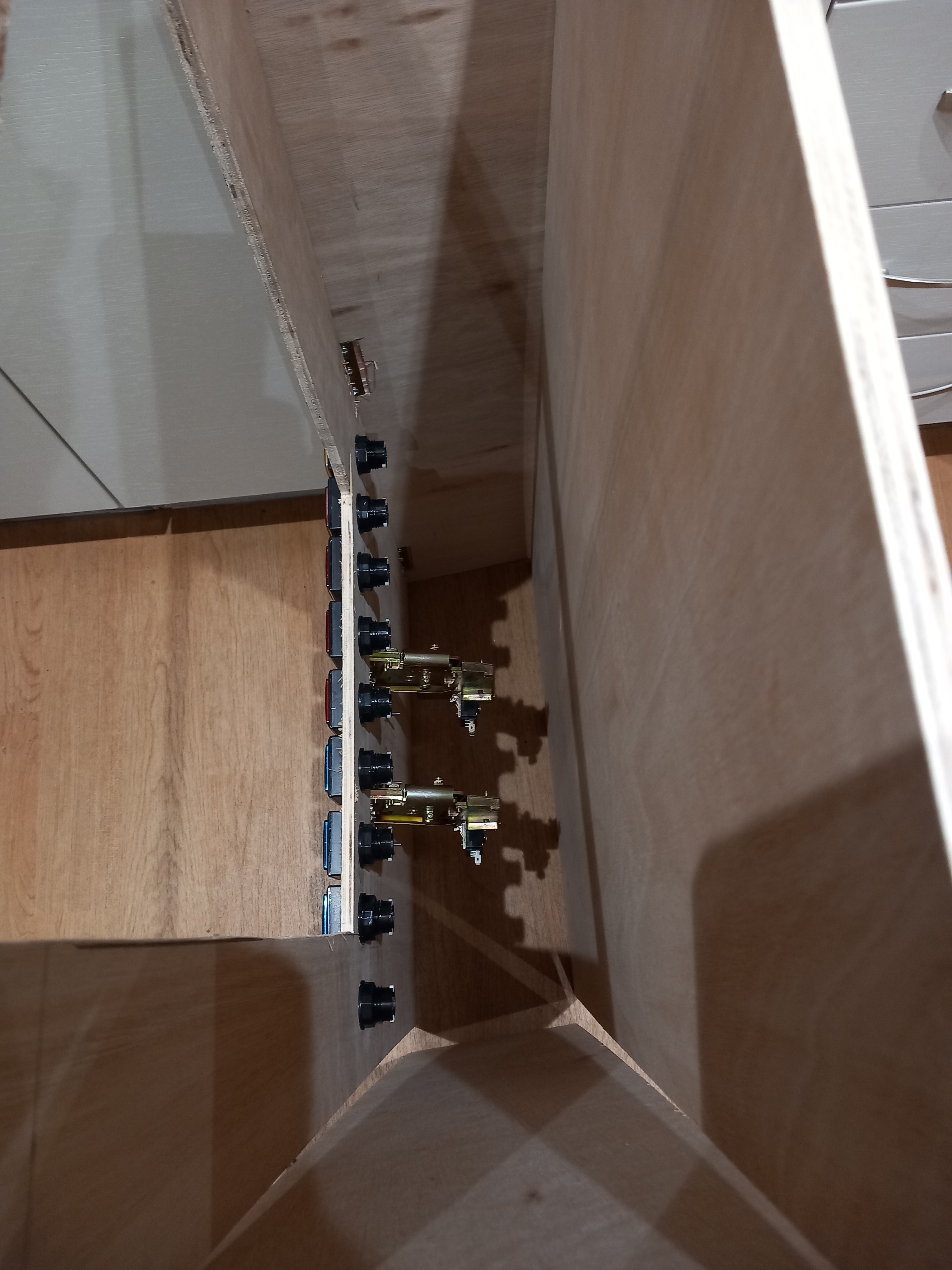

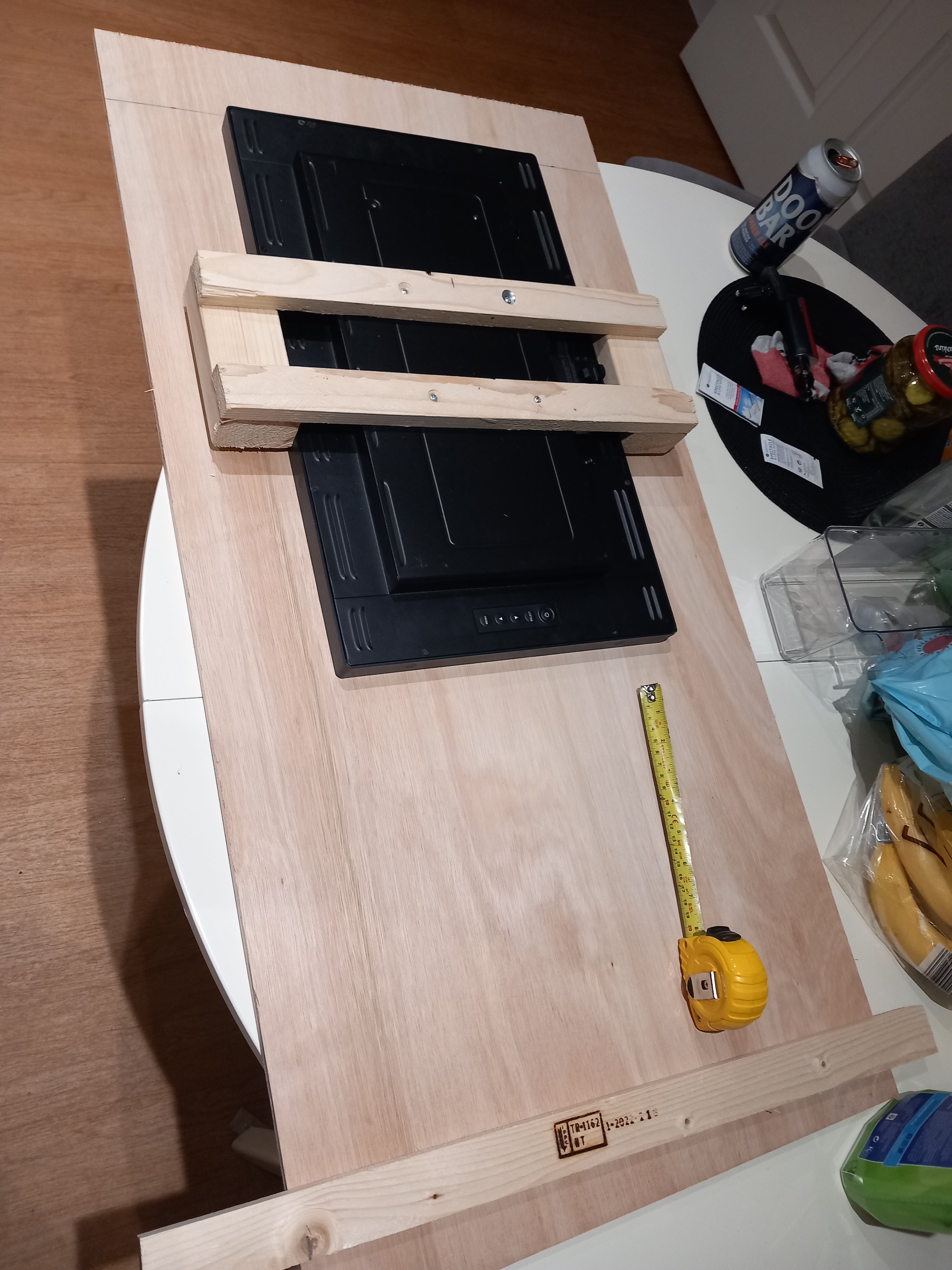

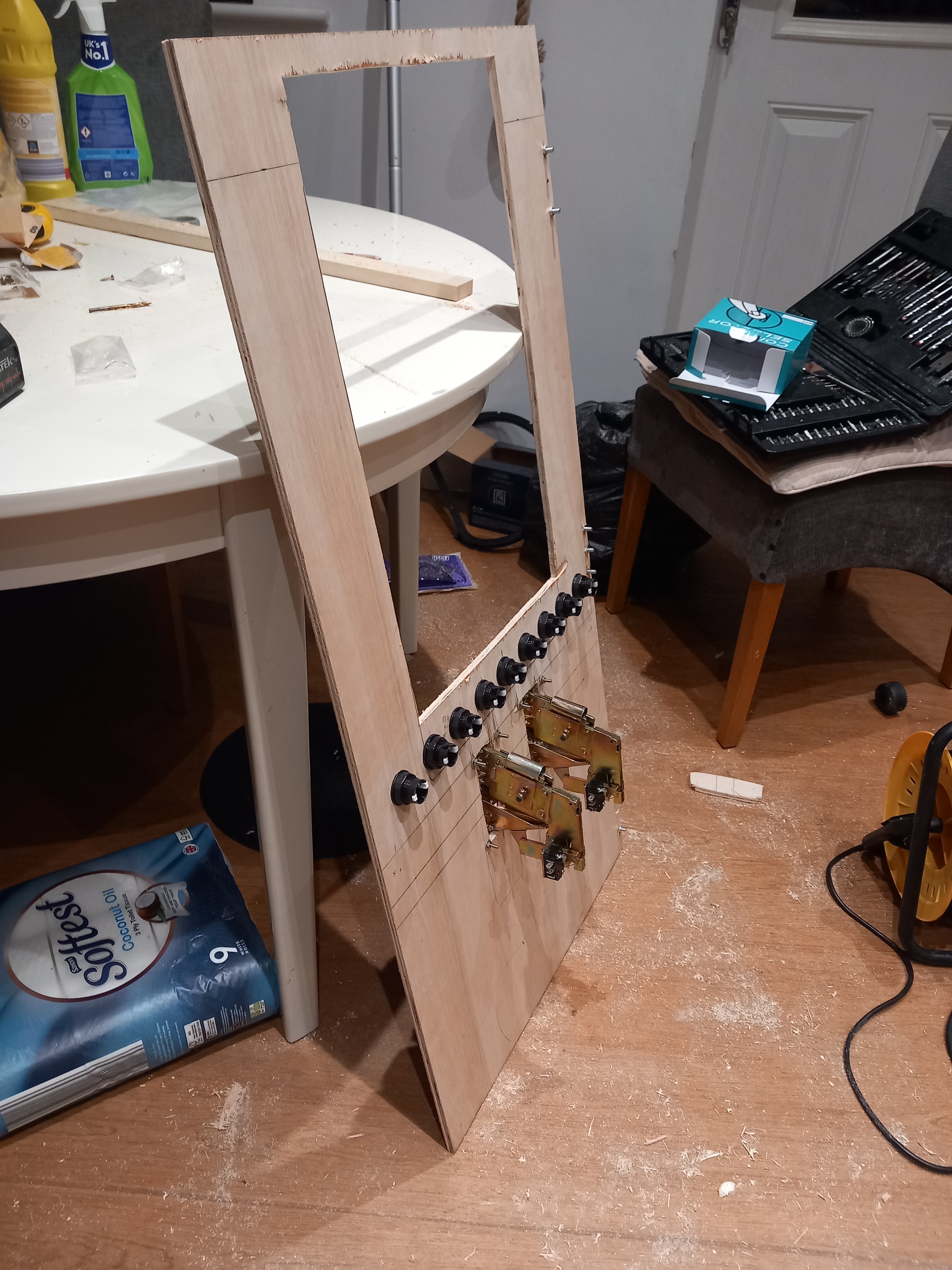

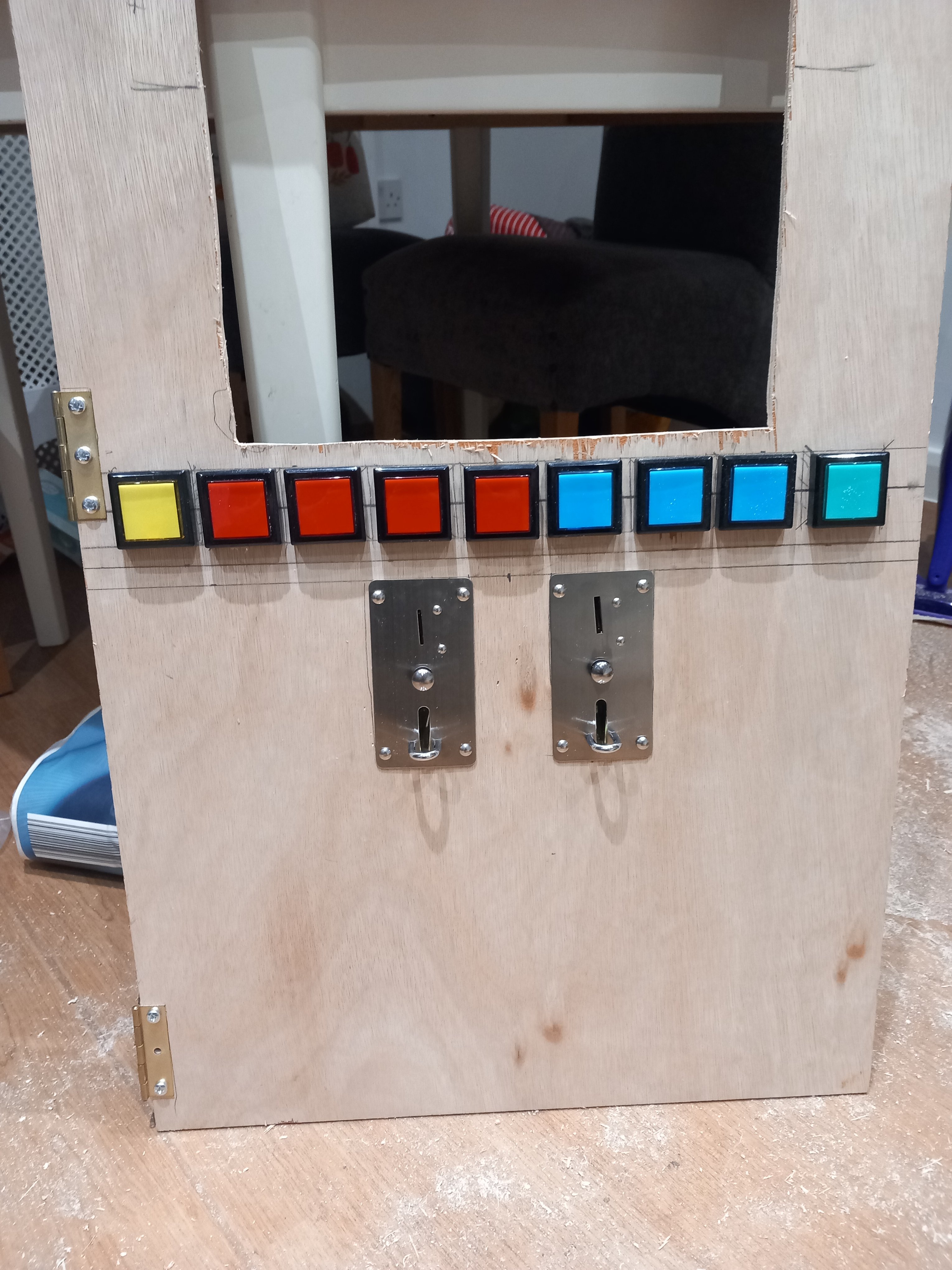

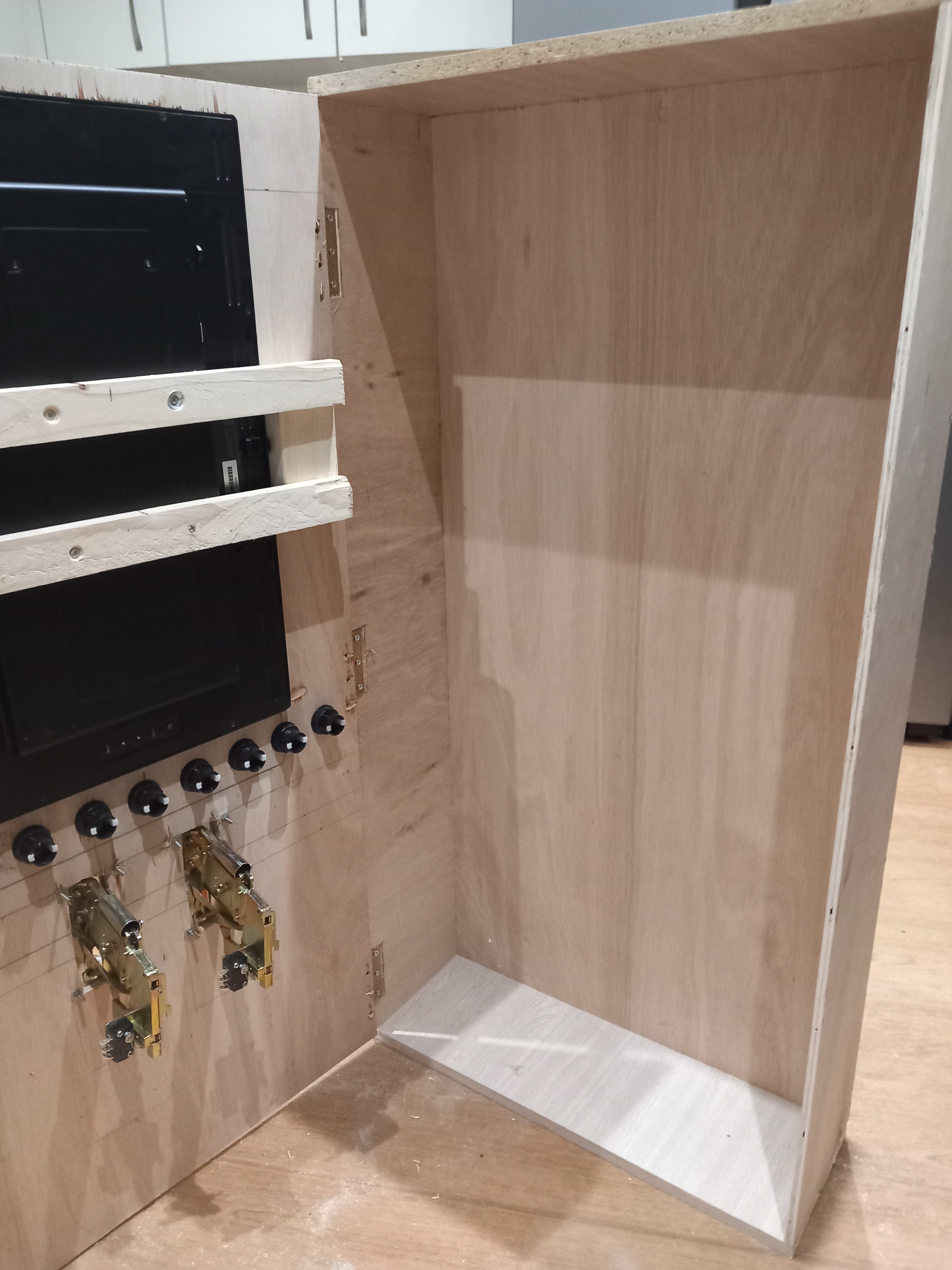

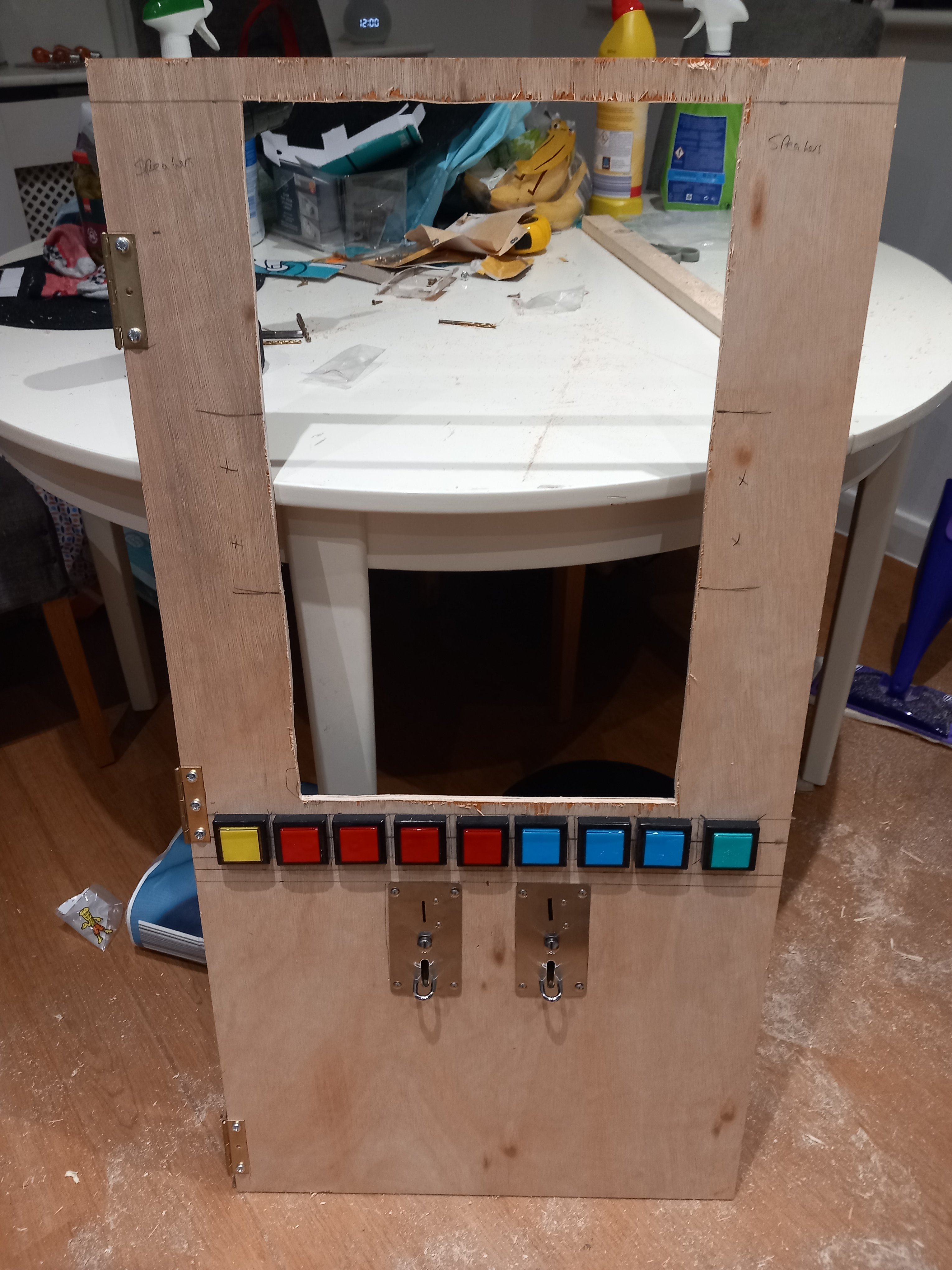

Road Hog Mad Posted January 12, 2023 Author Report Share Posted January 12, 2023 (edited) @foiltravis So now you can see... the monitor will sit in the door like this... I decided to put the coin mechs down below which will go direct in to the hopper with a cut out in the door for the coins to spit out in to the payout tray. That's enough for tonight. @Reg Edited January 12, 2023 by Road Hog Mad 2 Link to comment Share on other sites More sharing options...

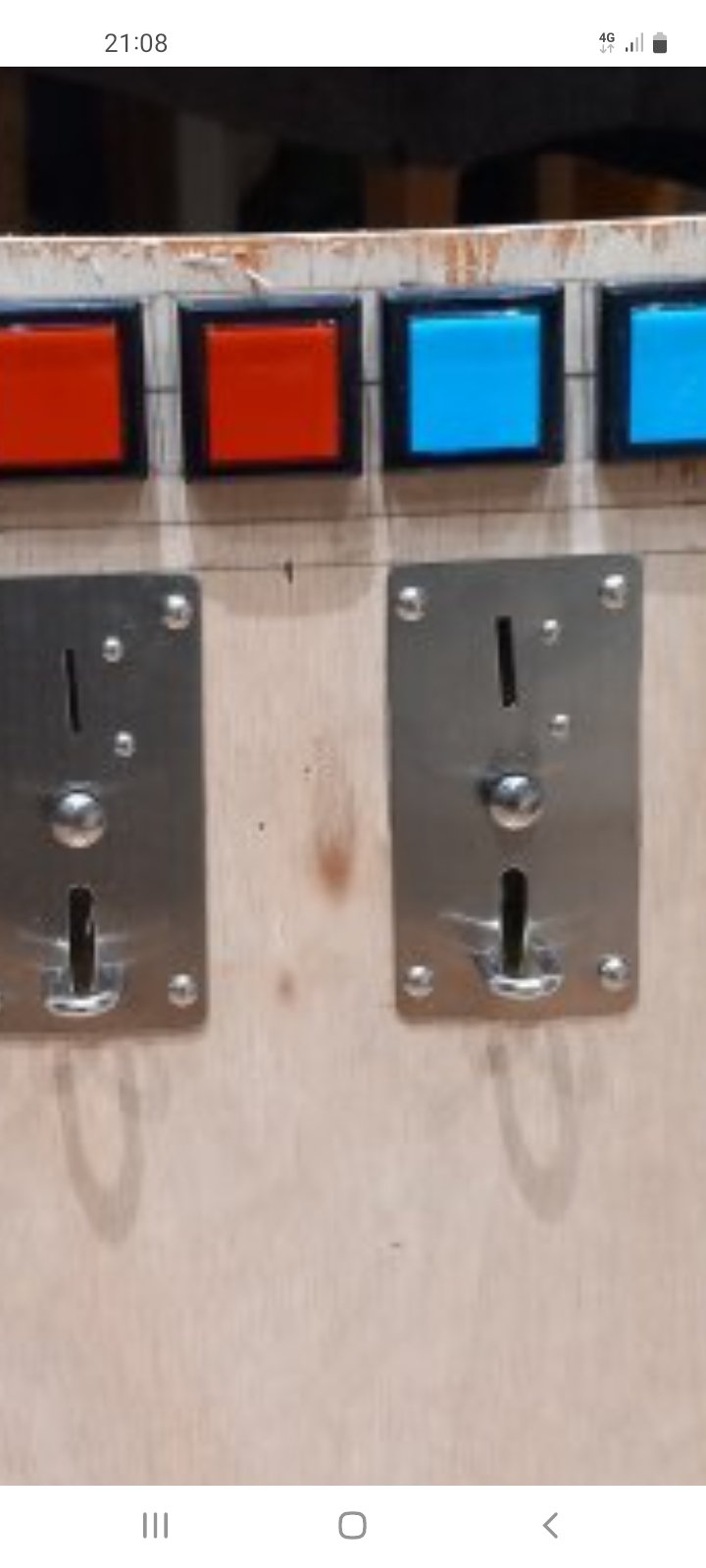

dondplayer Posted January 12, 2023 Report Share Posted January 12, 2023 Jesus where did you get those coin acceptor.... 1981 Seriously though good work Your box will be CASHPOT Link to comment Share on other sites More sharing options...
woodsy Posted January 12, 2023 Report Share Posted January 12, 2023 f*****ing awesome as per... seriously i'd start a niche business here bud.. i'm in for one living the dream Link to comment Share on other sites More sharing options...
foiltravis Posted January 13, 2023 Report Share Posted January 13, 2023 Outstanding !! Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 13, 2023 Author Report Share Posted January 13, 2023 @dondplayer no, 1982 lol. @woodsy it's looks a little rough at the moment but gimme some time lol, problem is its time consuming plus I need not to drink when using the jigsaw haha. @foiltravis Thank you 1 Link to comment Share on other sites More sharing options...
uptown47 Posted January 13, 2023 Report Share Posted January 13, 2023 Looking superb Road Hog. Interested to see how it's all going to fit together. Really like the slim look of it. Great work mate!! Link to comment Share on other sites More sharing options...

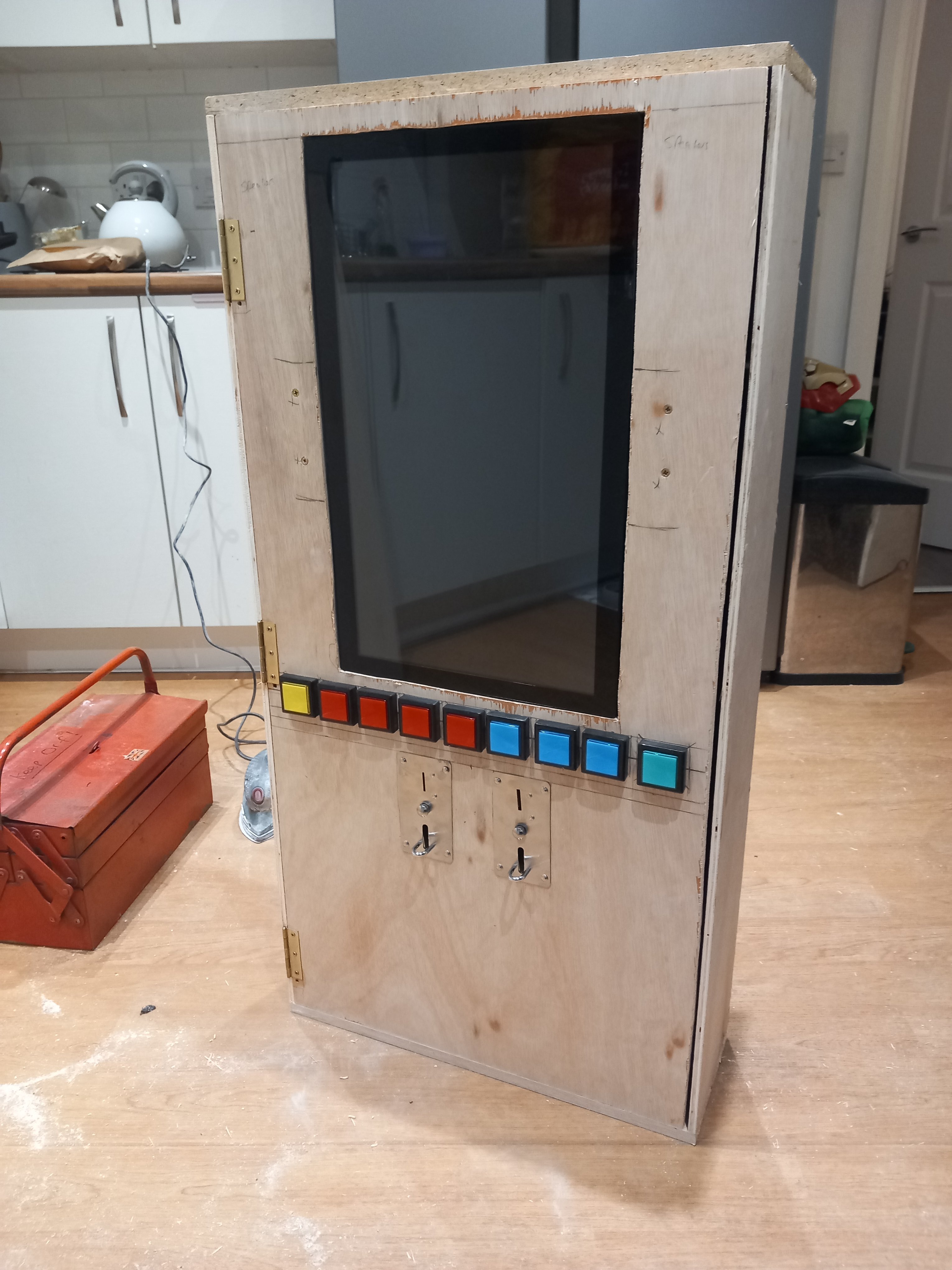

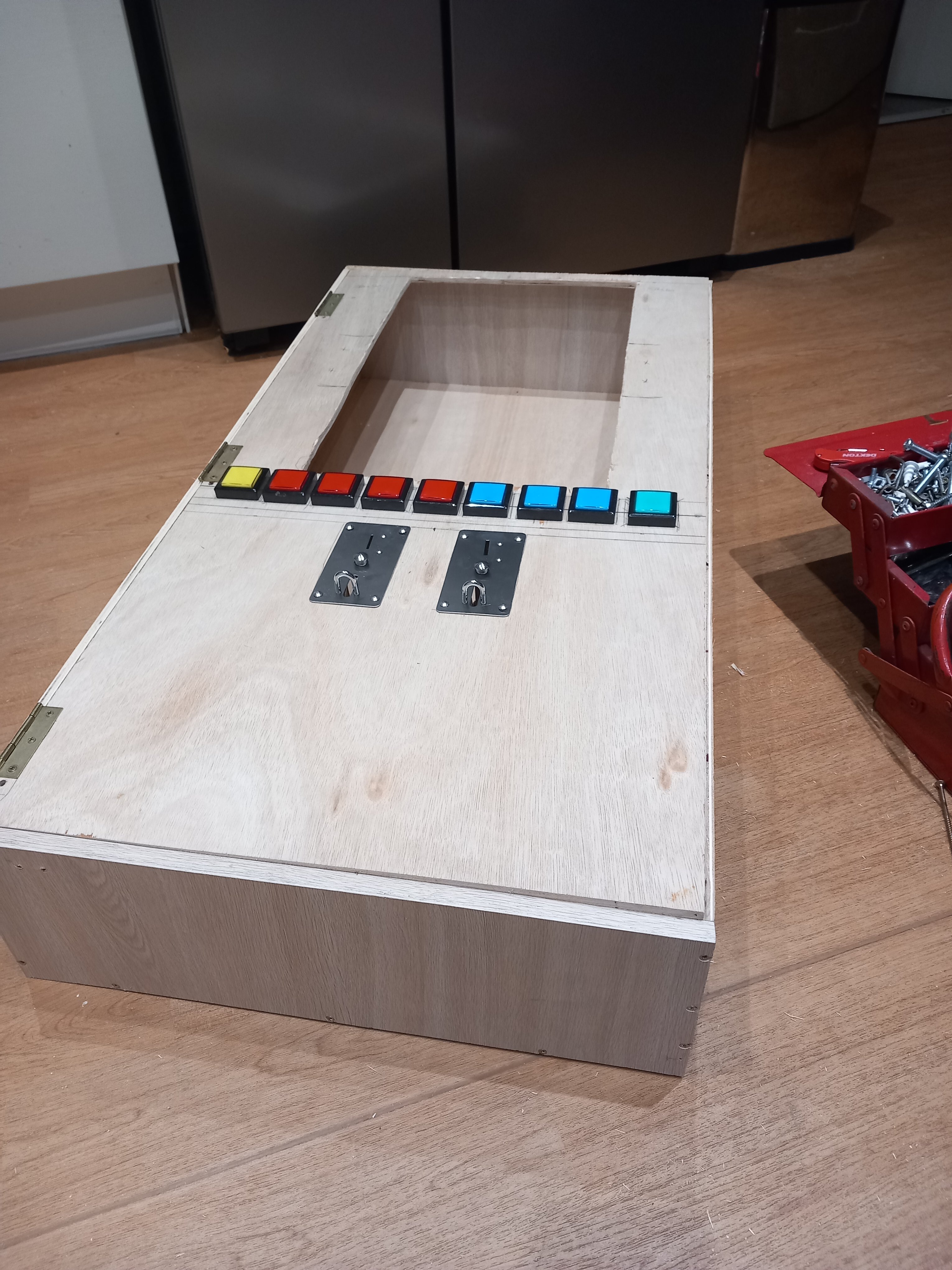

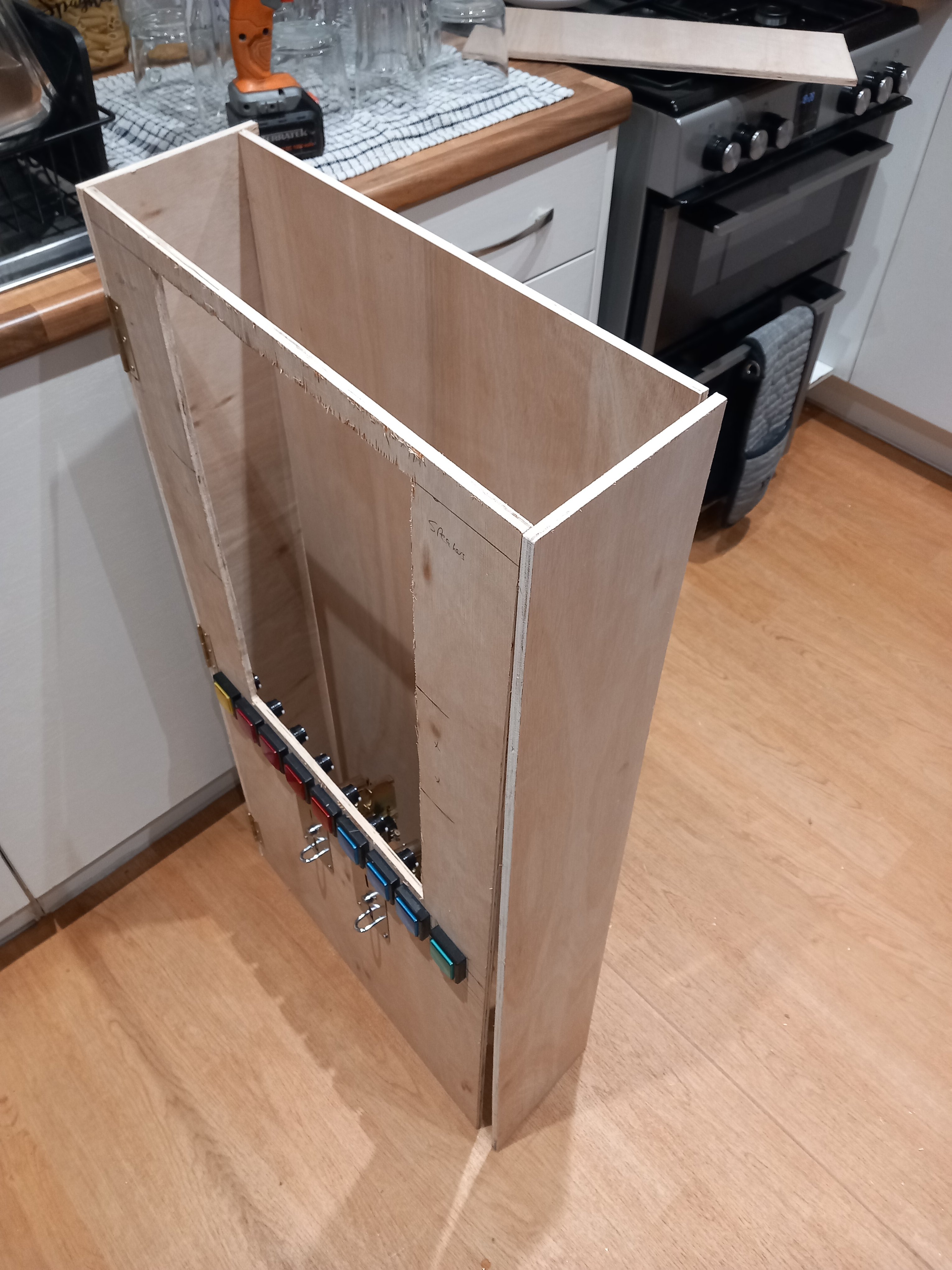

Road Hog Mad Posted January 13, 2023 Author Report Share Posted January 13, 2023 This evening 1 Link to comment Share on other sites More sharing options...
foiltravis Posted January 13, 2023 Report Share Posted January 13, 2023 WOW: You are making terrific progress!!! Looking good. 1 Link to comment Share on other sites More sharing options...

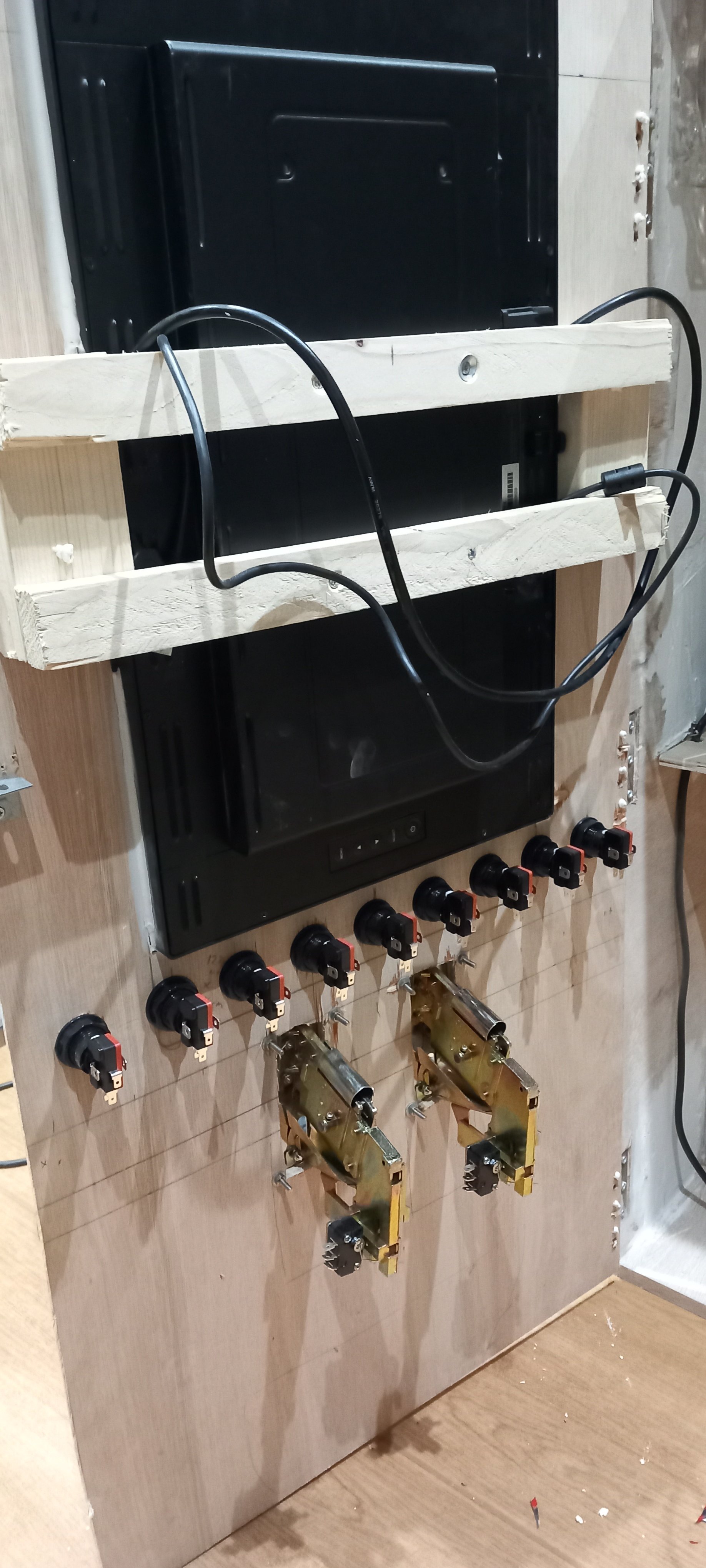

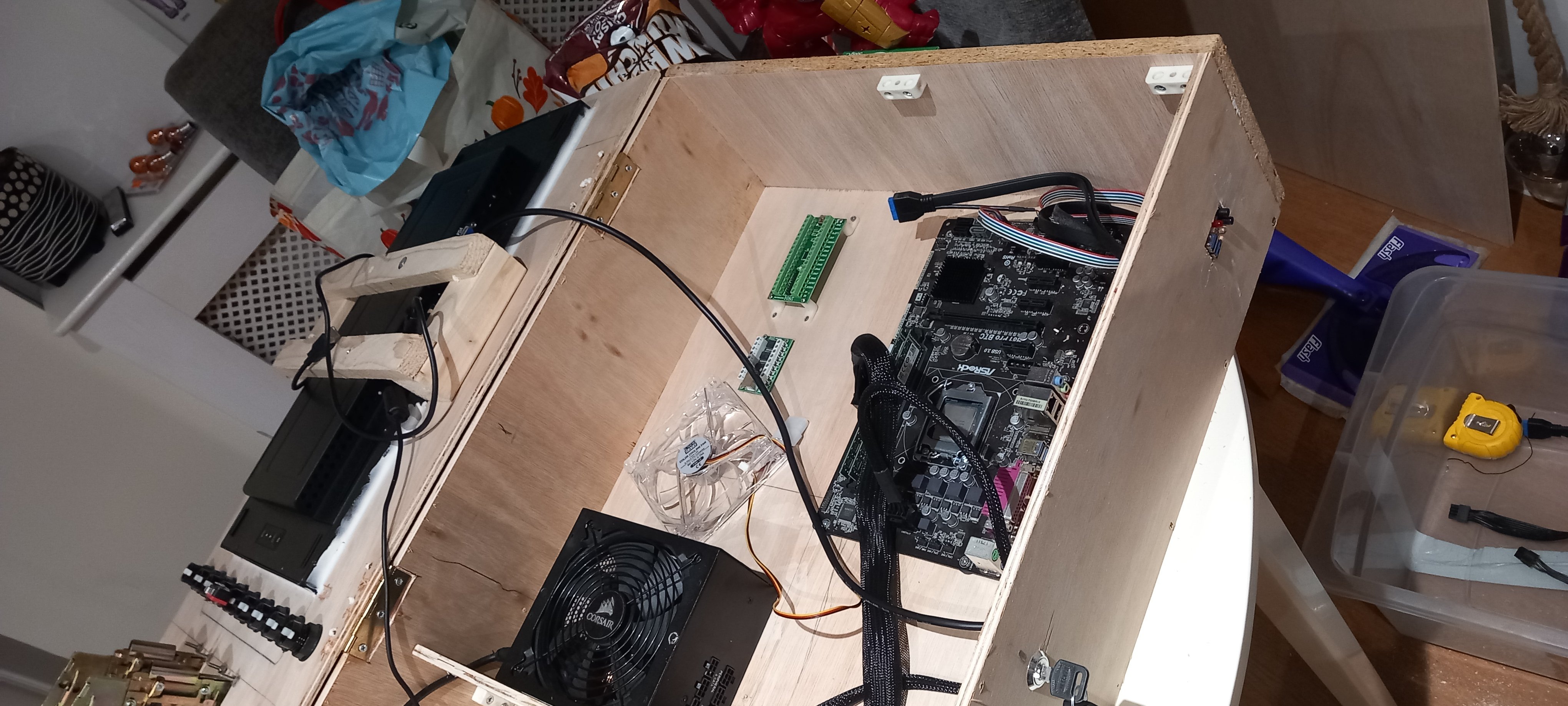

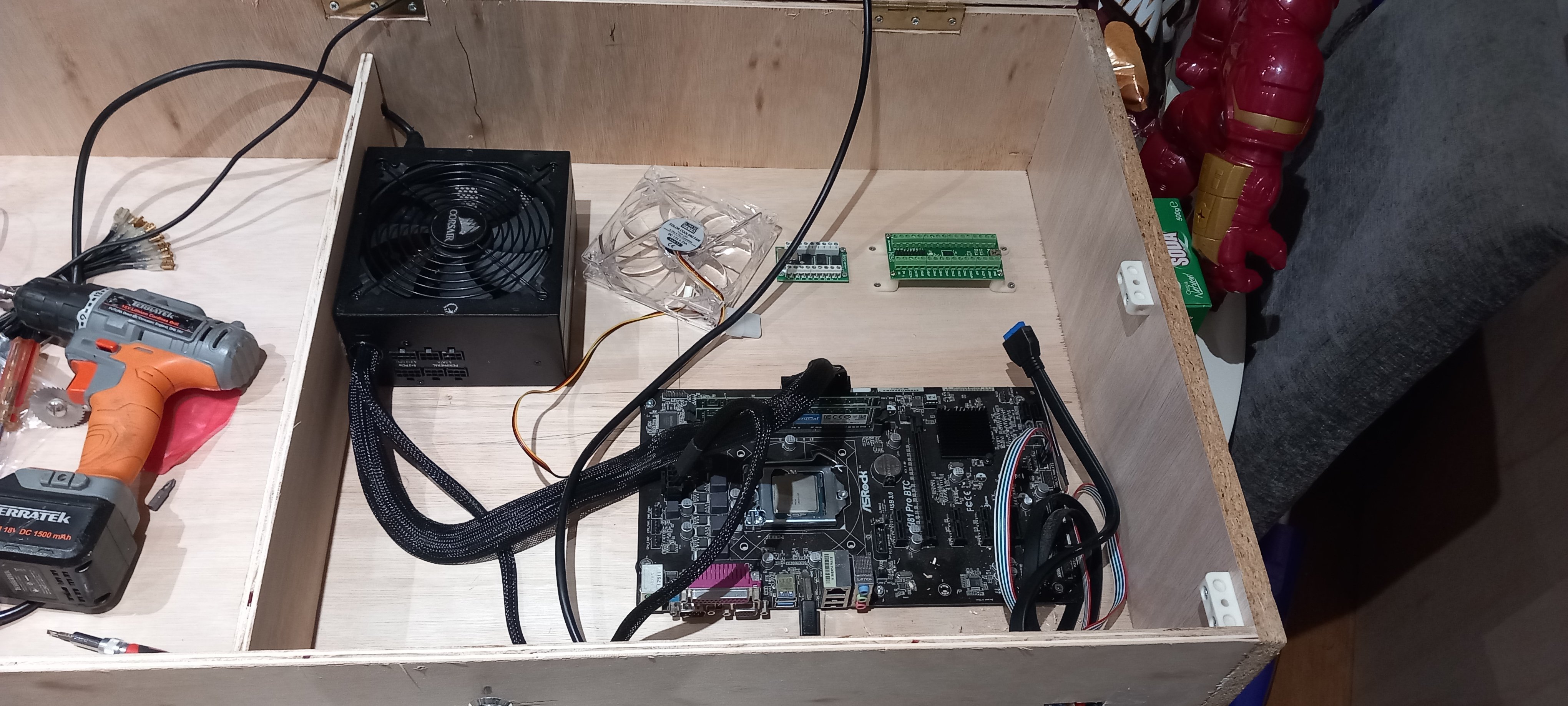

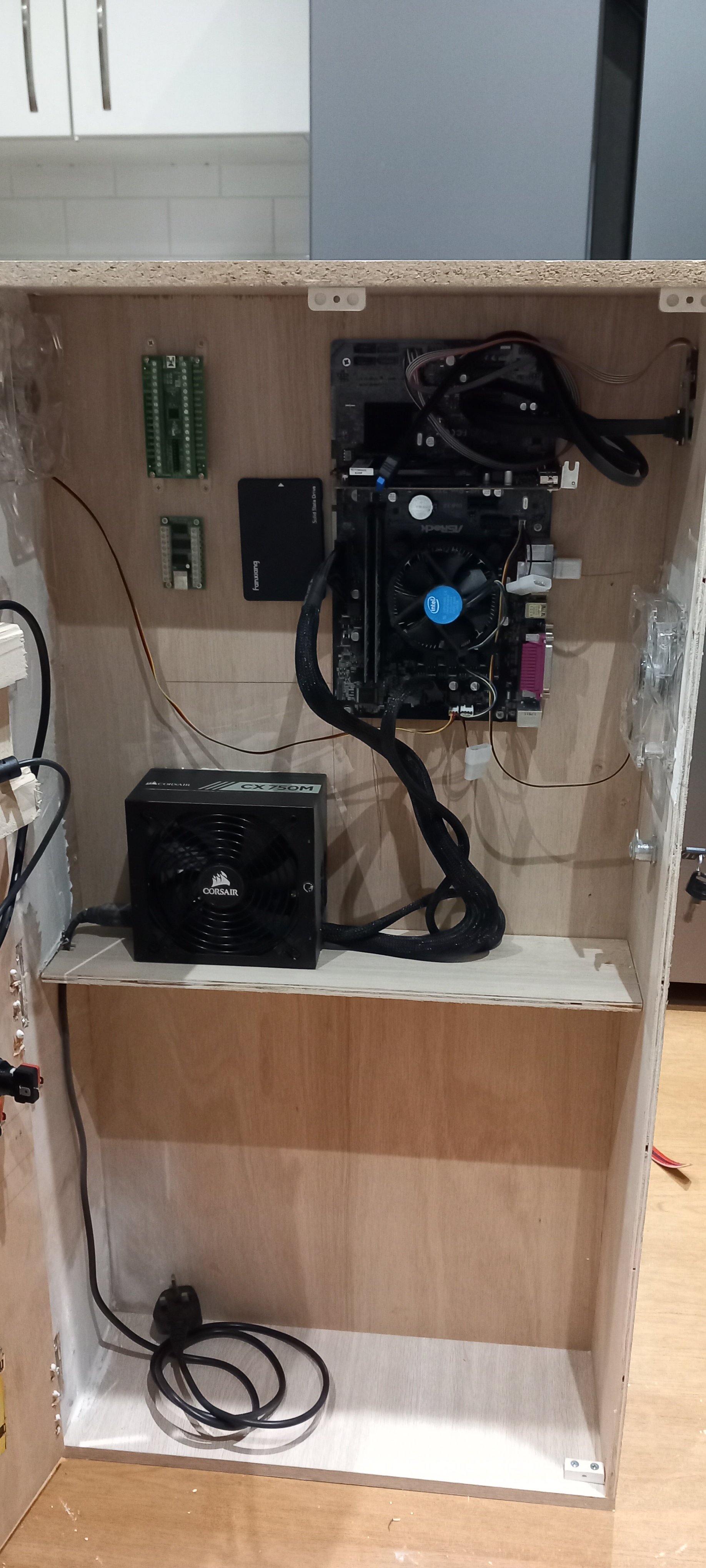

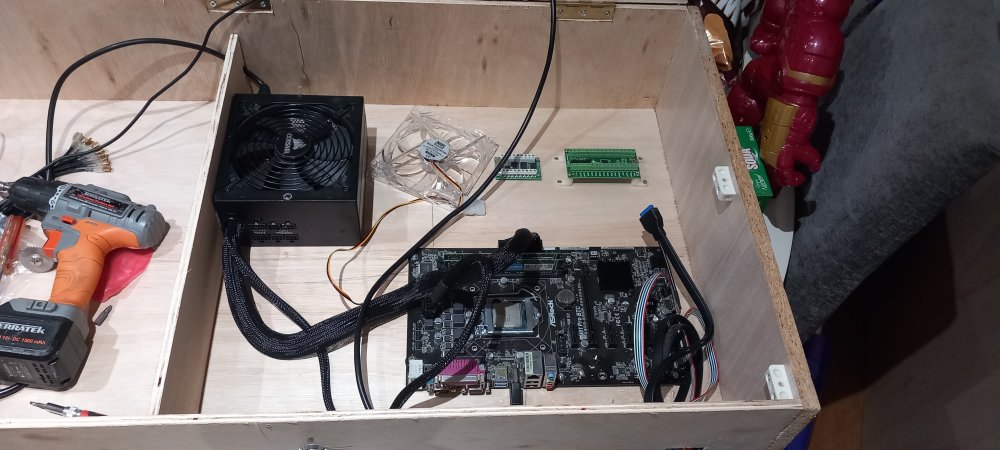

Road Hog Mad Posted January 14, 2023 Author Report Share Posted January 14, 2023 A little more process this afternoon Installing some wires etc. A redundant i3 8gb motherboard, already have a 128gb ssd hard drive and 2gb low profile graphics card, did a quick power up and it booted to dos so it looms like it's good. 1 1 Link to comment Share on other sites More sharing options...
MPU_FIVE Posted January 14, 2023 Report Share Posted January 14, 2023 Wow, that looks awesome @Road Hog Mad!!!! .... I did wonder how you'd get a computer to fit in such a thin cab but the pictures have already answered that question.... bloody amazing job there, matey! Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 14, 2023 Author Report Share Posted January 14, 2023 6 minutes ago, MPU_FIVE said: Wow, that looks awesome @Road Hog Mad!!!! .... I did wonder how you'd get a computer to fit in such a thin cab but the pictures have already answered that question.... bloody amazing job there, matey! I'll do a video when it's all done but it'll be muted as I sound odd. Scouse, Wooly Back Oldhamer. Link to comment Share on other sites More sharing options...
MPU_FIVE Posted January 15, 2023 Report Share Posted January 15, 2023 10 hours ago, Road Hog Mad said: I'll do a video when it's all done but it'll be muted as I sound odd. Scouse, Wooly Back Oldhamer. Ahhh we gotta have commentary, matey!!! Besides - it's interesting to hear what people sound like with their different regional accents! Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 15, 2023 Author Report Share Posted January 15, 2023 Remember Brookside? Link to comment Share on other sites More sharing options...
uptown47 Posted January 15, 2023 Report Share Posted January 15, 2023 3 hours ago, Road Hog Mad said: Remember Brookside? Calm down calm down... Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 15, 2023 Author Report Share Posted January 15, 2023 (edited) 8 minutes ago, uptown47 said: Calm down calm down... Yeah like that but with an Oldham twang. I could just subtitle it, couldn't I? I've got 2 large cooling fans so will probably put them in after. One lower than the other so it gets good air flow, also the motherboard has spacers which probably can't be seen. I've ordered some chrome sticky stuff off flebay too (to finish it off nicely) so I'll put that around the monitor when painted as I was pissed whilst using the jigsaw. Edited January 15, 2023 by Road Hog Mad Stewpid Link to comment Share on other sites More sharing options...

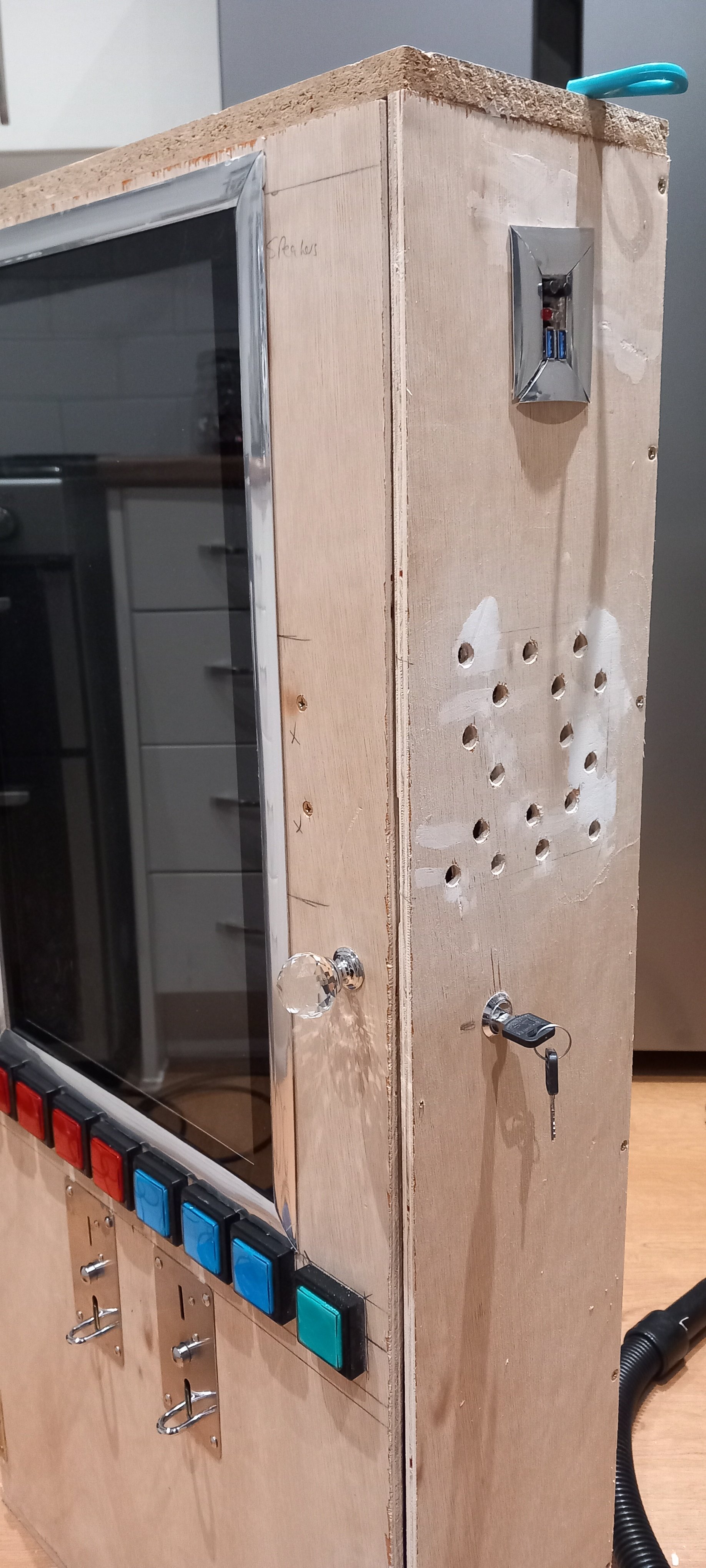

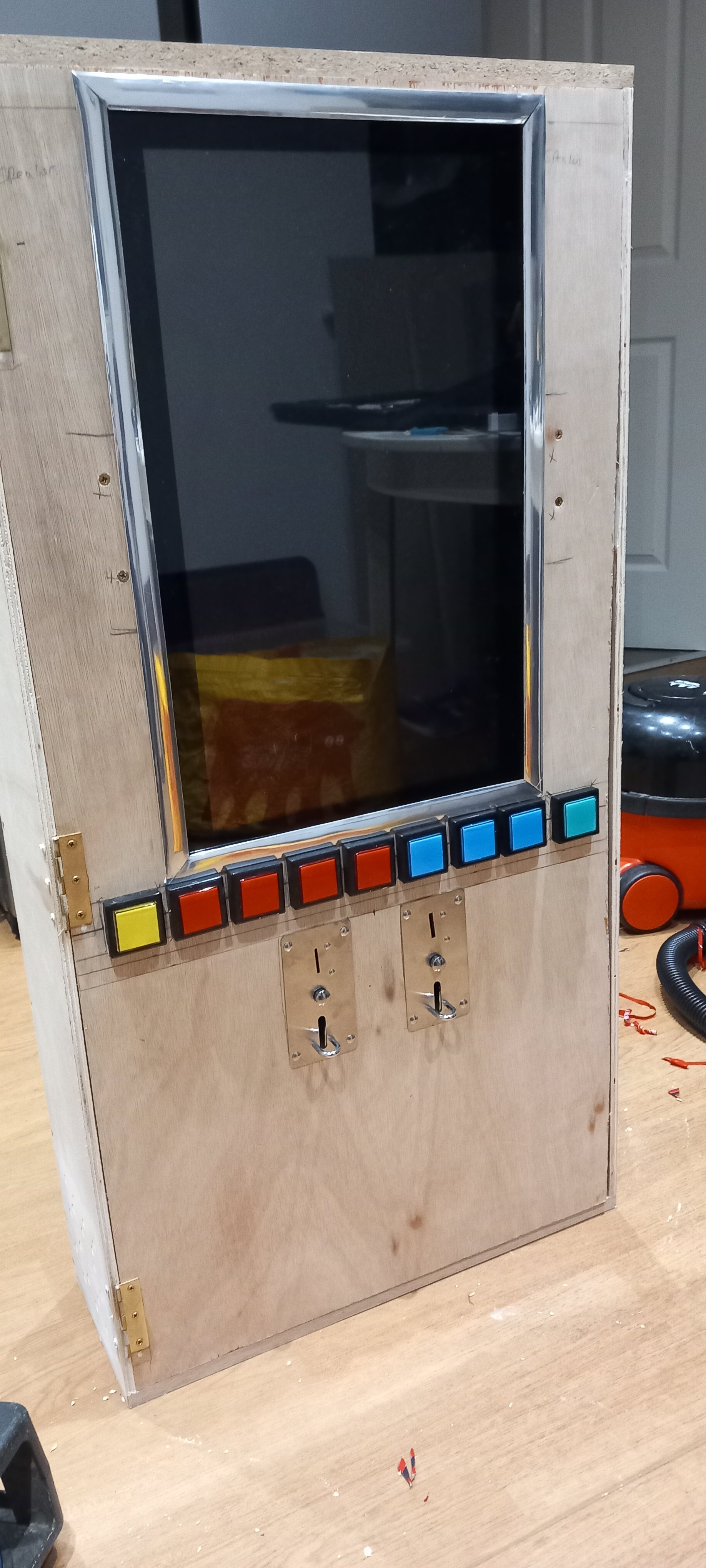

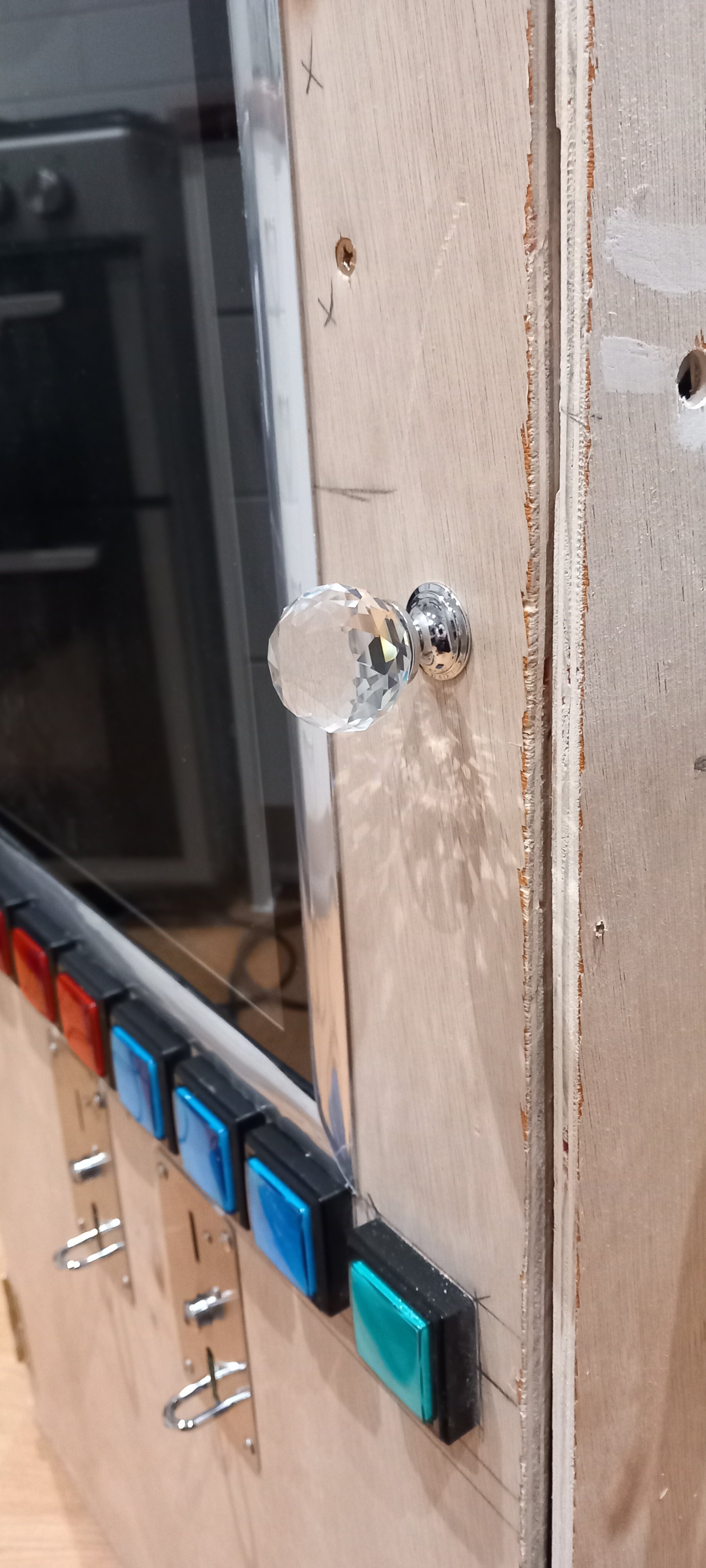

Road Hog Mad Posted January 17, 2023 Author Report Share Posted January 17, 2023 Bit of chrome surround to hide my crud cutting out and a little more progress inside. 1 Link to comment Share on other sites More sharing options...

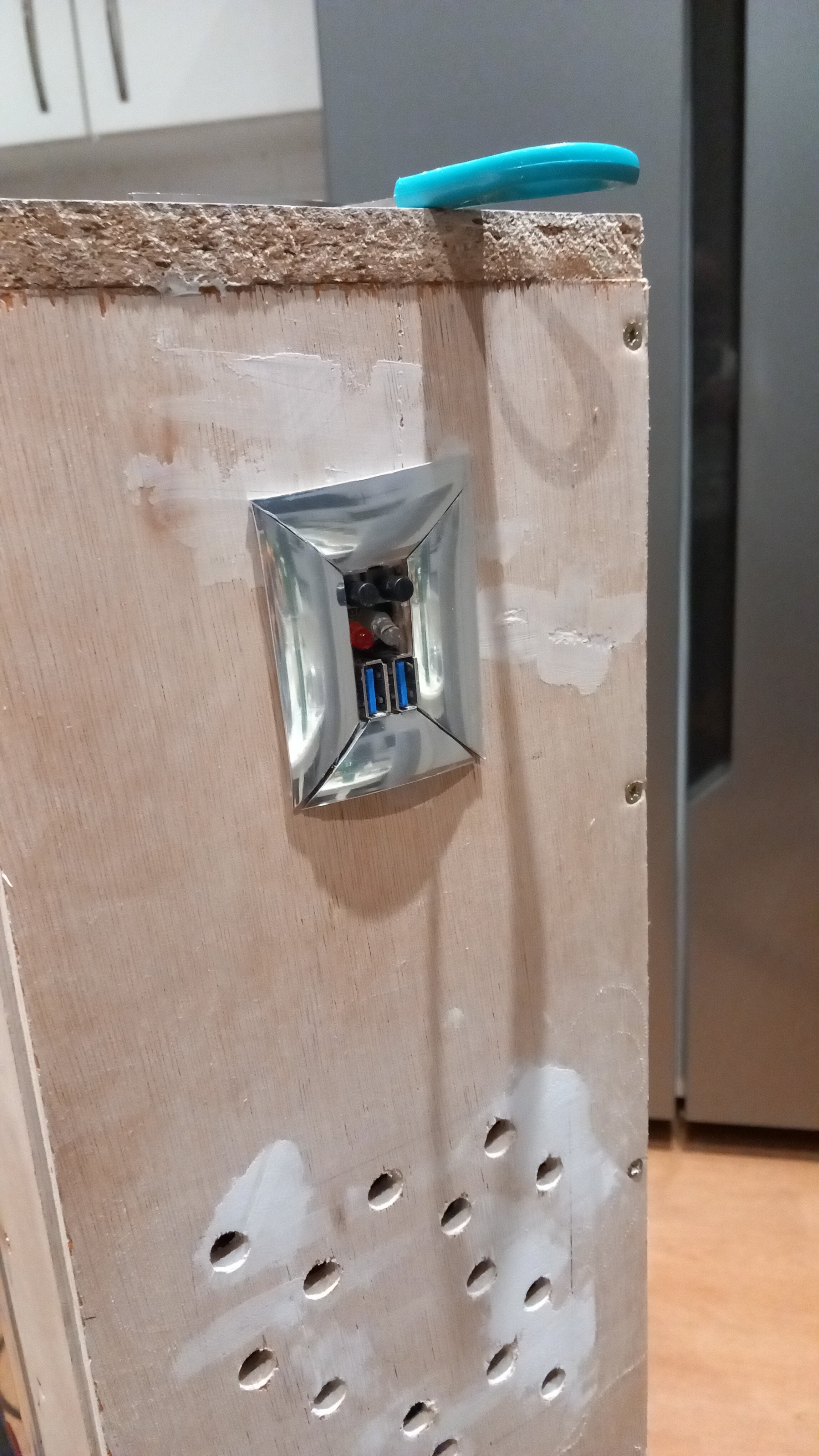

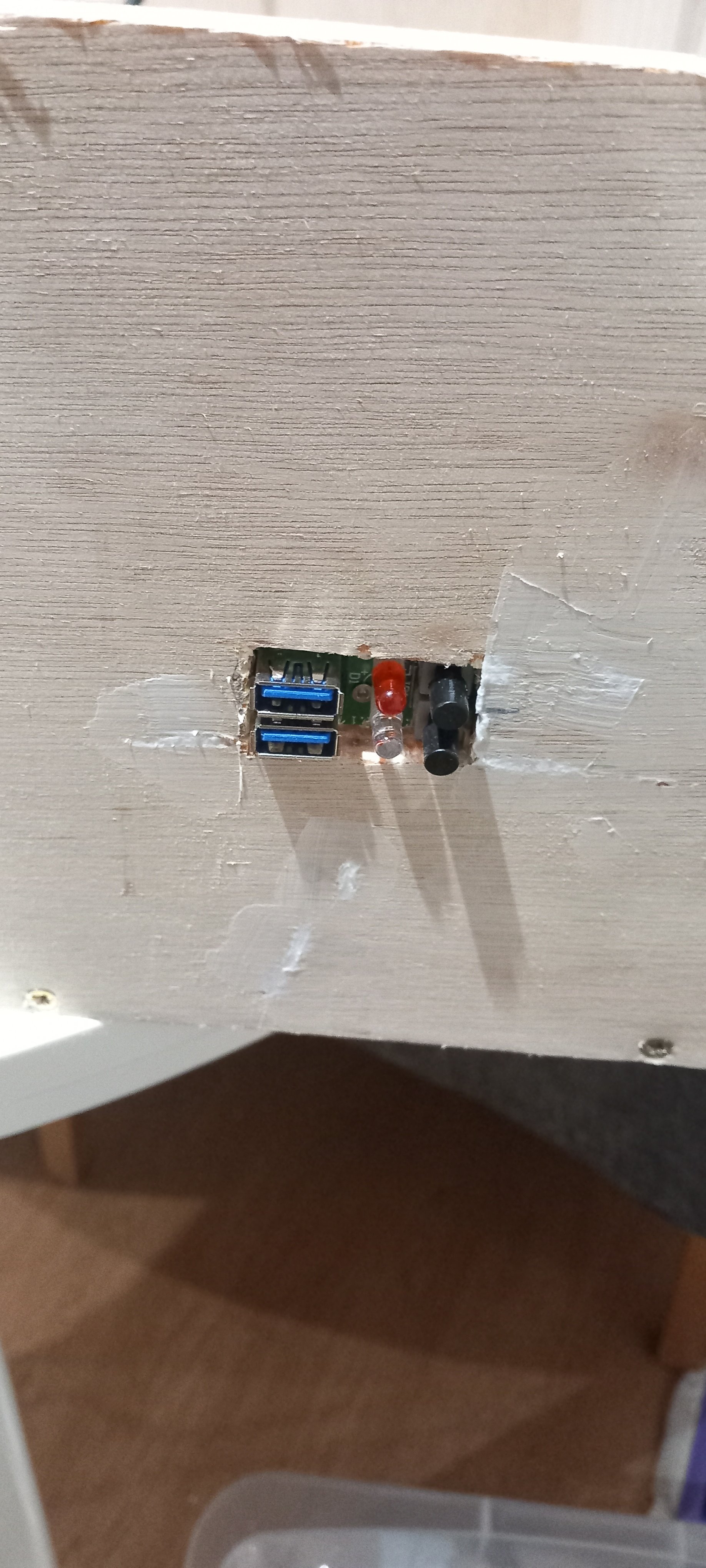

Road Hog Mad Posted January 17, 2023 Author Report Share Posted January 17, 2023 And for those who lost a crystal in the maze ... Turned the crud power on off/usb thing in to something a bit fancier. Holes are for the fans. Link to comment Share on other sites More sharing options...
