Fruity Nut Posted February 20, 2024 Report Share Posted February 20, 2024 Gary will probably know this one... So on a game such as Viva Espana which has separate Hi and Lo buttons. I have edited the layout to use the Hi and Lo on my cabinets Hold buttons which works fine but how do I get them to flash when the Hi and Lo should flash in game but still flash when the holds should flash, essentially sharing the same buttons? Is this possible? Link to comment Share on other sites More sharing options...
Ginge Posted February 20, 2024 Report Share Posted February 20, 2024 Not sure if this is how but at a guess I’d say add the lamp numbers from the single hi lo buttons to the buttons you want use. each button can be allocated two lamps in pacdrive settings lamp 1 and lamp 2, so if hold is say lamp 36 and the hi button is 48 insert lamp 36 as lamp 1 and 48 as lamp 2. Not on laptop at moment so can’t double check if this is how it’s done. Link to comment Share on other sites More sharing options...
Fruity Nut Posted February 20, 2024 Author Report Share Posted February 20, 2024 (edited) 7 minutes ago, Ginge said: Not sure if this is how but at a guess I’d say add the lamp numbers from the single hi lo buttons to the buttons you want use. each button can be allocated two lamps in pacdrive settings lamp 1 and lamp 2, so if hold is say lamp 36 and the hi button is 48 insert lamp 36 as lamp 1 and 48 as lamp 2. Not on laptop at moment so can’t double check if this is how it’s done. I think I tried that but not too sure how to do it correctly in edit, design. I managed to get them to work but it stopped them flashing when hold should normally flash. Edited February 20, 2024 by Fruity Nut Link to comment Share on other sites More sharing options...
Ginge Posted February 20, 2024 Report Share Posted February 20, 2024 Just tried on my bar top cabinet with viva Espana and that is how to do it. Link to comment Share on other sites More sharing options...
Ginge Posted February 20, 2024 Report Share Posted February 20, 2024 Link to comment Share on other sites More sharing options...
Ginge Posted February 20, 2024 Report Share Posted February 20, 2024 Lamp 33 is hi and lamp 34 is lo. So go configuration/pacdrive whatever button you have for your hold/hi button add lamp 33 in lamp 2 and then add lamp 34 to lamp 2 on whatever button you have as hold/lo. Hope this makes sense Link to comment Share on other sites More sharing options...
Fruity Nut Posted February 20, 2024 Author Report Share Posted February 20, 2024 29 minutes ago, Ginge said: Just tried on my bar top cabinet with viva Espana and that is how to do it. Great thank you I will give it another go Link to comment Share on other sites More sharing options...
Ginge Posted February 21, 2024 Report Share Posted February 21, 2024 21 hours ago, Fruity Nut said: Great thank you I will give it another go Did you manage to sort this out ? Link to comment Share on other sites More sharing options...
Fruity Nut Posted February 21, 2024 Author Report Share Posted February 21, 2024 4 hours ago, Ginge said: Did you manage to sort this out ? I haven't had a chance. I'm hoping to do tomorrow as wiring up some new buttons Link to comment Share on other sites More sharing options...

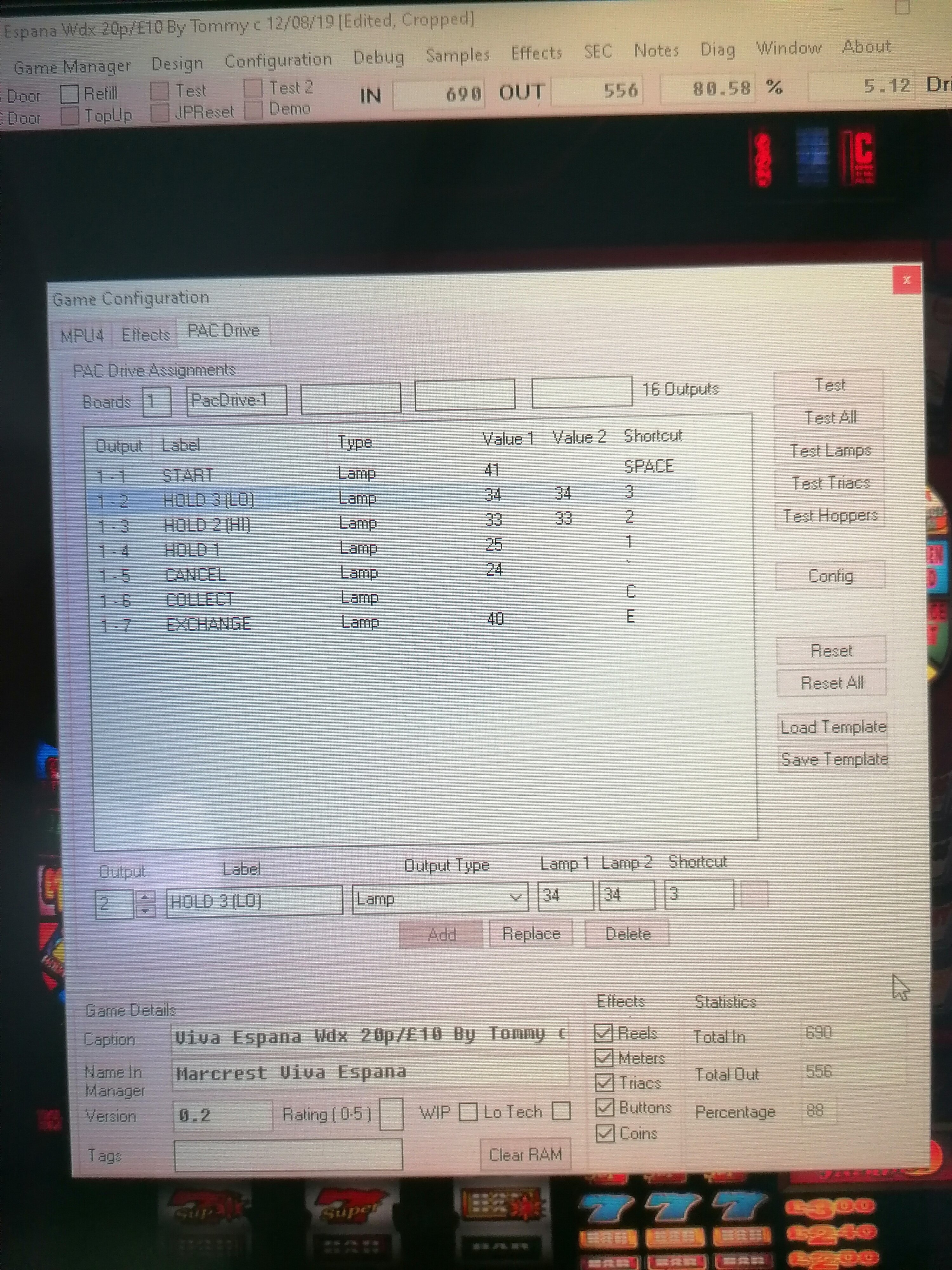

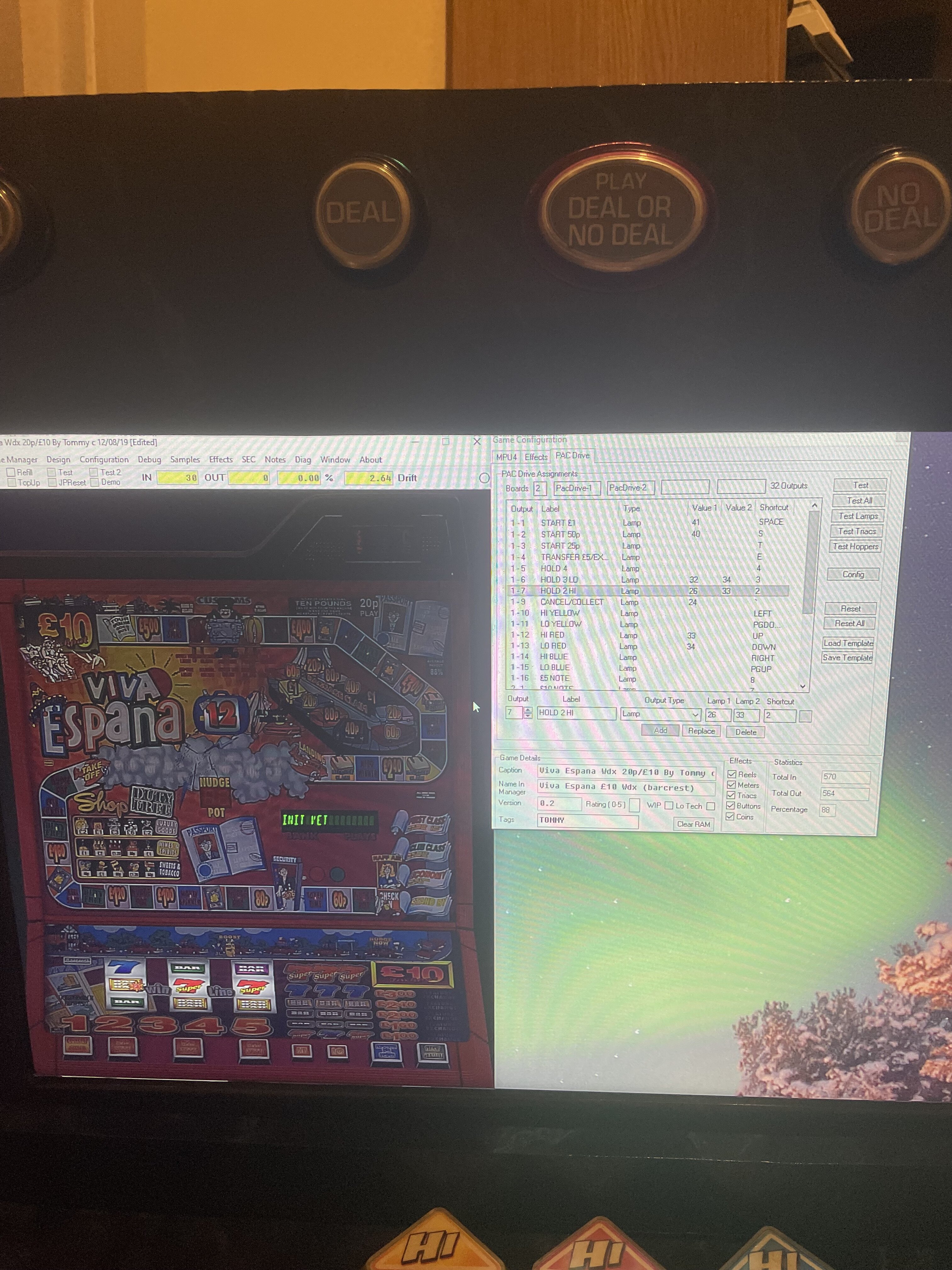

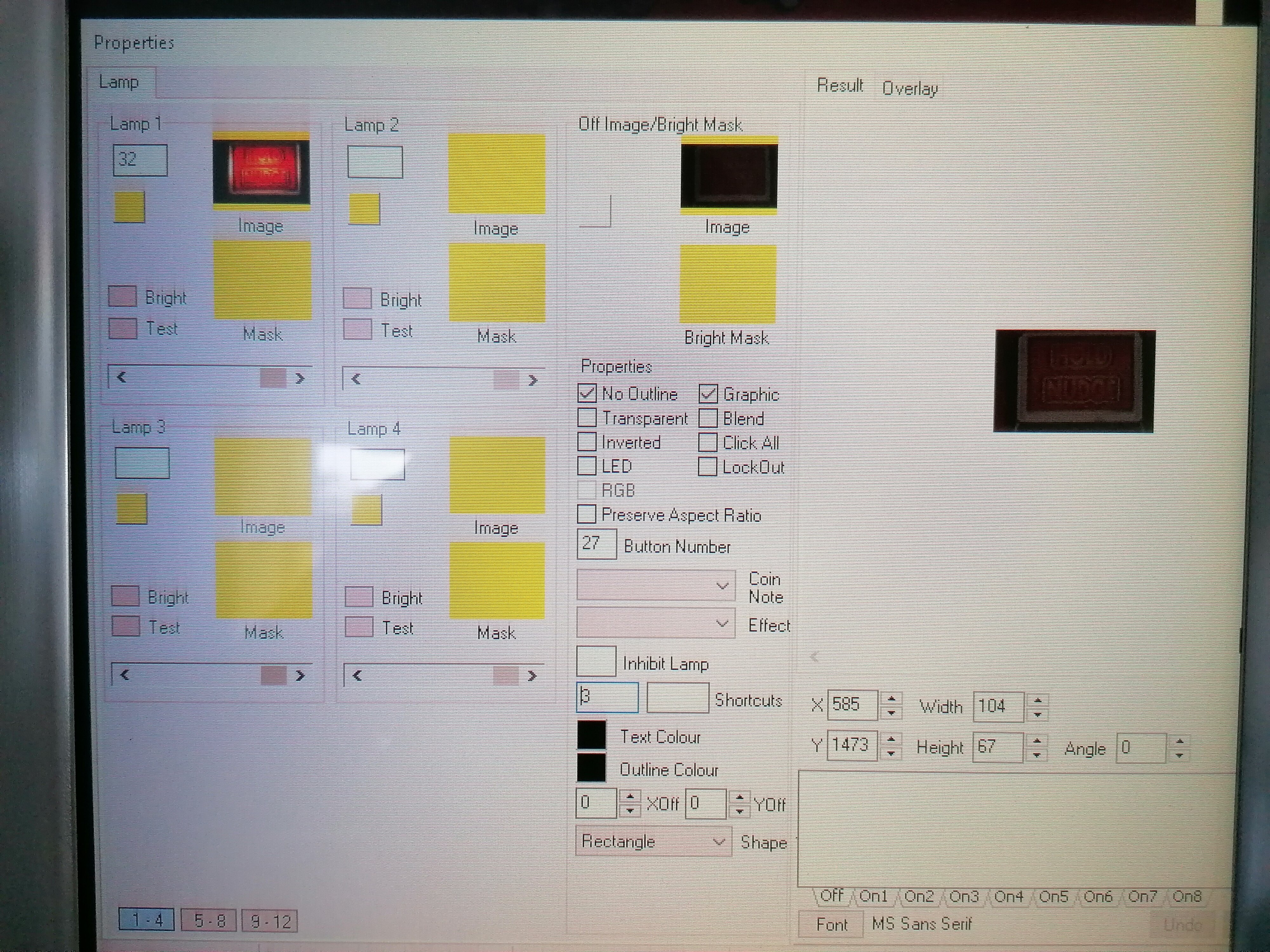

Fruity Nut Posted February 22, 2024 Author Report Share Posted February 22, 2024 18 hours ago, Ginge said: Did you manage to sort this out ? Okay so added the lamps as you said which makes them light when Hi and Lo flashes but they now they do not flash with regular holds. Holds still hold tho. Please see pics. Thank again Link to comment Share on other sites More sharing options...

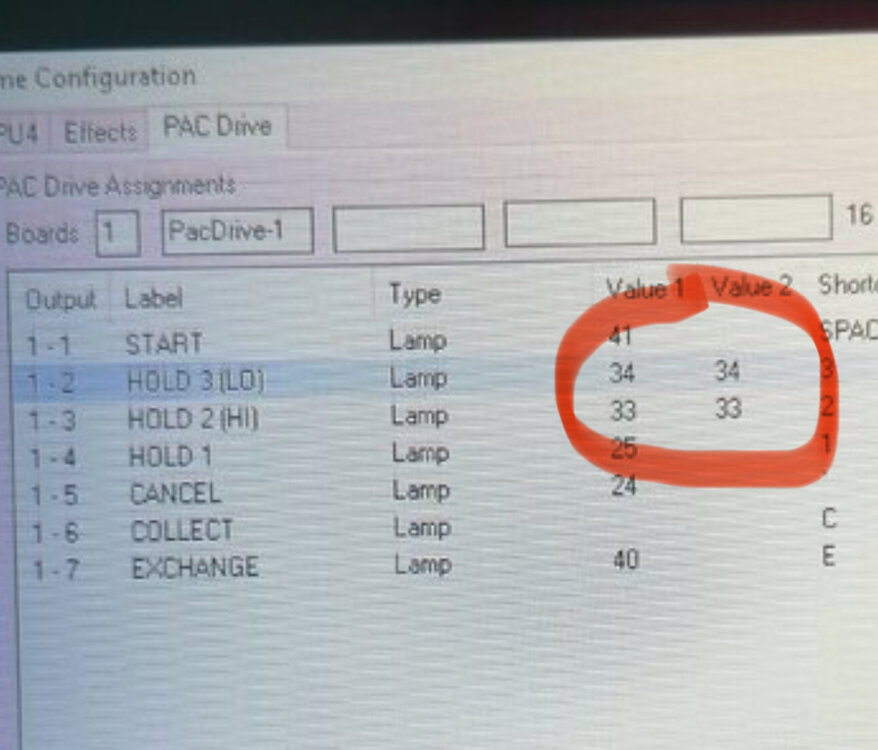

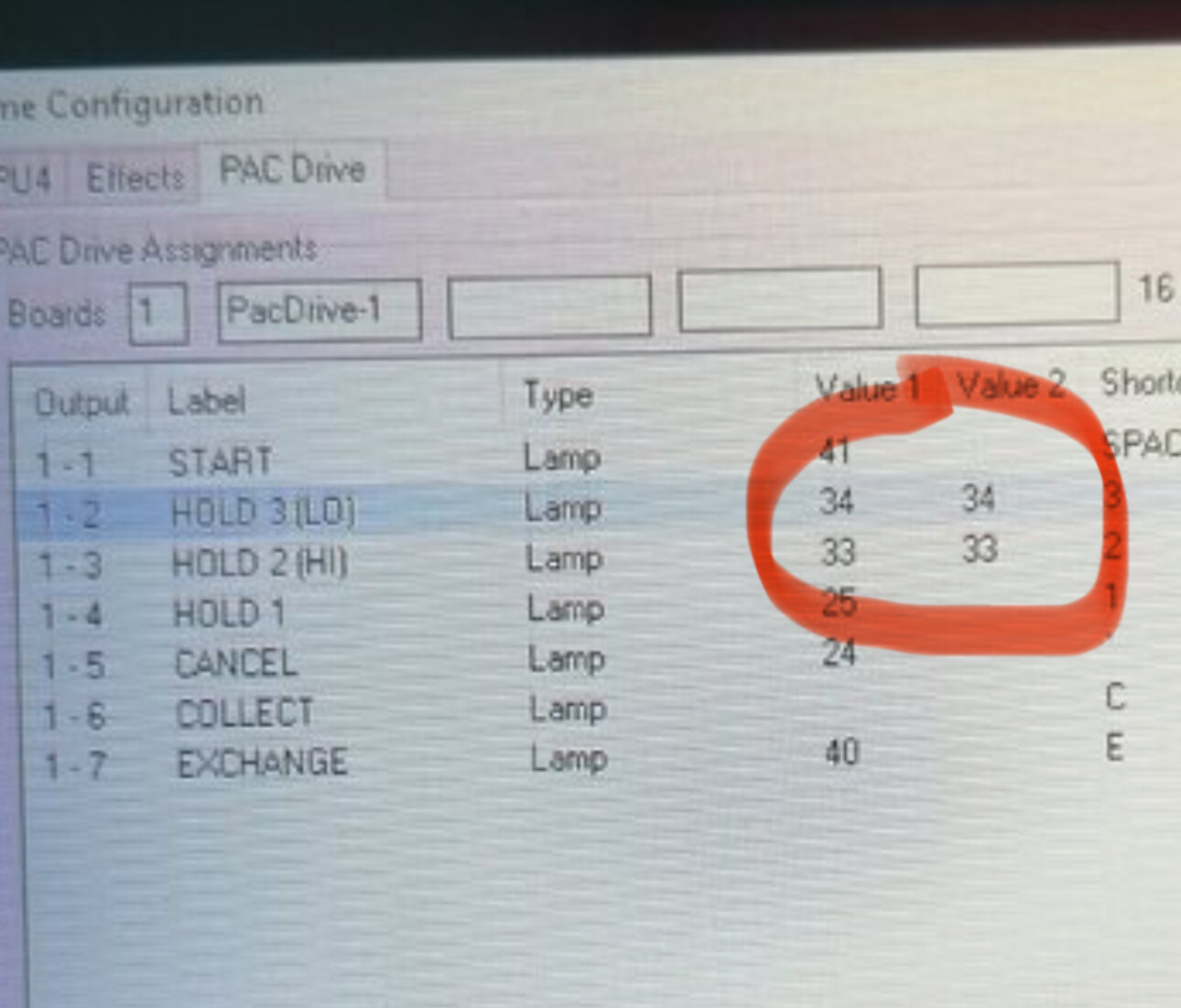

Martinb Posted February 22, 2024 Report Share Posted February 22, 2024 (edited) That layout has its own dedicated hi lo buttons so that’s likely the problem as you said - I’ll have a tinker on mine too as that’s an interesting one you seem to have duplicated the lamp number tho? Edited February 22, 2024 by Martinb Link to comment Share on other sites More sharing options...
Fruity Nut Posted February 22, 2024 Author Report Share Posted February 22, 2024 Right sorted! it was me! I was going to edit to assign the hi and Lo buttons after the lamp settings then clicking config on pac drive settings as felt I needed to save but that seems to duplicate the numbers like you said. Thank you very much guys 1 Link to comment Share on other sites More sharing options...
Ginge Posted February 22, 2024 Report Share Posted February 22, 2024 41 minutes ago, Martinb said: you seem to have duplicated the lamp number tho? That would have been the problem lamp 1 needed to be lamp number for the hold buttons. 22 minutes ago, Fruity Nut said: it was me! I know the feeling . 1 Link to comment Share on other sites More sharing options...
Martinb Posted February 22, 2024 Report Share Posted February 22, 2024 45 minutes ago, Ginge said: I know the feeling . So do I 1 Link to comment Share on other sites More sharing options...
