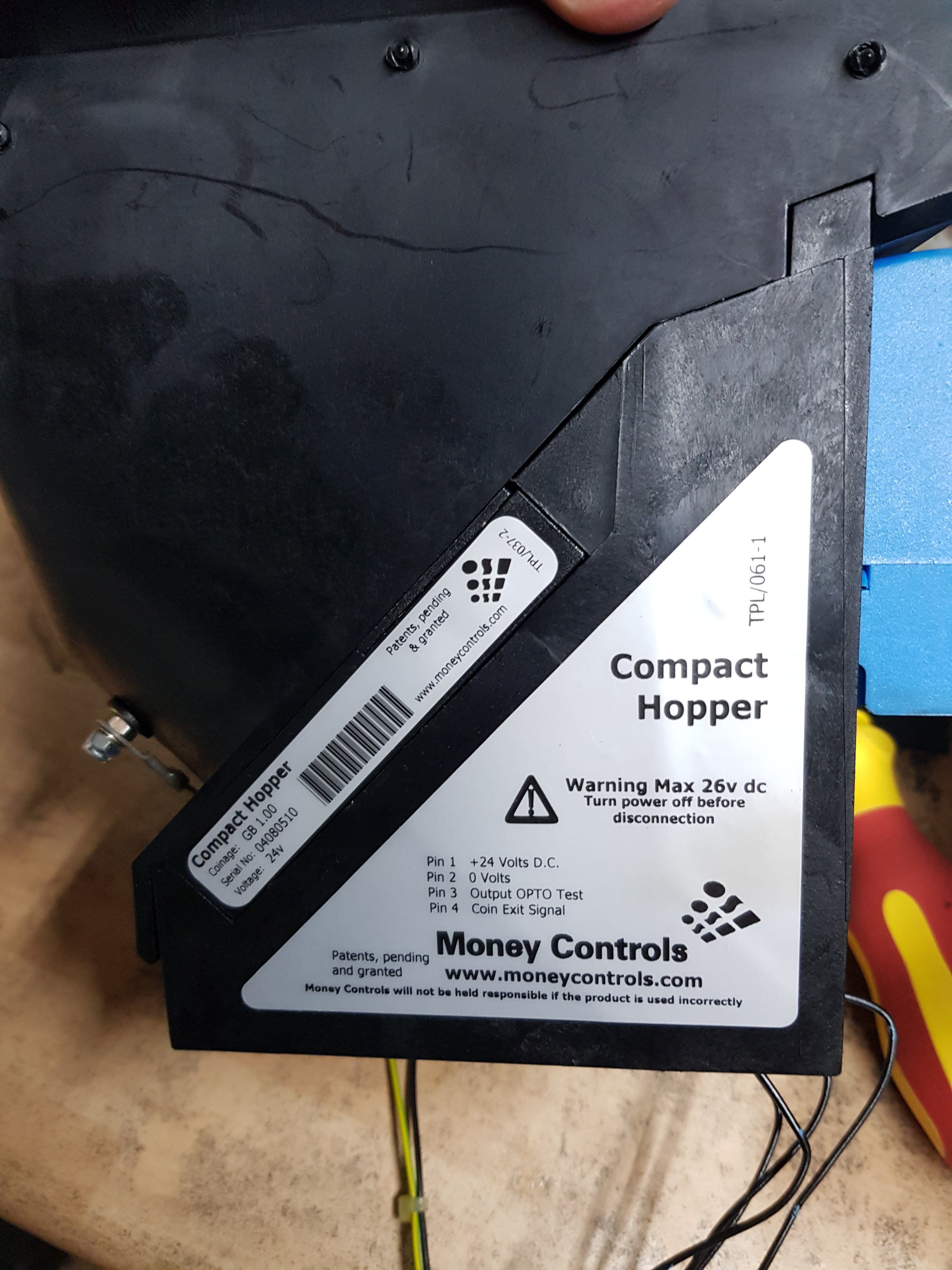

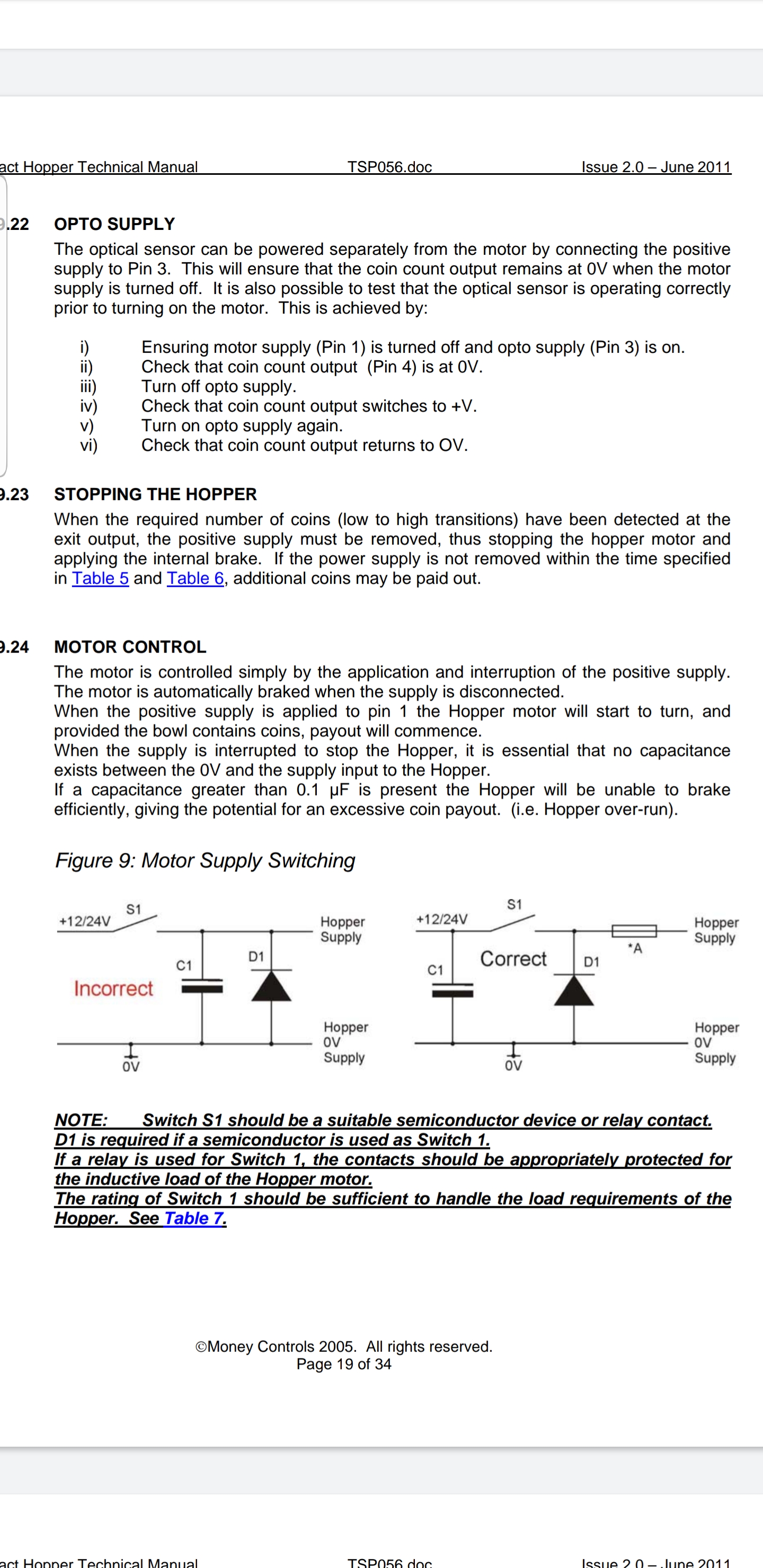

gareth_iowc 12 Posted January 7 Report Share Posted January 7 Can anyone help me get this hopper running? I've connected pin 1 to 24v and pin 2 to 0. Pin 3 and 4 aren't connected. Was running when in a machine that i no longer have to test. If im understanding the manual correct i just need to apply power for it to start spinning but i does not. Gears and motor are free to move. I get a small jolt of movements when turning on sometimes Link to post Share on other sites
Amusements 916 Posted January 8 Report Share Posted January 8 Do you have enough Ampage running? See if there is a minimum amount needed in the manual. Treat every day like your last, because one day it will be! Link to post Share on other sites

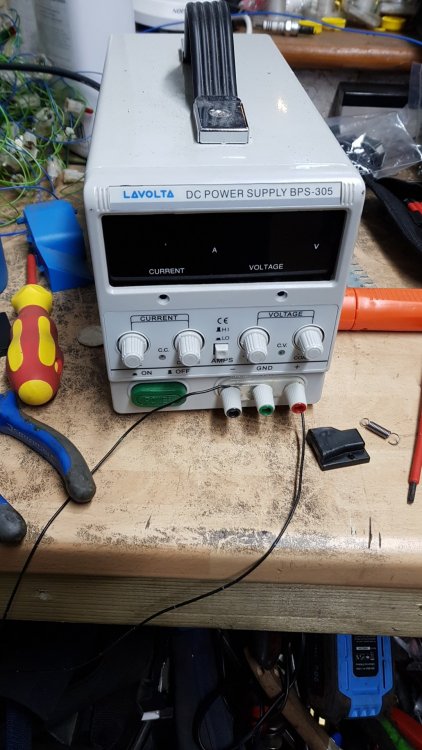

gareth_iowc 12 Posted January 8 Author Report Share Posted January 8 This is the power supply with a maximum of 5 amps. At the time of photo it was set to low amps but i changed that. Link to post Share on other sites

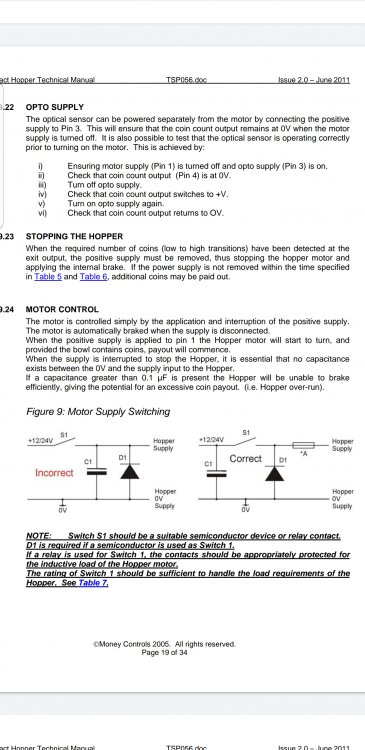

Amusements 916 Posted January 8 Report Share Posted January 8 It mentions an internal brake. If you are powering the motor, and you are getting a judder, then it may be that. If your still having problems with it. Try posting on fruitemu.co.uk. I think someone from coin control recently joined there? Treat every day like your last, because one day it will be! Link to post Share on other sites

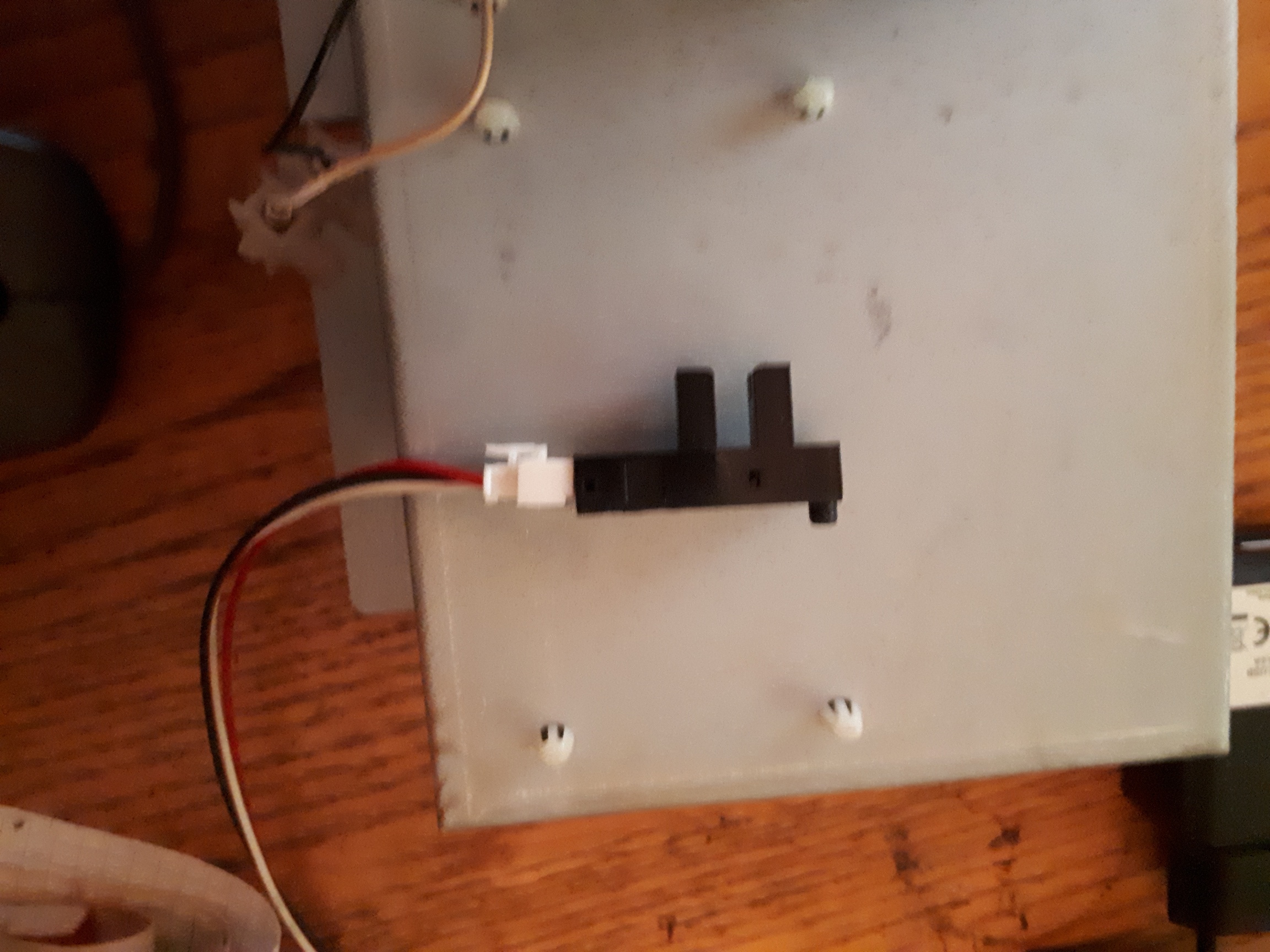

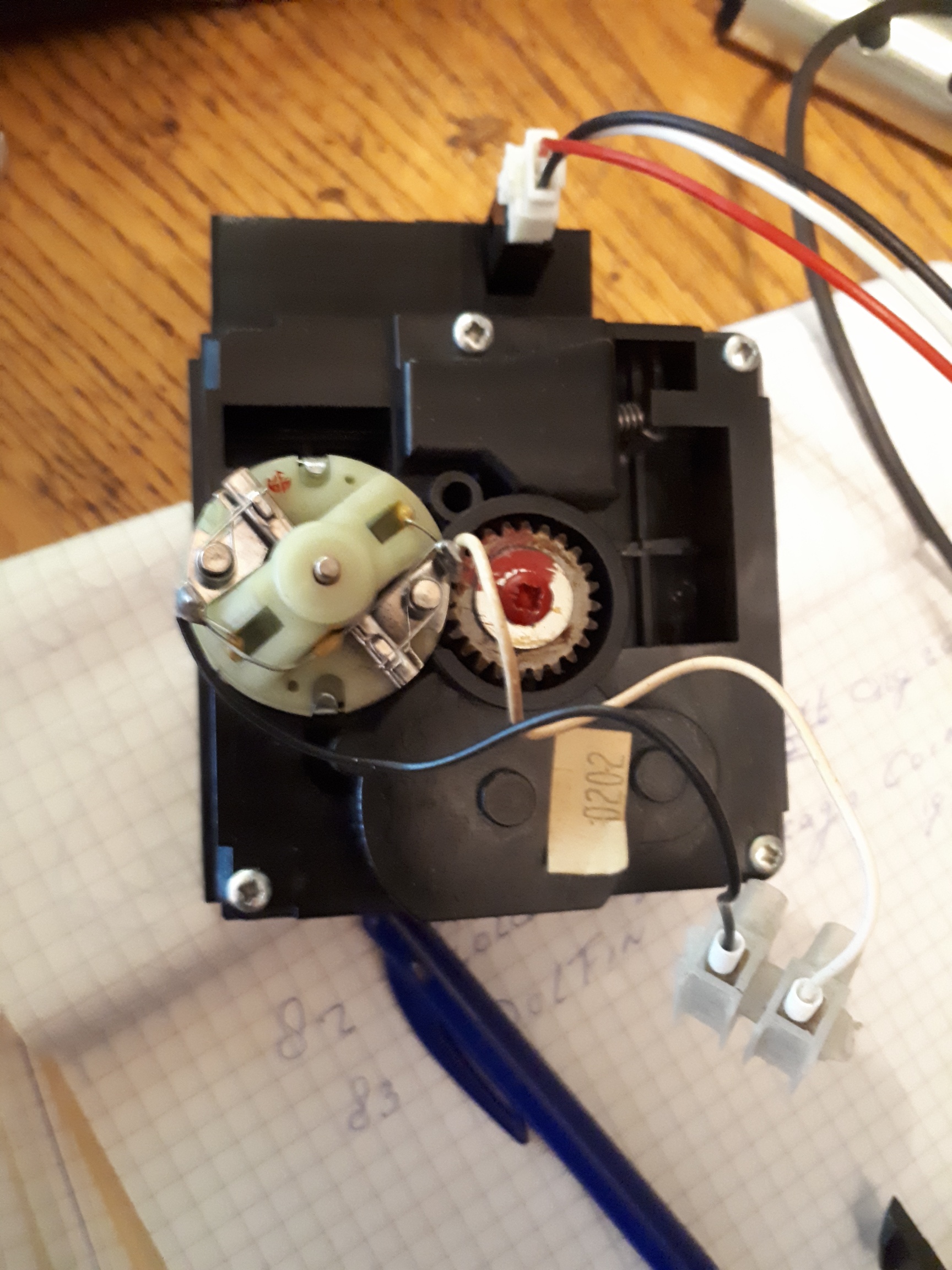

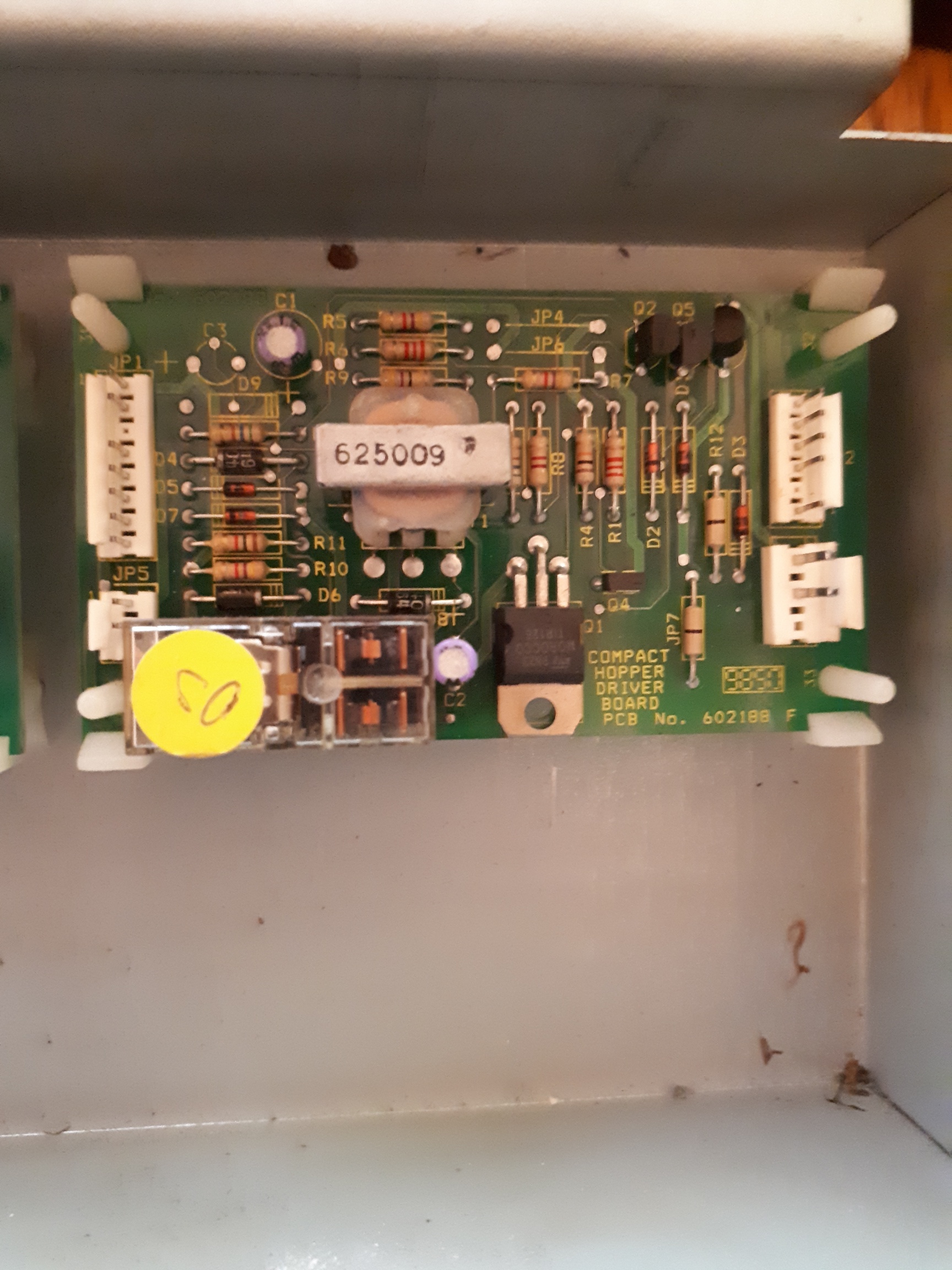

albert 9 Posted January 8 Report Share Posted January 8 Hello All I had the same problem, that hopper need a hopper driver board , i take out the pcb from the hopper, and connect the motor to 24 volt(black=+24 volt white=0),and i order a coincounter at aliexpress ,the coinoutput have i 3d printed. Great Bert 1 Link to post Share on other sites
davep180 243 Posted Wednesday at 15:52 Report Share Posted Wednesday at 15:52 I had one of the hoppers in @gareth_iowc post. The problem I had was stopping the b*stard! As soon as it was connected to power, it just ran. I still have it if you think you can use it for anything. I ended up with a MK4 and Azkoyen mix, and I had to use @WibbleWobble's expertise to get that far! Good luck in your quest! Link to post Share on other sites

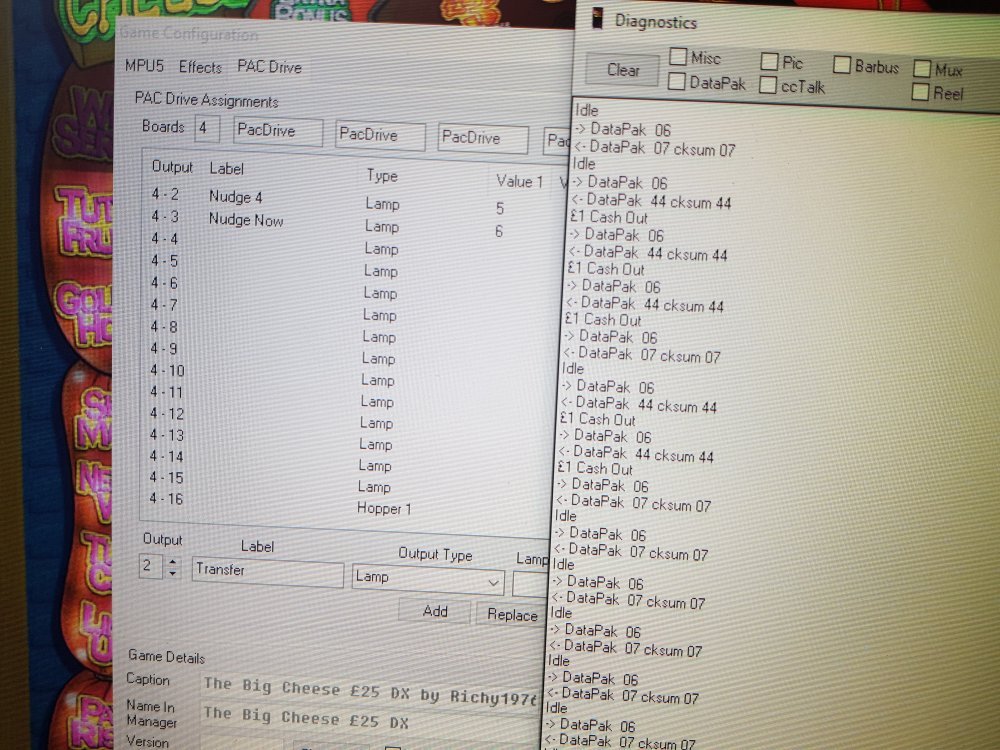

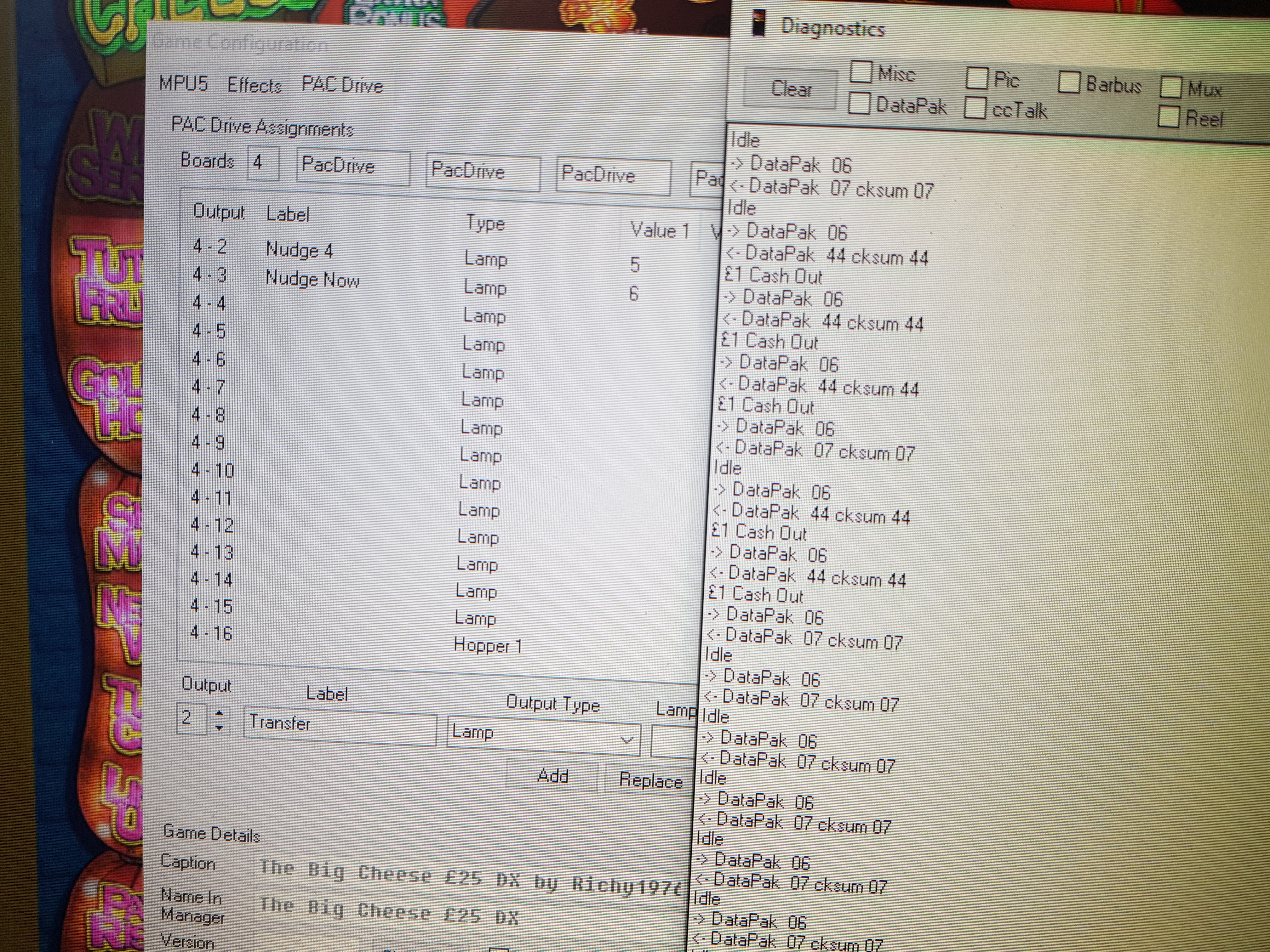

Amusements 916 Posted Thursday at 05:03 Report Share Posted Thursday at 05:03 12 hours ago, davep180 said: I had one of the hoppers in @gareth_iowc post. The problem I had was stopping the b*stard! As soon as it was connected to power, it just ran. I still have it if you think you can use it for anything. I ended up with a MK4 and Azkoyen mix, and I had to use @WibbleWobble's expertise to get that far! Good luck in your quest! That should work fine without the trigger board on MFME so long as you put the opto sensor back on it. Use a 5v relay to connect the power to the motor (cut into = + or - to the hopper) trigger the relay via the Pacdrive from outputs 15 or 16, and then use another 5v relay to trigger "[" or "]" on the Ipac from the opto sensor which would then cut the power after the correct amount of coins are counted. Example Hopper 1 pin 16 on Pacdrive. [ = coin out sensor. Hopper 2 pin 15 on Pac Drive. ] = coin out sensor 1 Treat every day like your last, because one day it will be! Link to post Share on other sites
