Getting started with a cabinet


PharkieB
 Share

Recommended Posts

I got a big box of goodies from slotsmagic and wondering where to start.



I understand these parts were stripped out of a "Vegas Slots" cabinet https://www.youtube.com/watch?v=30q7q2yoPnA.

I don't have a big cabinet at the moment. Thinking to learn how all the bits work before I get into that.

I have some light-up Bell Fruit buttons on their way from eBay (see attached).

I'm thinking to make a box for the buttons as a "desktop" interface, connected to the iPac 2 (for input) and Pacdrive (for output of lights). Does anyone have experience, tips or designs for that?

I saw similar devices on YouTube without details of the build. I was thinking to head to the local workshop and see if I can assemble something from the scrap pieces of wood. I just need a box, then drill holes to screw the buttons through, then wire them to the iPac2 and Pacdrive, then I'll have USB cables to plug into a PC. Is that right? I don't actually have a Windows PC yet, but MFME runs fine under Parallels Windows emulation.

Then there's the SR5 coin validator the Azkoyen Parallel hopper. How do those connect to MFME, in simple terms?

Where could I find a technical manual for the hopper? I saw someone control a hopper with an Arduino board and that kind of project would be great if I could get it to pay out £x.

Any tips or advice on how to start appreciated!

Screenshot 2024-08-10 at 11.26.45.png

Link to comment
Share on other sites

Glad it all arrived safely! The kit you've got is somewhat overkill for what sounds like an MFME keyboard project, but at least having the correct PACdrive for driving hoppers and whatnot means that when you feel like implementing coins in and out, you are all set. If you need more buttons or anything let me know, I've got boxes of them somewhere and they won't be of any use to me going forward!

Reg (previous forum owner / admin) did a set of instructions here for an MFME keyboard, which would be a good place to start, as it'll show you how the wiring and whatnot are handled. You should have everything you need - the LEDs I've included are 5V white, I think you should have 10 in total so that'll be a start. 5V LEDs can be driven directly from the PACdrive using the power provided over USB. If you go for 12V lamps you need to take more precautions, so don't do that without research :)

As for driving the hopper and stuff - if you are planning on just using MFME to handle coins in and coins out, there is no need for a separate Arduino or anything like that. MFME handles coins in and out via the PACdrive board you now have - all you need to do is provide the hopper with an external 12V power supply. If you are building around a desktop PC, which is what I did, you just use a 12V line from the computer's power supply (hence the fake WAGO connectors you'll find on the loom), and then you have a single PSU to power the PC, hopper, coin mech, buttons and everything. No need for multiple PSUs, relays, or any of that (assuming you stick to a single 12V hopper as I did!).

The only other PSUs I used were for the speaker amplifier (the little power plug for that is in one of the jiffy bags with a loom in it), and the monitors. Everything else was powered from the PC PSU, which was only a 250W bronze rated small form factor unit - so it's not like you need some ridiculous power supply :)

There will be more examples of things like MFME Keyboards - such as this one :
https://www.desertislandfruits.com/forum/index.php?/topic/11737-humble-beginnings-my-mfme-keyboard-a-work-in-progress/  in this subforum, so you are in the right place :)

Again, you already have a loom made up for 7 (I think) buttons, and there's some extra wiring and things included, so hopefully you'll be able to see what I've done and cross-reference with some of the threads mentioned to see how it all works :)

I'll help as much as I can - although I do wish I'd written a manual as I went along :)

Edited by slotsmagic

Happy non-gambler since 1st January 2025!
(if anyone else needs or wants to quit, I recommend Allen Carr's 'Easyway to Stop Gambling'.

Link to comment
Share on other sites

Can anyone explain how the lamp and button work, on these?

Would it be possible to get the button to light up, by providing the right power to the correct terminals? What voltage do they need, and is it the same for the lamp and the button?

Which terminals indicate the switch is "on"?

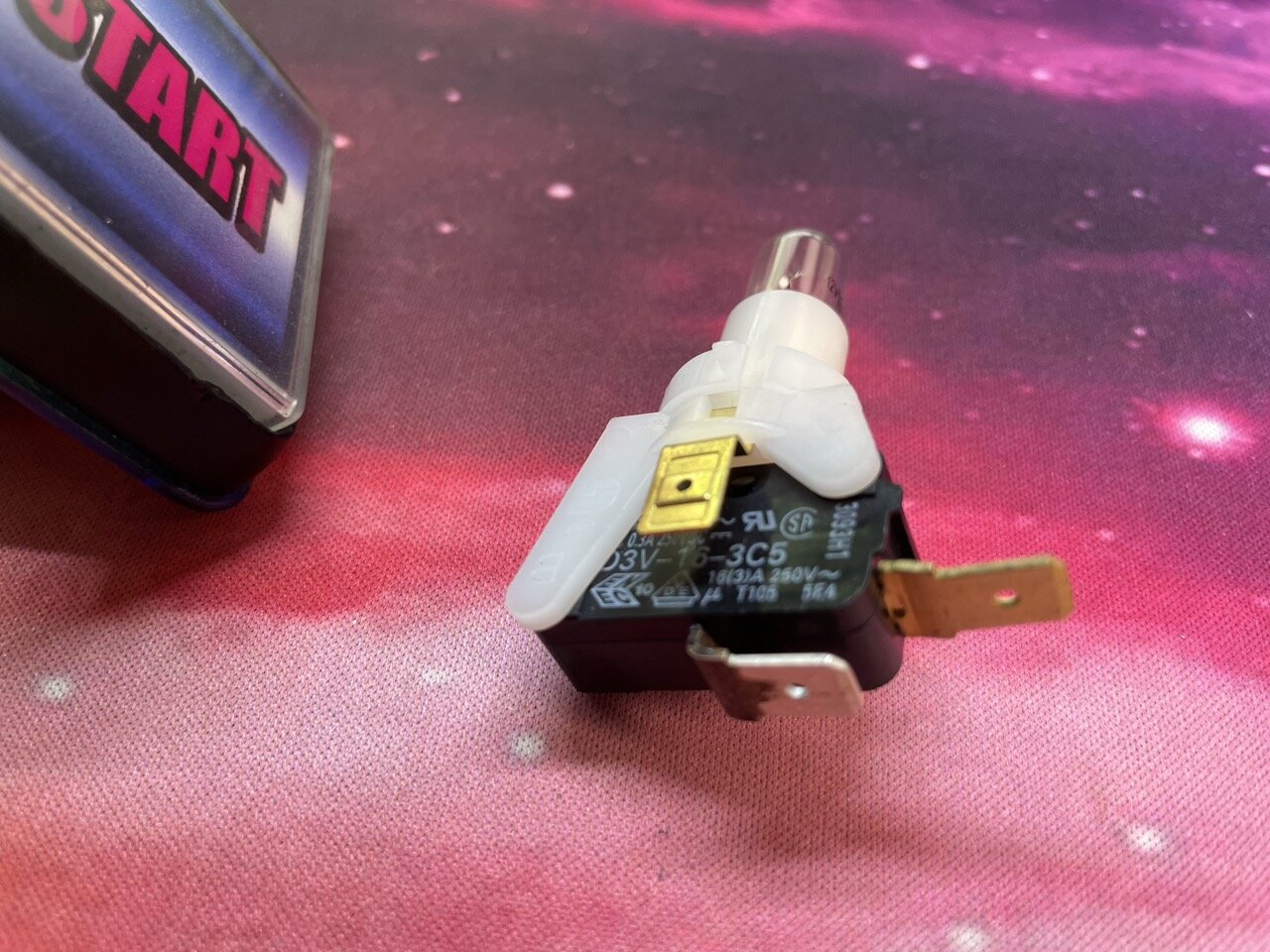

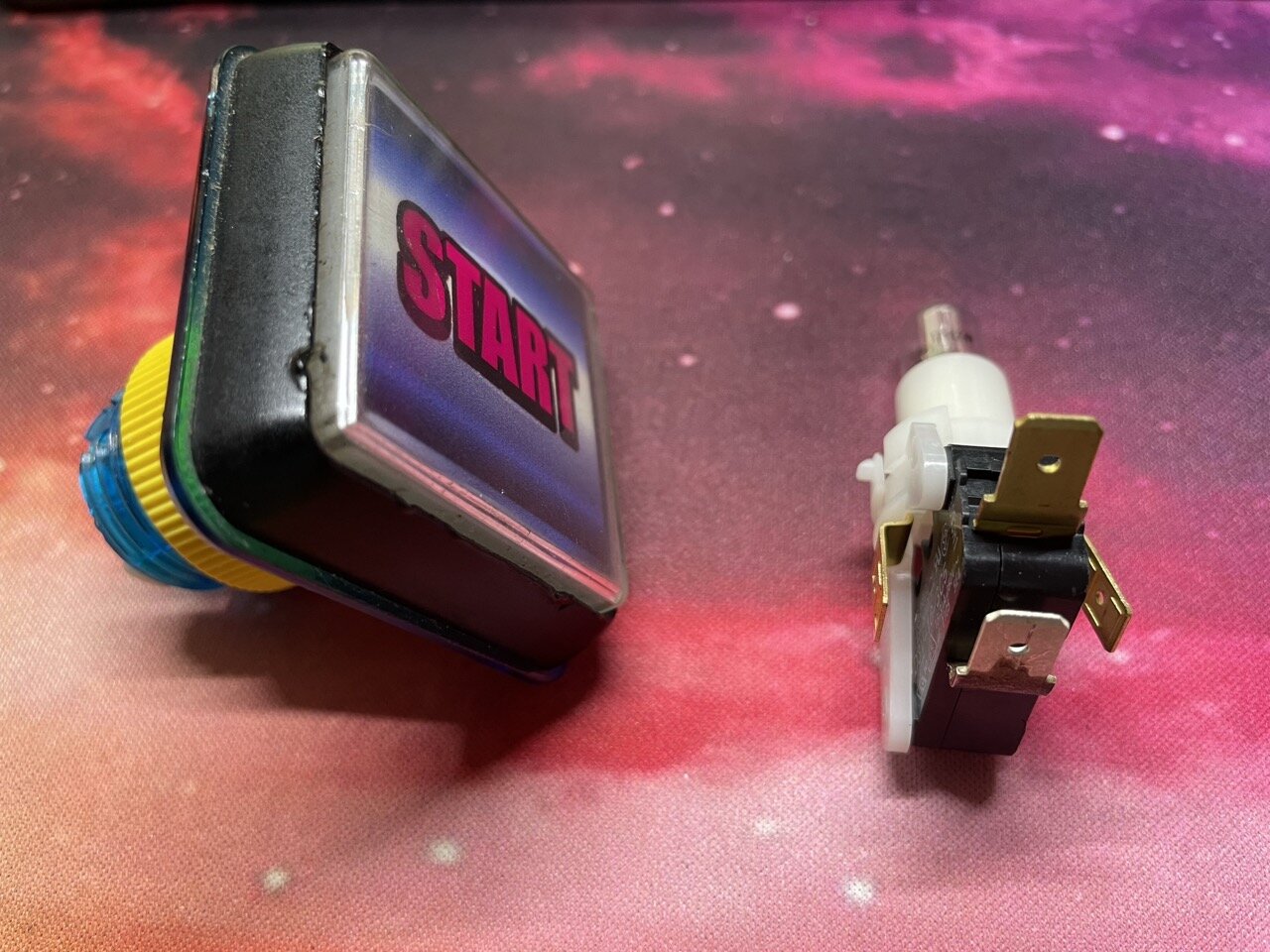

The bottom prong indicates "COM" and the long one in the same direction out of the back says "ON", I think. Then there are the two metal prongs off the sides, which I think would be for the lamp?
