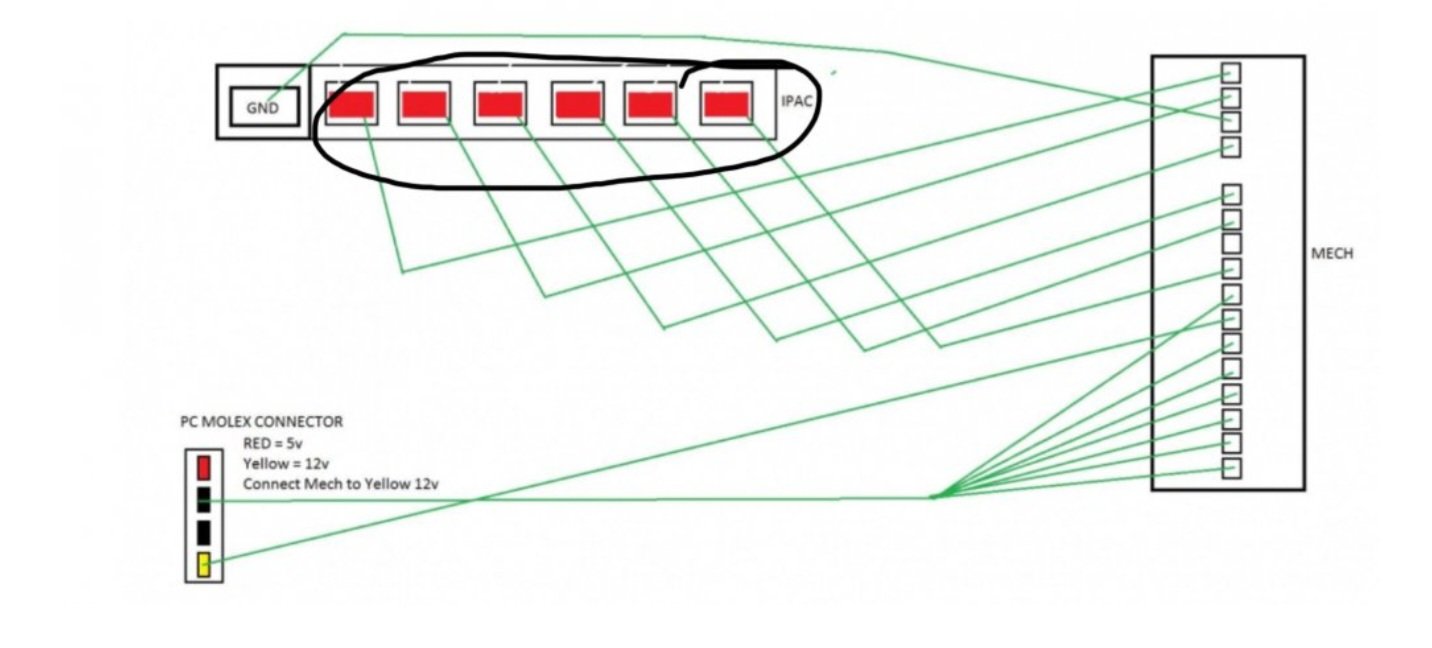

EdwardFarmer Posted April 13, 2023 Report Share Posted April 13, 2023 Hey, if i was to go of this picture, what are the 2 black squares bottom left ? And also does nothing go into the 5v bottom left either ? Thank you Link to comment Share on other sites More sharing options...
andrew96 Posted April 13, 2023 Report Share Posted April 13, 2023 black is ground or 0v connection 5v is not needed for coin mech as it is 12v (yellow) only Link to comment Share on other sites More sharing options...
EdwardFarmer Posted April 14, 2023 Author Report Share Posted April 14, 2023 Thanks mate, so i can just wore the 0v to an earth? Link to comment Share on other sites More sharing options...
andrew96 Posted April 14, 2023 Report Share Posted April 14, 2023 3 hours ago, EdwardFarmer said: Thanks mate, so i can just wore the 0v to an earth? the 0v is used to un-inhibit the various coin inhibits. without this being connected to the coin mech as shown the coin mech won't take any coins Link to comment Share on other sites More sharing options...
