QuebecTango Posted July 28 Report Share Posted July 28 Having joined to see if I can find the old 2p machine I used to feed every Friday night, I've caught the bug and now feel compelled to build my own. I've designed the cabinet, as simple bar top one with no money in/out and a display harvested from an old laptop. I've sourced all the internal gubbins, power supply for buttons and the buttons themselves, controller boards (ipac, USB instant and display interface) and a micro PC to run it all. Current bill is £175 and I've only got an aspiration to show for it at present. I may have questions but I think, for now, I'm happy to explore this myself. Thank you for giving my missus another headache as I litter the house with random crap... again. I'll post updates when there's something to show. 3 Link to comment Share on other sites More sharing options...
QuebecTango Posted July 30 Author Report Share Posted July 30 I love it when you design a housing and it fits perfectly on the first attempt I've designed the button inserts too. I haven't touched a sheet of MDF yet though, that's once I've got all the components. 2 Link to comment Share on other sites More sharing options...

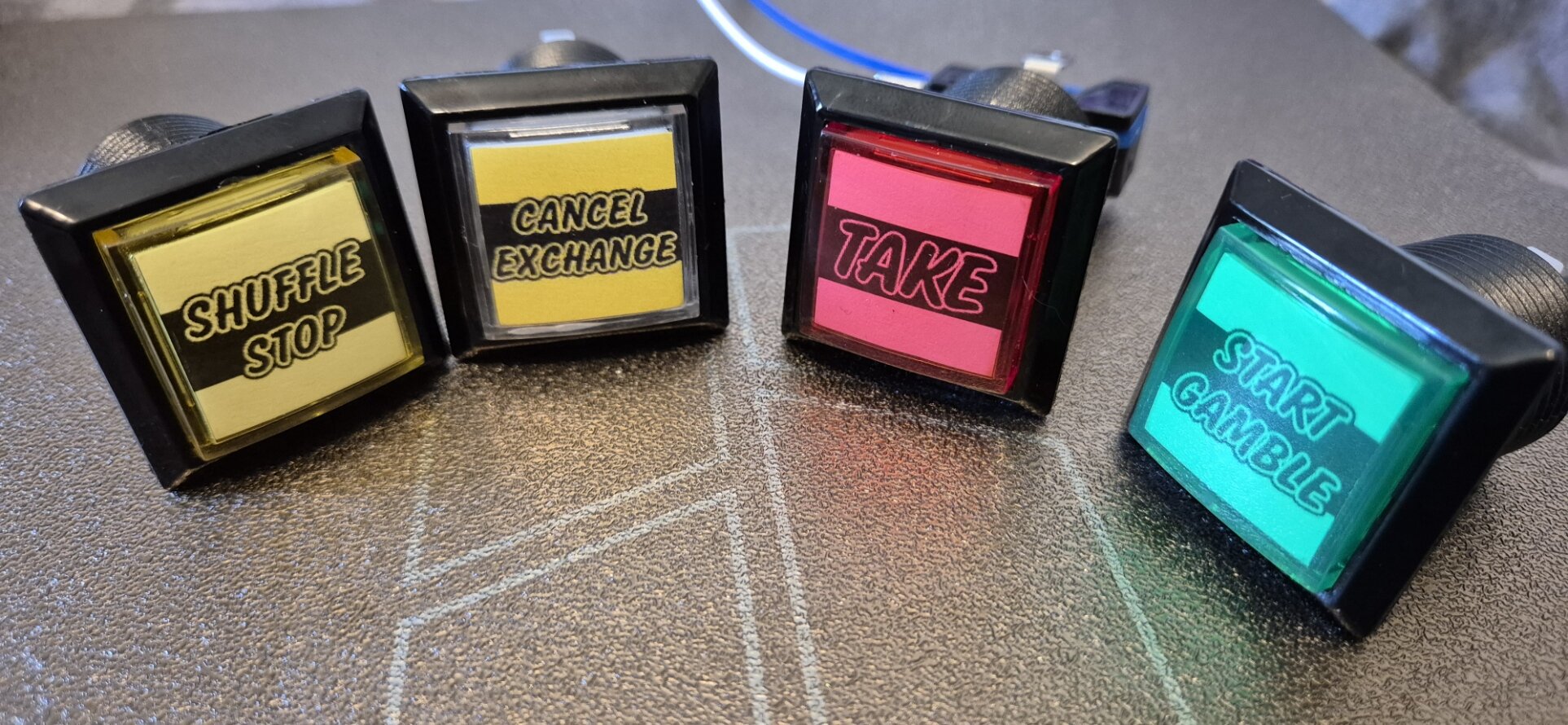

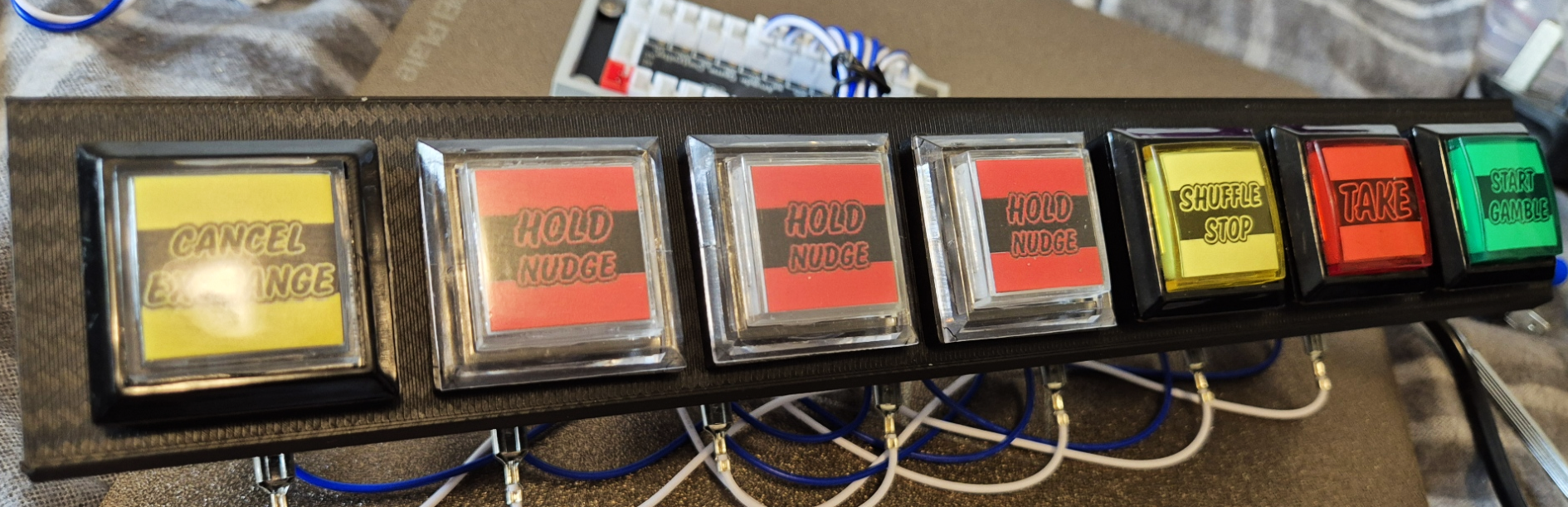

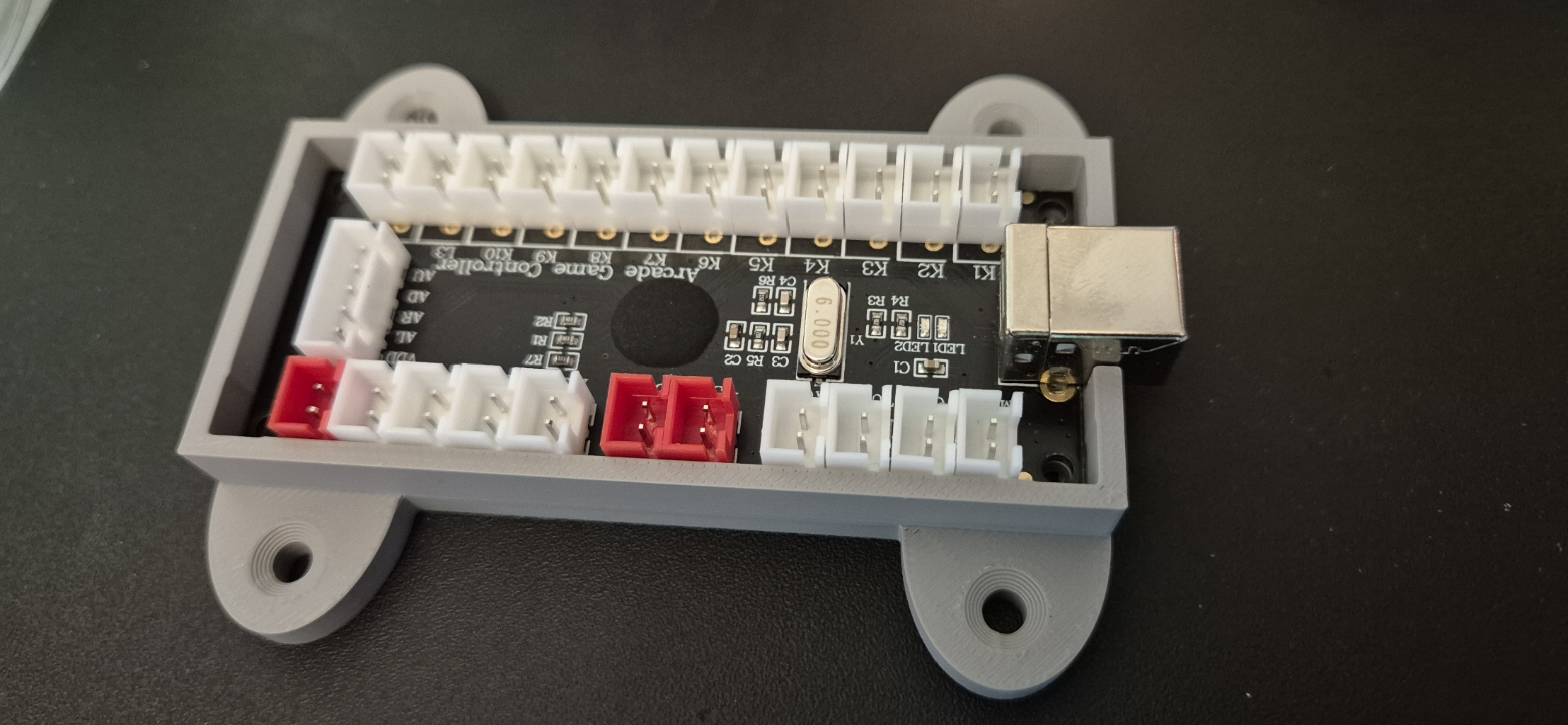

QuebecTango Posted July 30 Author Report Share Posted July 30 Busy day at work... not. Printed the fascia, fitted the buttons, wired them to the USB controller board, installed JoyToKey, mapped the buttons and tested on Test Pilot. Bingo! 4 Link to comment Share on other sites More sharing options...
arnie77 Posted July 30 Report Share Posted July 30 Great job Link to comment Share on other sites More sharing options...
Amusements Posted July 31 Report Share Posted July 31 Nice printing:) Good luck with the build. Treat every day like your last, because one day it will be! Fruit Machine <<<Pics, info, links and some of my layouts. Link to comment Share on other sites More sharing options...
Road Hog Mad Posted July 31 Report Share Posted July 31 Following! Be interesting to see Link to comment Share on other sites More sharing options...
QuebecTango Posted July 31 Author Report Share Posted July 31 3 hours ago, Amusements said: Nice printing:) Good luck with the build. I used my carbon fibre smooth plate which transfers the carbon fibre pattern onto the surface of the print. Link to comment Share on other sites More sharing options...

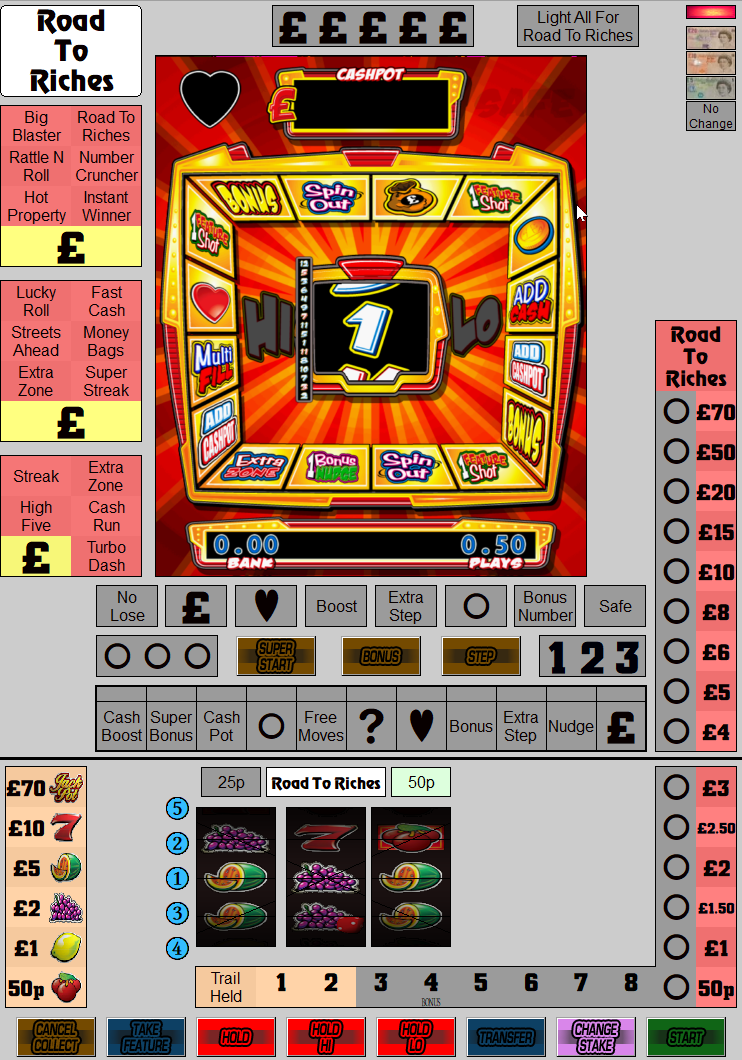

QuebecTango Posted August 1 Author Report Share Posted August 1 PacDrive wired up and lamps assigned in MFME. Pleased to see it working exactly as expected. No pictures as static images really don't convey the thrill of flashing lights. Cabinet manufacture begins tomorrow. 1 Link to comment Share on other sites More sharing options...

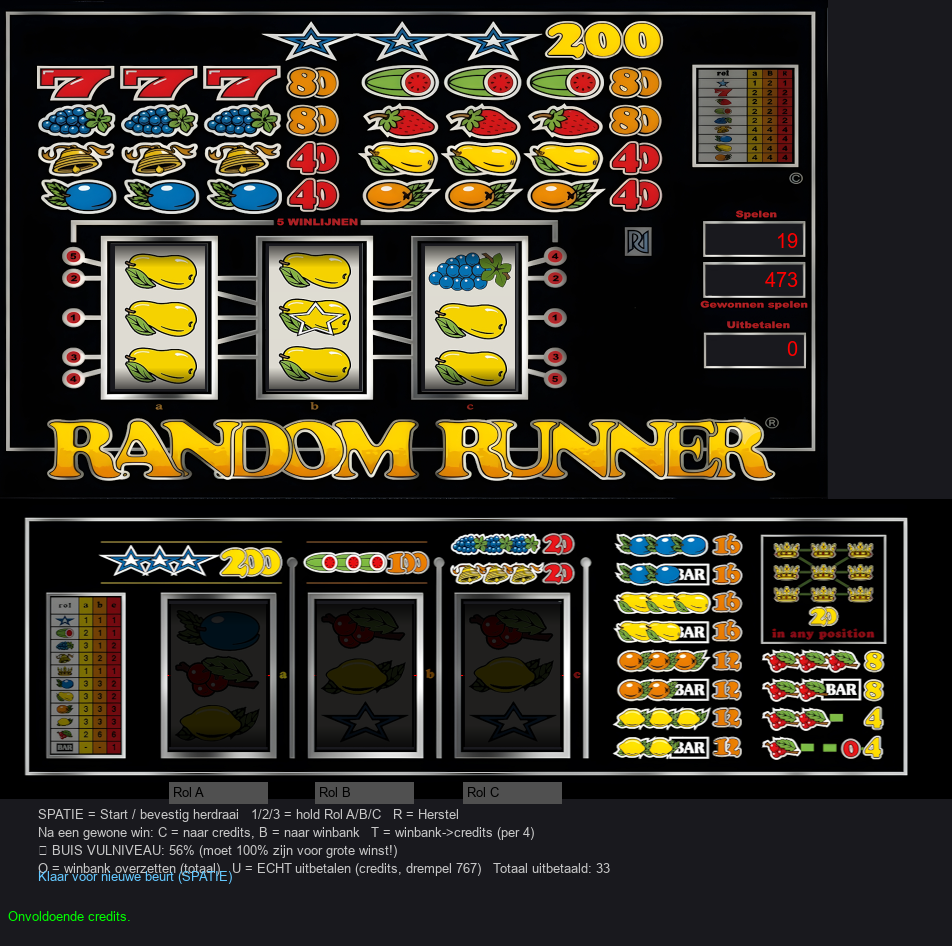

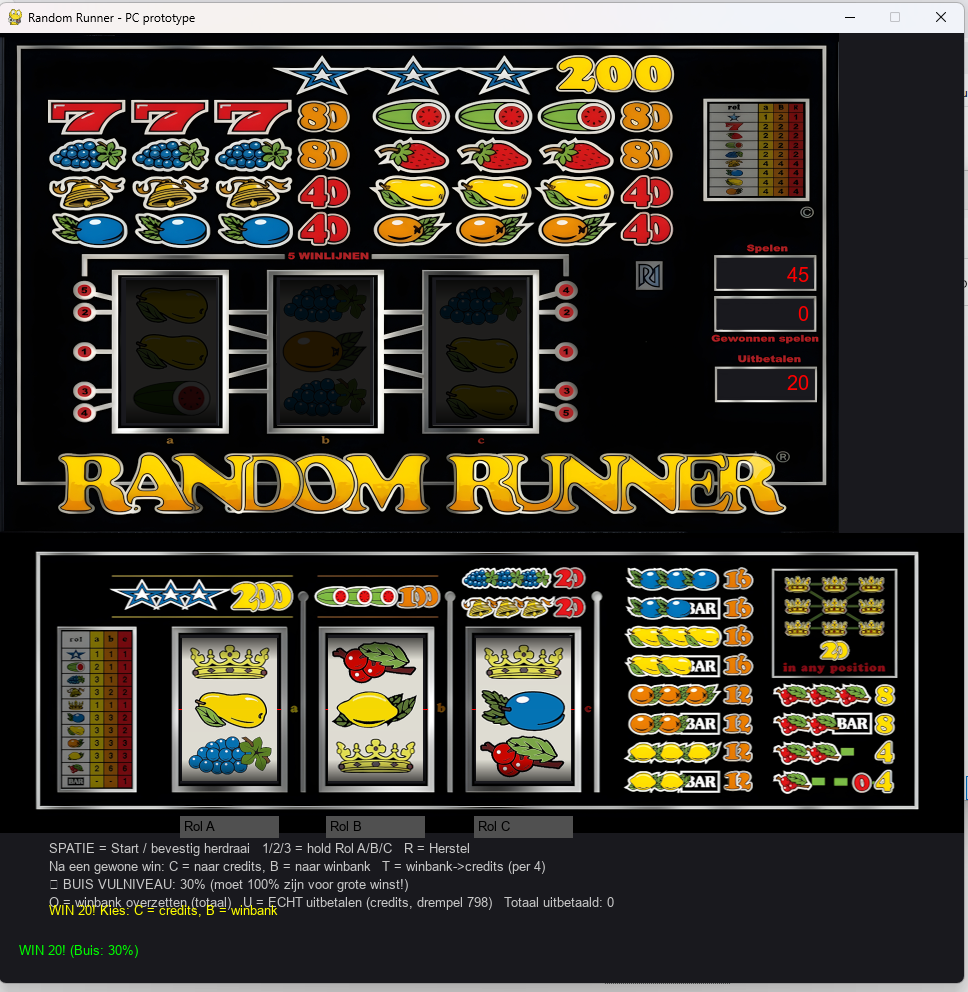

vangorp Posted August 3 Report Share Posted August 3 Hi, what a great project! I was looking for the Random Runner ROM myself, but it’s not exactly easy to find, so I’m currently creating my own PC version. I’ve already replicated the logic one-to-one, and the symbols on the reels are exactly the same—and in the exact same positions—as the originals. I’d like to build a real cabinet for it, too ,for now is this my test version . Link to comment Share on other sites More sharing options...
fruitsnappa Posted August 3 Report Share Posted August 3 42 minutes ago, vangorp said: Hi, what a great project! I was looking for the Random Runner ROM myself, but it’s not exactly easy to find, so I’m currently creating my own PC version. I’ve already replicated the logic one-to-one, and the symbols on the reels are exactly the same—and in the exact same positions—as the originals. I’d like to build a real cabinet for it, too ,for now is this my test version . There are these roms knocking about for "Random Runner" if you don't have them already. Random Runner (Errell) [Rom].zip Random Runner (BDD) [Rom].zip ᗧ···ᗣ···ᗣ···ᗣ···ᗣ·· Link to comment Share on other sites More sharing options...
QuebecTango Posted August 3 Author Report Share Posted August 3 (edited) Here's the concept design of my "QT Fruity": More to challenge myself than anything else, let's see how close to it I actually get. Edited August 3 by QuebecTango 1 Link to comment Share on other sites More sharing options...
VenumX Posted August 3 Report Share Posted August 3 5 hours ago, QuebecTango said: Here's the concept design of my "QT Fruity": More to challenge myself than anything else, let's see how close to it I actually get. hey thats the same challenge i (try to) do everytime!! looks nice , go for it. Link to comment Share on other sites More sharing options...

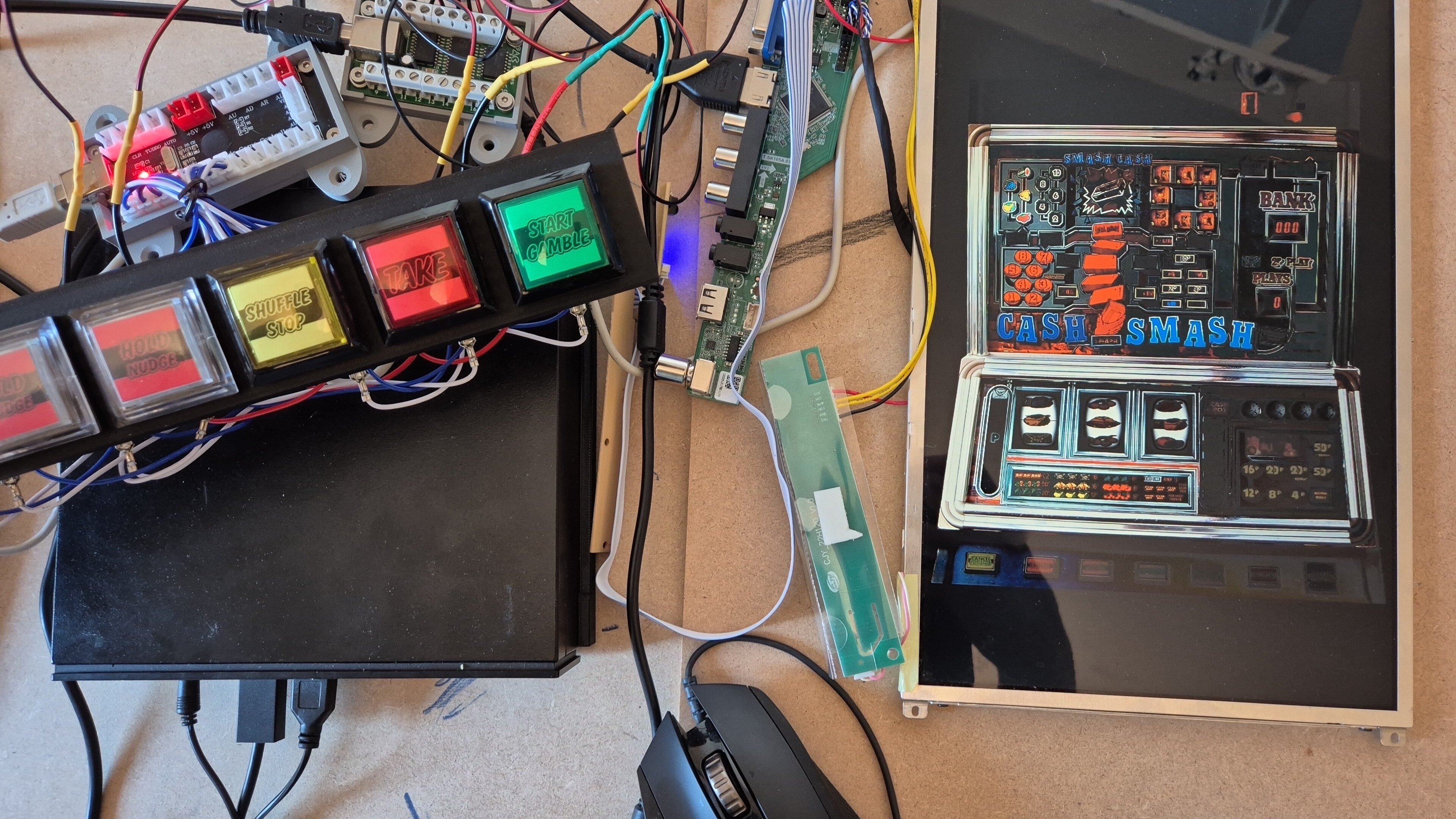

QuebecTango Posted August 5 Author Report Share Posted August 5 Well, the guts work. Now I can focus on trying to fit them all into a passable cabinet. 2 Link to comment Share on other sites More sharing options...
Iloveslots Posted August 6 Report Share Posted August 6 Good luck with your fruit machine project, hope it works out I'm curious to see your project when it's finished Iloveslots Link to comment Share on other sites More sharing options...

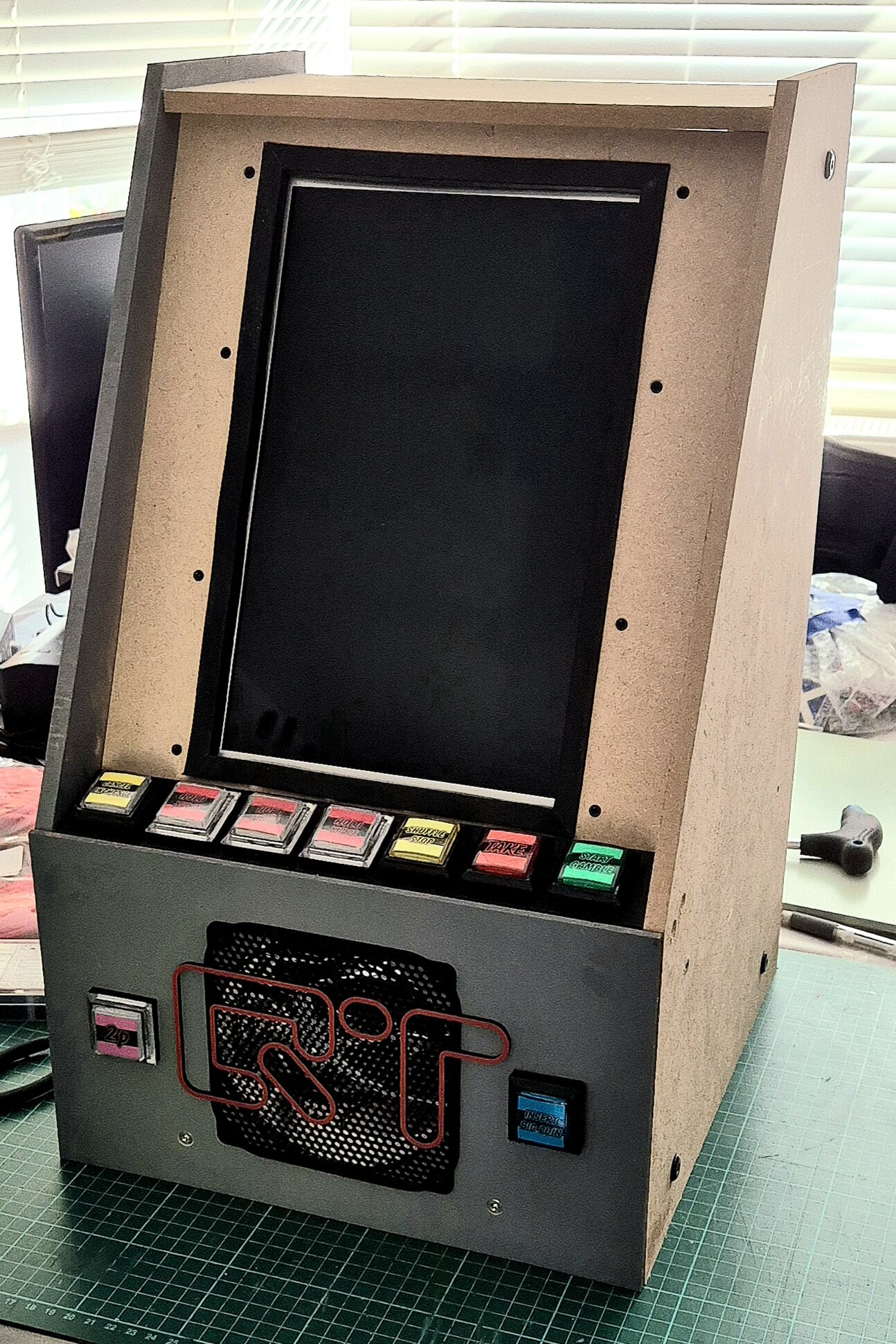

QuebecTango Posted August 9 Author Report Share Posted August 9 Still nine more things left on the job list but the test fitting and wiring has gone well. Made a few changes to the original design but it's looking more or less like the concept so far. 5 1 Link to comment Share on other sites More sharing options...
dudese Posted August 9 Report Share Posted August 9 What a beast! Looks awesome. How did you get the text on your buttons? Link to comment Share on other sites More sharing options...
QuebecTango Posted August 9 Author Report Share Posted August 9 16 minutes ago, dudese said: What a beast! Looks awesome. How did you get the text on your buttons? Popped off the front with a small screwdriver, designed the buttons in Photoshop, printed them on colour laser, cut to fit the button, snapped the front back on. Link to comment Share on other sites More sharing options...
dudese Posted August 9 Report Share Posted August 9 2 hours ago, QuebecTango said: Popped off the front with a small screwdriver, designed the buttons in Photoshop, printed them on colour laser, cut to fit the button, snapped the front back on. Ah fair play. They look good. Mine are just printed with a crappy b + w sticker printer and don't look the best, but not sure its worth the effort trying to replace them. Link to comment Share on other sites More sharing options...
QuebecTango Posted August 19 Author Report Share Posted August 19 I think I might finish this thing by the end of the week. 5 Link to comment Share on other sites More sharing options...

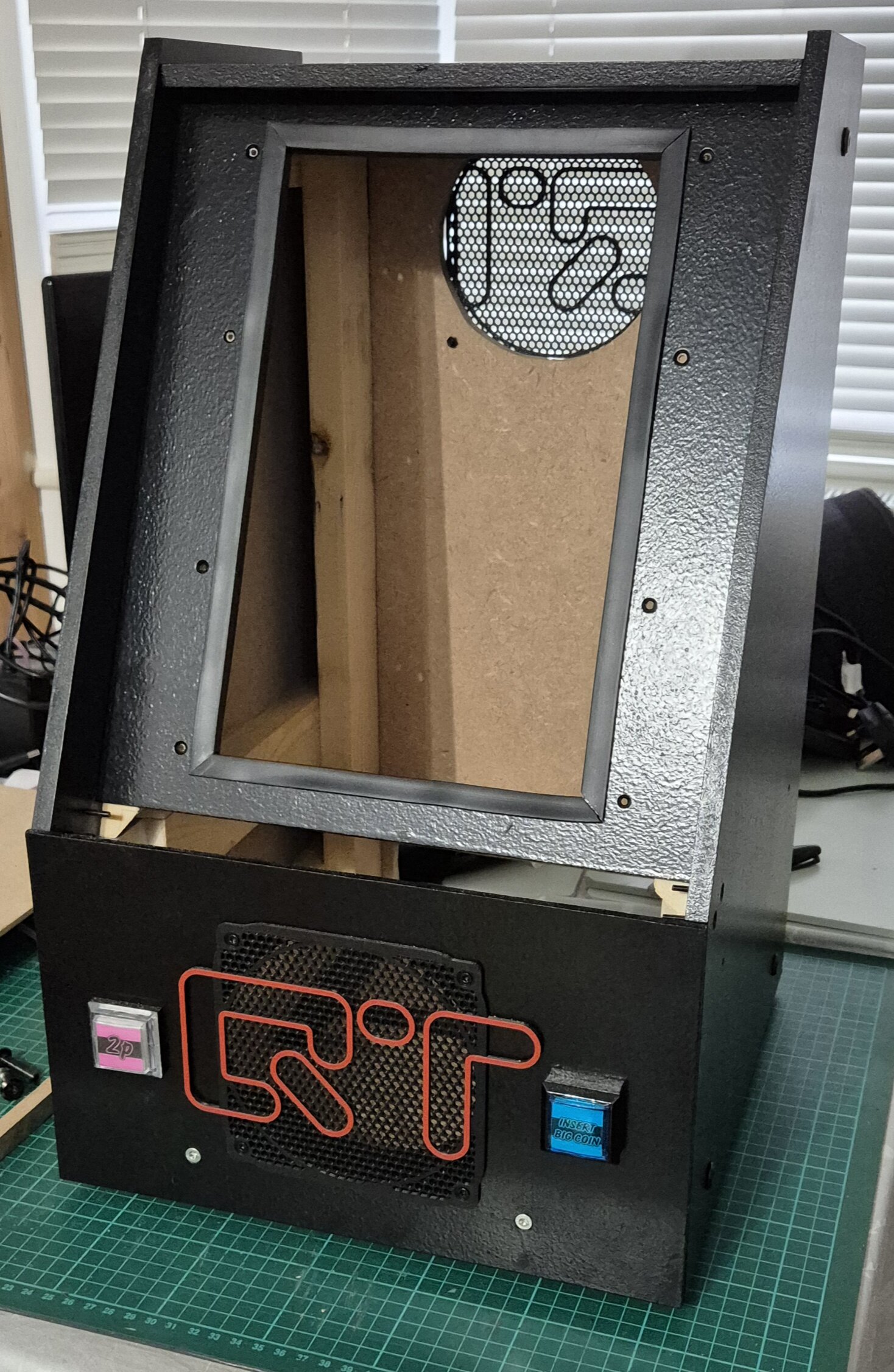

QuebecTango Posted August 20 Author Report Share Posted August 20 I don't think I've ever sworn this much at an inanimate object. The interior is proving a nightmare. But I shall prevail! Link to comment Share on other sites More sharing options...
Reg Posted August 20 Report Share Posted August 20 Hey - where did you get those button inserts - I used to do layouts with those... ...or at last my vision of them ! Great minds think alike ! Link to comment Share on other sites More sharing options...
QuebecTango Posted August 20 Author Report Share Posted August 20 2 hours ago, Reg said: Hey - where did you get those button inserts - I used to do layouts with those... ...or at last my vision of them ! Great minds think alike ! Designed them myself in Photoshop/InDesign 1 Link to comment Share on other sites More sharing options...

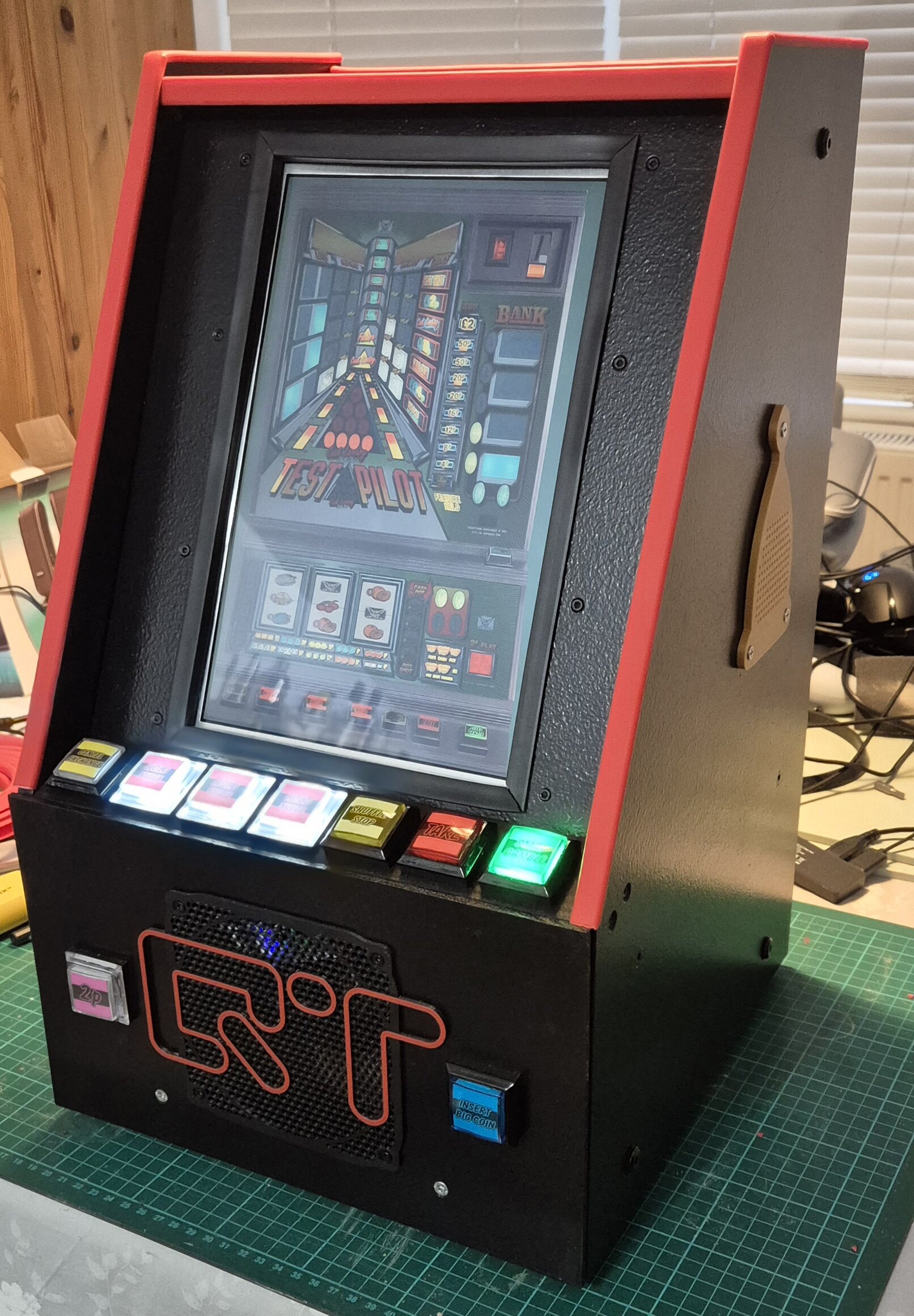

QuebecTango Posted August 20 Author Report Share Posted August 20 In other news: Finished. 3 1 1 Link to comment Share on other sites More sharing options...
