VenumX Posted January 18 Author Report Share Posted January 18 11 hours ago, Road Hog Mad said: I just emailed them first and they link you to the correct one, ordering the wrong one will empty the hoppers. Well yes and no...... If you ask for a SP ID2 , they will still mail you the same link you just had. There is no choosing the SP ID2 from the website.... If you don't email them that it HAS to be ID2 , you receive a ID1. 1 Link to comment Share on other sites More sharing options...
Altheman2004 Posted January 21 Report Share Posted January 21 Absolutely love the neatness of your main board! Any chance you can share a shopping list or some links for the items used in your build? Link to comment Share on other sites More sharing options...
Coskey Fruits Posted January 22 Report Share Posted January 22 (edited) On 26/12/2025 at 20:42, VenumX said: was thinking about this as a side art,... just falling and piling up slot icons ..... and the green for the roulette table feel.... This all looks so complicated and double Dutch to me, seems you are very talented and it's amazing having a cabinet that pays out MFME games. A bit like having an MFME sort of T7 type digital video gaming cabinet at home if you catch my drift. A whole arcade in your own cabinet that takes money and pays out...how cool is that? Are you taking orders lol? Now for my cheeky question. You would not, given your skills and knowledge happen to be the right person to hack out the GAL security chip problem on running Electro Coin Big 7 and Bar X 10 etc games on £15 £25 or £35 Jackpots so that they run in MFME 20.1 by any chance? I'd love to see a Bar 7 running in MFME with the bonus 3 nudges and a Bar-X £10 all but seemingly pipe dreams at present. thanks. Edited January 22 by Coskey Fruits Link to comment Share on other sites More sharing options...
VenumX Posted January 22 Author Report Share Posted January 22 3 hours ago, Coskey Fruits said: This all looks so complicated and double Dutch to me, seems you are very talented and it's amazing having a cabinet that pays out MFME games. A bit like having an MFME sort of T7 type digital video gaming cabinet at home if you catch my drift. A whole arcade in your own cabinet that takes money and pays out...how cool is that? Are you taking orders lol? Now for my cheeky question. You would not, given your skills and knowledge happen to be the right person to hack out the GAL security chip problem on running Electro Coin Big 7 and Bar X 10 etc games on £15 £25 or £35 Jackpots so that they run in MFME 20.1 by any chance? I'd love to see a Bar 7 running in MFME with the bonus 3 nudges and a Bar-X £10 all but seemingly pipe dreams at present. thanks. The lower part of your comment is gibberish to me... Sorry I think I am not the right person for that , I wouldn't know where to start. 1 Link to comment Share on other sites More sharing options...
VenumX Posted January 22 Author Report Share Posted January 22 17 hours ago, Altheman2004 said: Absolutely love the neatness of your main board! Any chance you can share a shopping list or some links for the items used in your build? I'll try once completed. 1 Link to comment Share on other sites More sharing options...

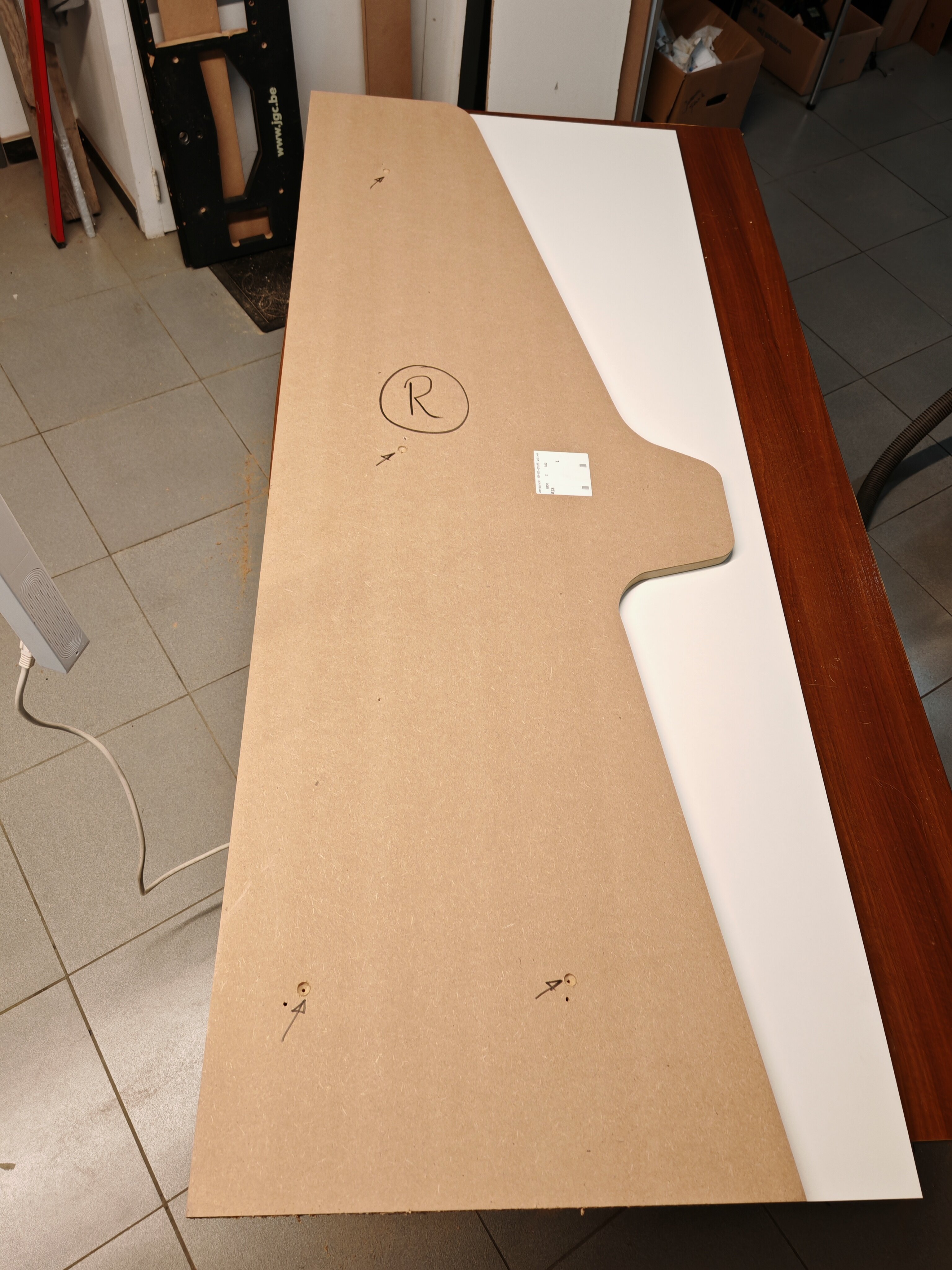

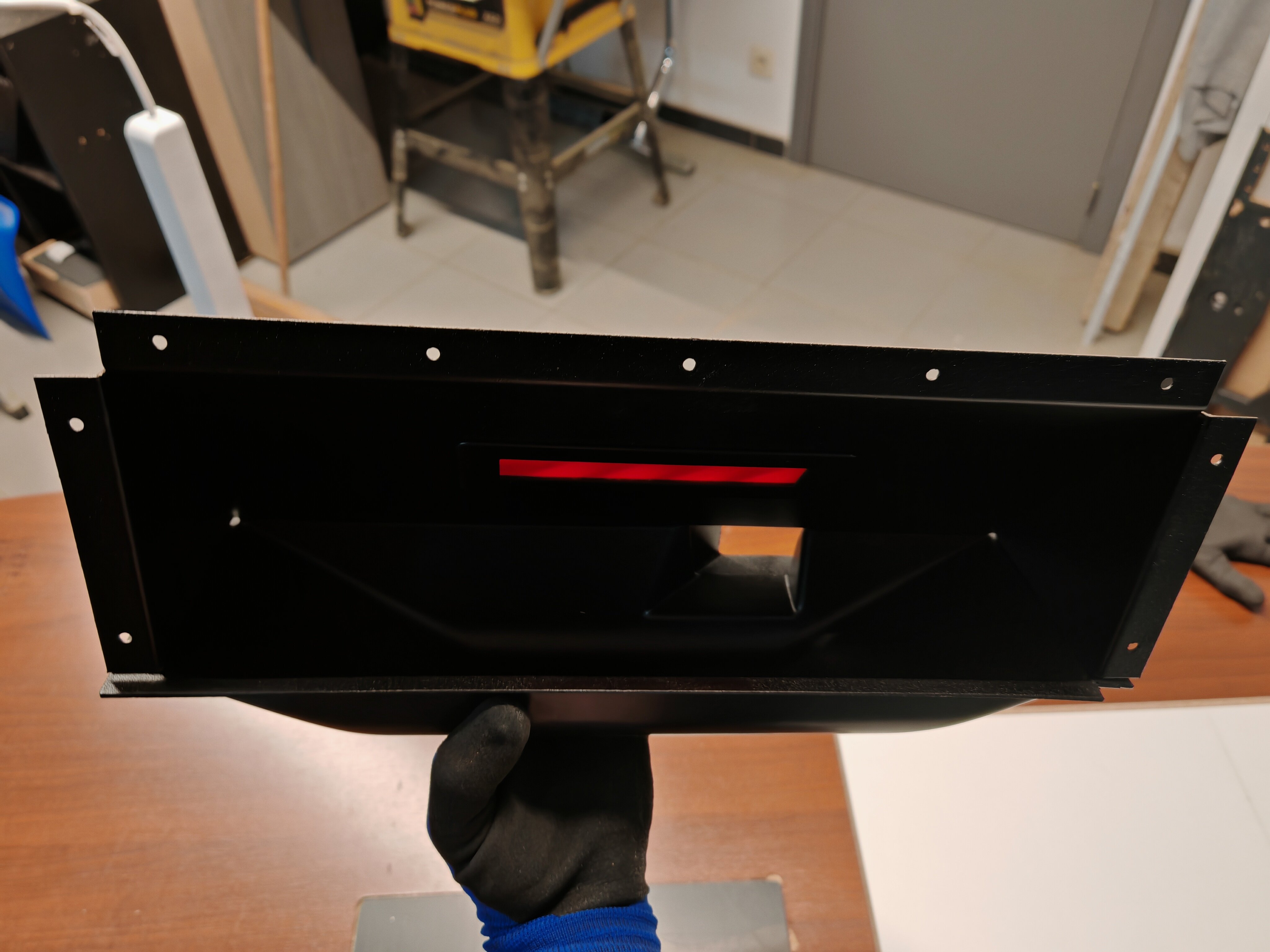

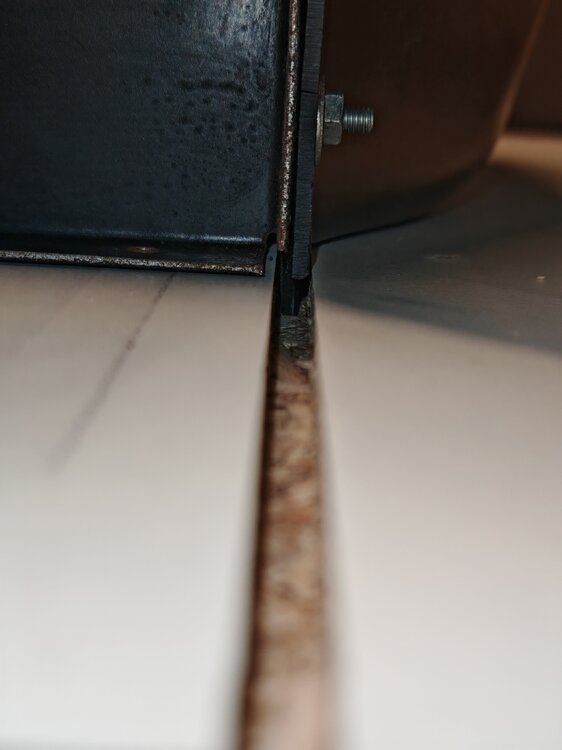

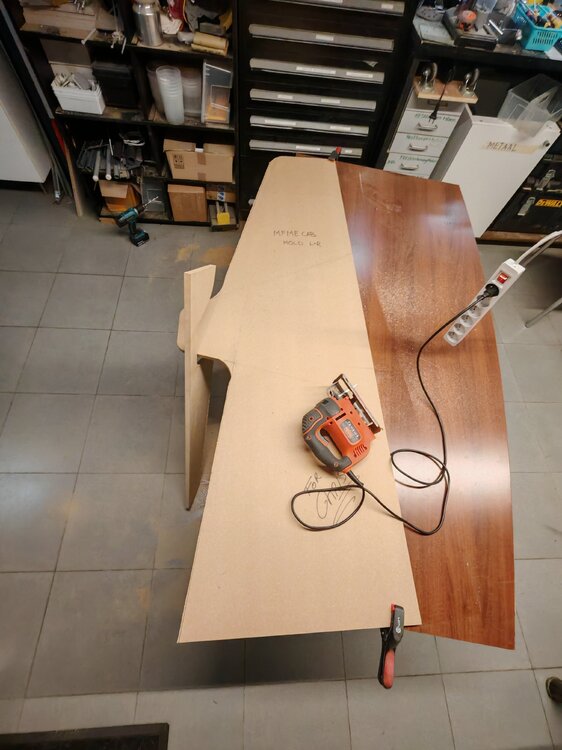

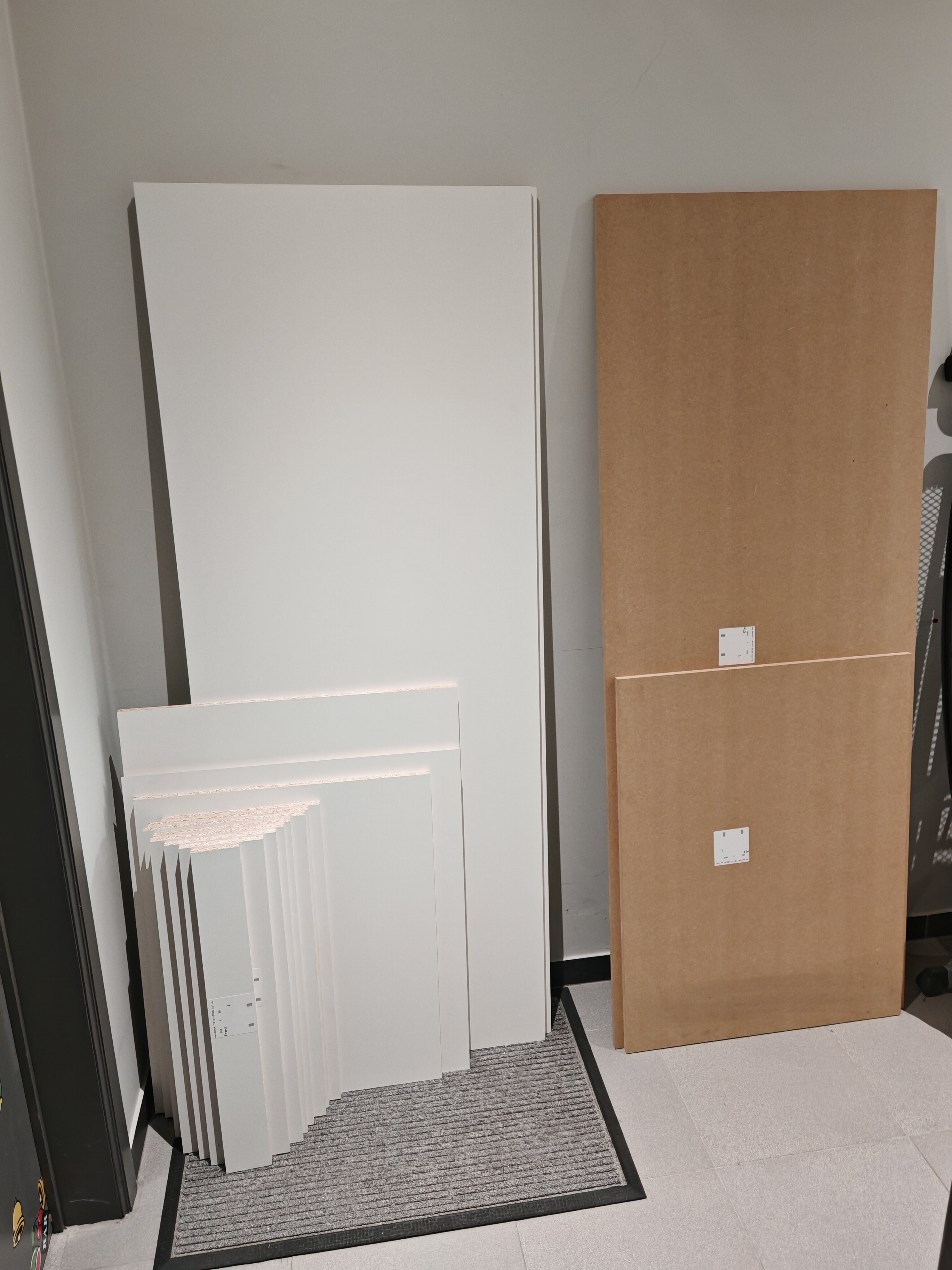

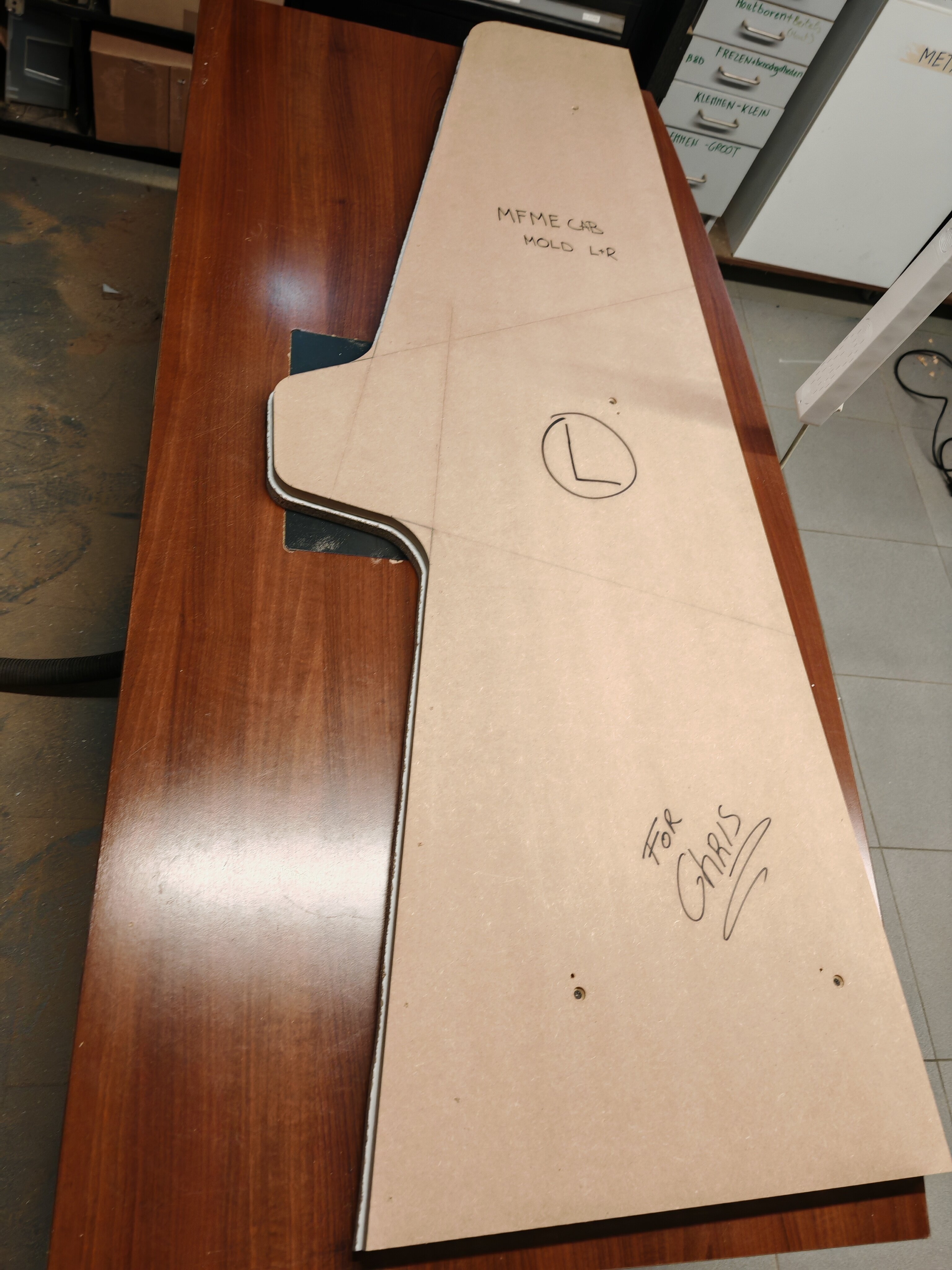

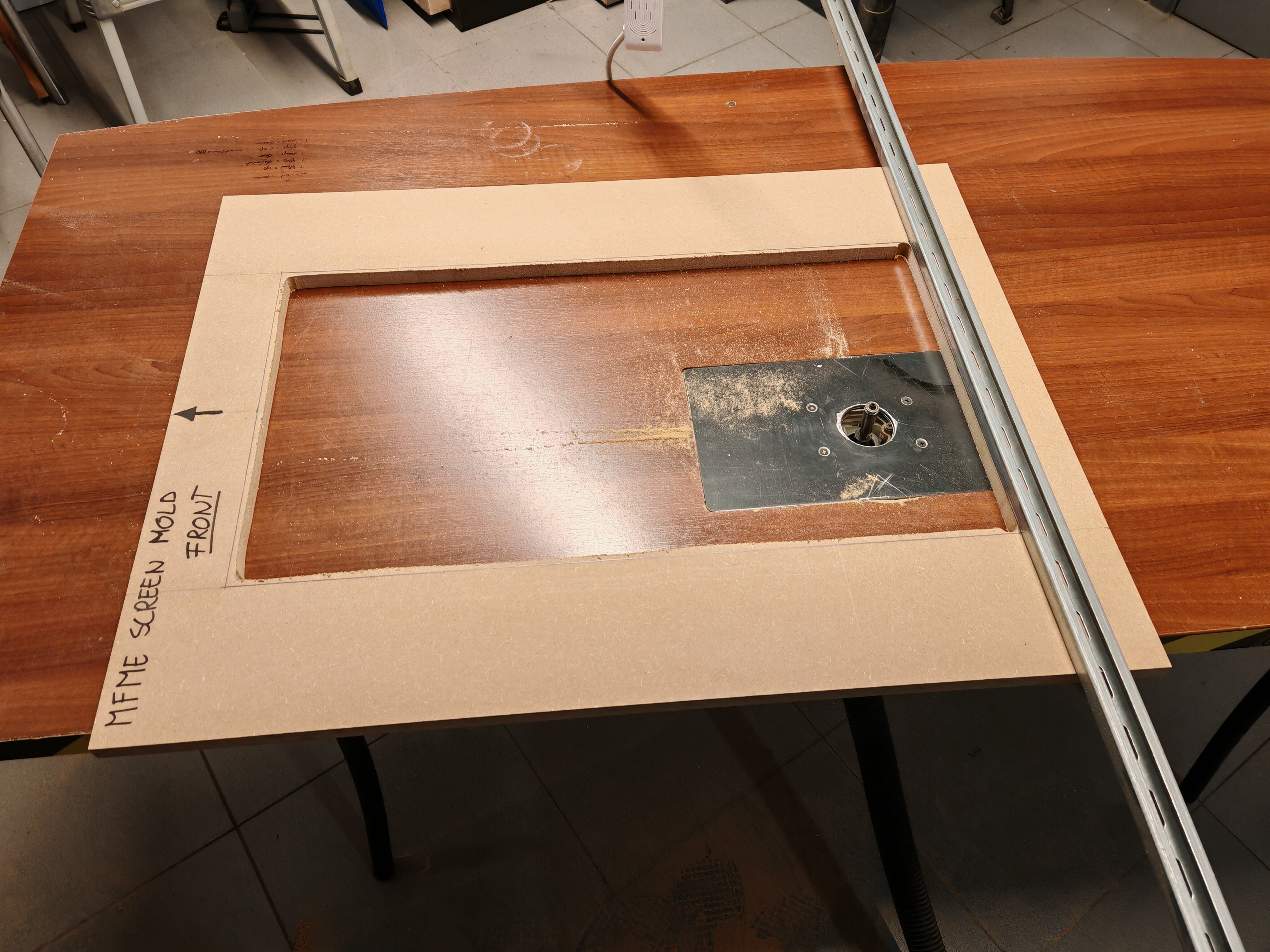

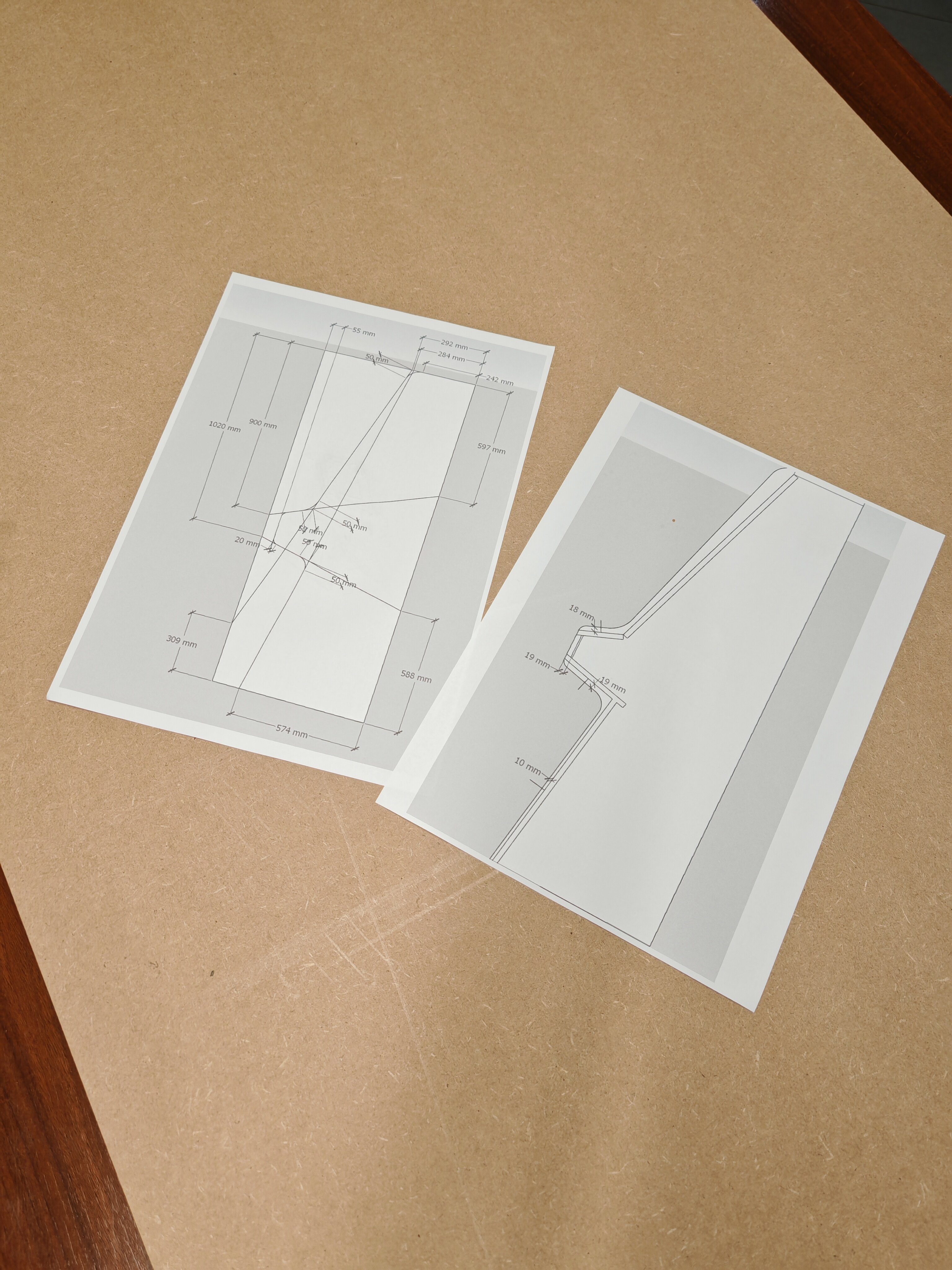

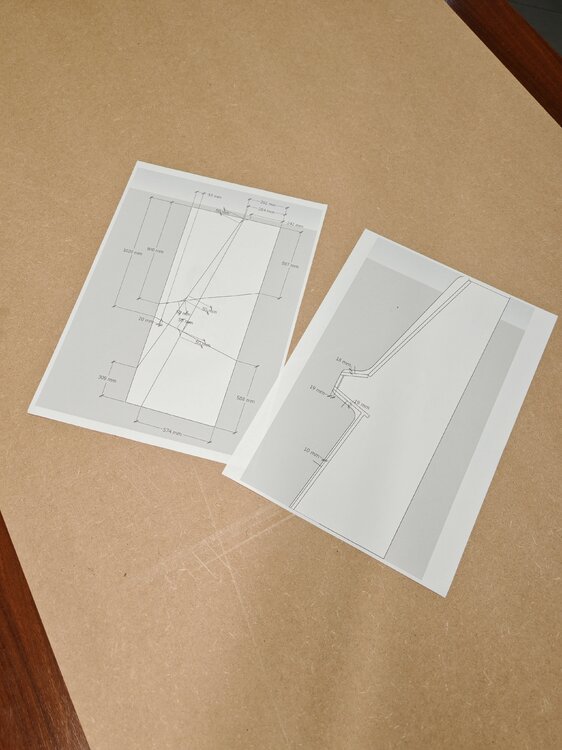

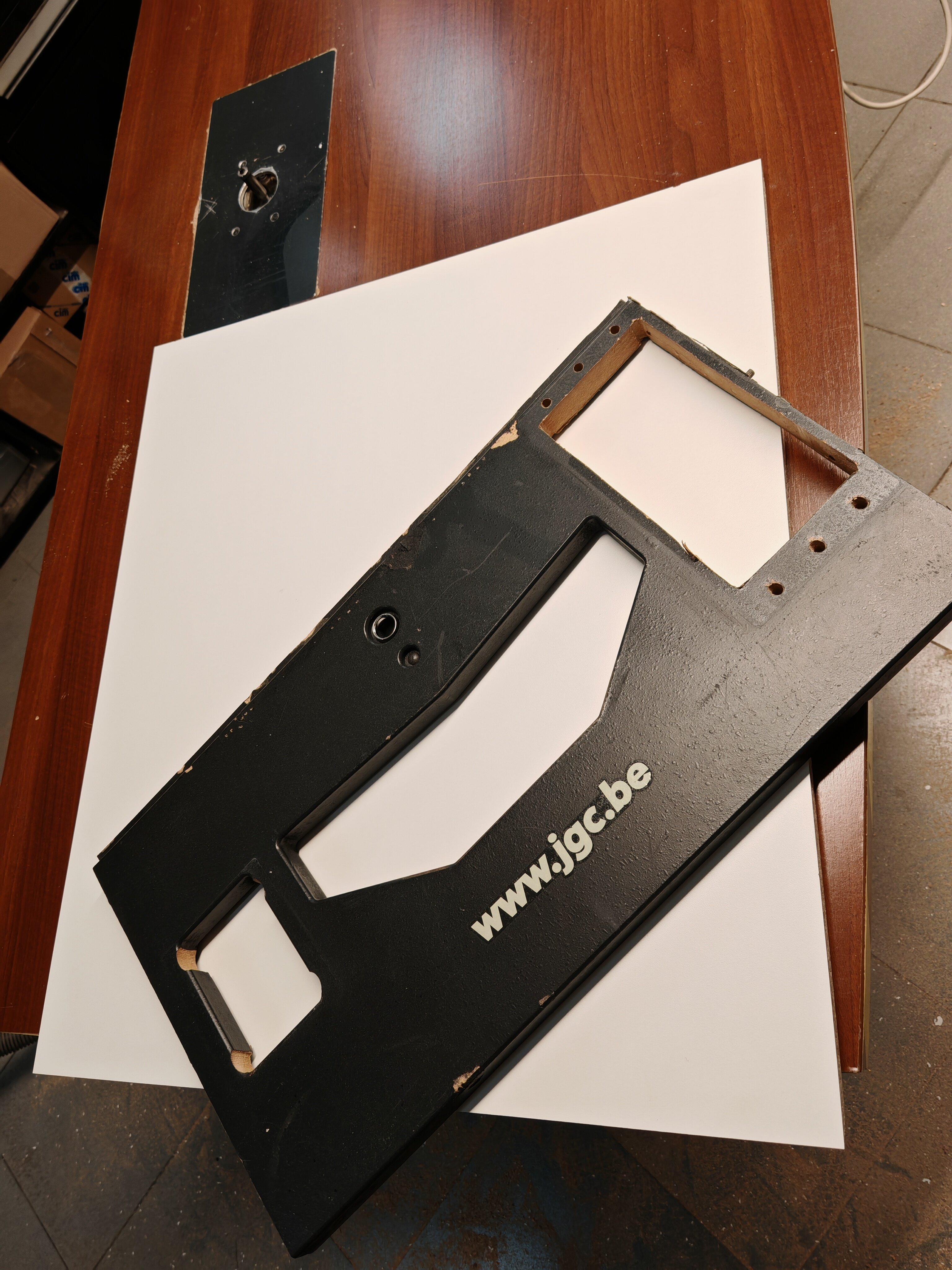

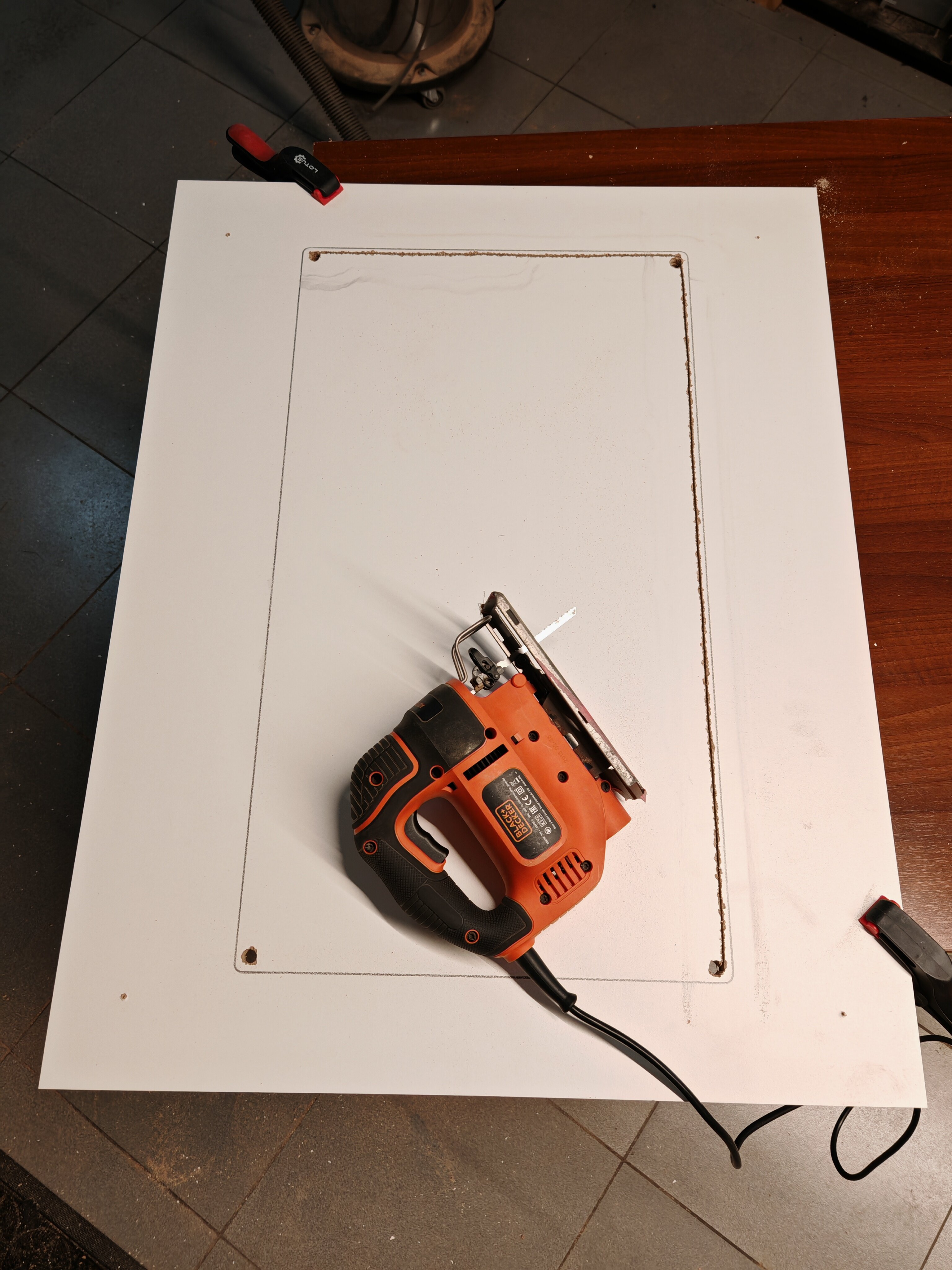

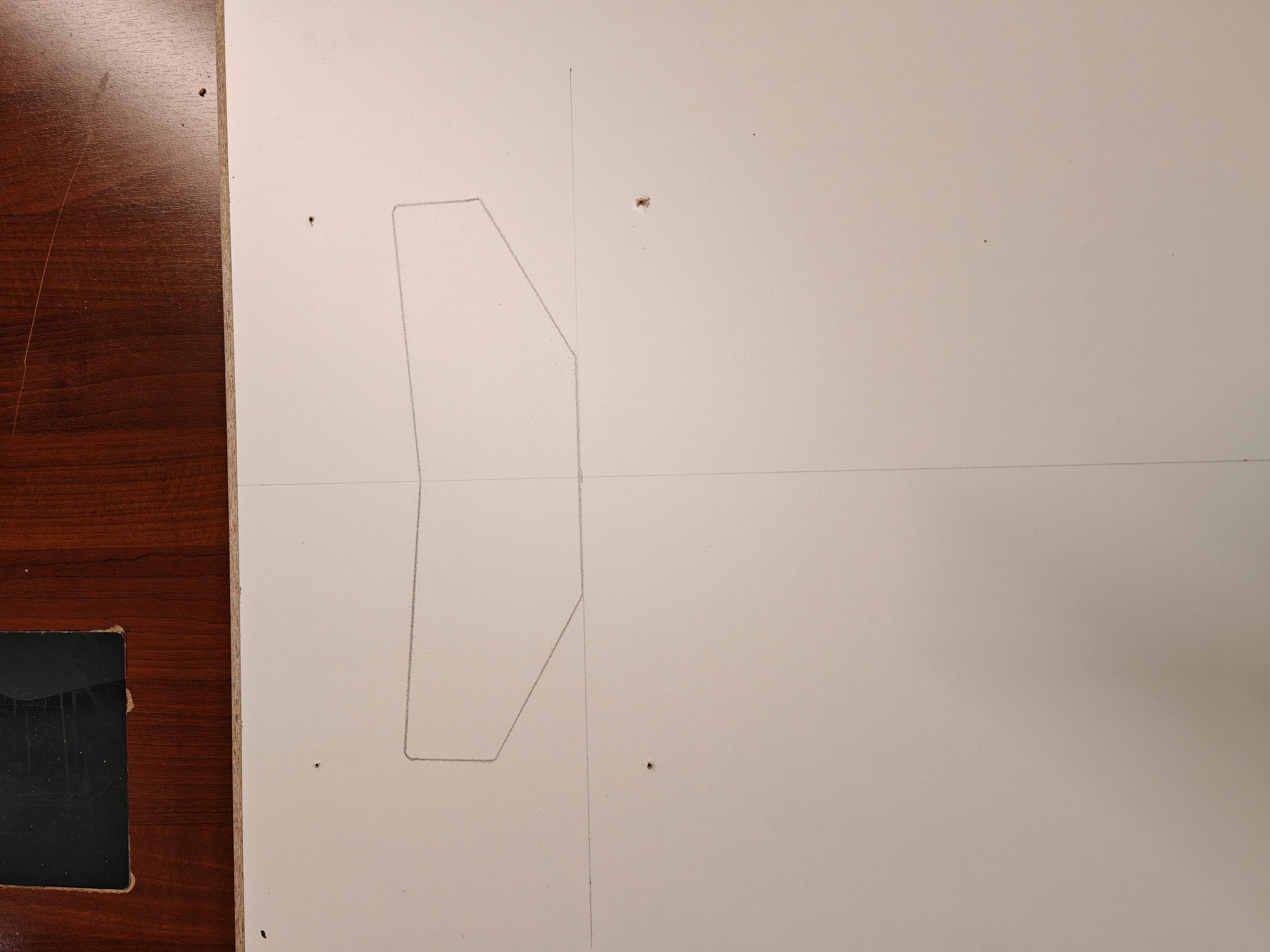

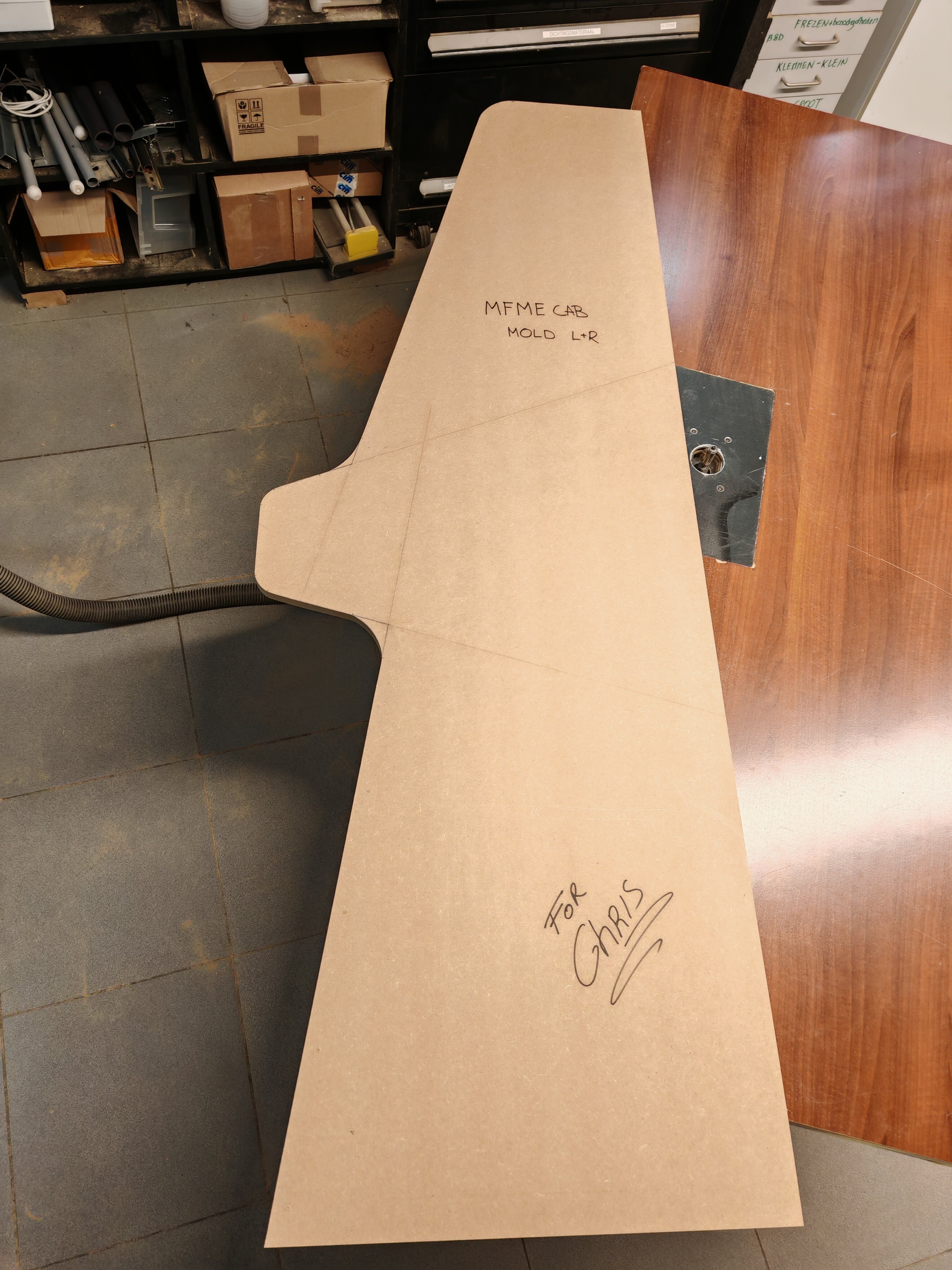

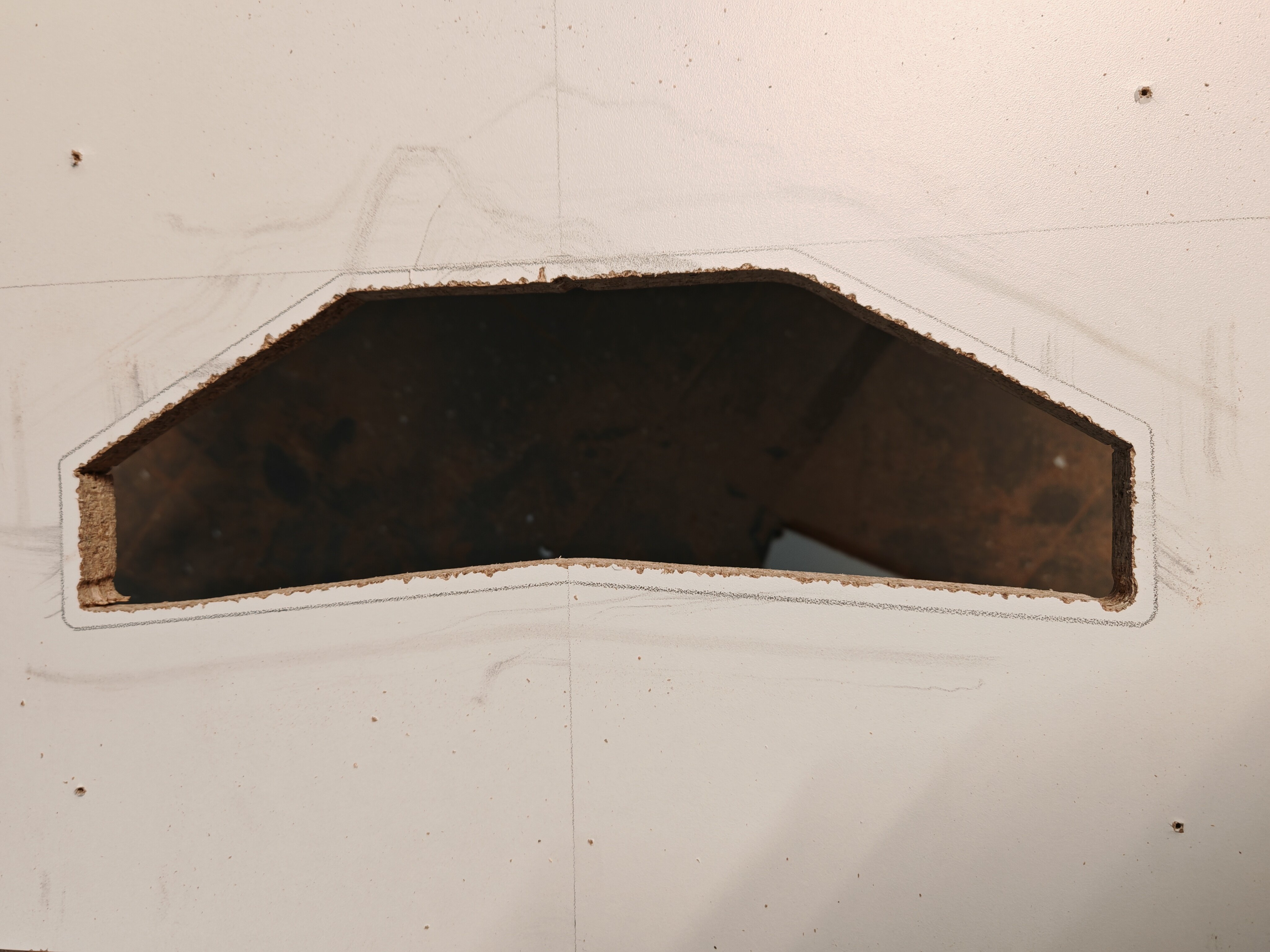

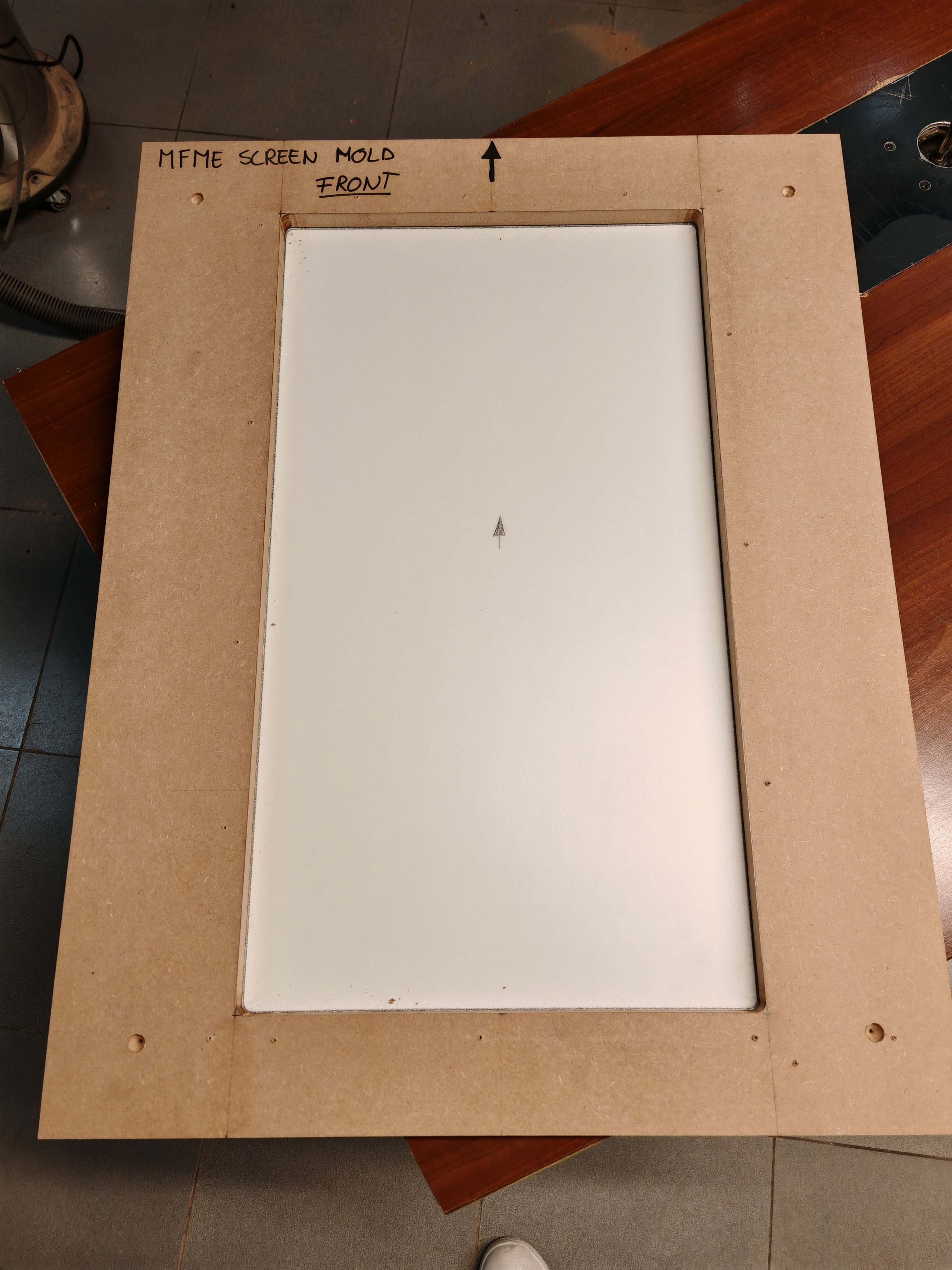

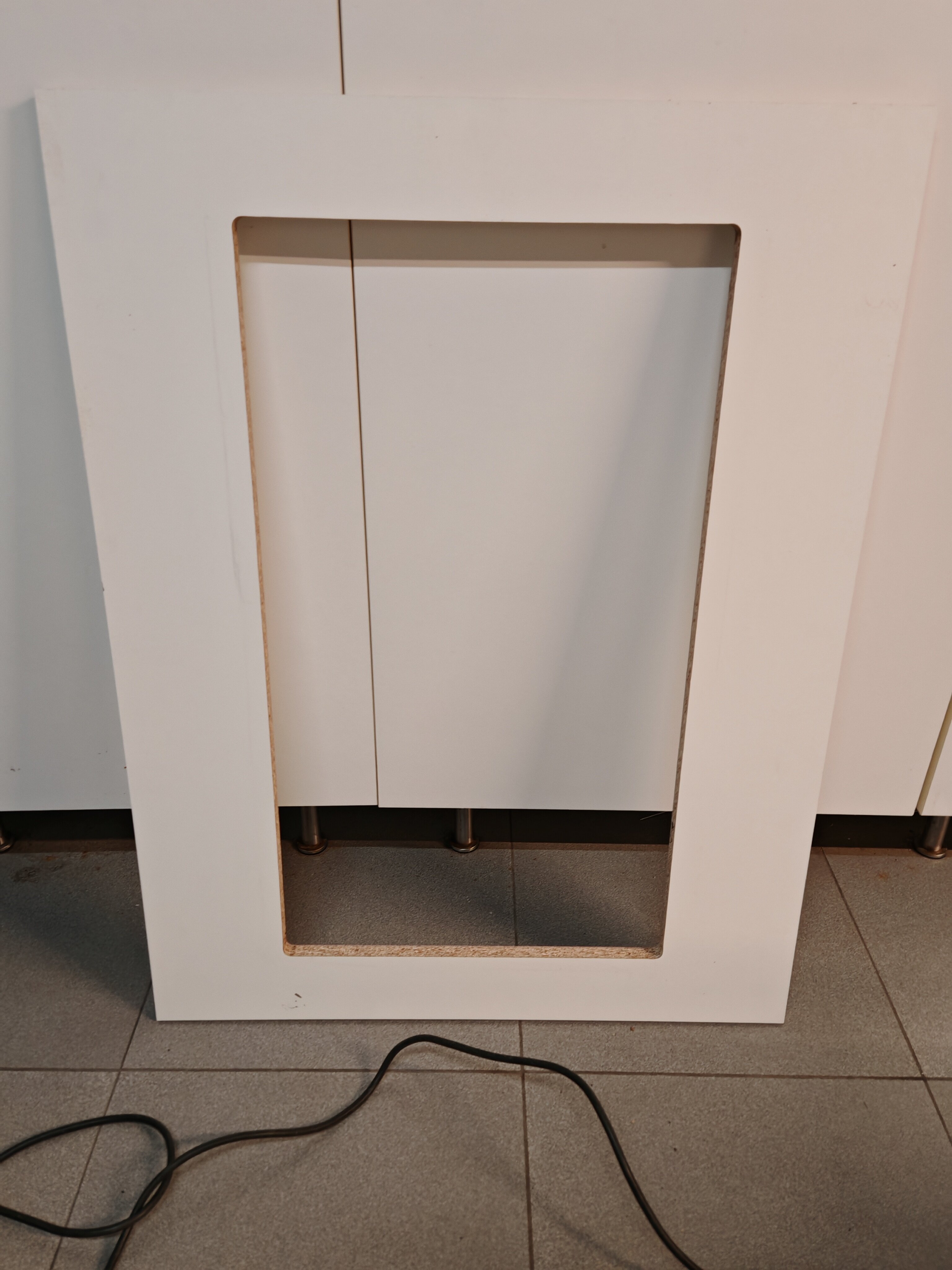

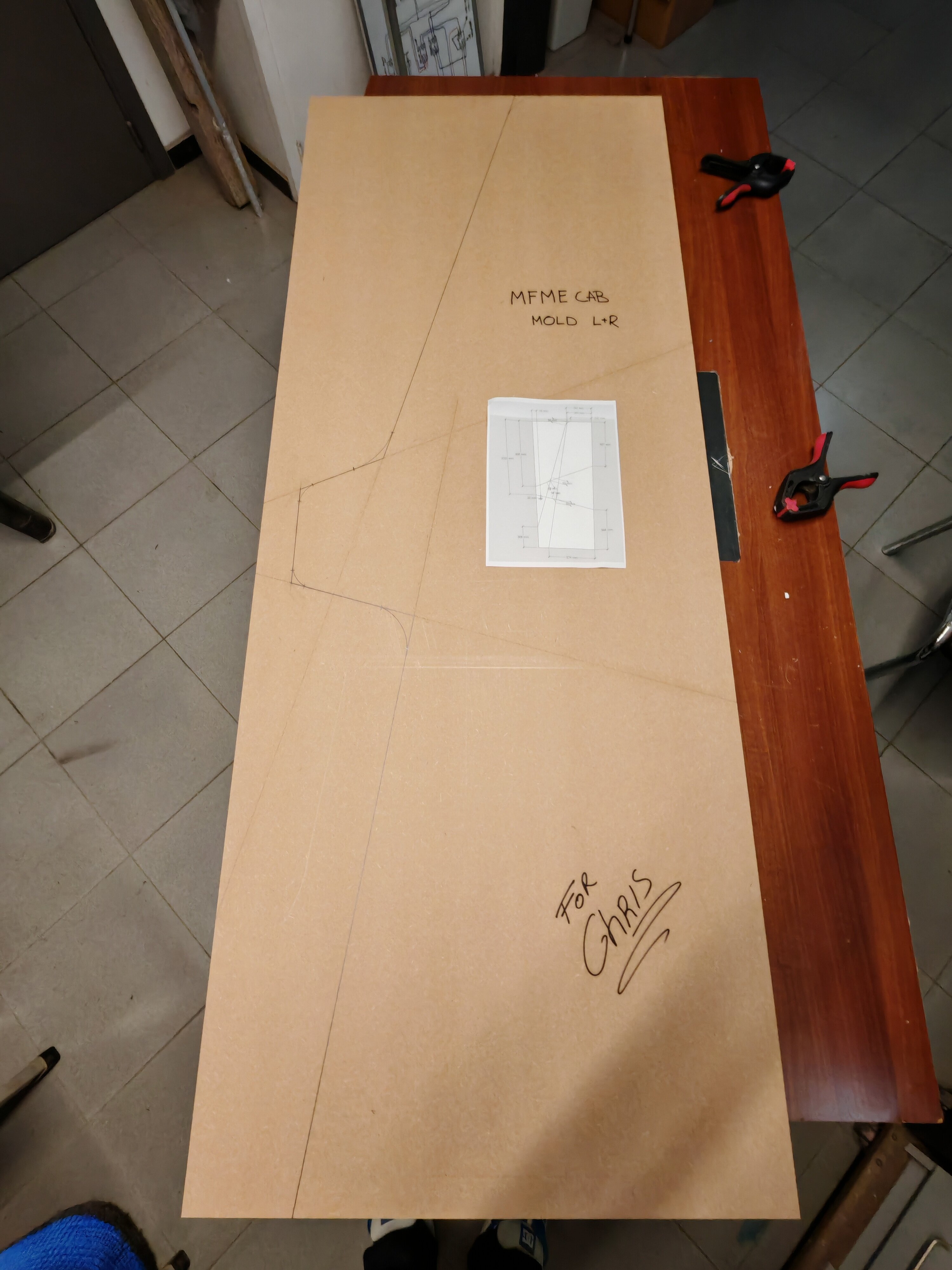

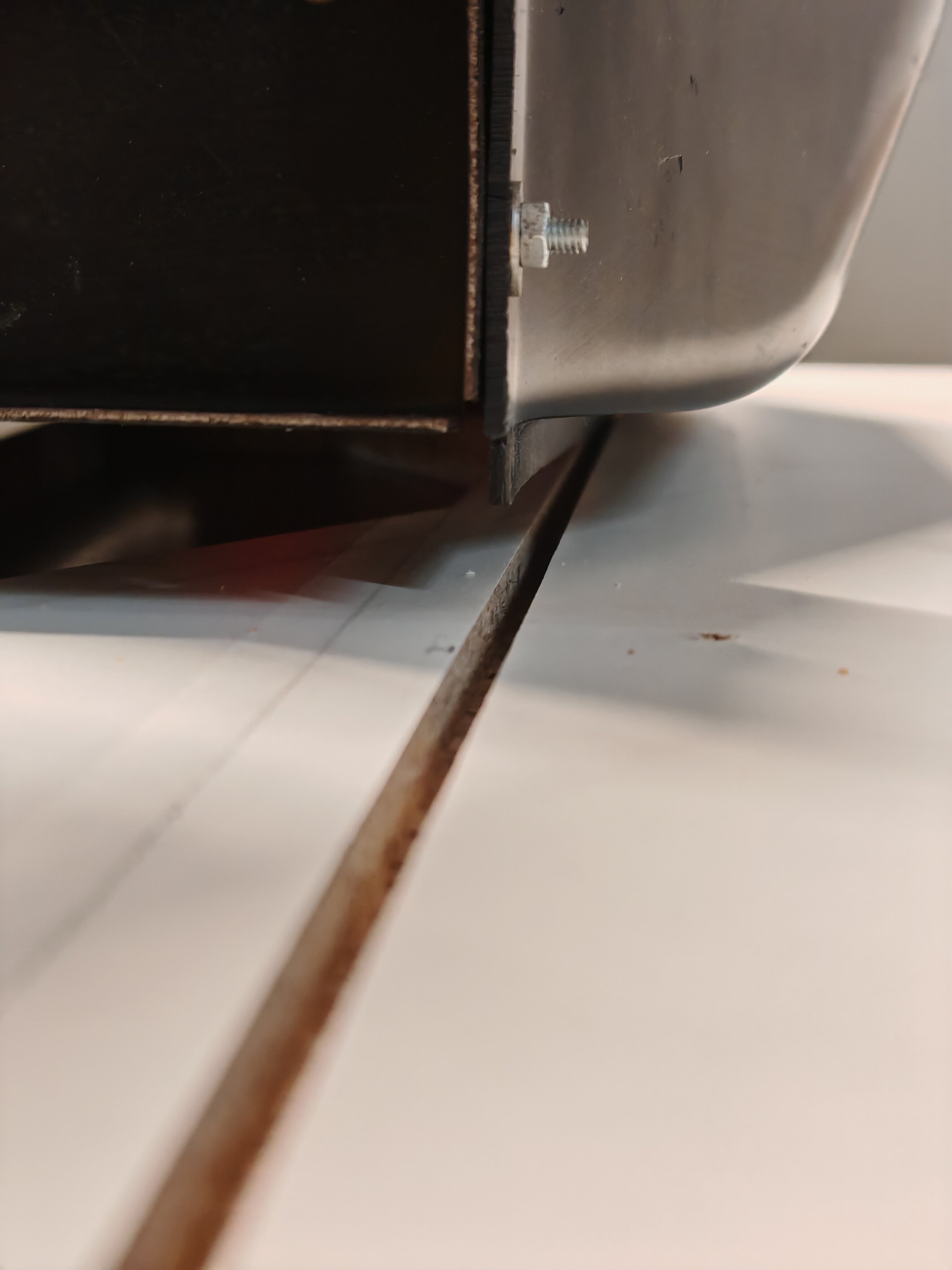

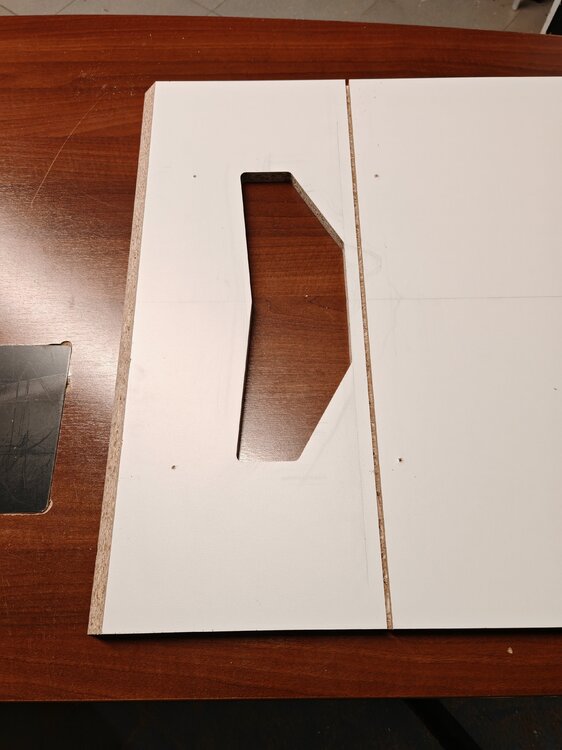

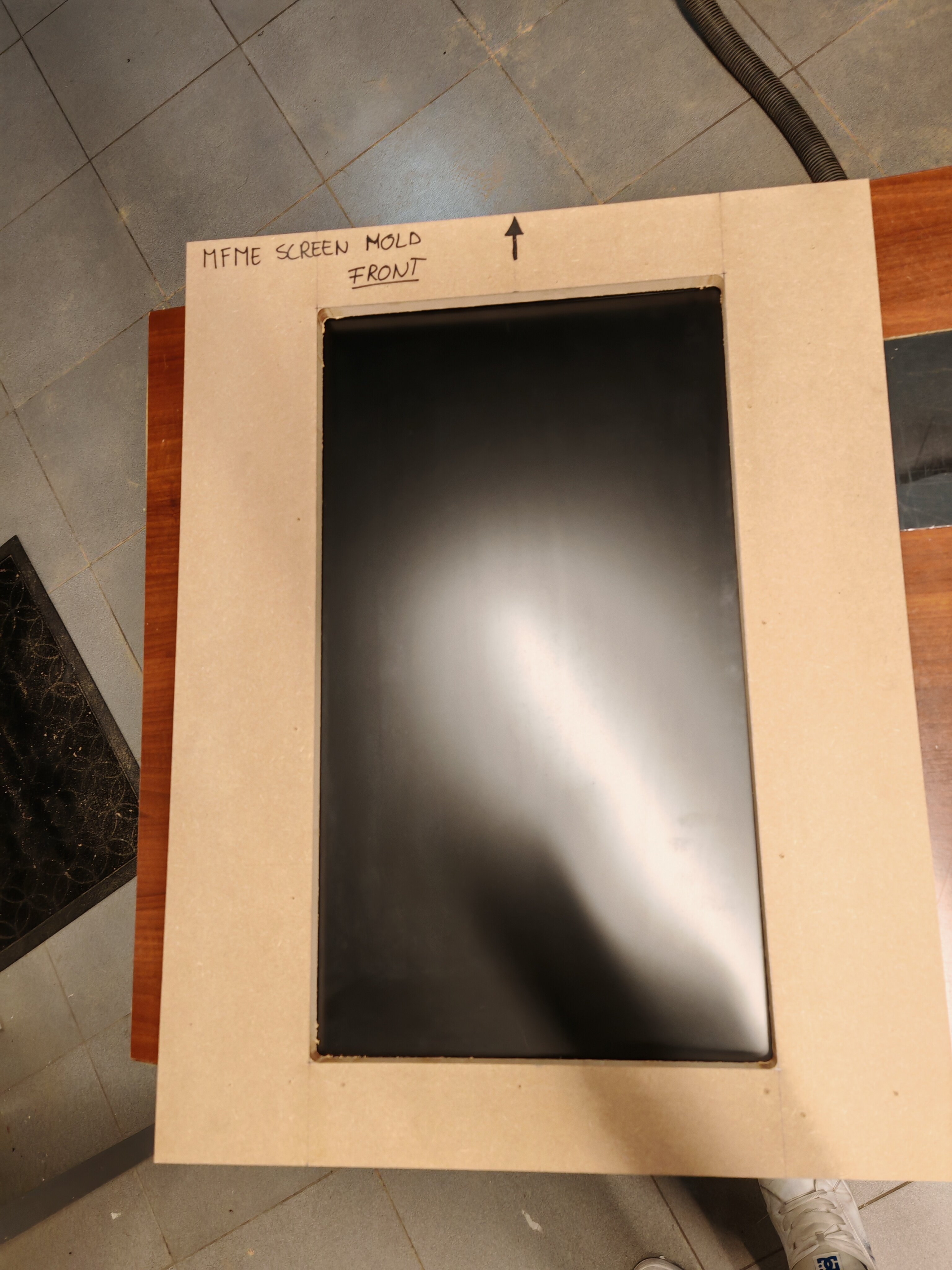

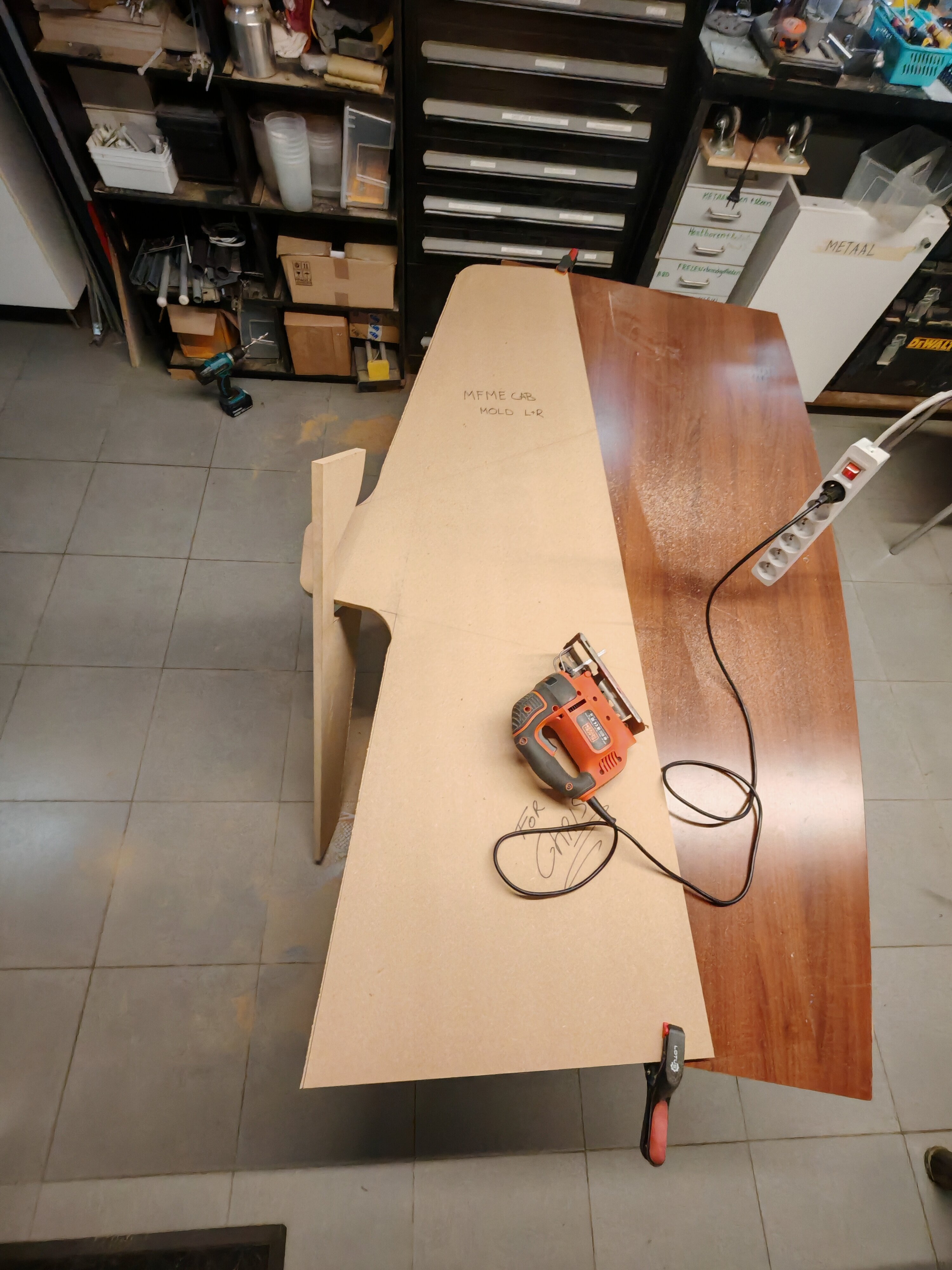

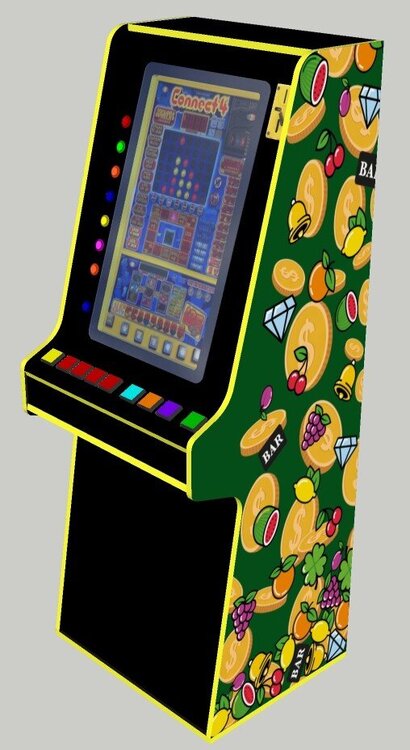

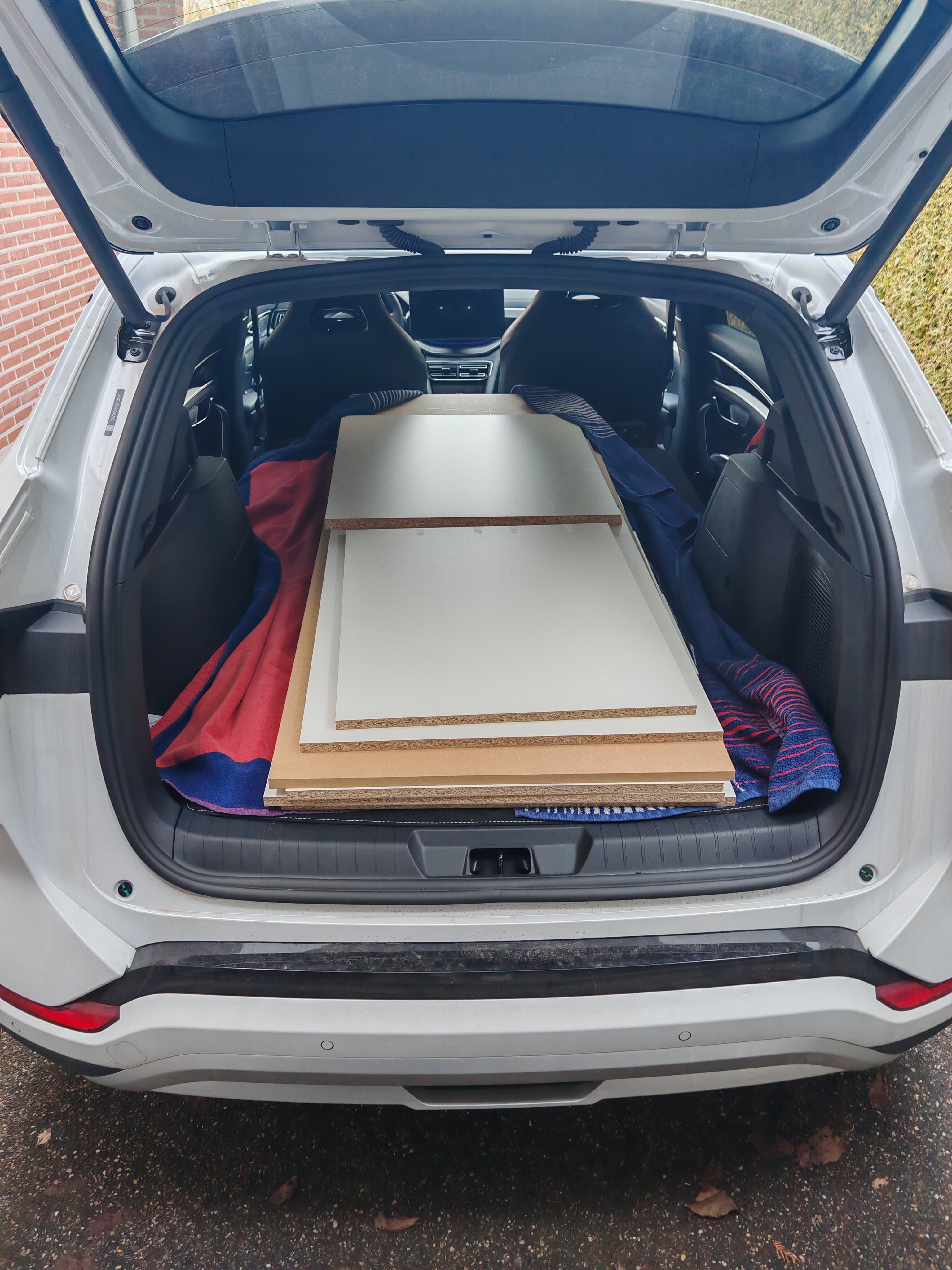

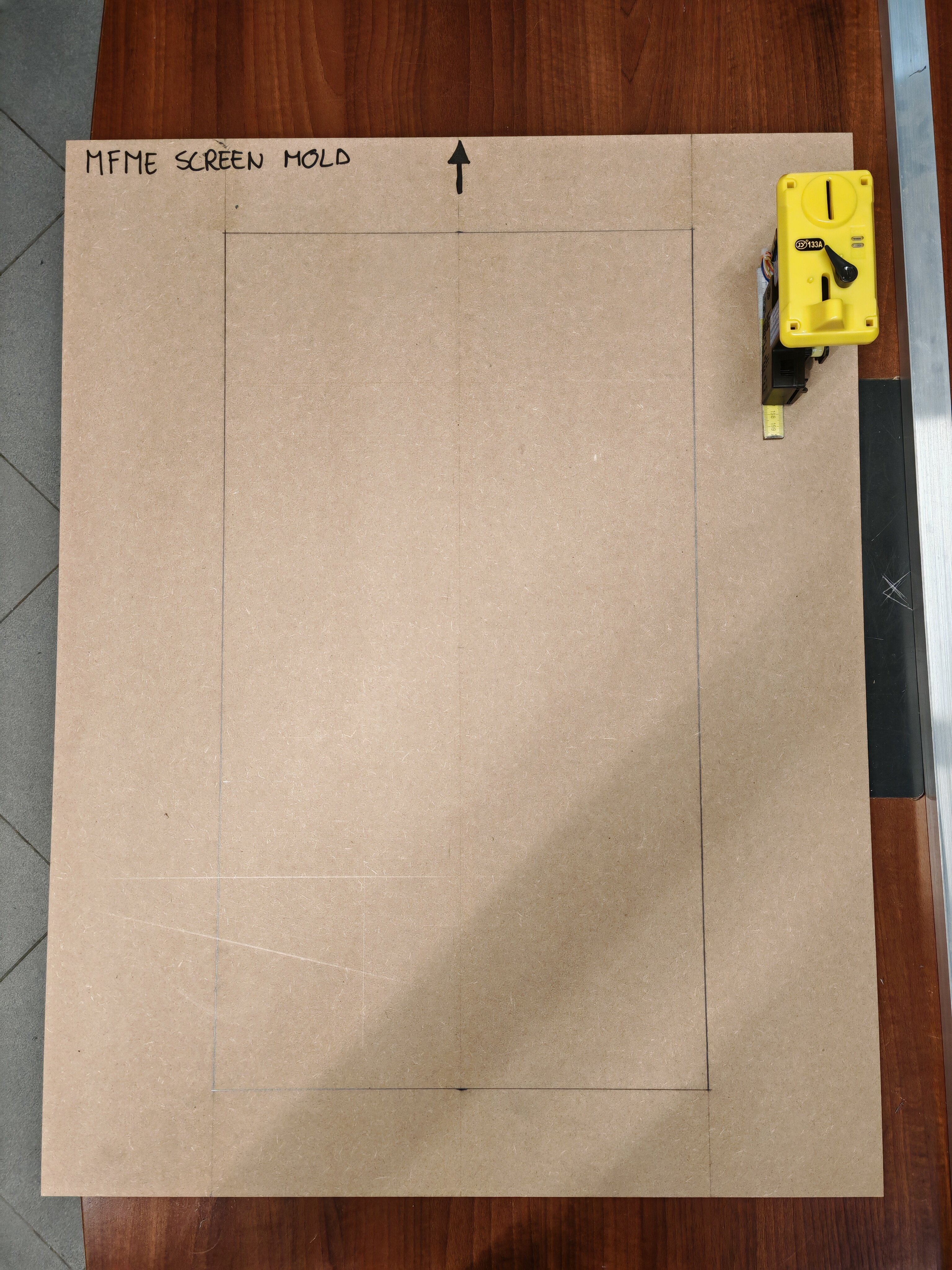

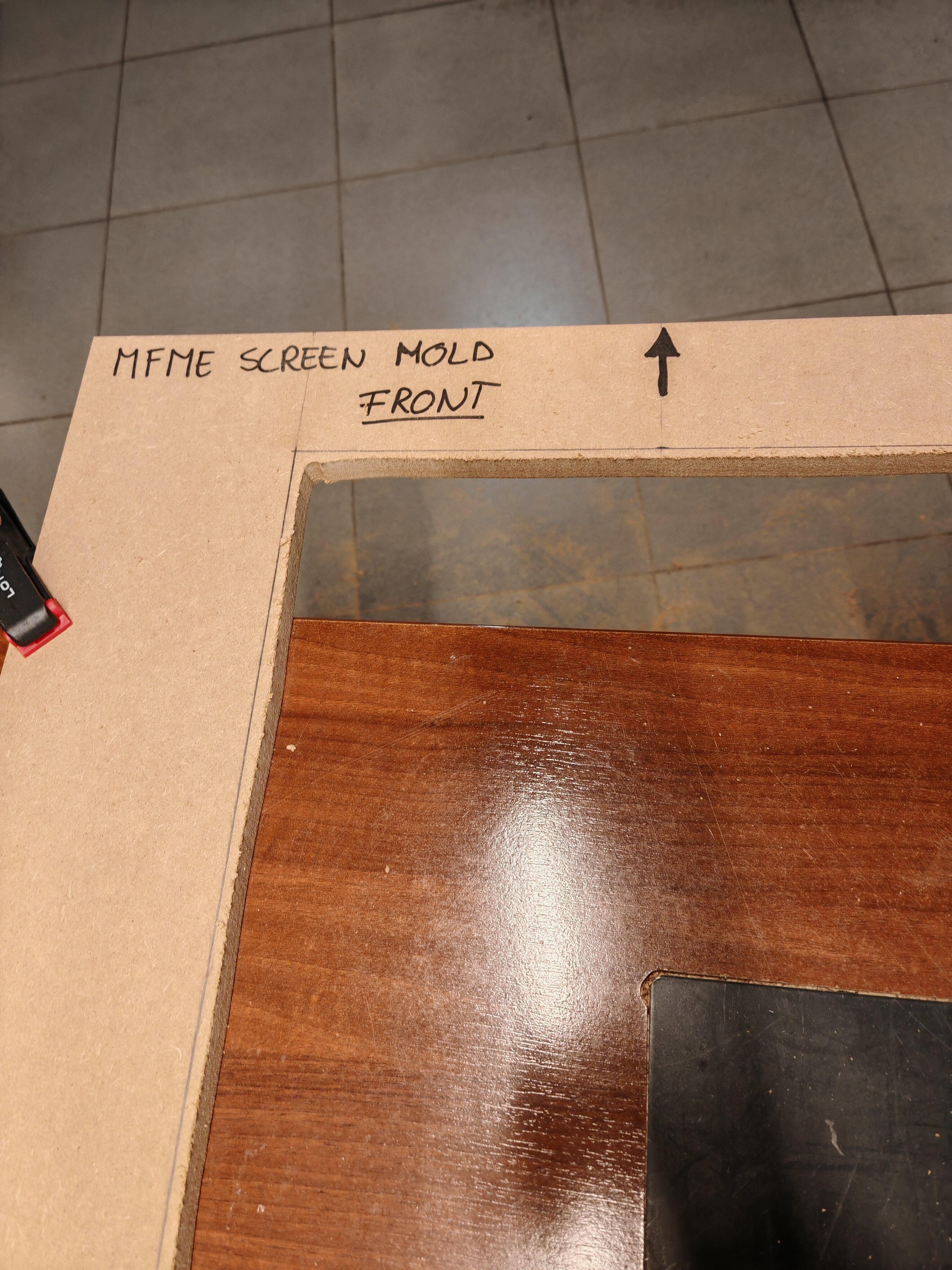

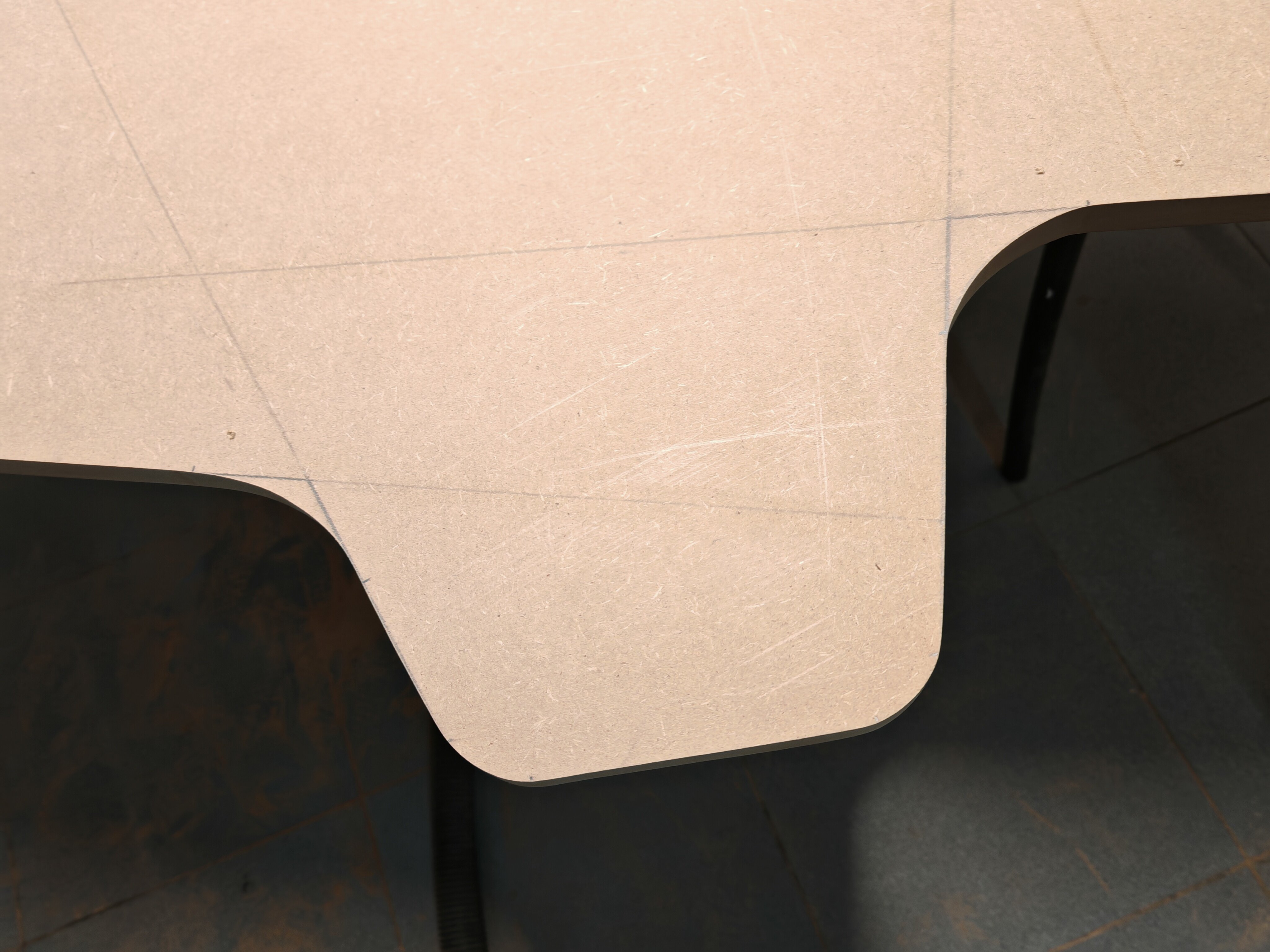

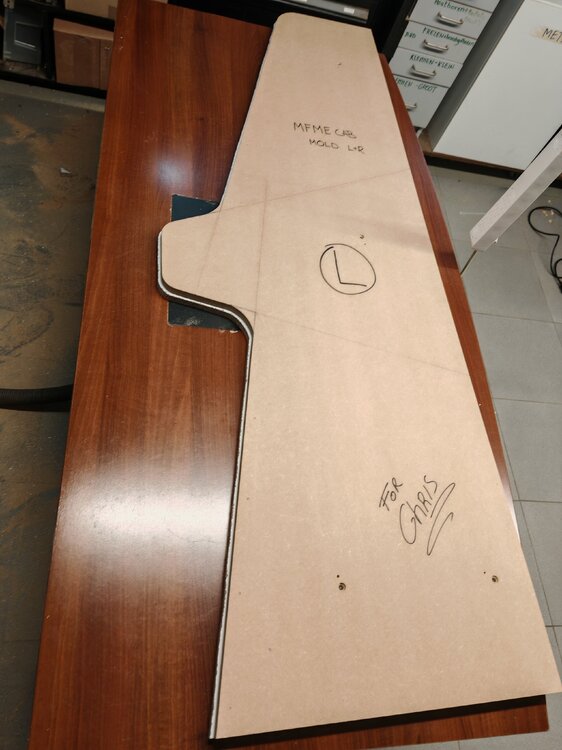

VenumX Posted January 22 Author Report Share Posted January 22 Update , Thursday 22/01 My 18mm wood laminate finally arrived , I order my wood based on the 3D drawing. Every panel is at perfect 90° angles. (That's something I can't do in my garage) The rest of the mold making and routing I do in my garage. I make a mold out of 18mm MDF based upon 3D measurements. Then I sand the molds edges to a smooth finish because my copy-router bit will follow the molds outline. I also found a cointray from an old "superjoker" from Bell-fruit , degreased it ant painted it black again, it had some wear and tear on the paint. Pictures are in timed order. Enjoy! 4 Link to comment Share on other sites More sharing options...

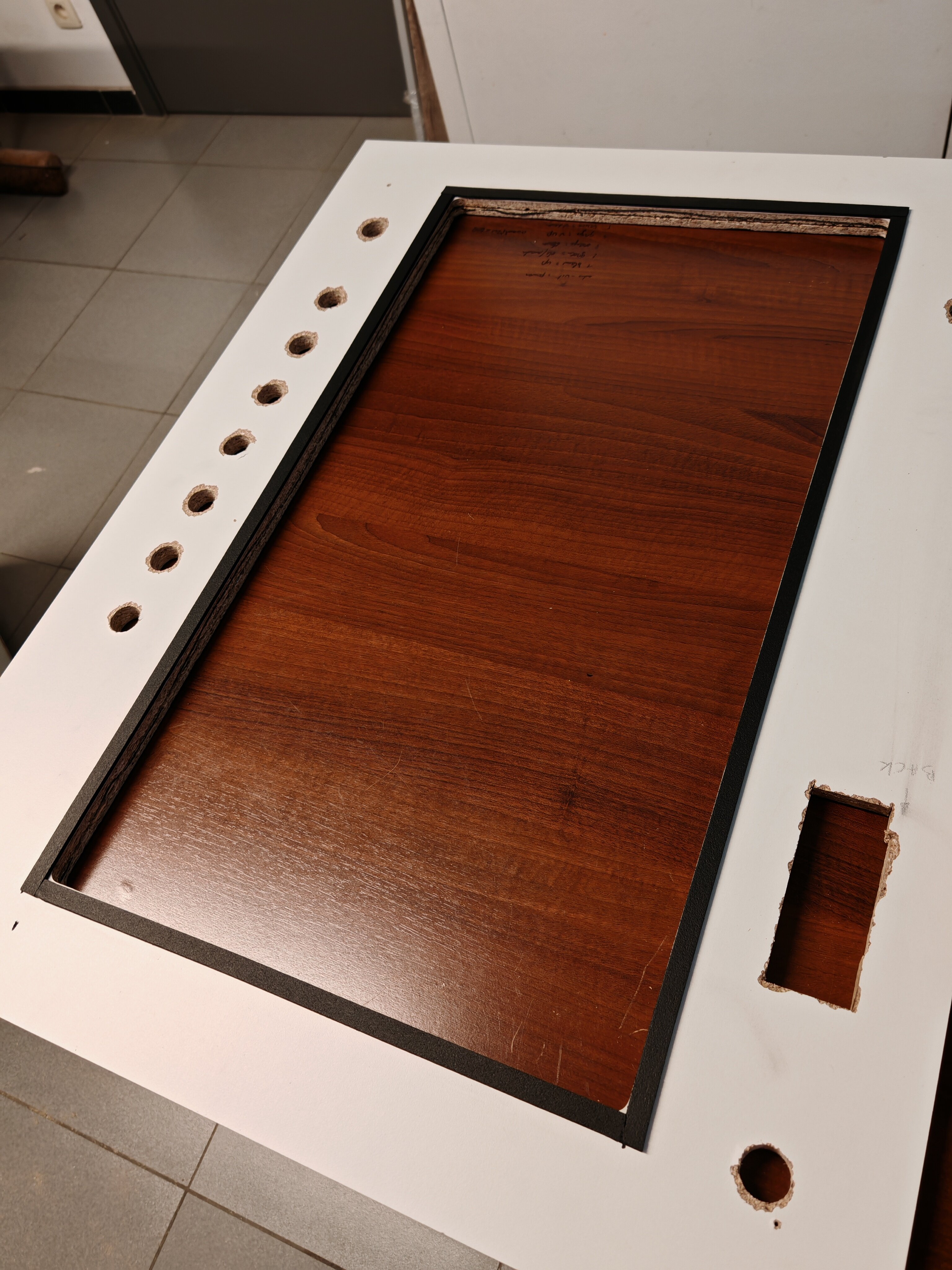

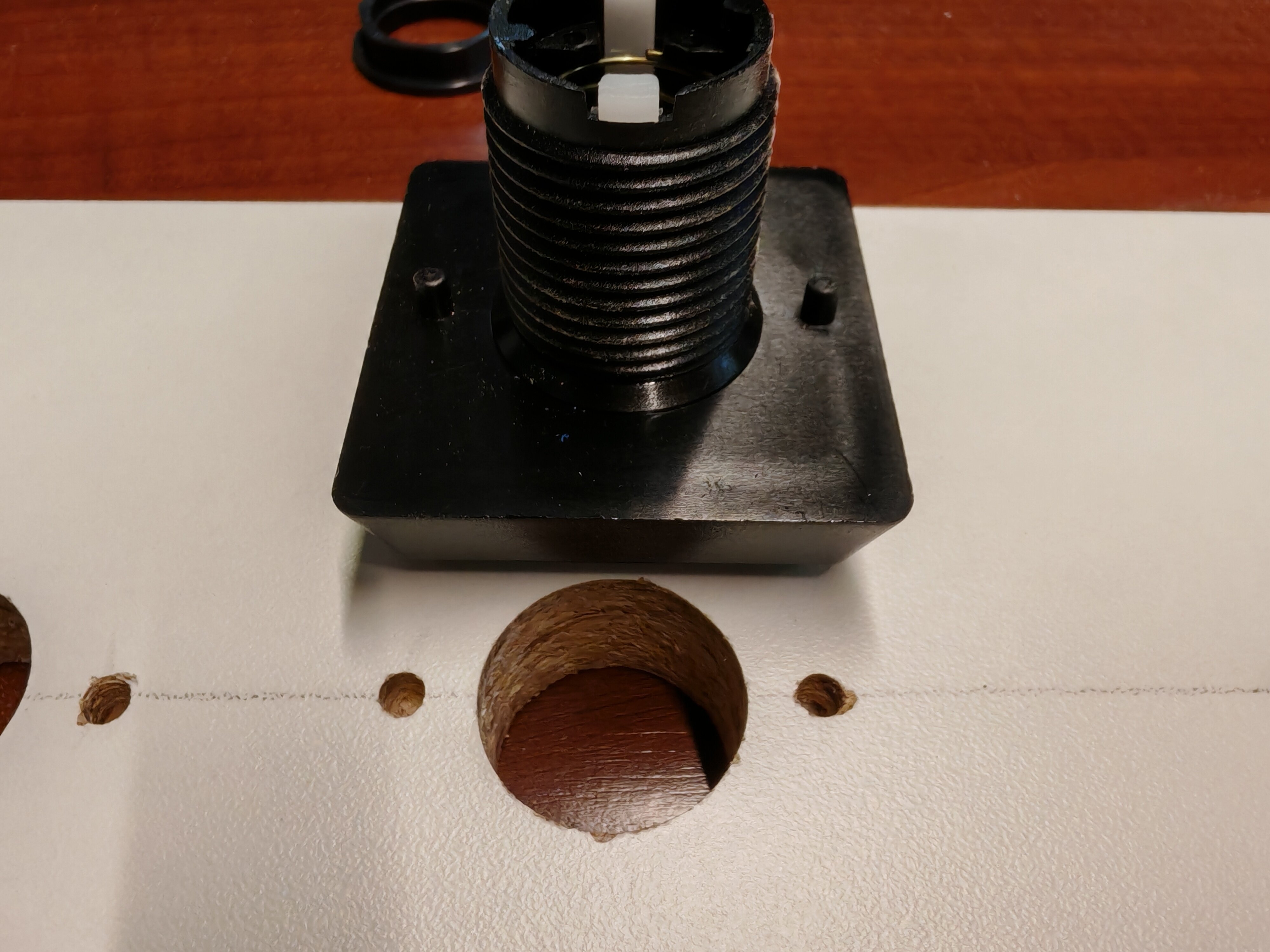

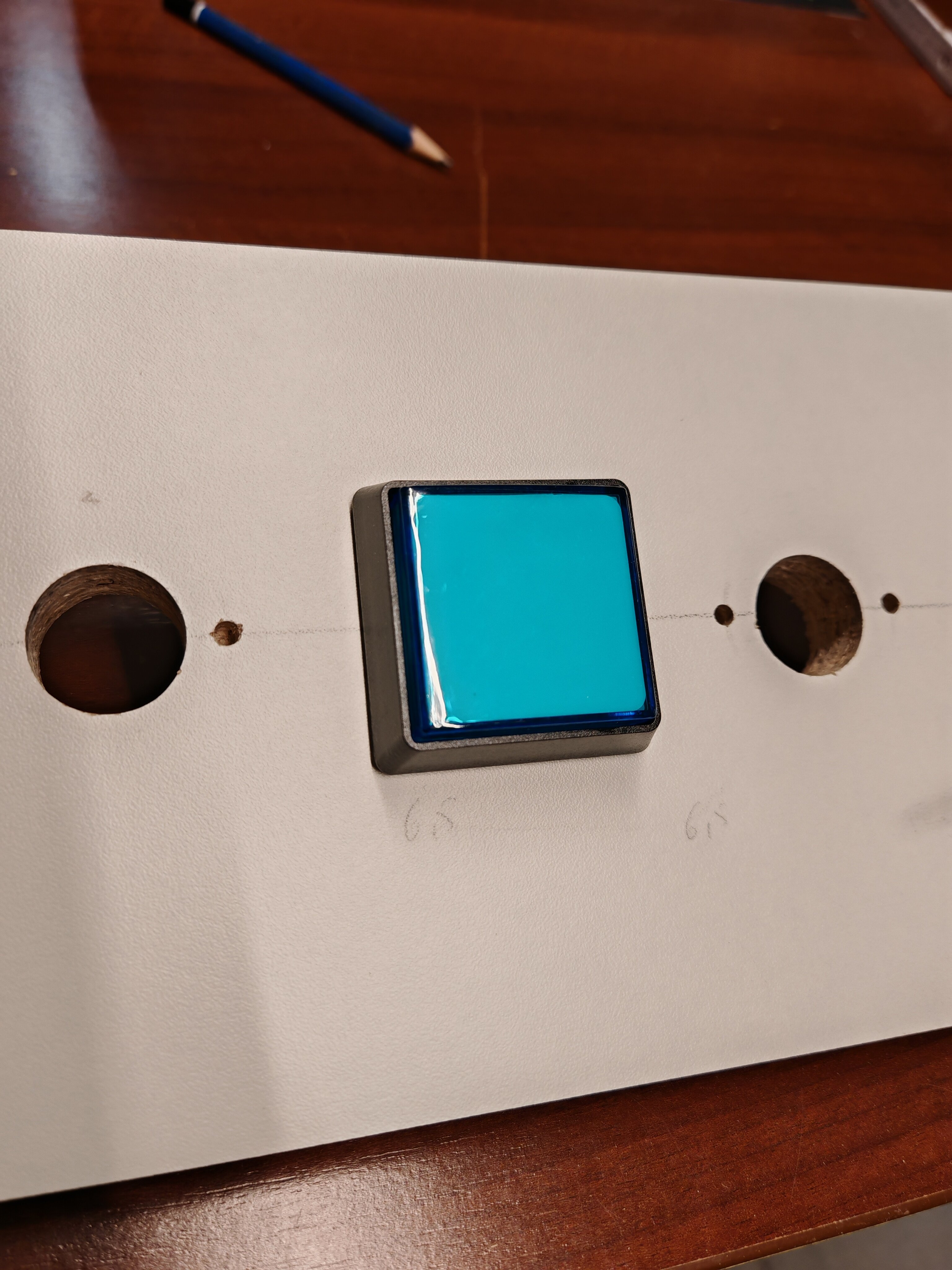

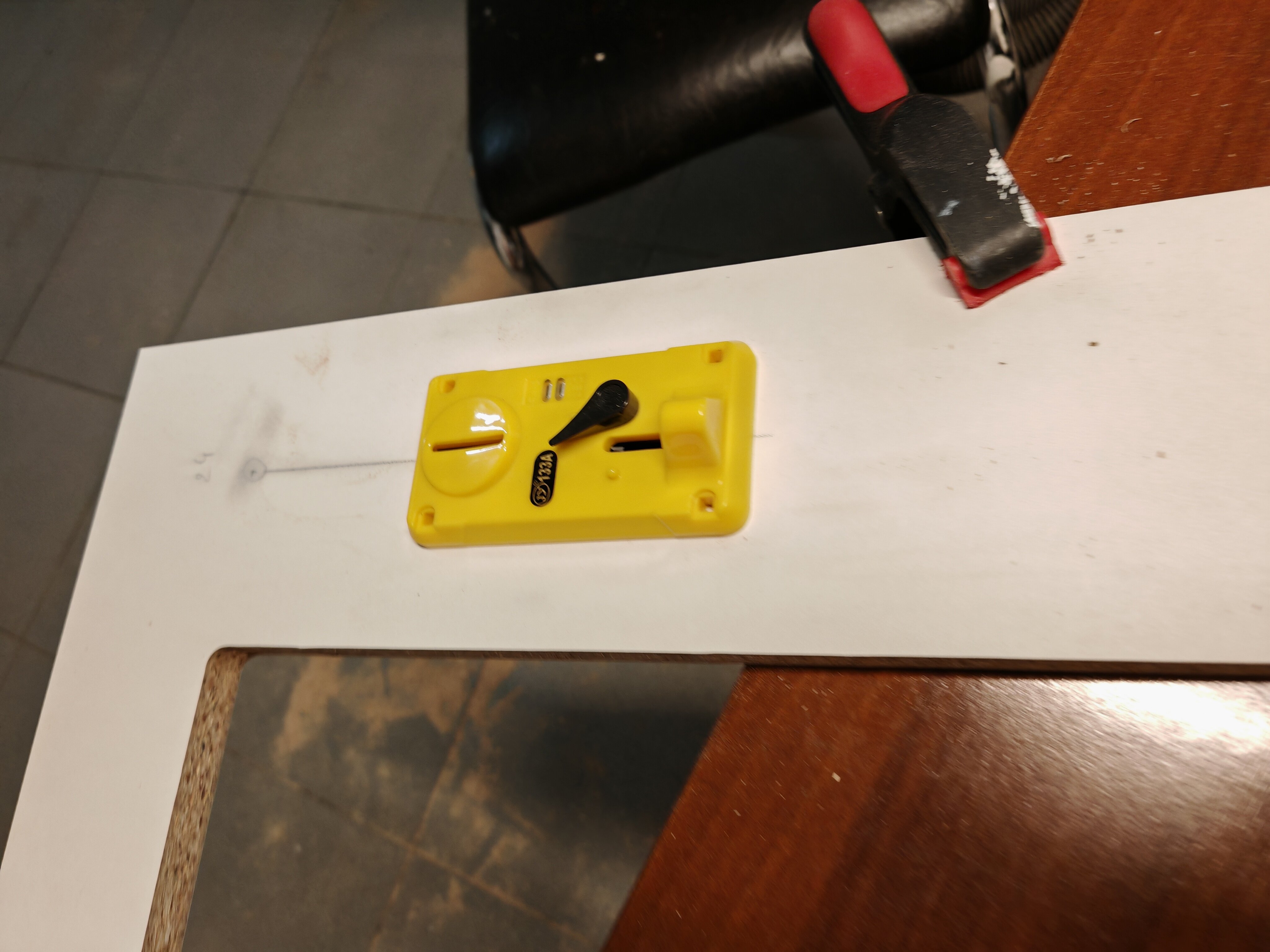

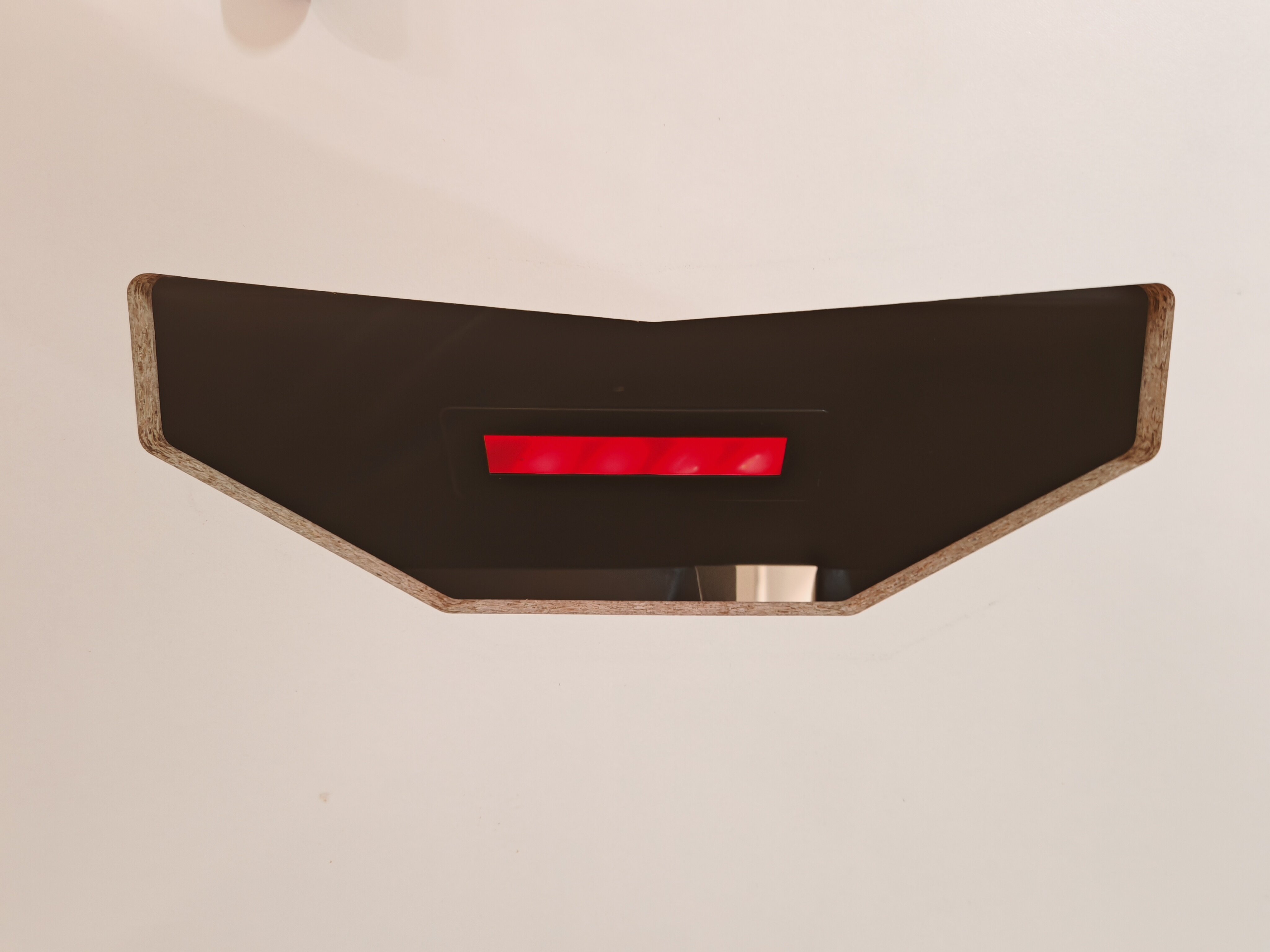

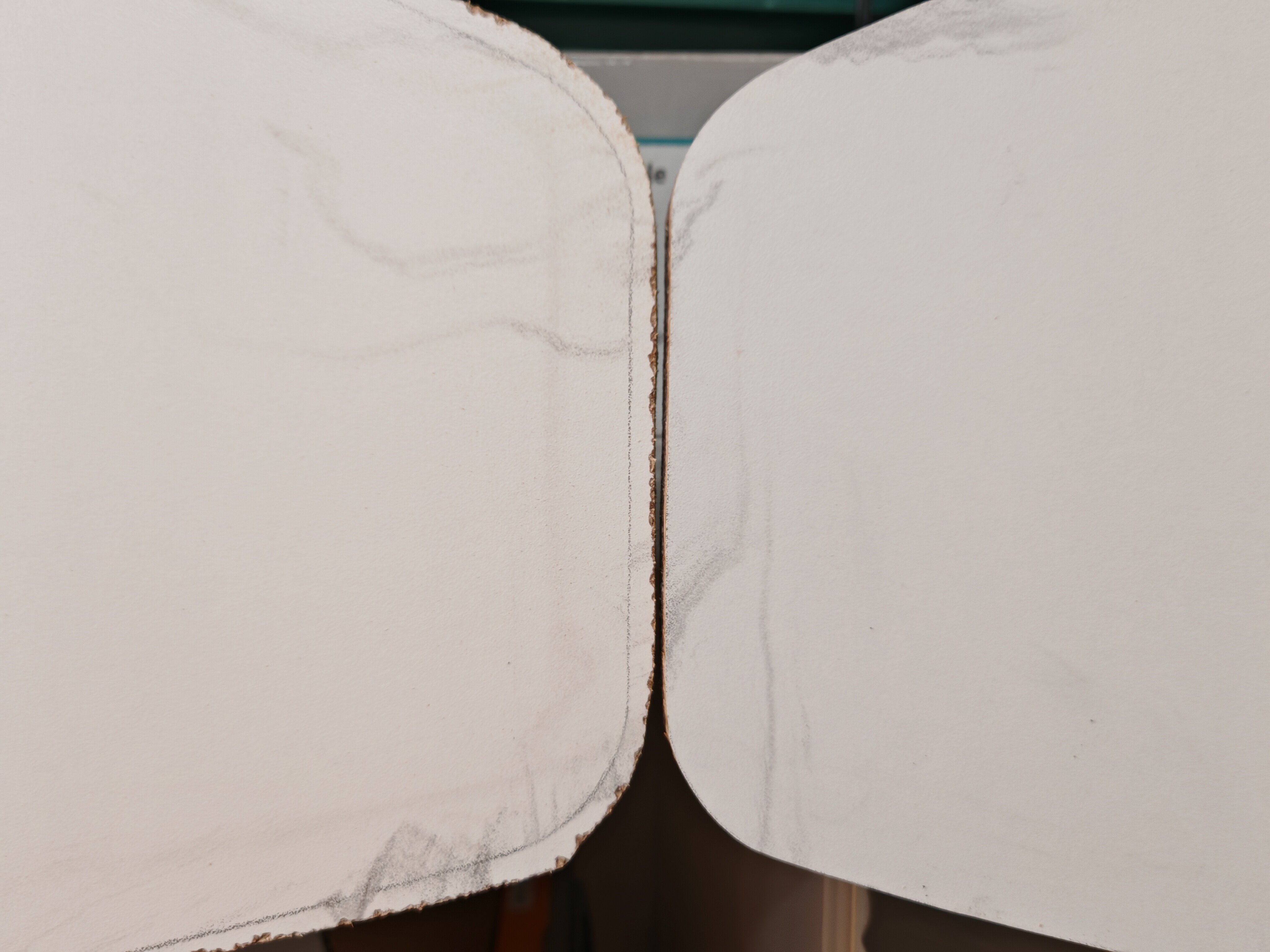

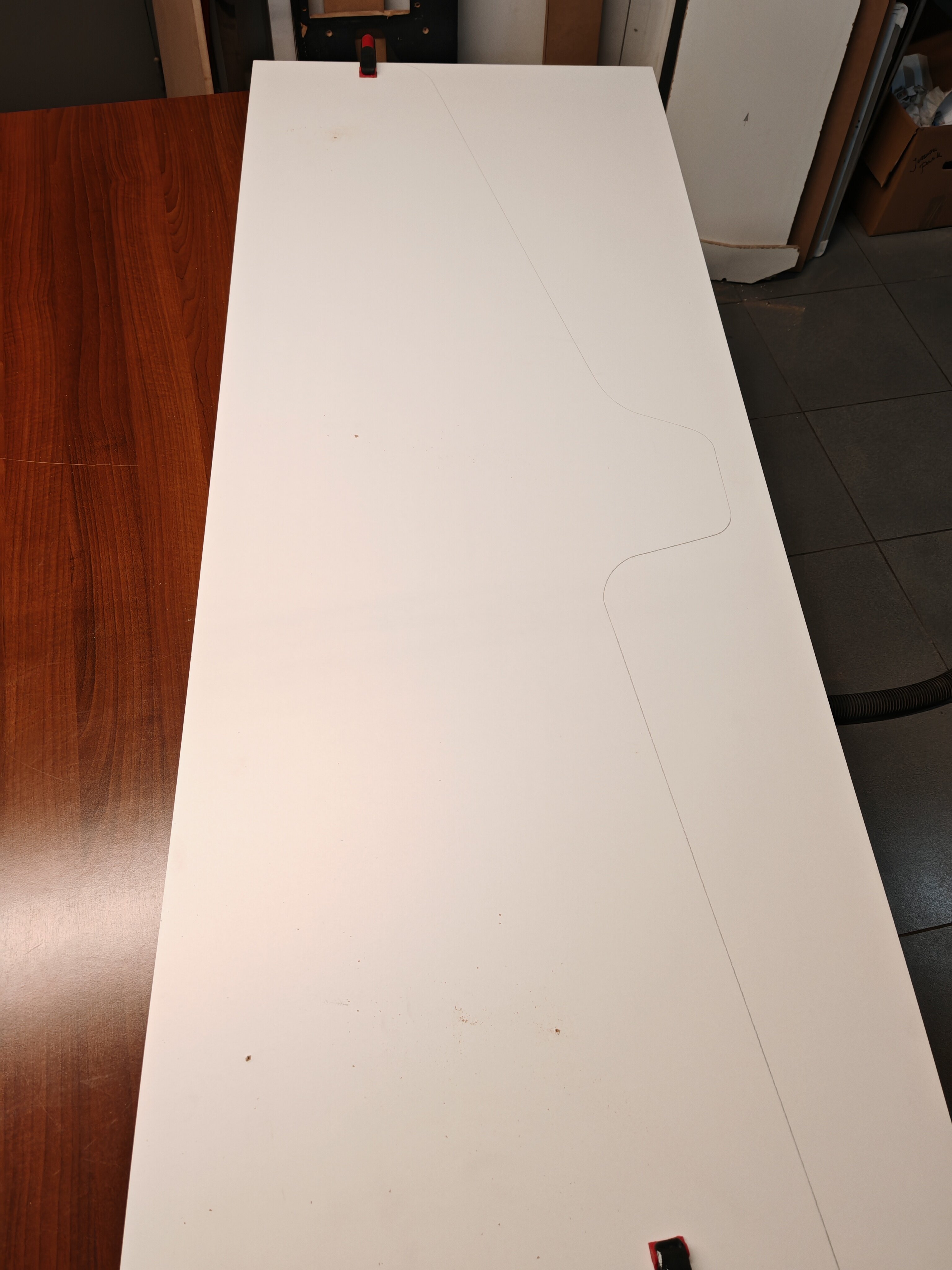

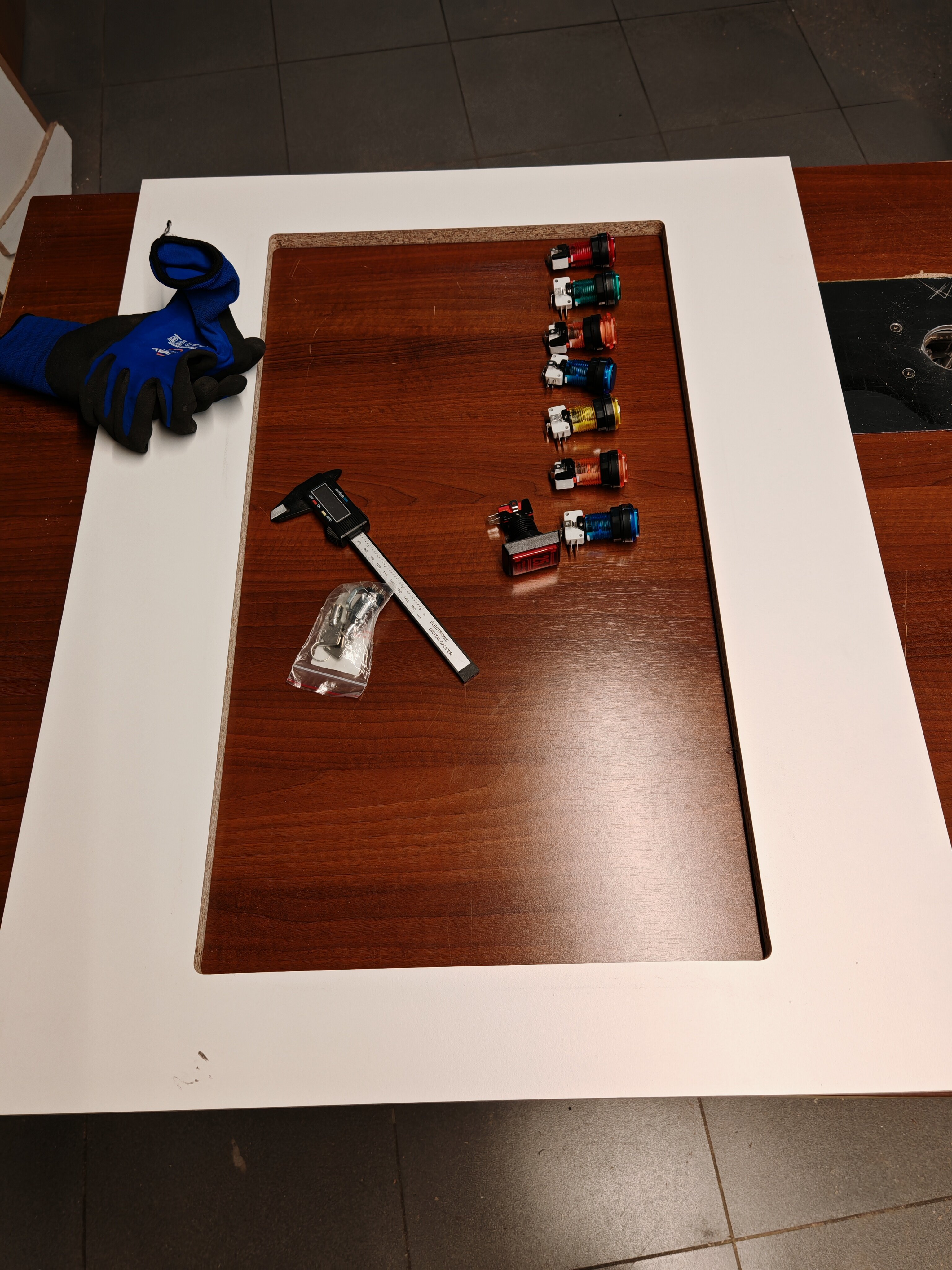

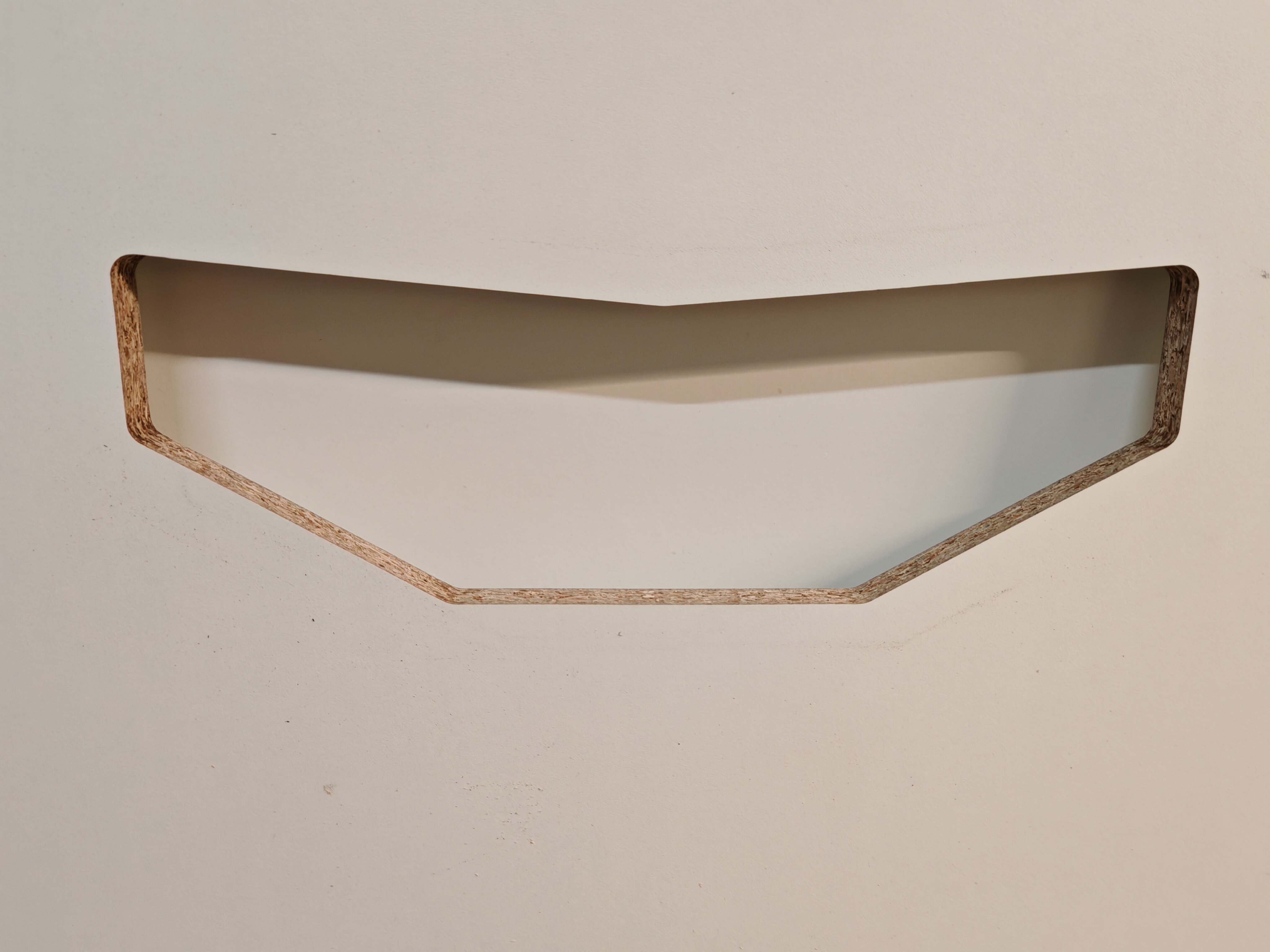

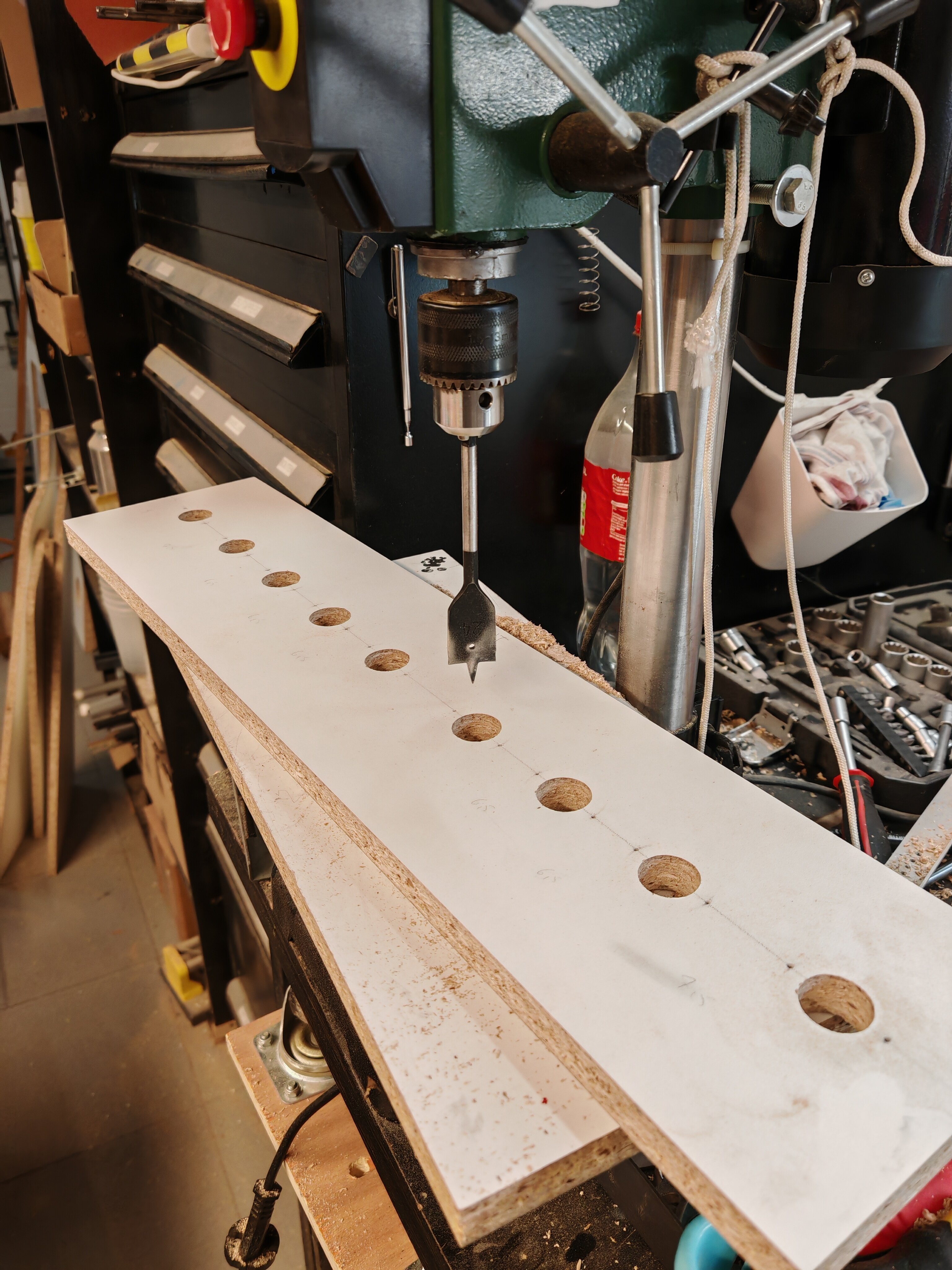

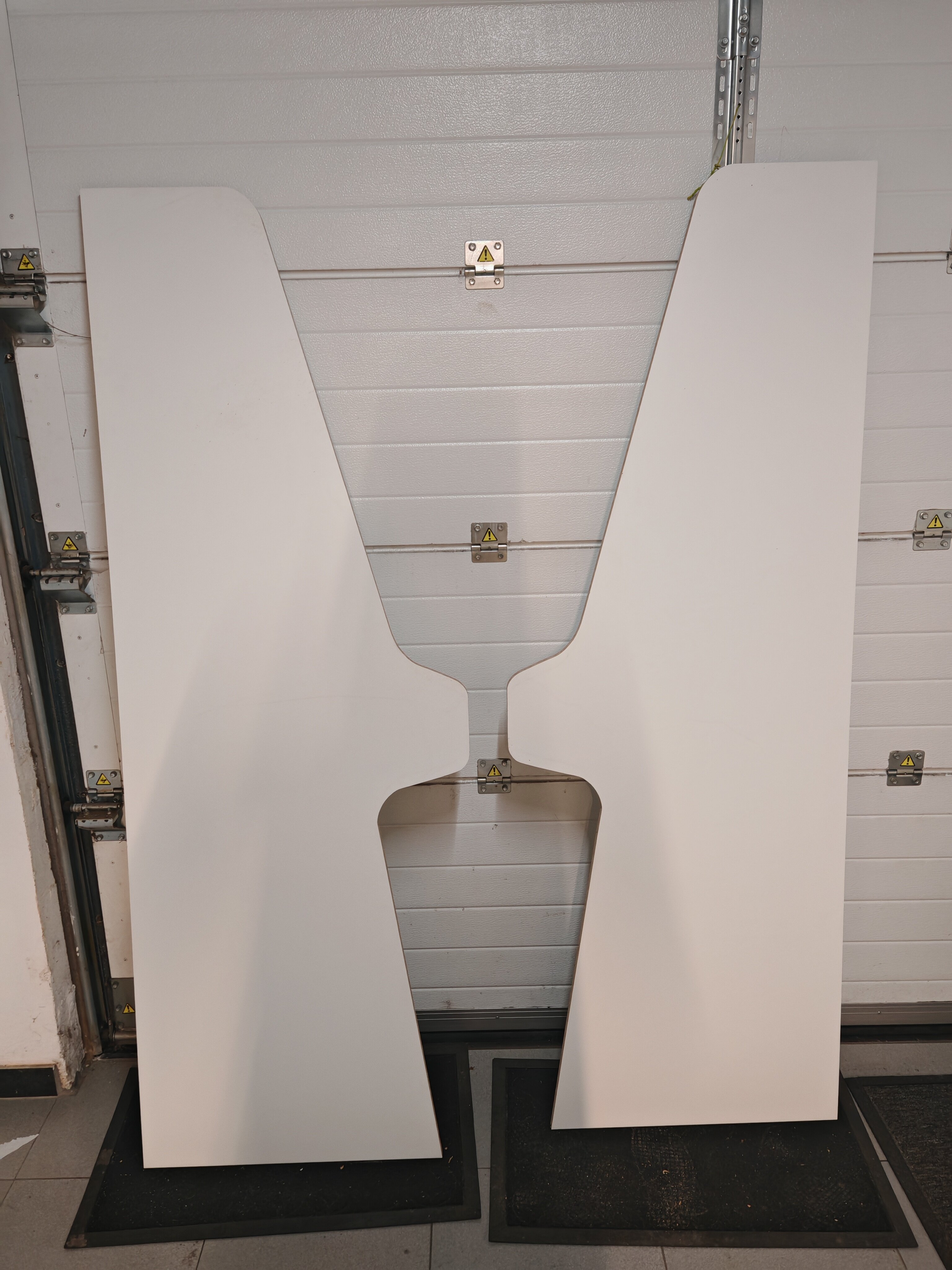

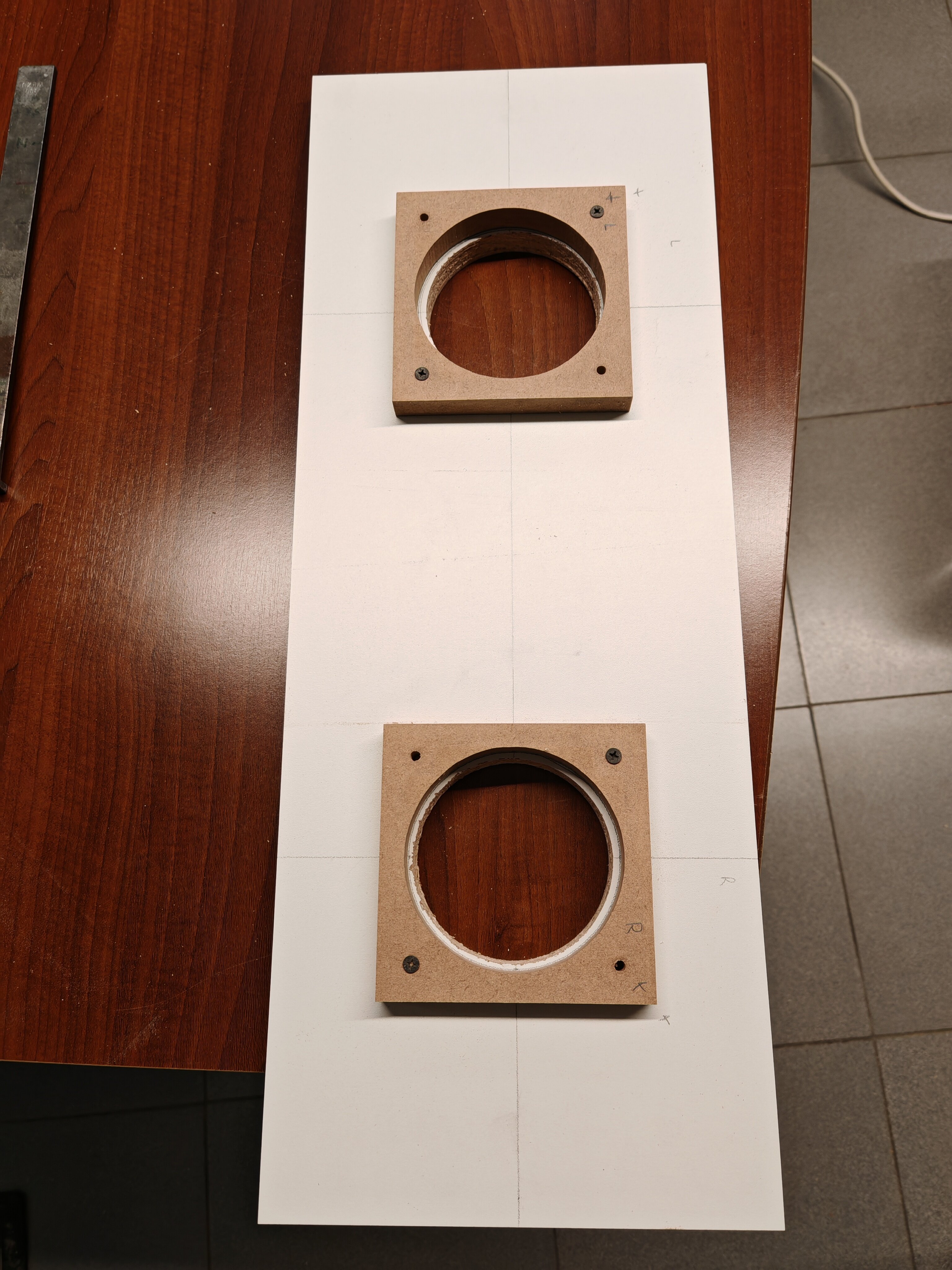

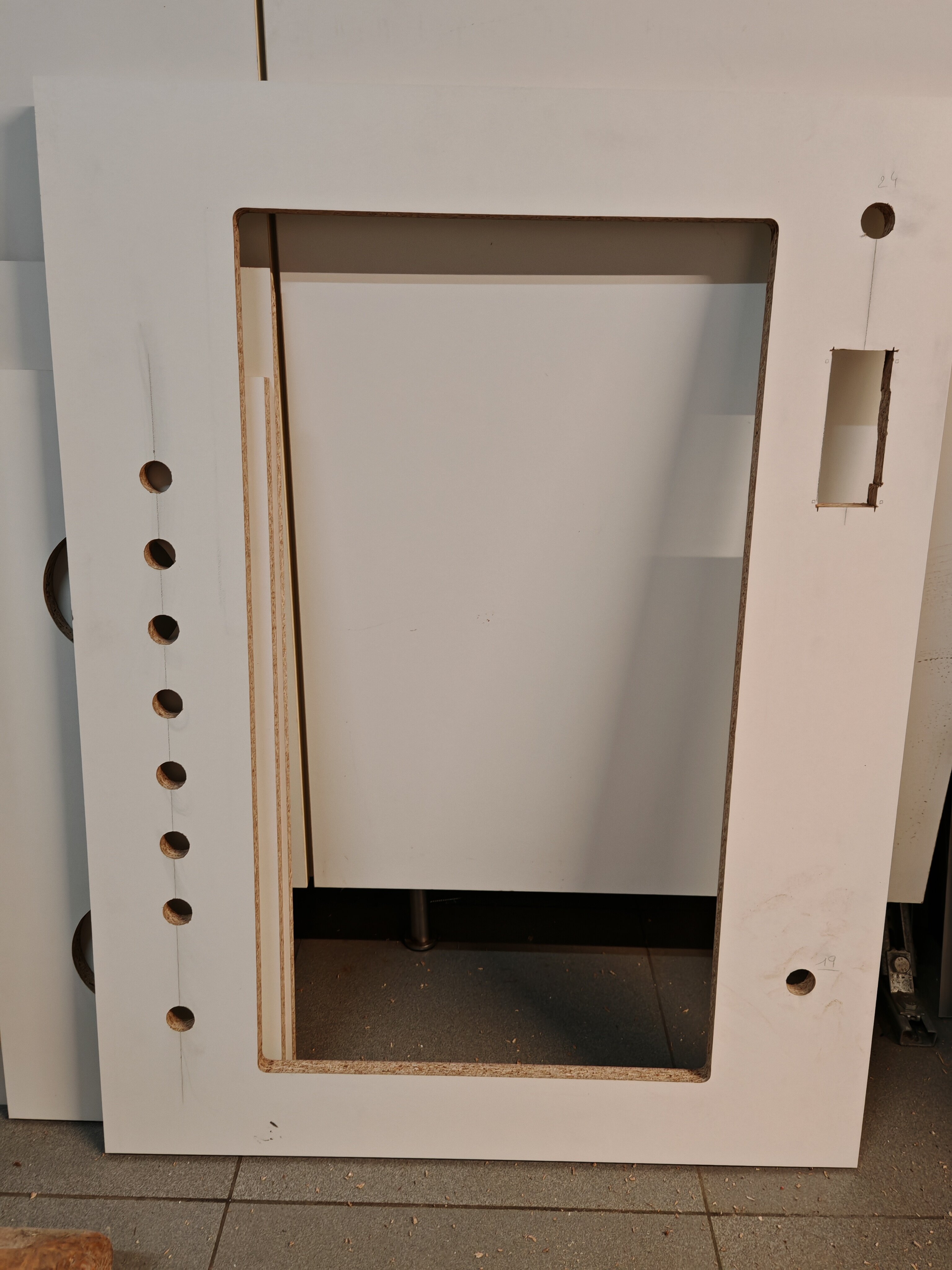

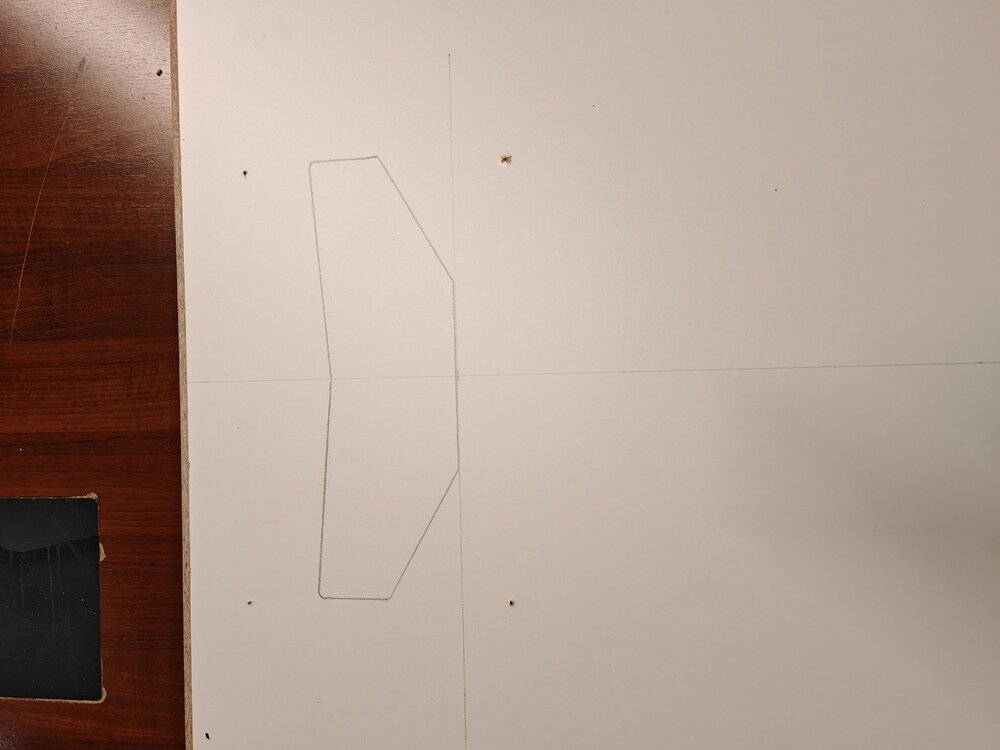

VenumX Posted January 23 Author Report Share Posted January 23 Update Friday 23/01/2026 Routing the sides of the cabinet. Drilling mounting holes for buttons , coin mech and speakers. Pictures are in timed order. 4 1 Link to comment Share on other sites More sharing options...
VenumX Posted January 24 Author Report Share Posted January 24 If I post to many/boring pictures , please tell me. This is just a woodworking stage, all part of the plan. I hope to get allot done this weekend, but my back is killing me , so yeah.... Sucks to be 41 feeling 70. My garage gas heater broke , so I'm running to the store tomorrow for a new one + some tools and paint from that same store. Link to comment Share on other sites More sharing options...
VenumX Posted January 24 Author Report Share Posted January 24 Short video showing how copy routing actually works. Great technique for making perfect copies of something. https://youtube.com/shorts/92BneiG3v6A?si=80FQGfjIeK8VKf_o Link to comment Share on other sites More sharing options...
dondplayer Posted January 24 Report Share Posted January 24 31 minutes ago, VenumX said: Short video showing how copy routing actually works. Great technique for making perfect copies of something. https://youtube.com/shorts/92BneiG3v6A?si=80FQGfjIeK8VKf_o Have to say I am a bit confused - I assumed the idea was the machine moves automatically to copy a shape but in your video you are doing the work. So I watched another vid and that seemed the same (or at least soneone had to be doing the up and down movement, not sure about the across movement). Can you explain ? Your box will be CASHPOT Link to comment Share on other sites More sharing options...

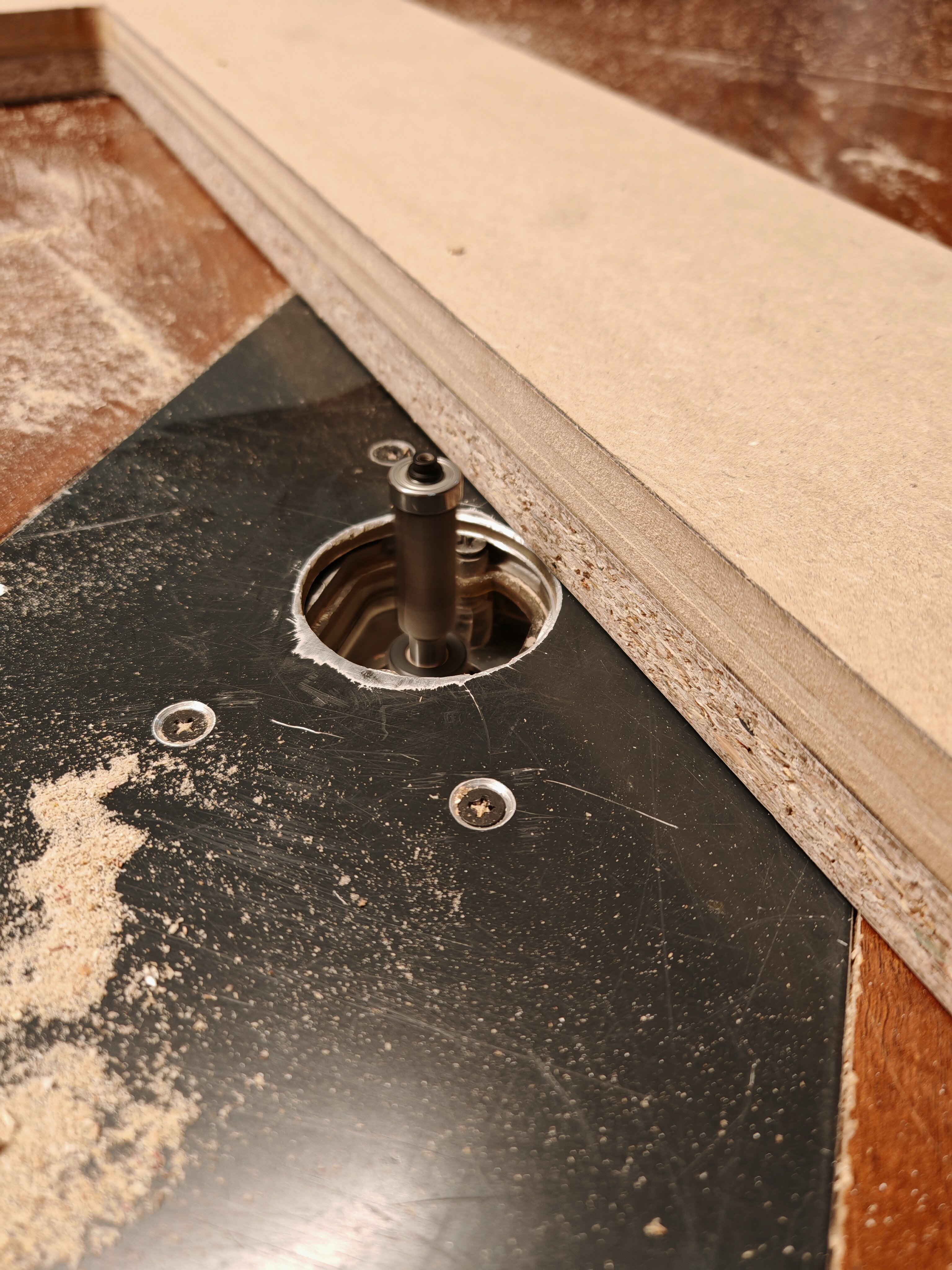

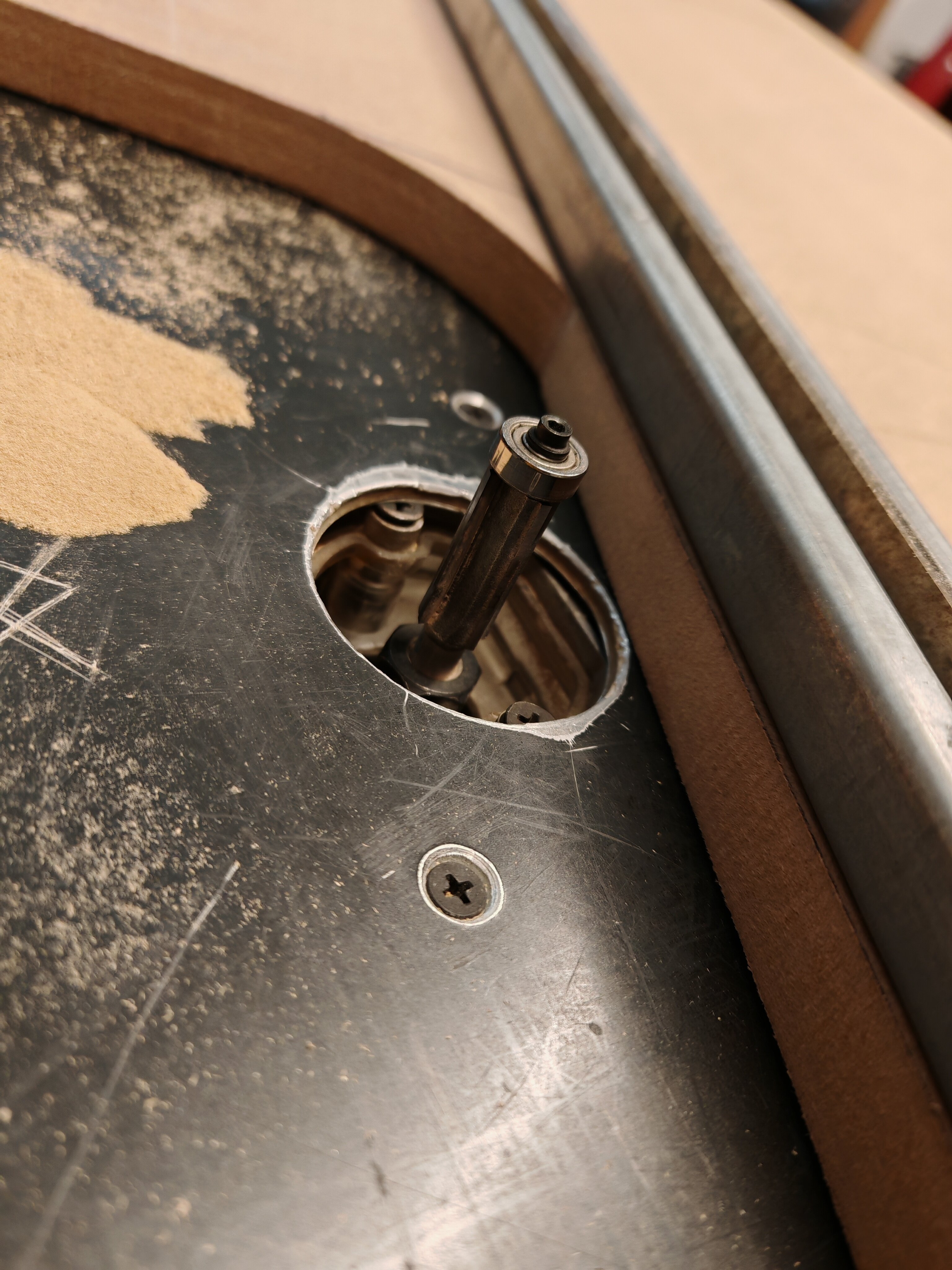

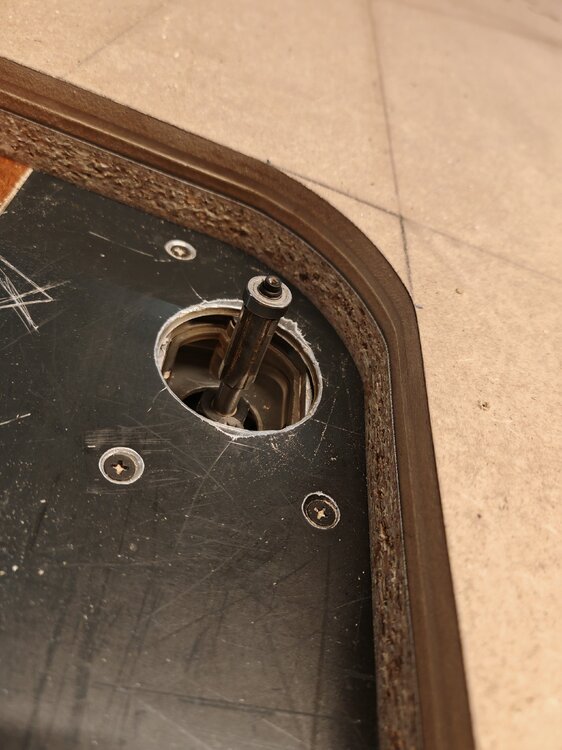

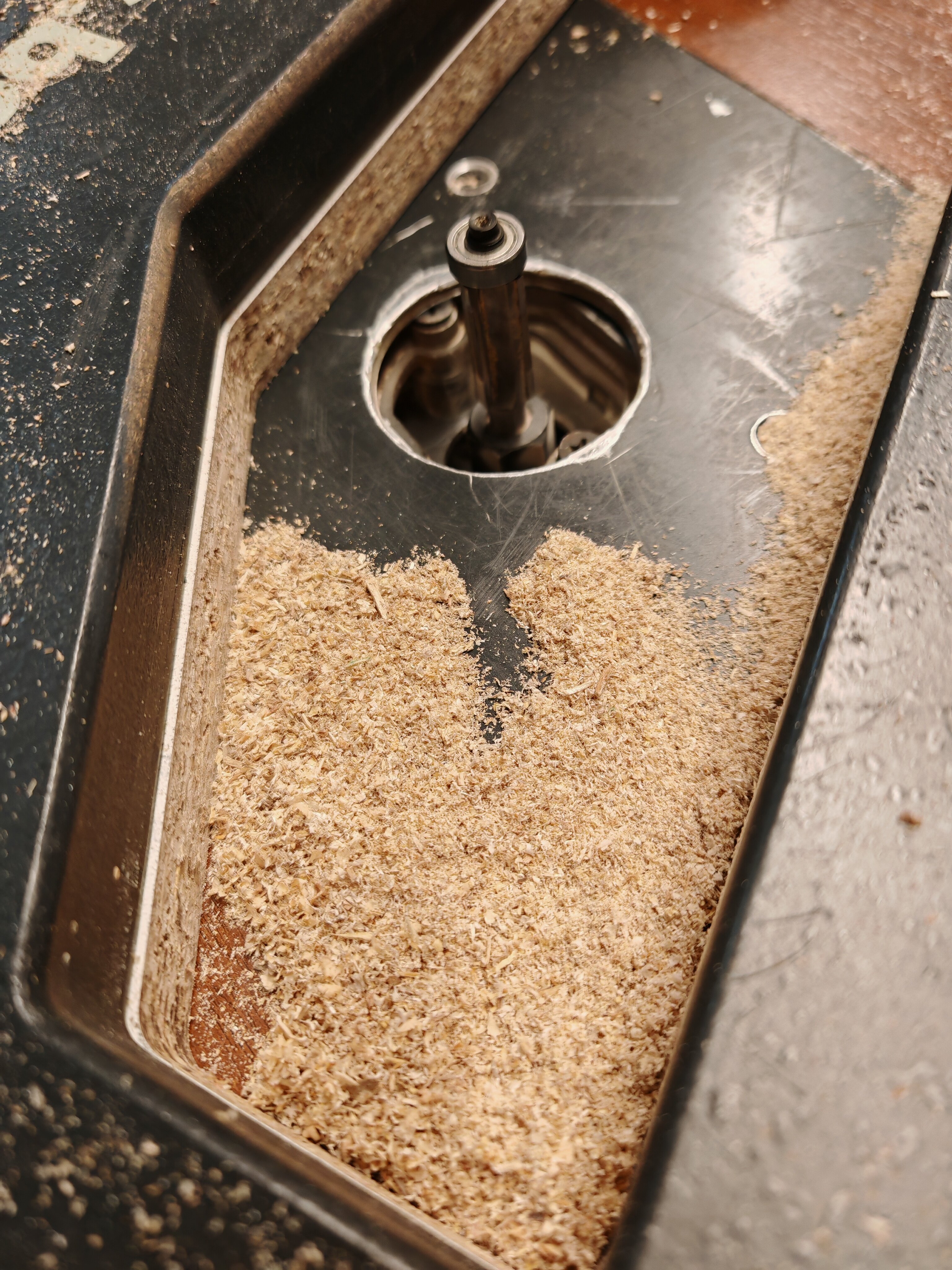

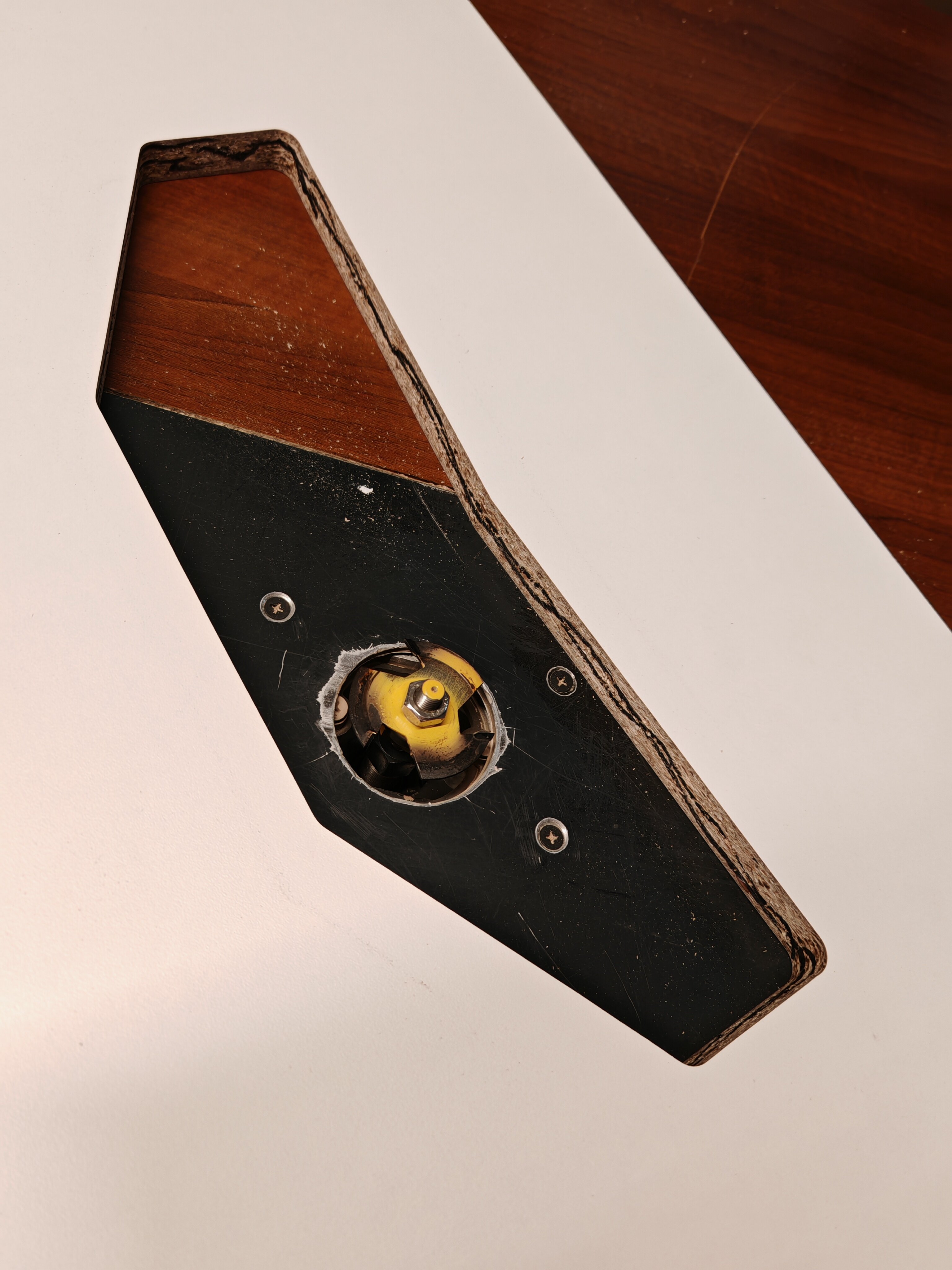

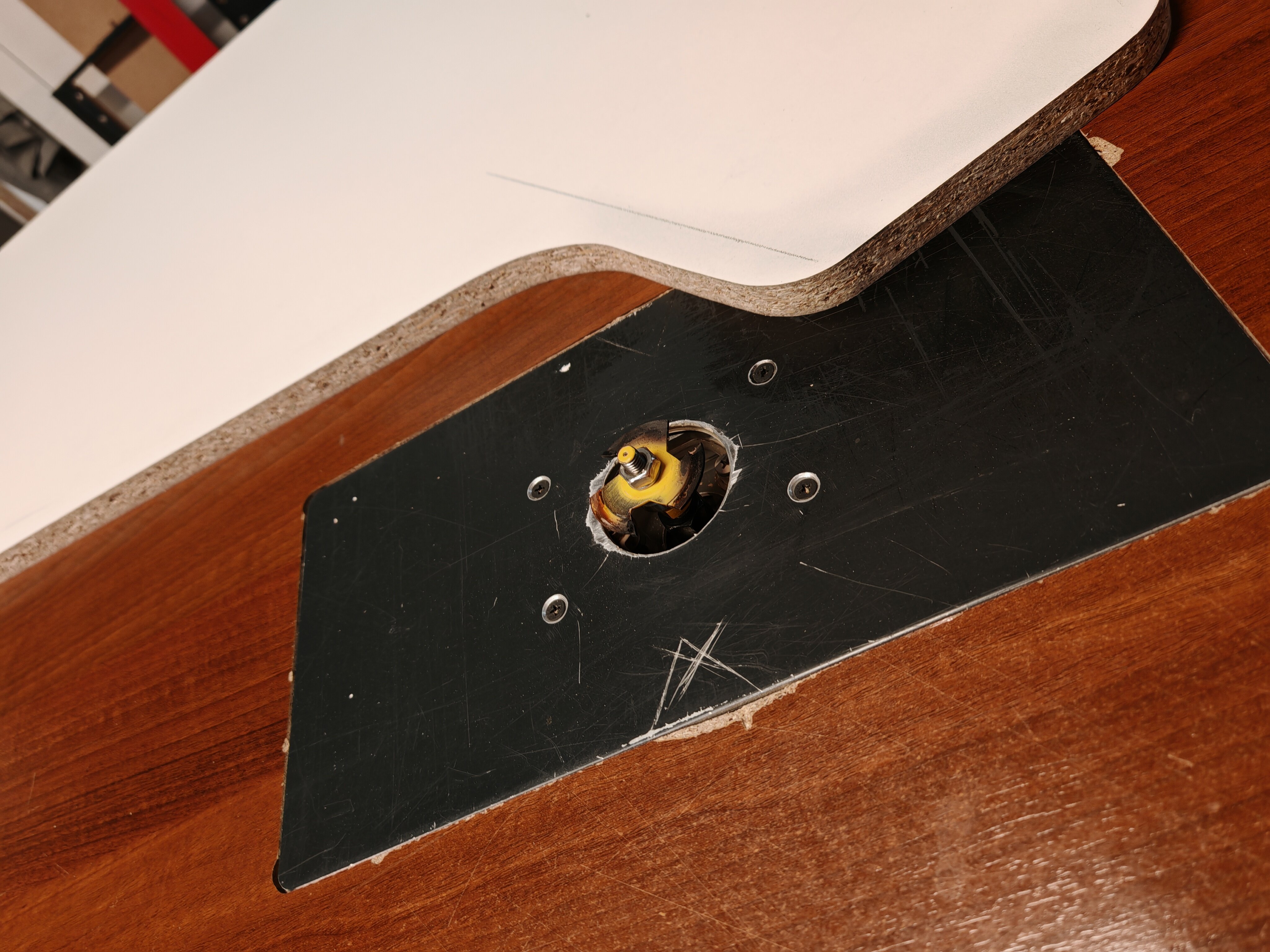

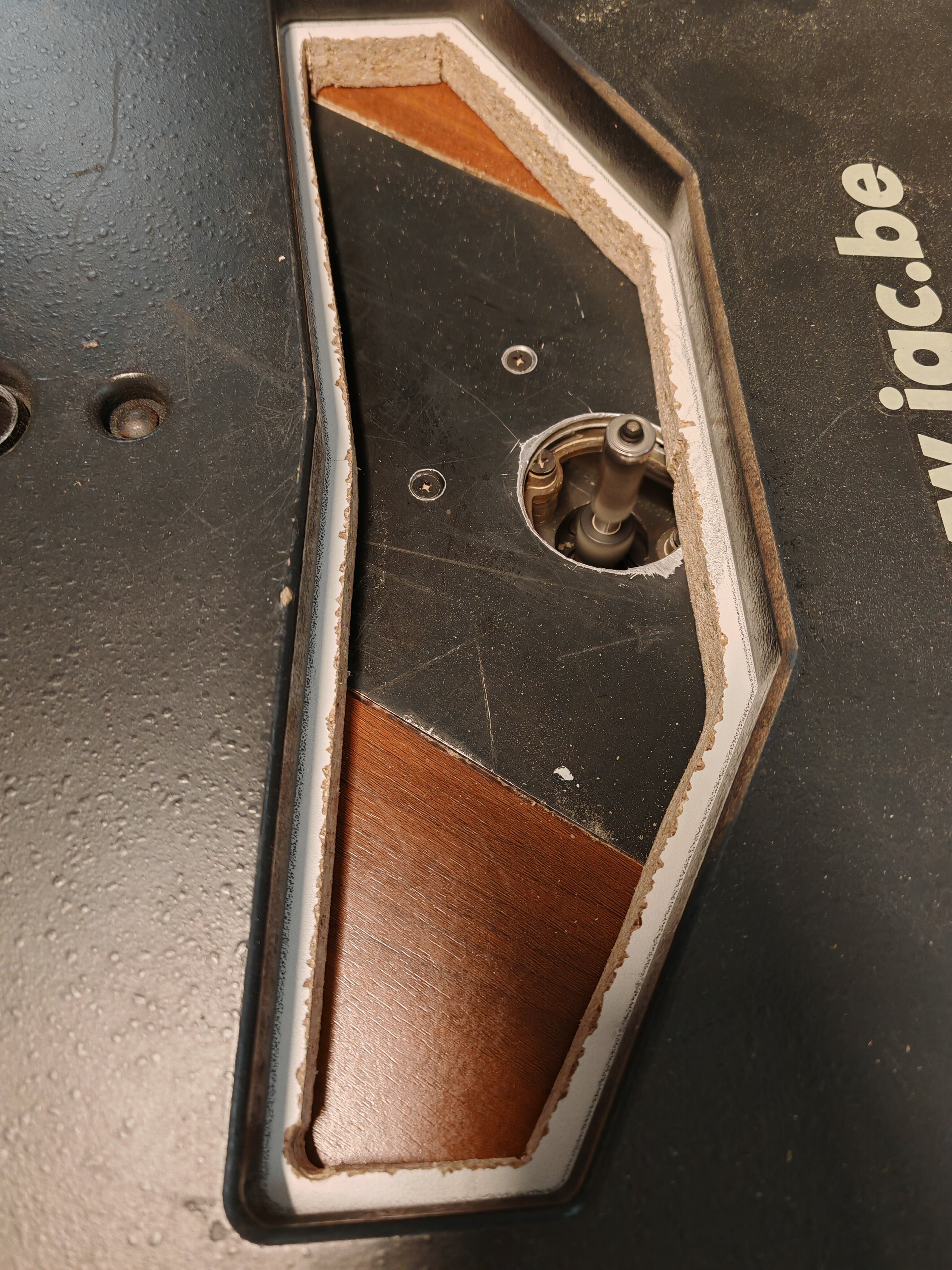

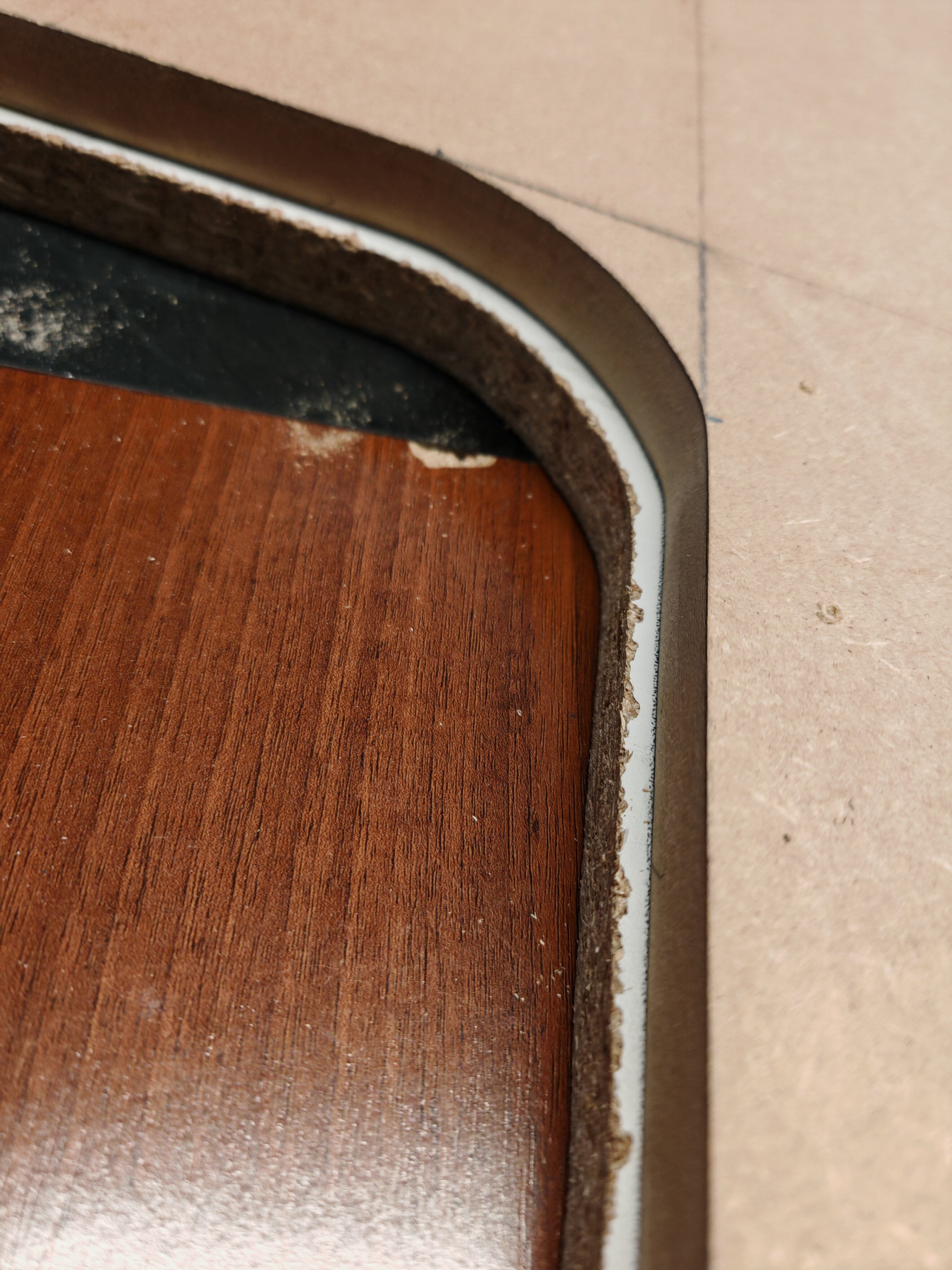

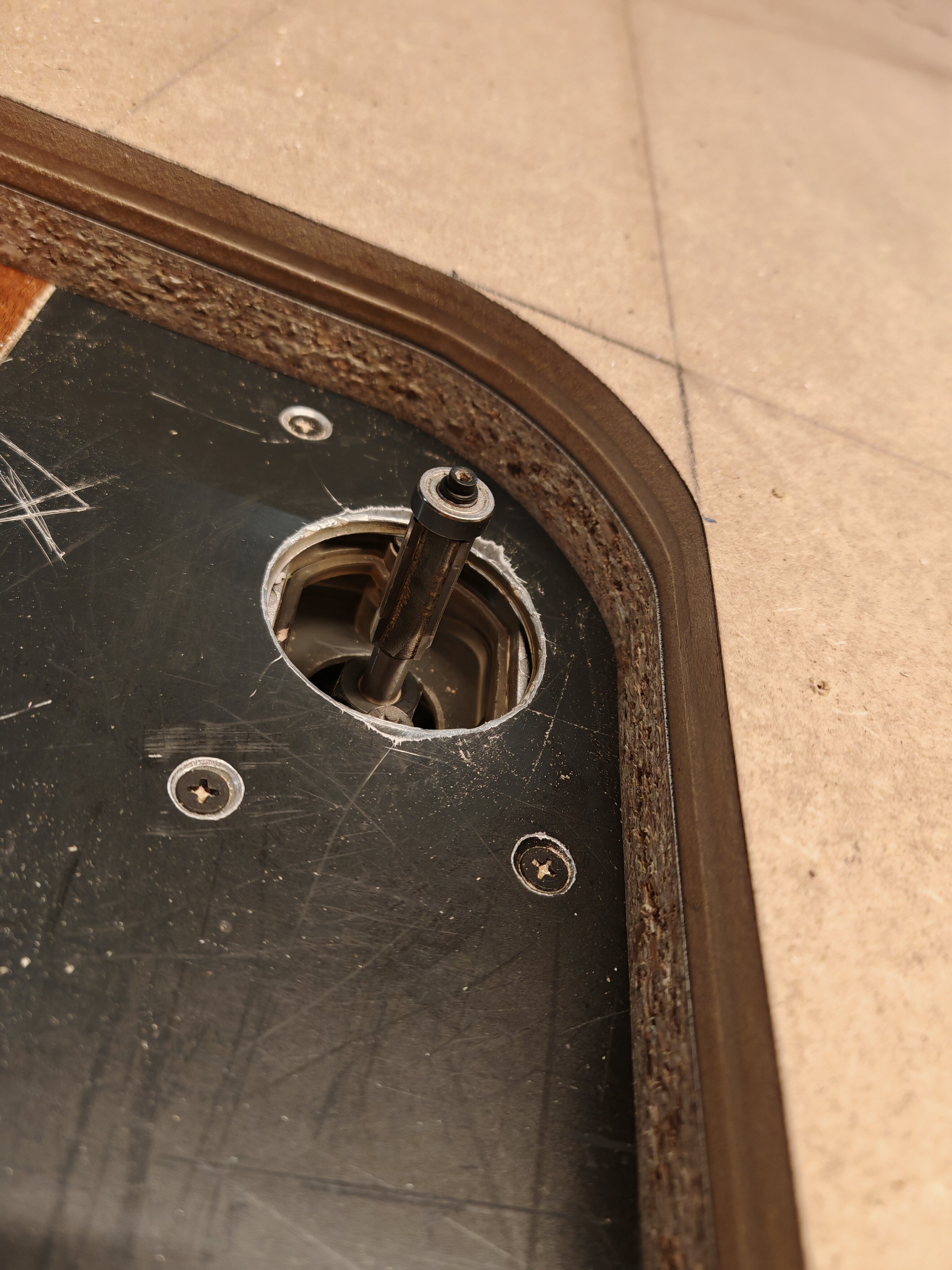

VenumX Posted January 24 Author Report Share Posted January 24 (edited) 3 hours ago, dondplayer said: Have to say I am a bit confused - I assumed the idea was the machine moves automatically to copy a shape but in your video you are doing the work. So I watched another vid and that seemed the same (or at least soneone had to be doing the up and down movement, not sure about the across movement). Can you explain ? You can buy CNC machines , these are automated routers , but these cost an arm and a leg. I am using a hand router , but I build it into my table , upside-down, so i don't have to hold it (if you hold a router by hand ,many things can go wrong or crooked, not now. The weel on top of the router bit follows the outline of the top mold and everything below the wheel carves the wood as it goes. Edited January 24 by VenumX 1 Link to comment Share on other sites More sharing options...
dondplayer Posted January 24 Report Share Posted January 24 23 minutes ago, VenumX said: The weel on top of the router bit follows the outline of the top mold and everything below the wheel carves the wood as it goes. Got you 1 Your box will be CASHPOT Link to comment Share on other sites More sharing options...

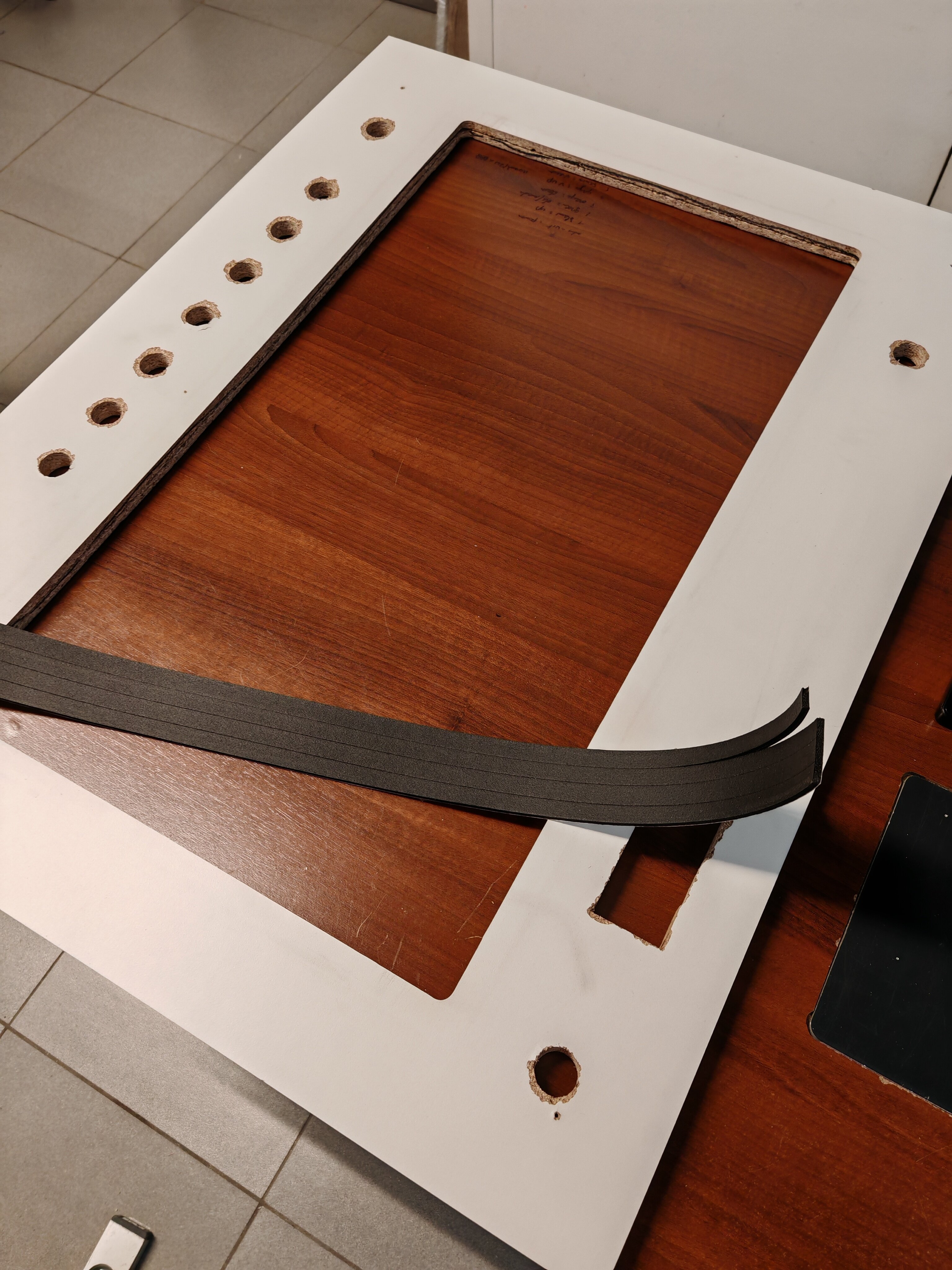

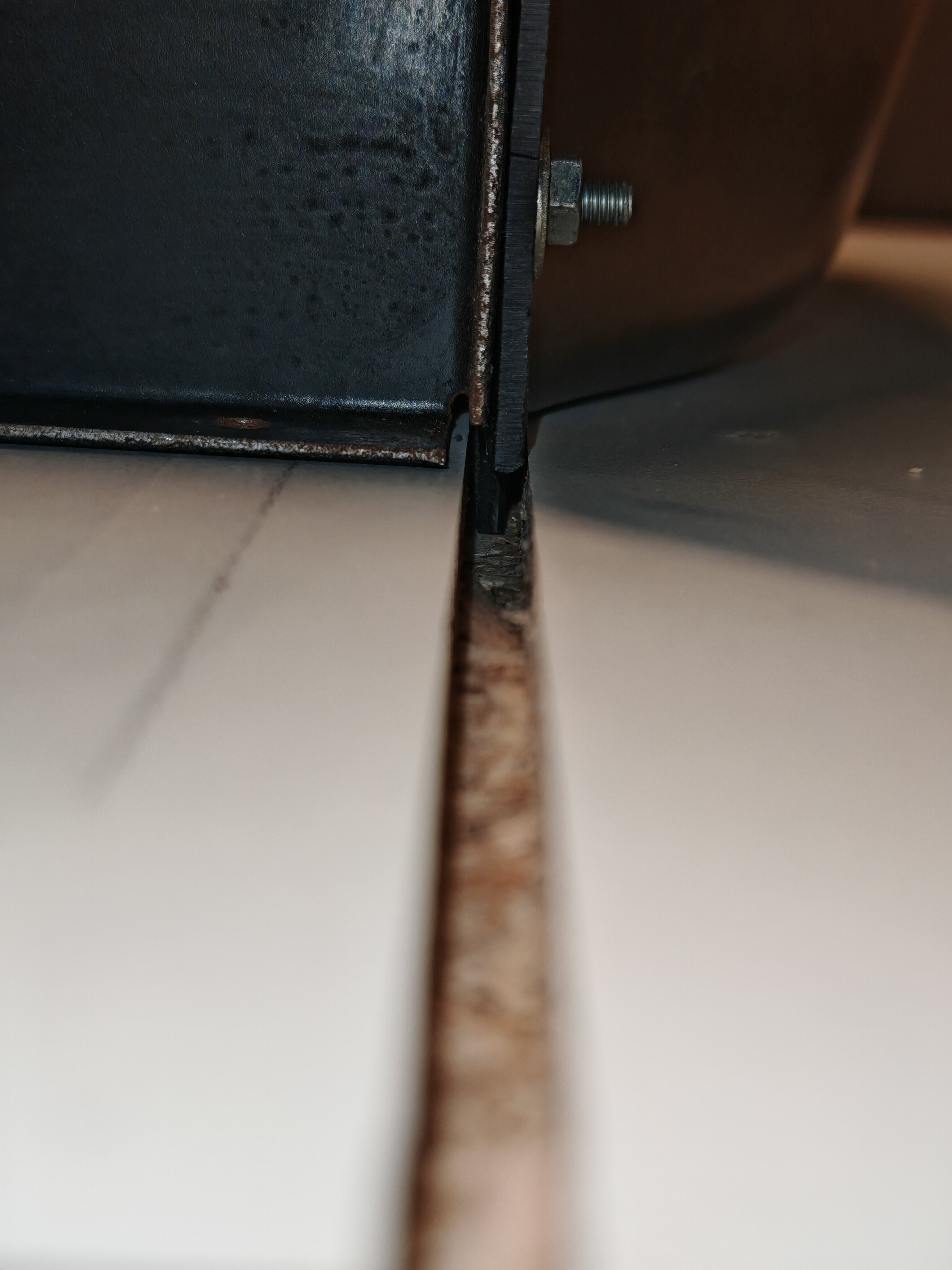

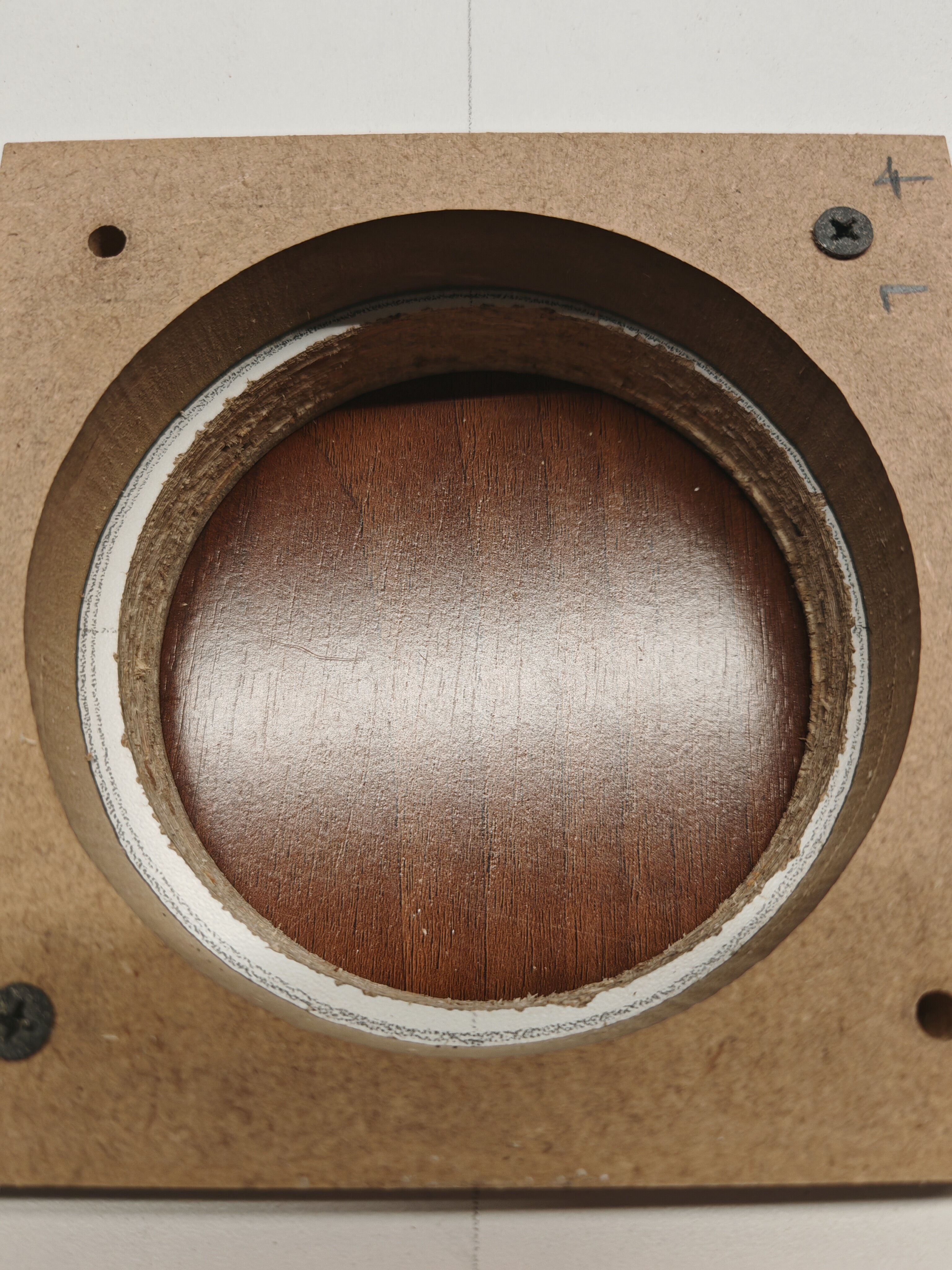

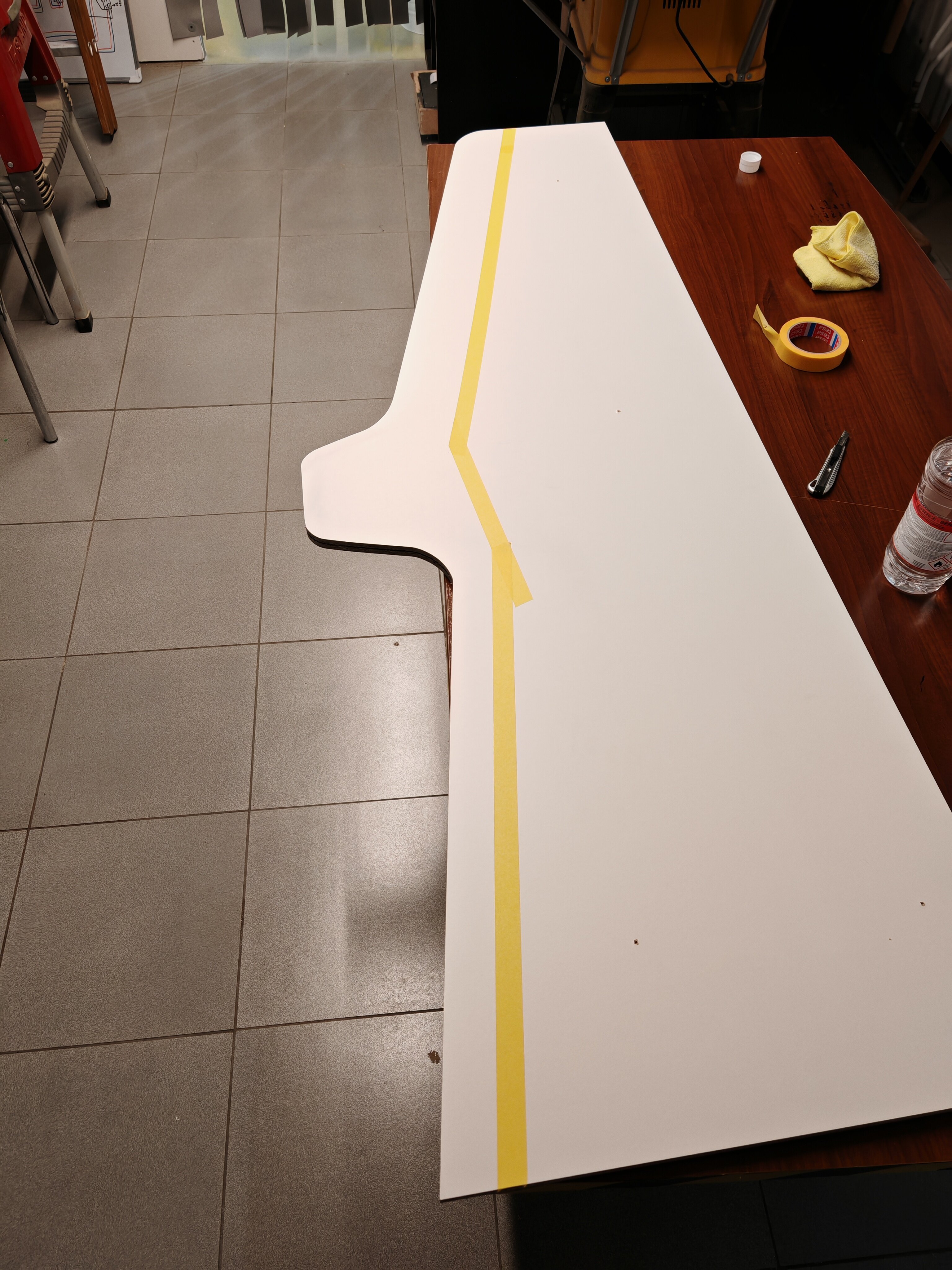

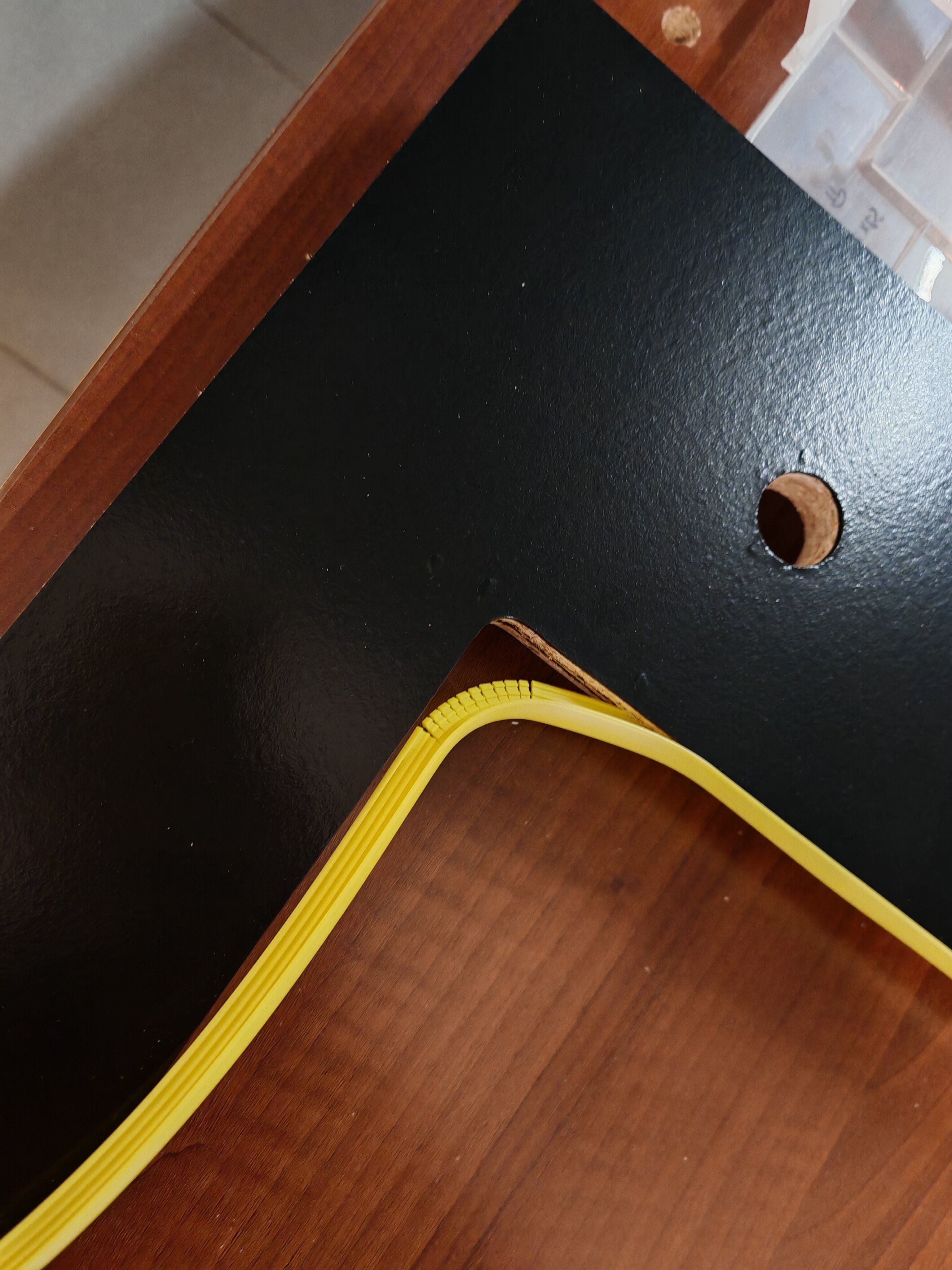

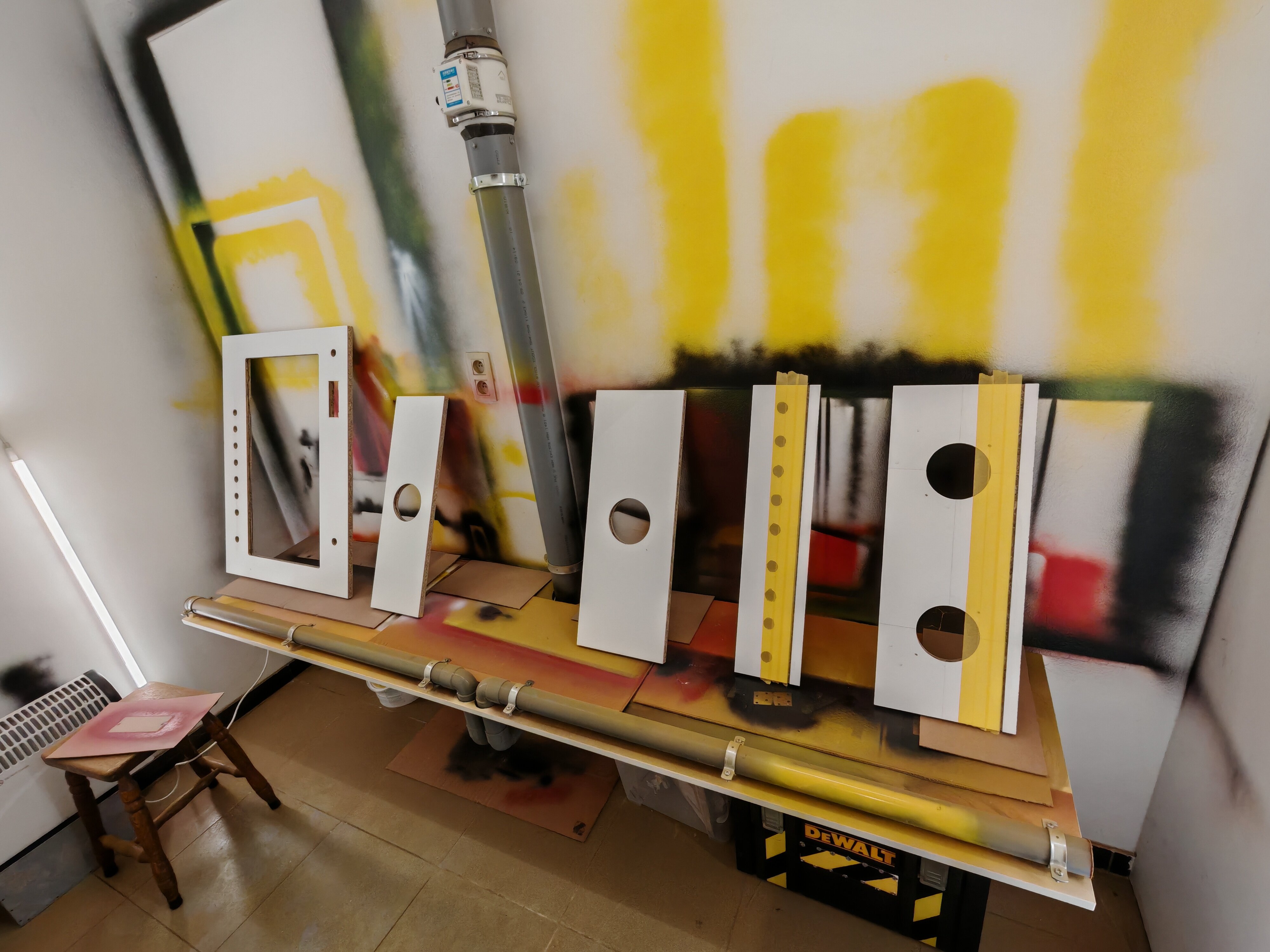

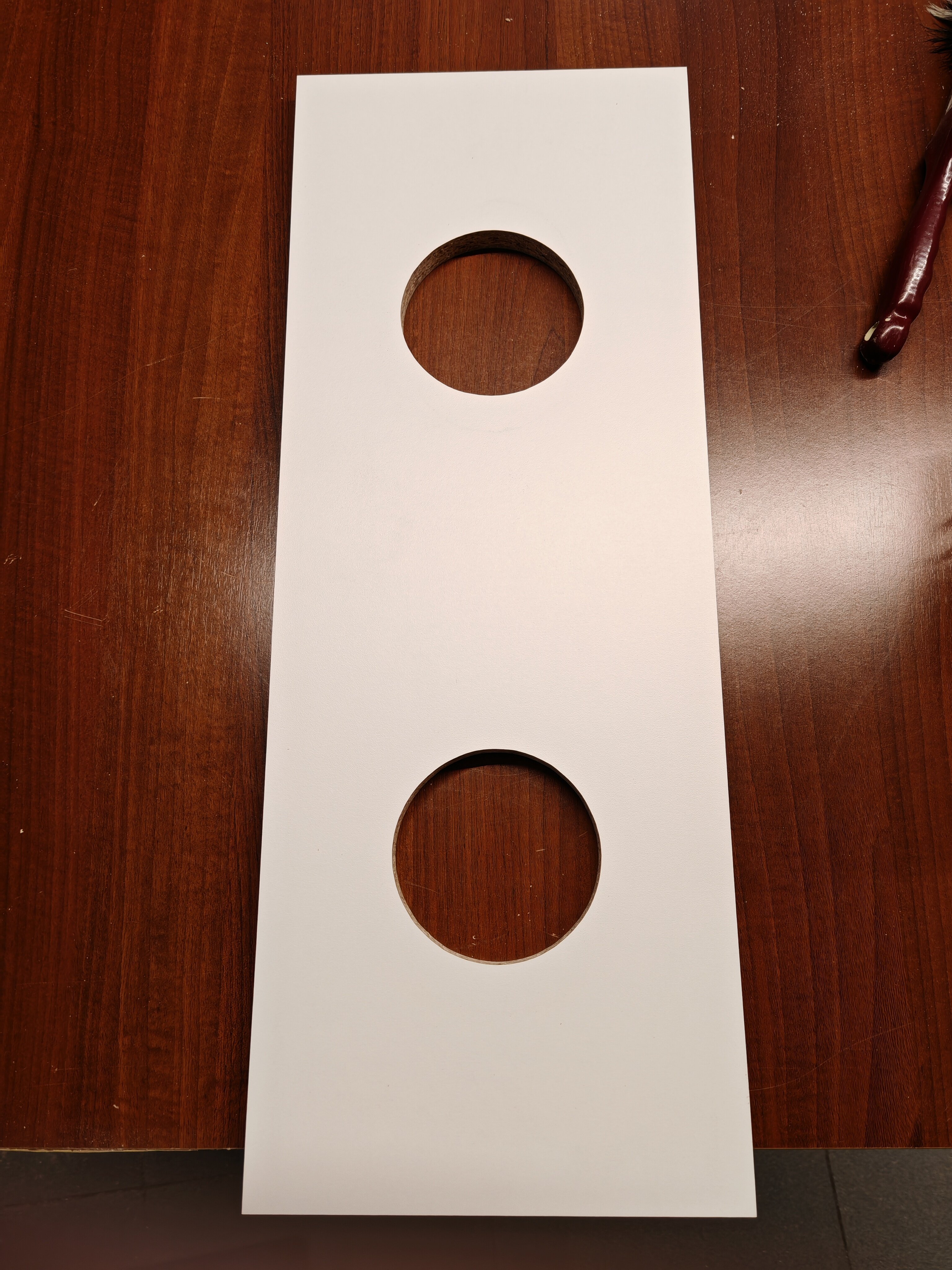

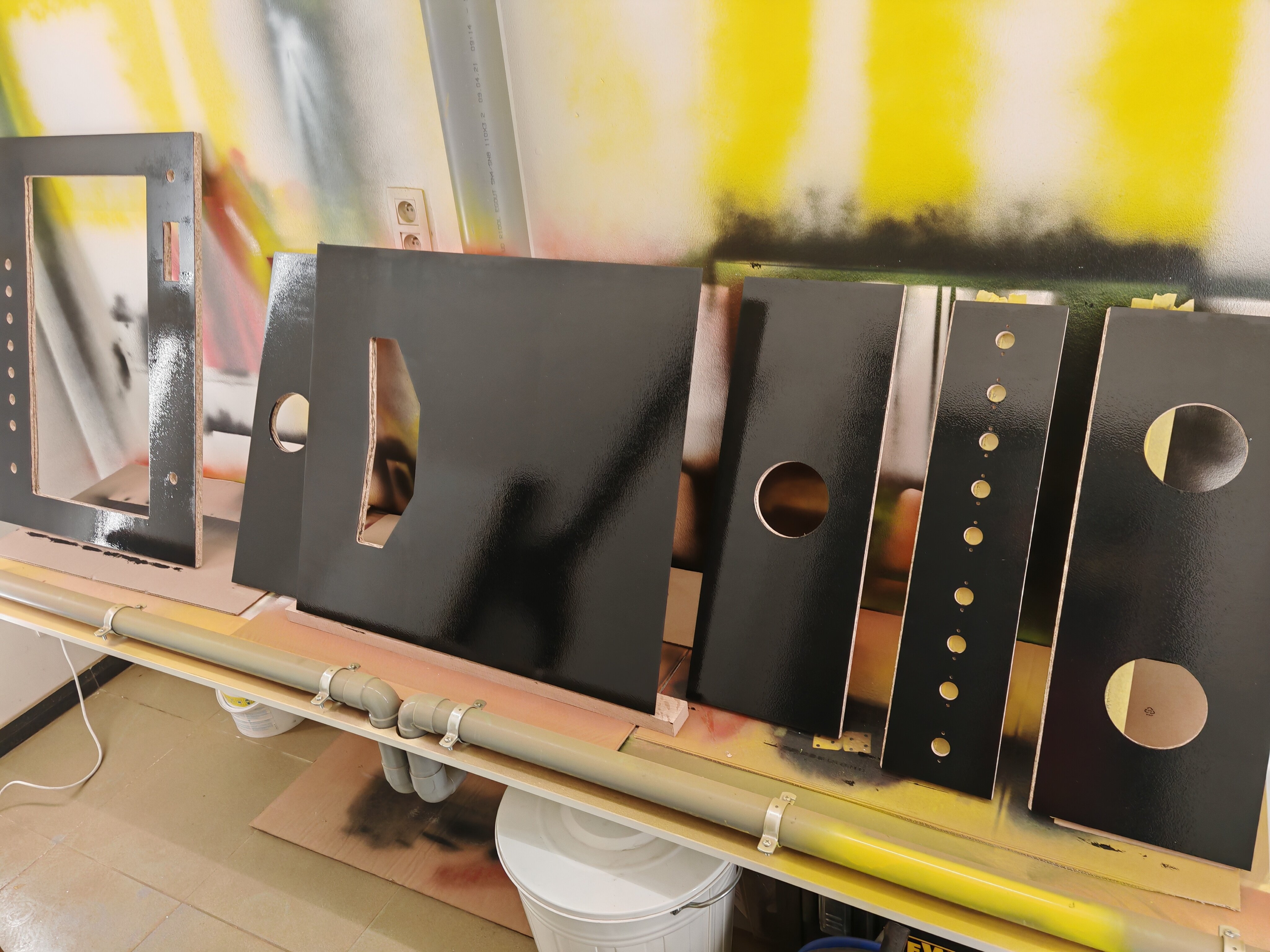

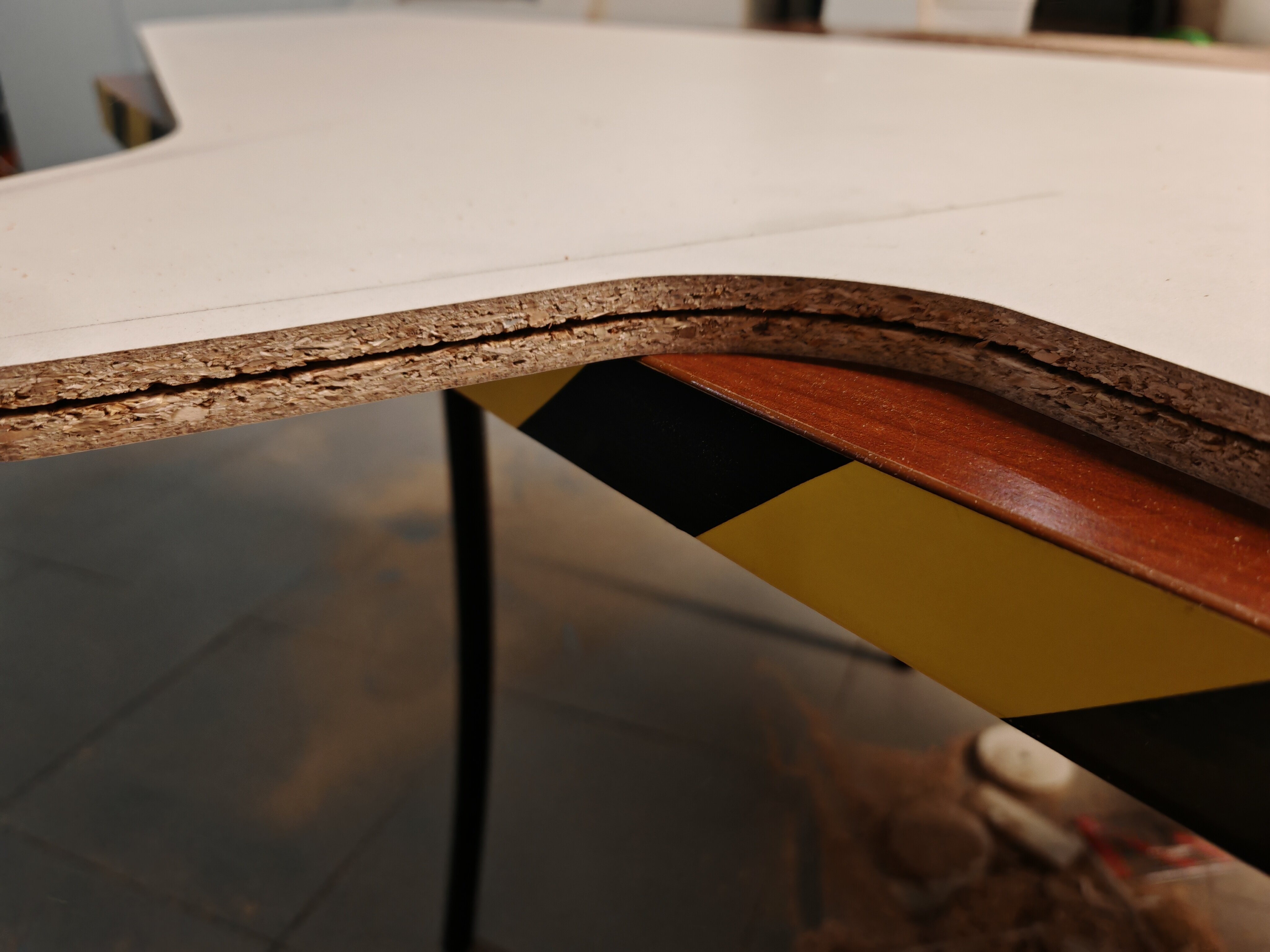

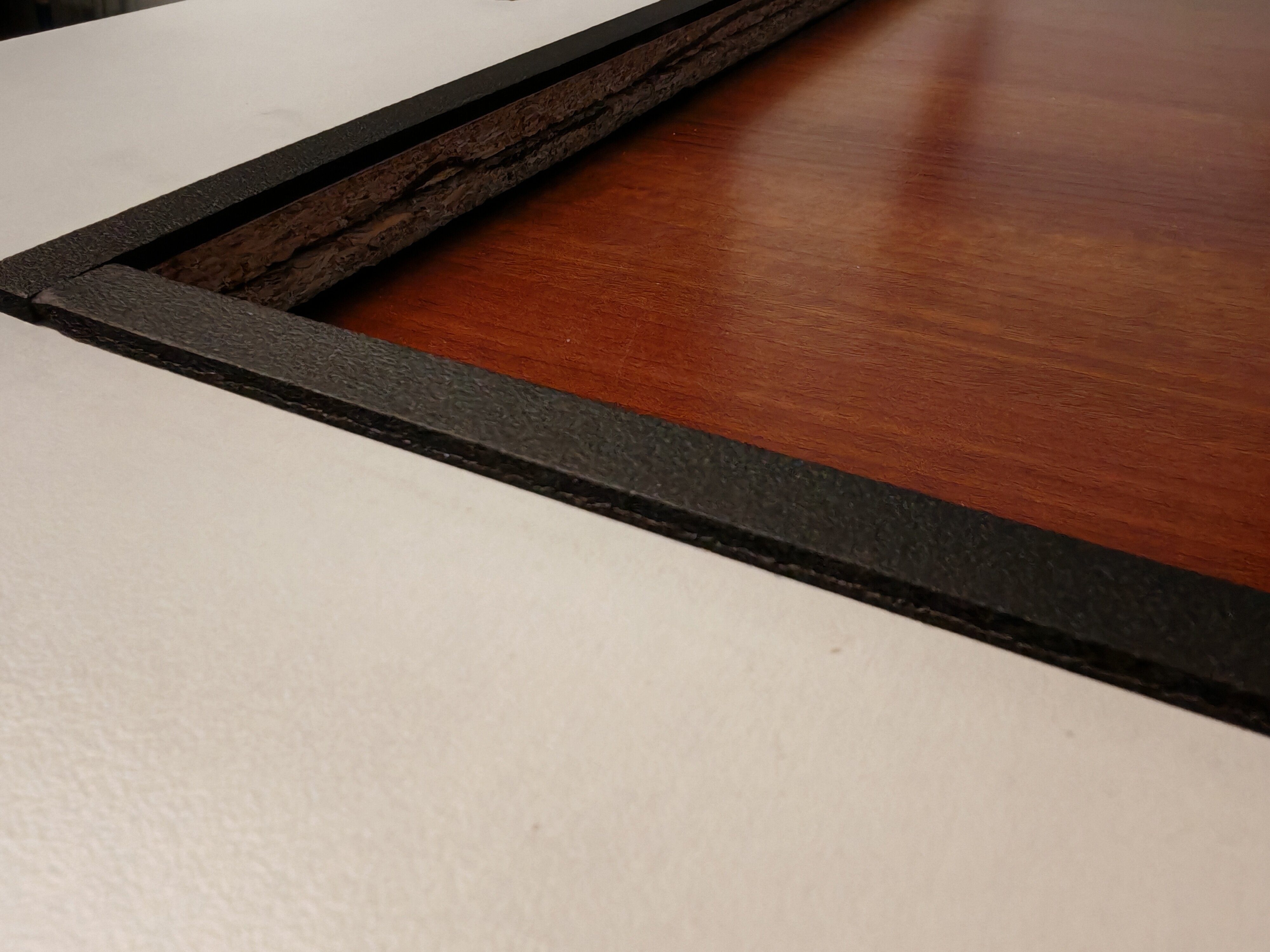

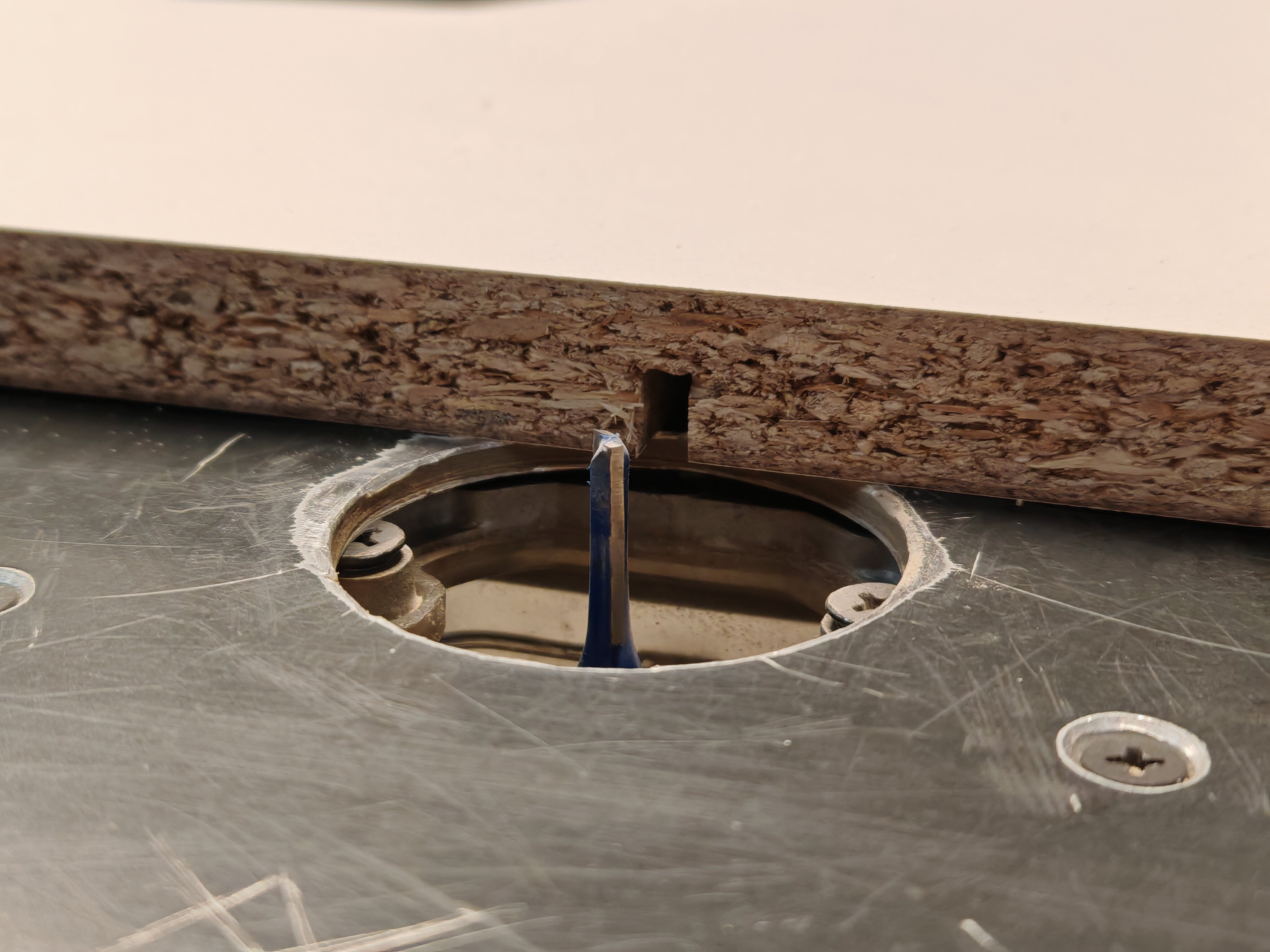

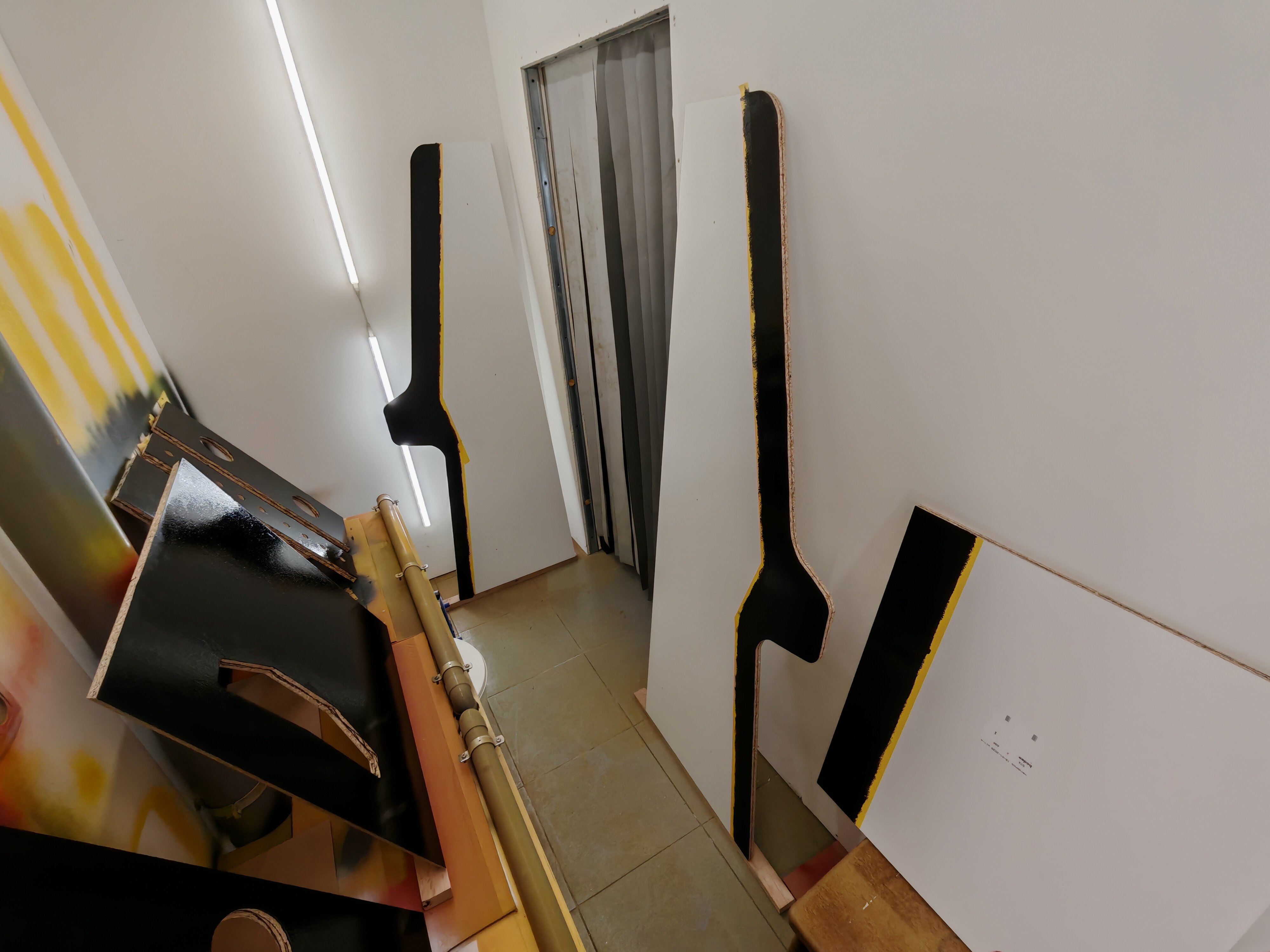

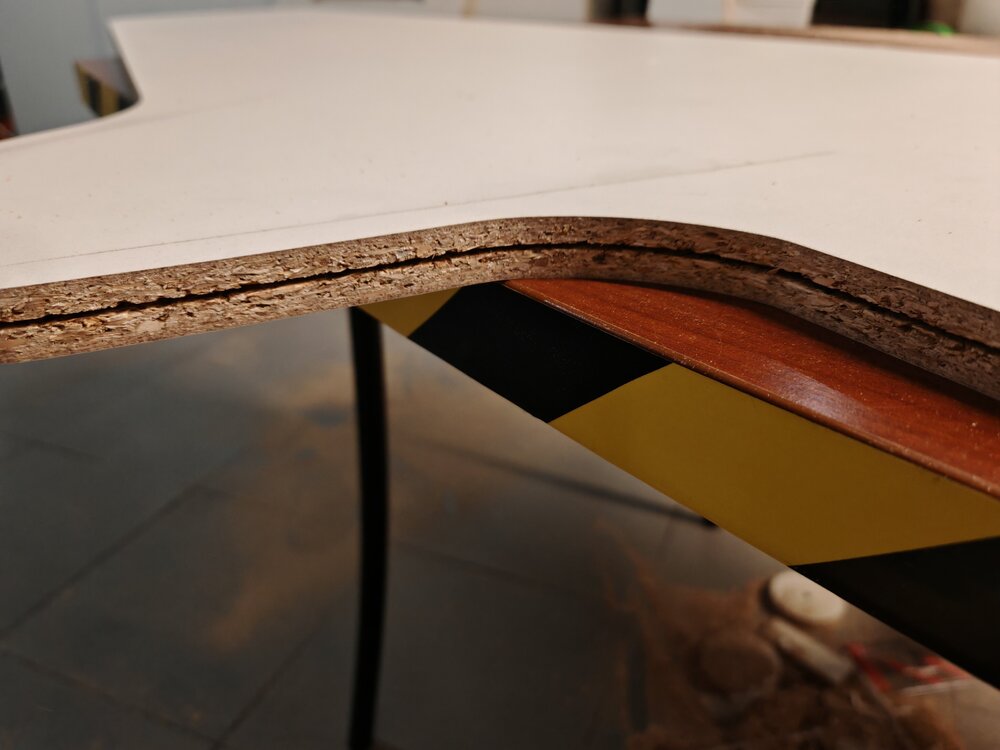

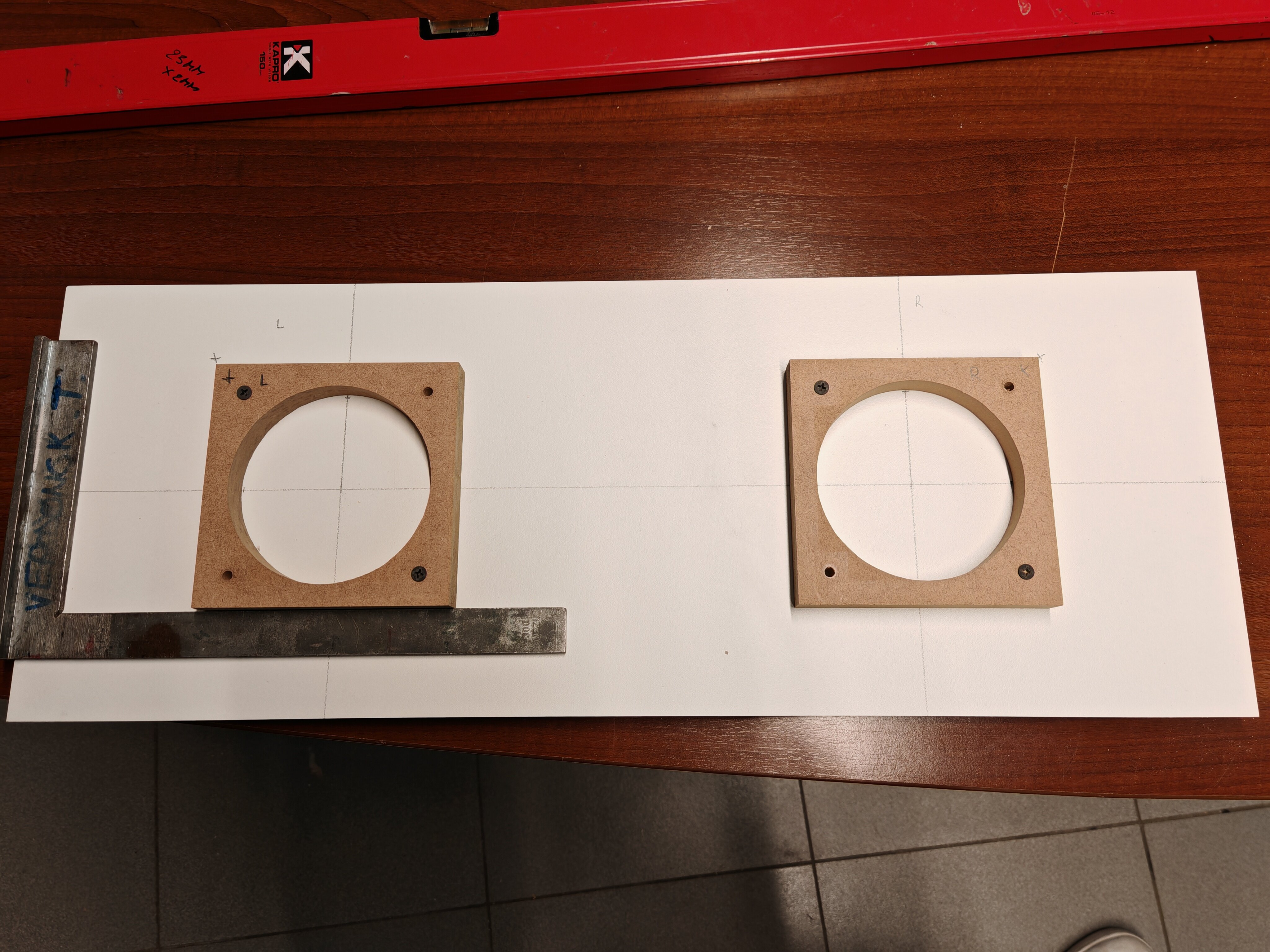

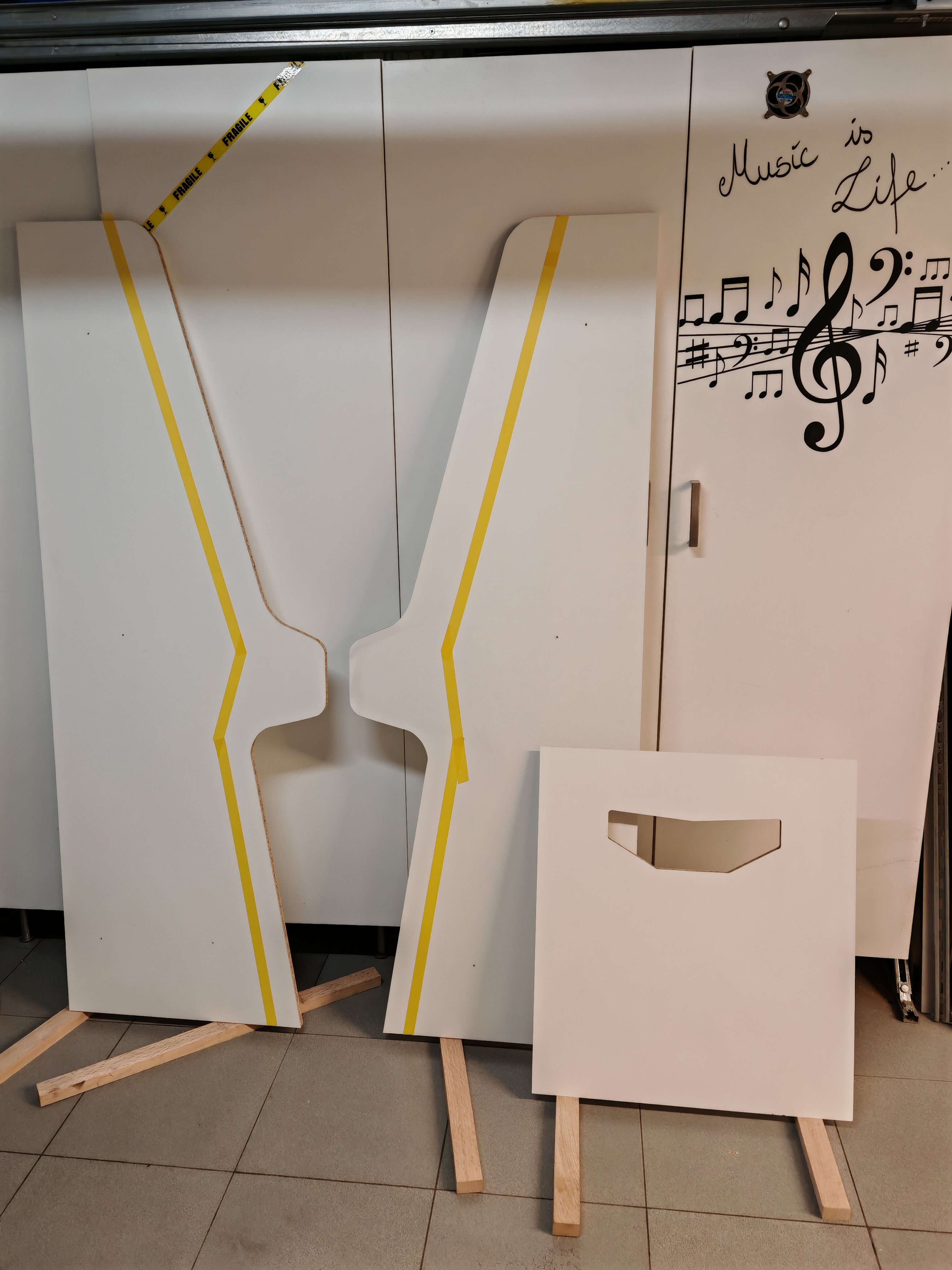

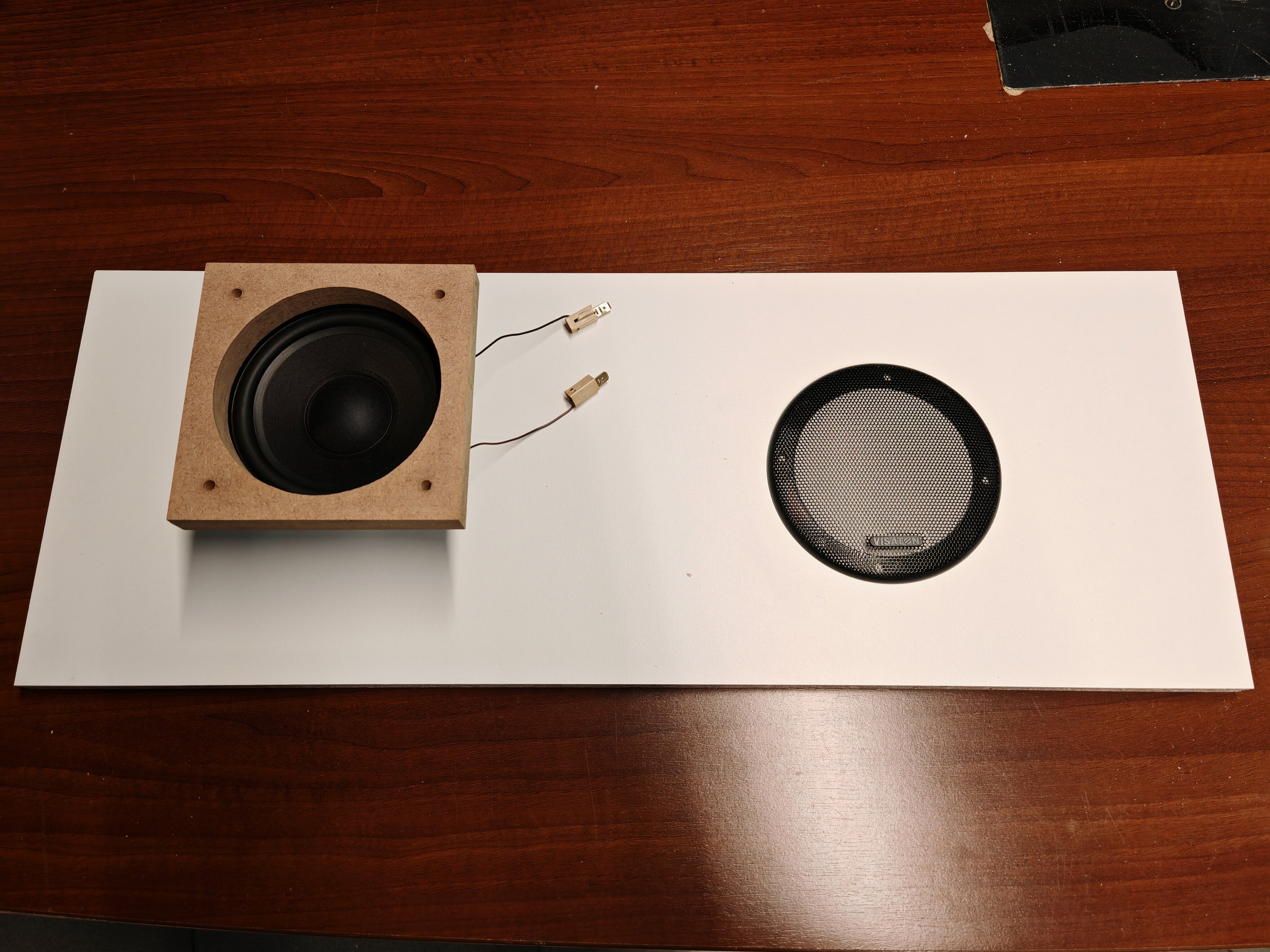

VenumX Posted January 24 Author Report Share Posted January 24 Update : Saturday 24/01/2026 Routing all the slits/grooves for mounting the T-Molding. Example of T-molding: (Yes I know it's a bad piece of wood ) Video of routing the Speaker hole(s): Also did some layers of scratch resistant black paint. Gonna wait till midnight to do the third coat. Pictures are in timed order: 3 Link to comment Share on other sites More sharing options...

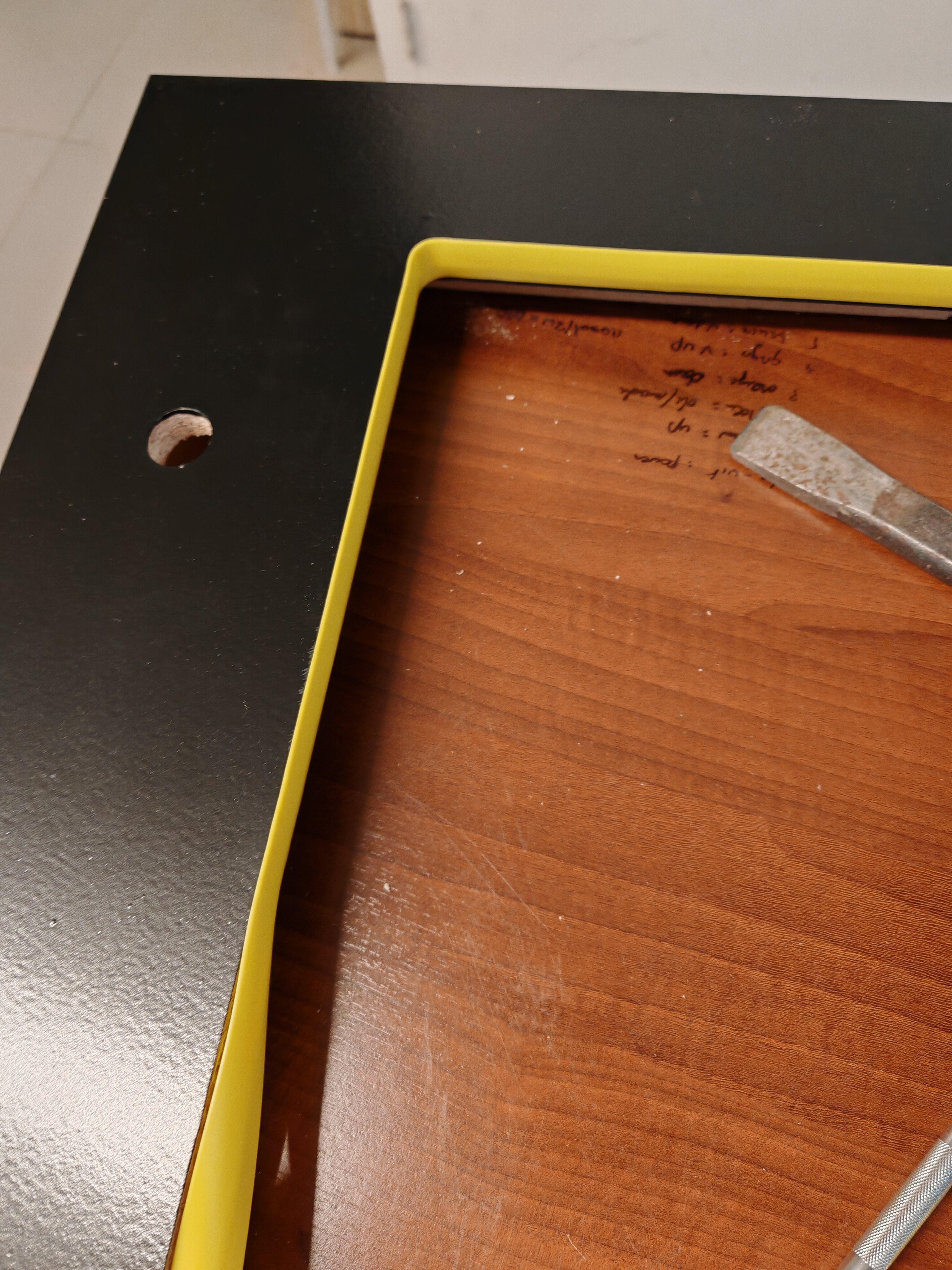

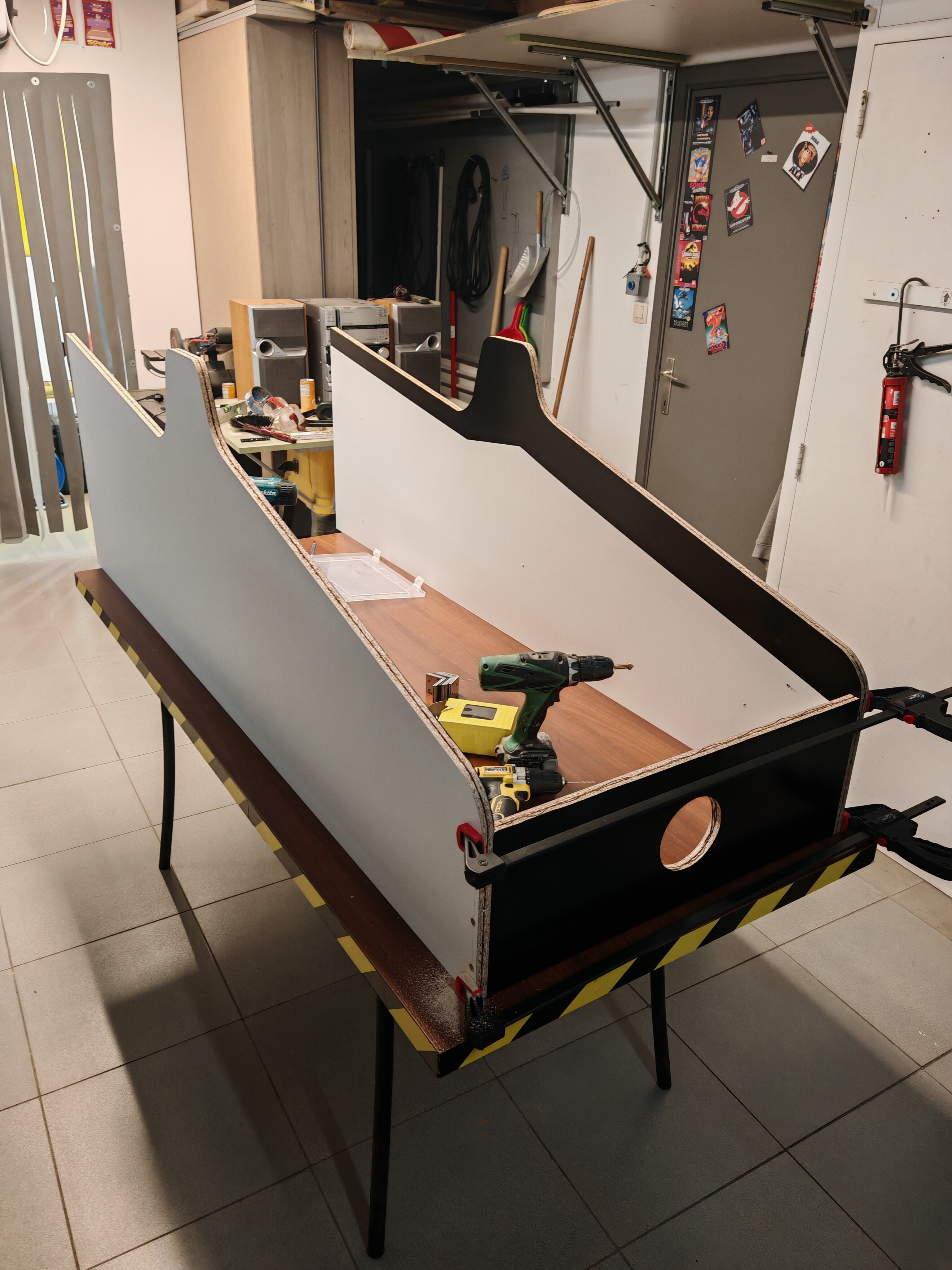

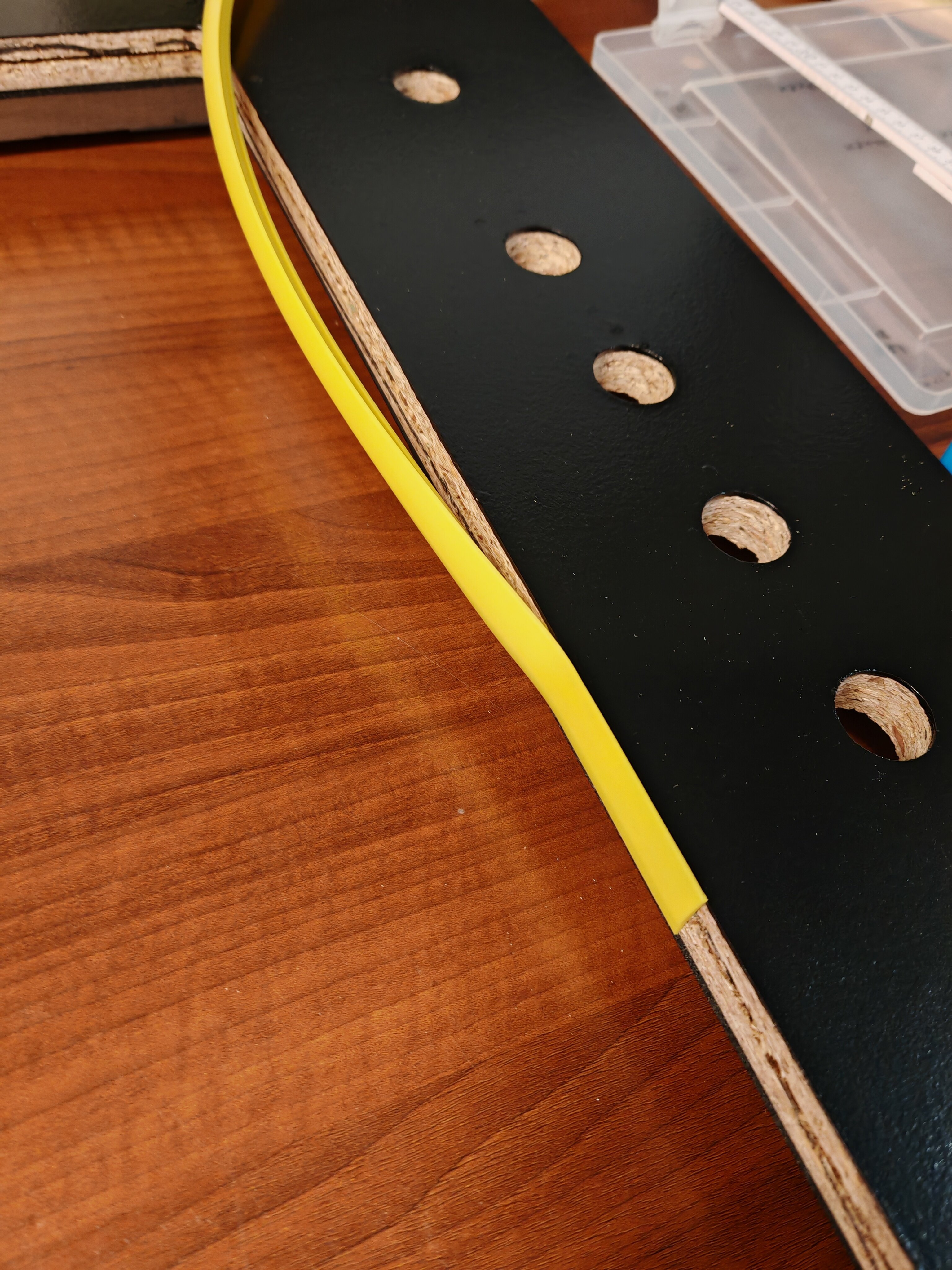

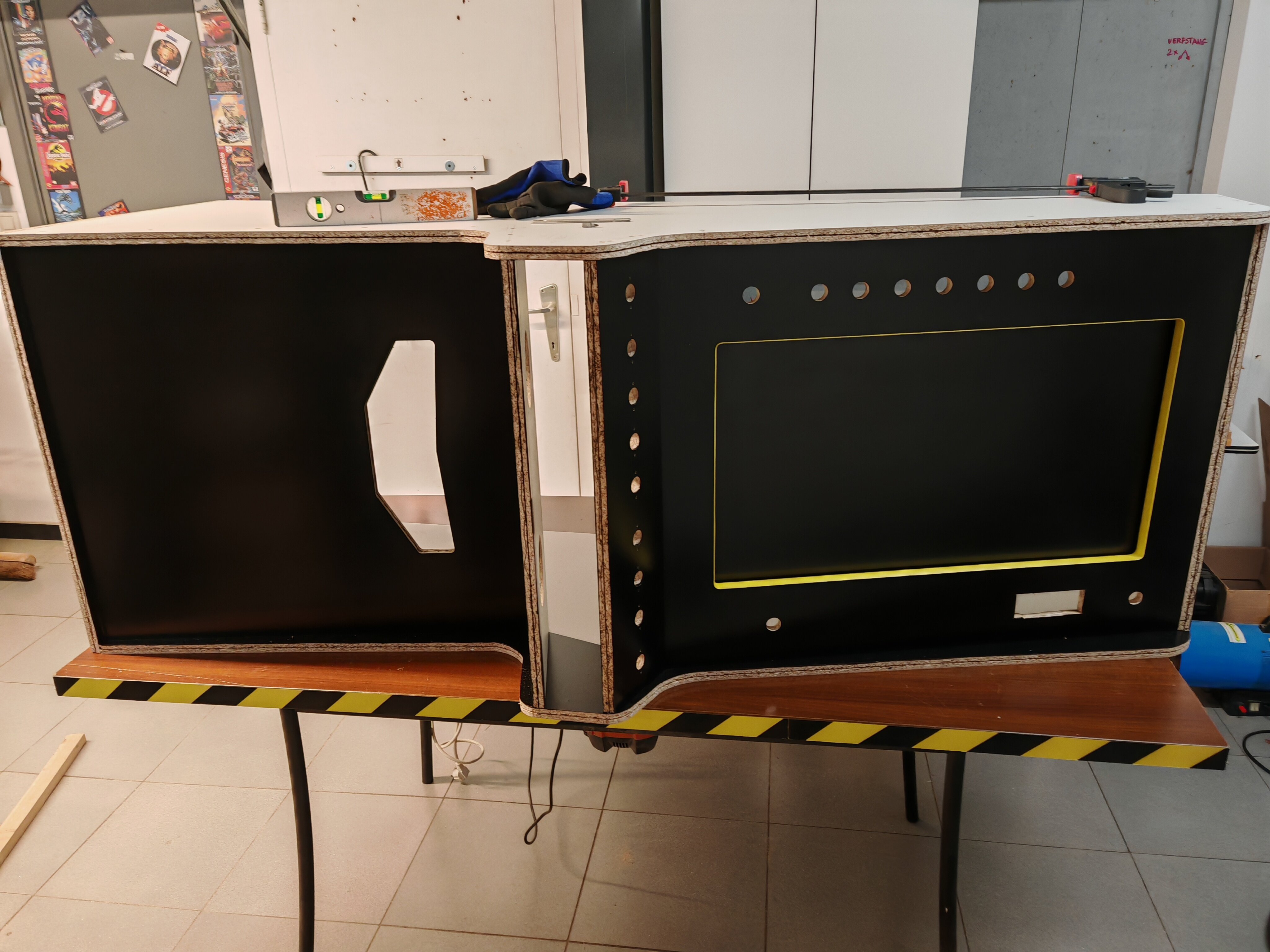

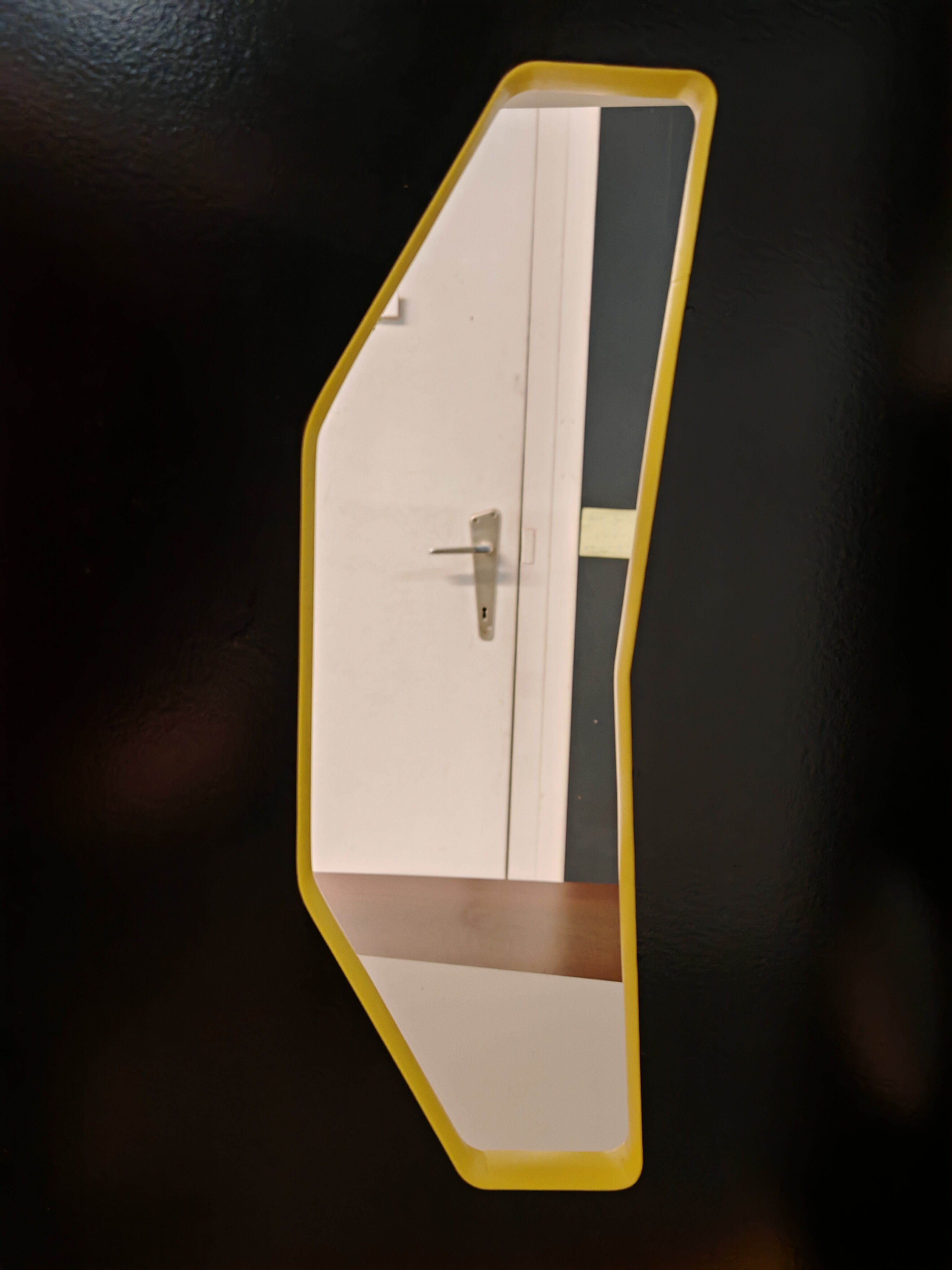

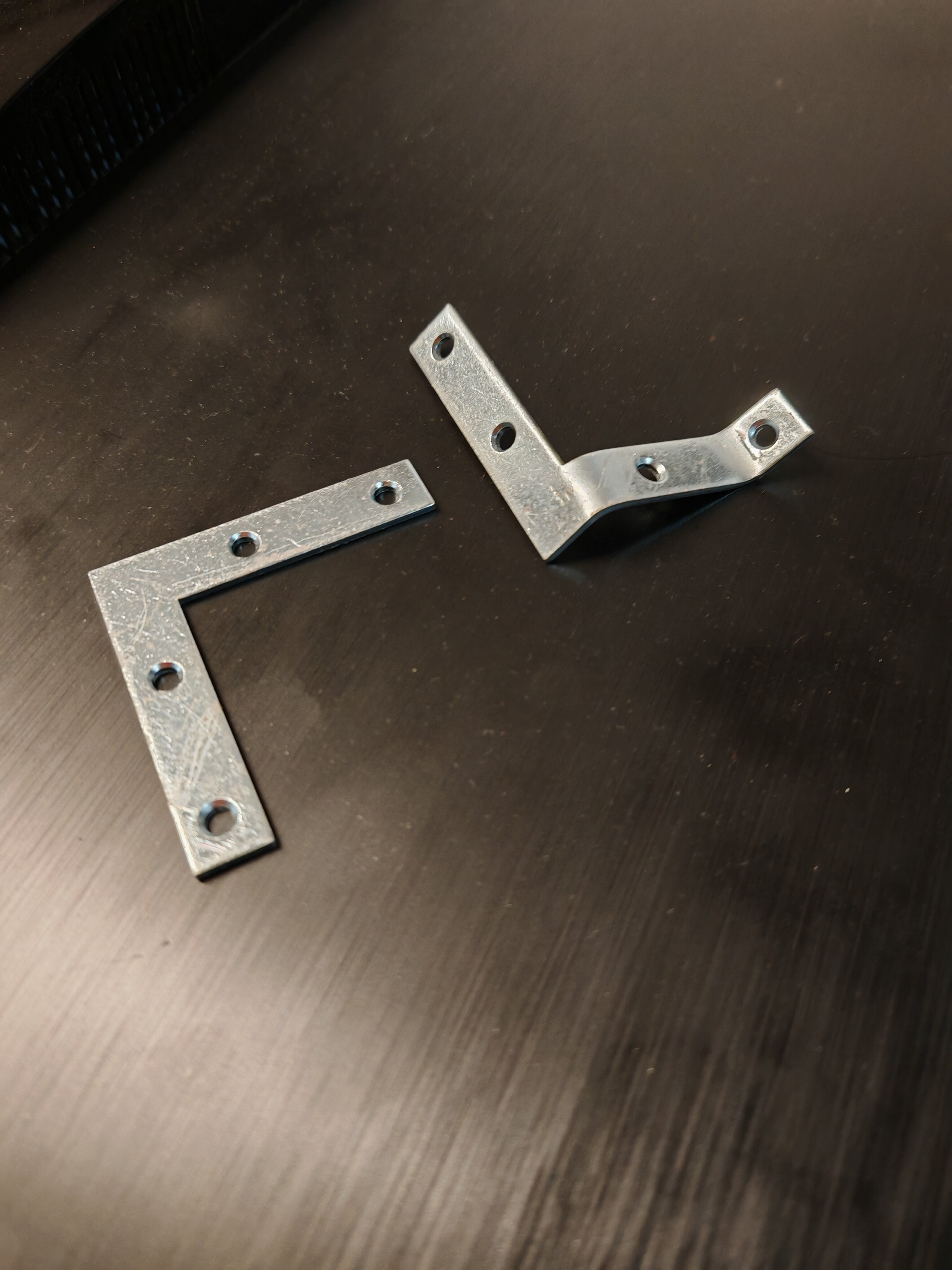

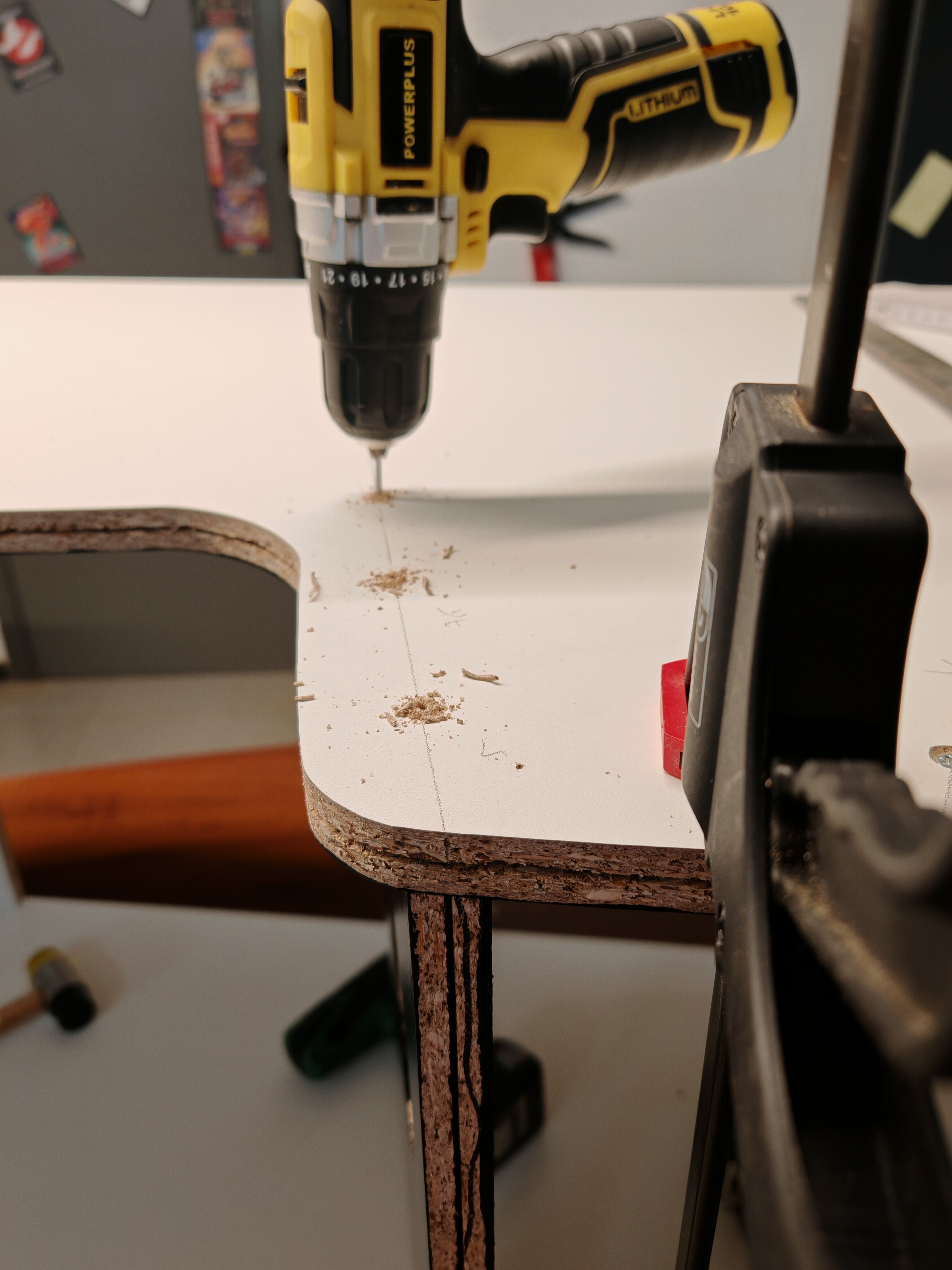

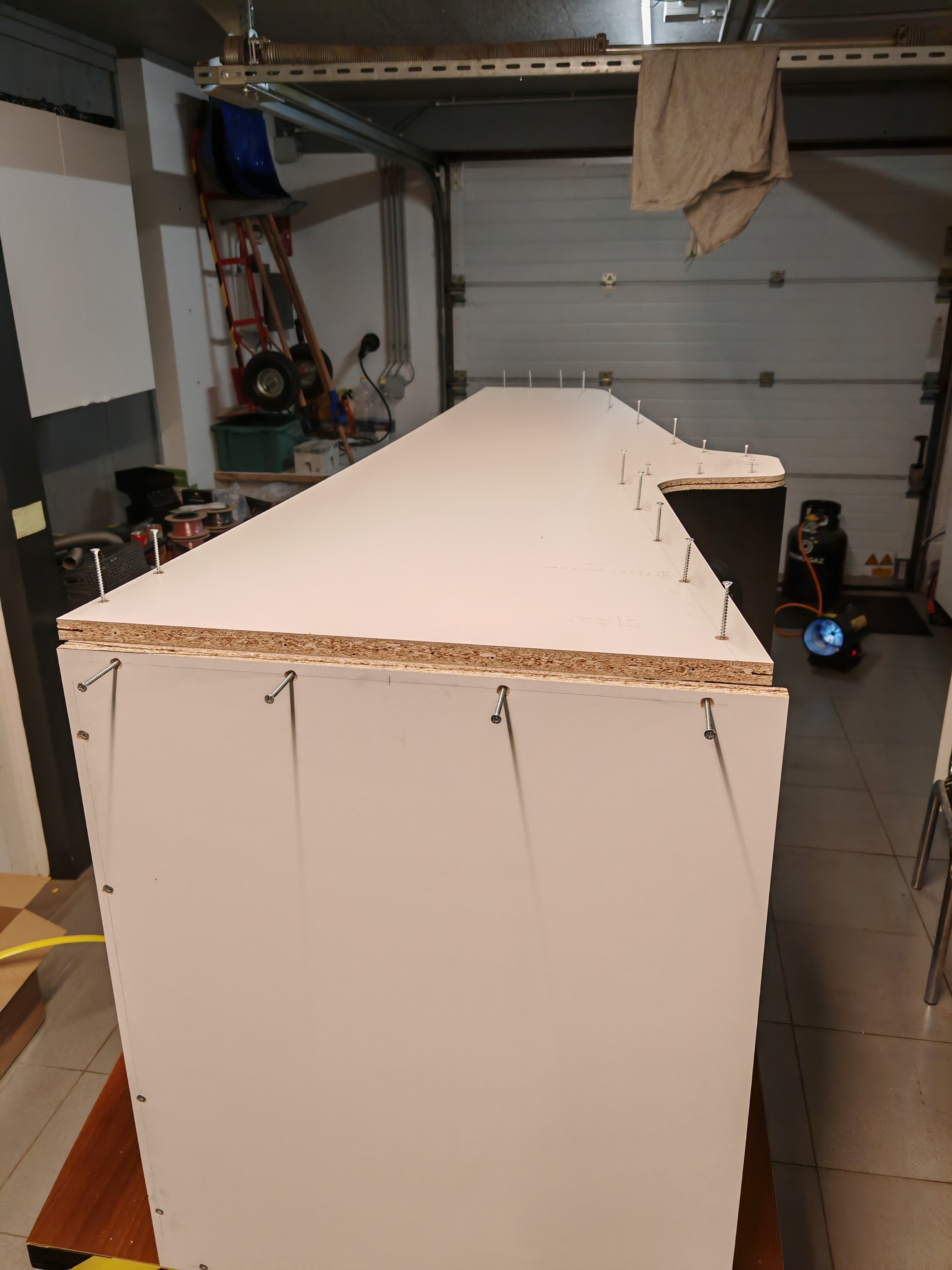

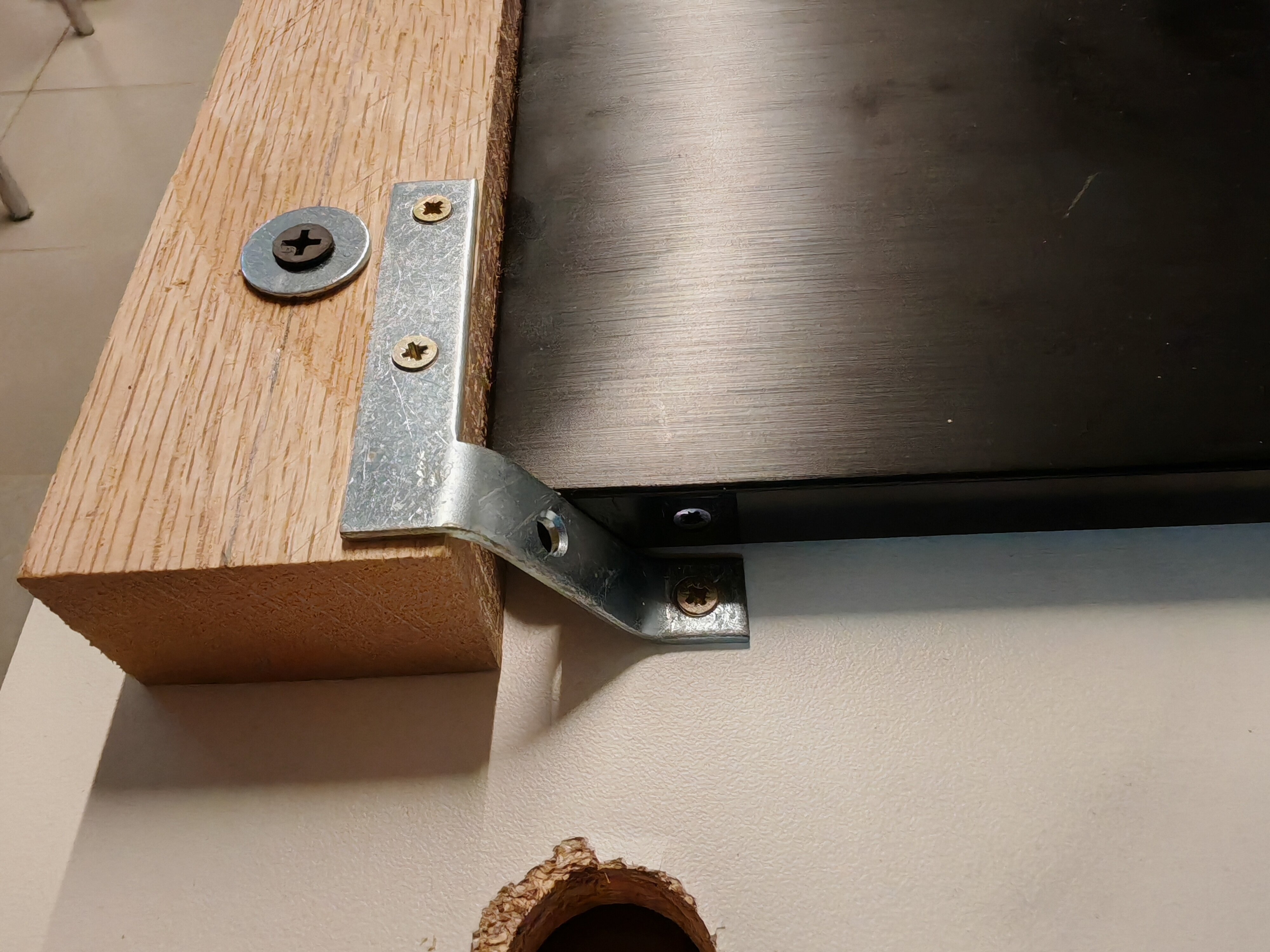

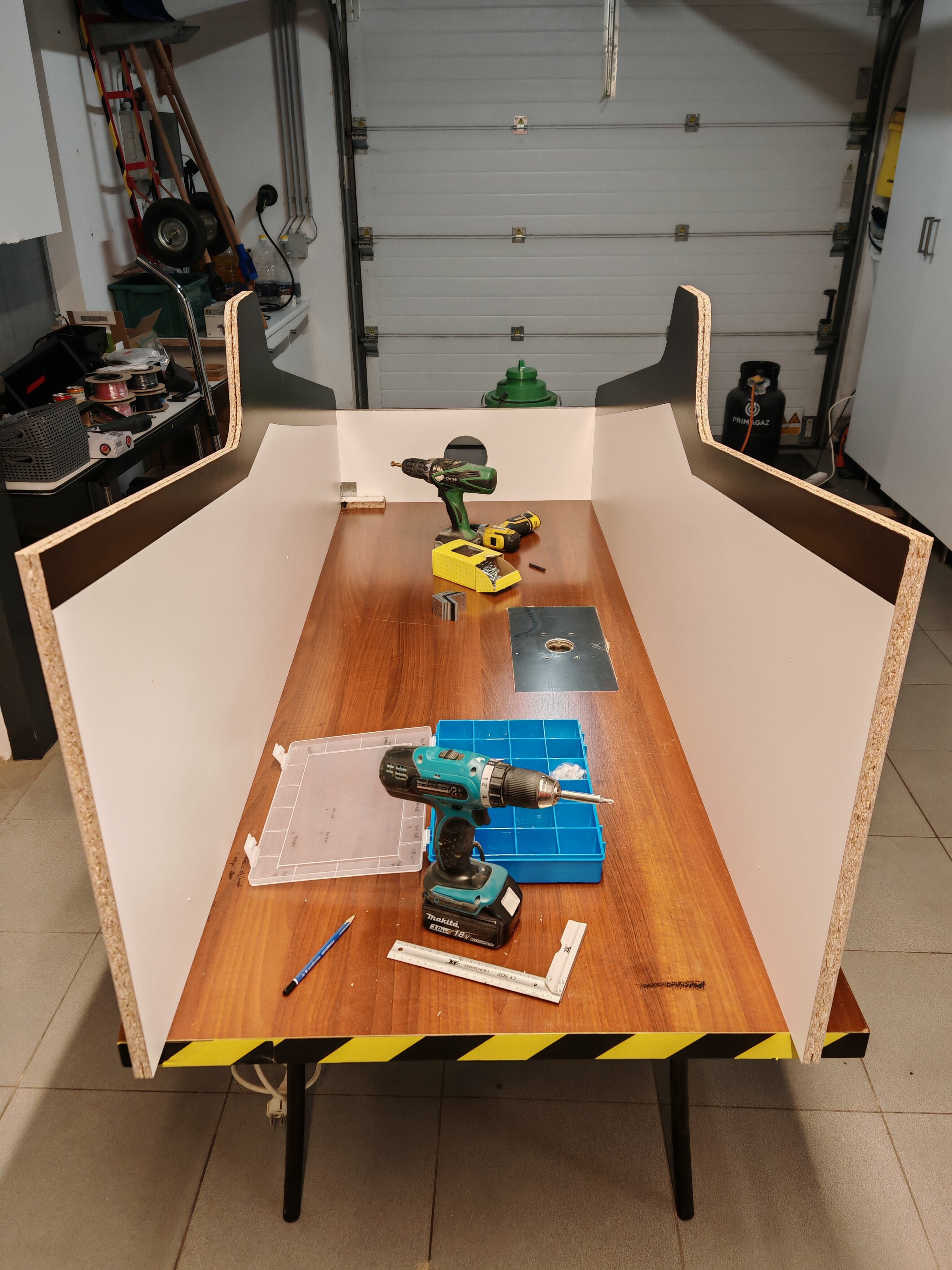

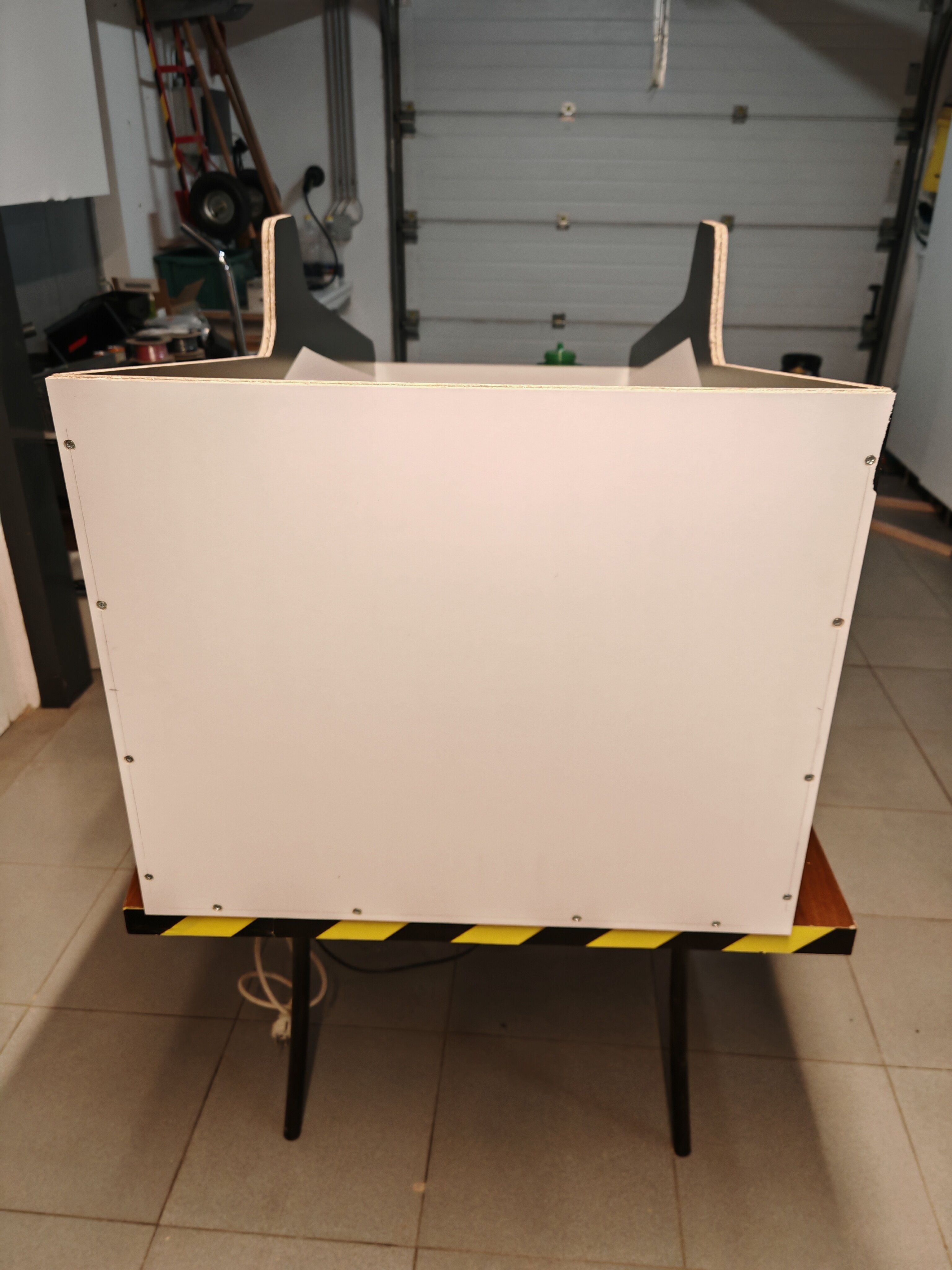

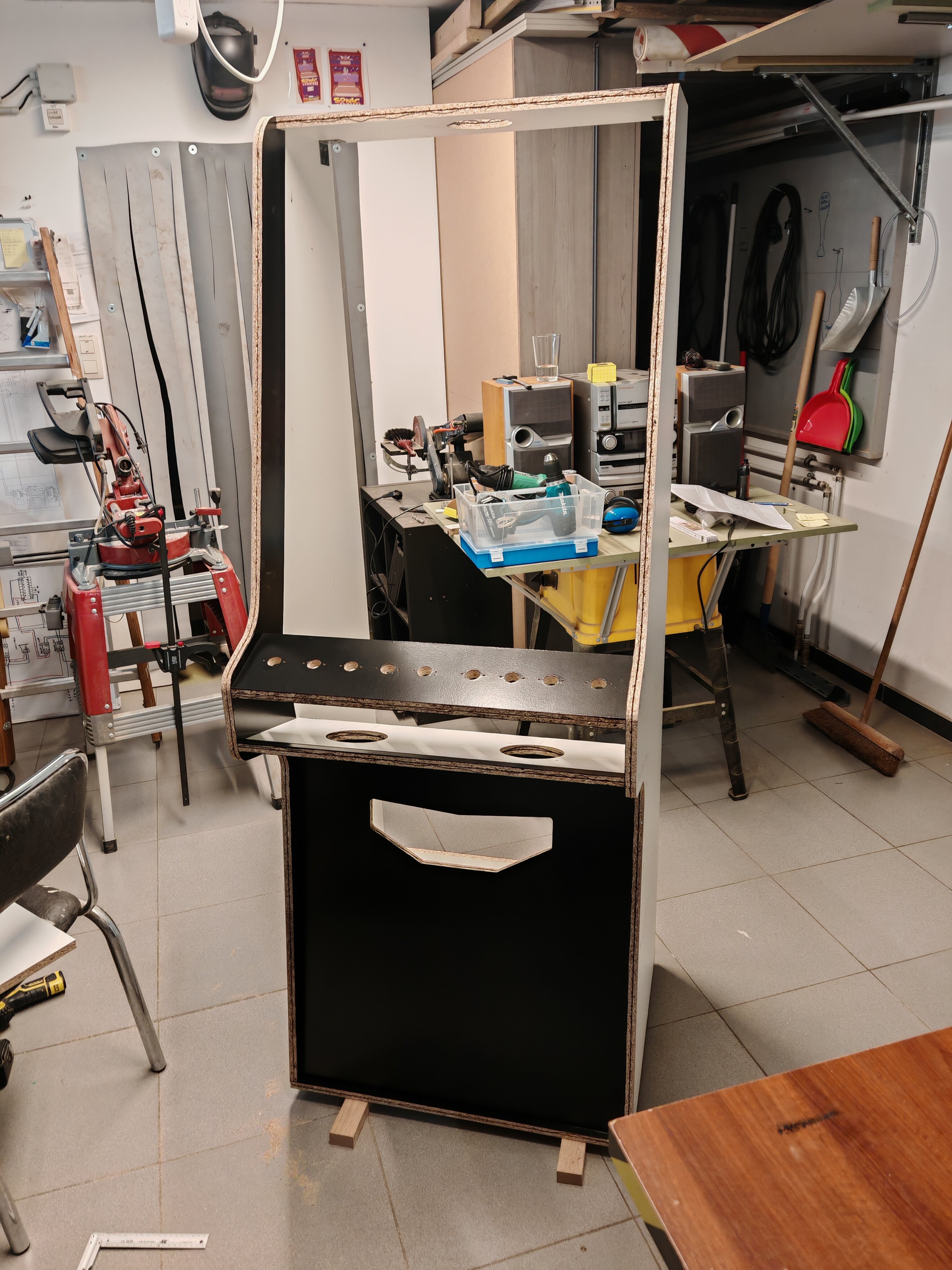

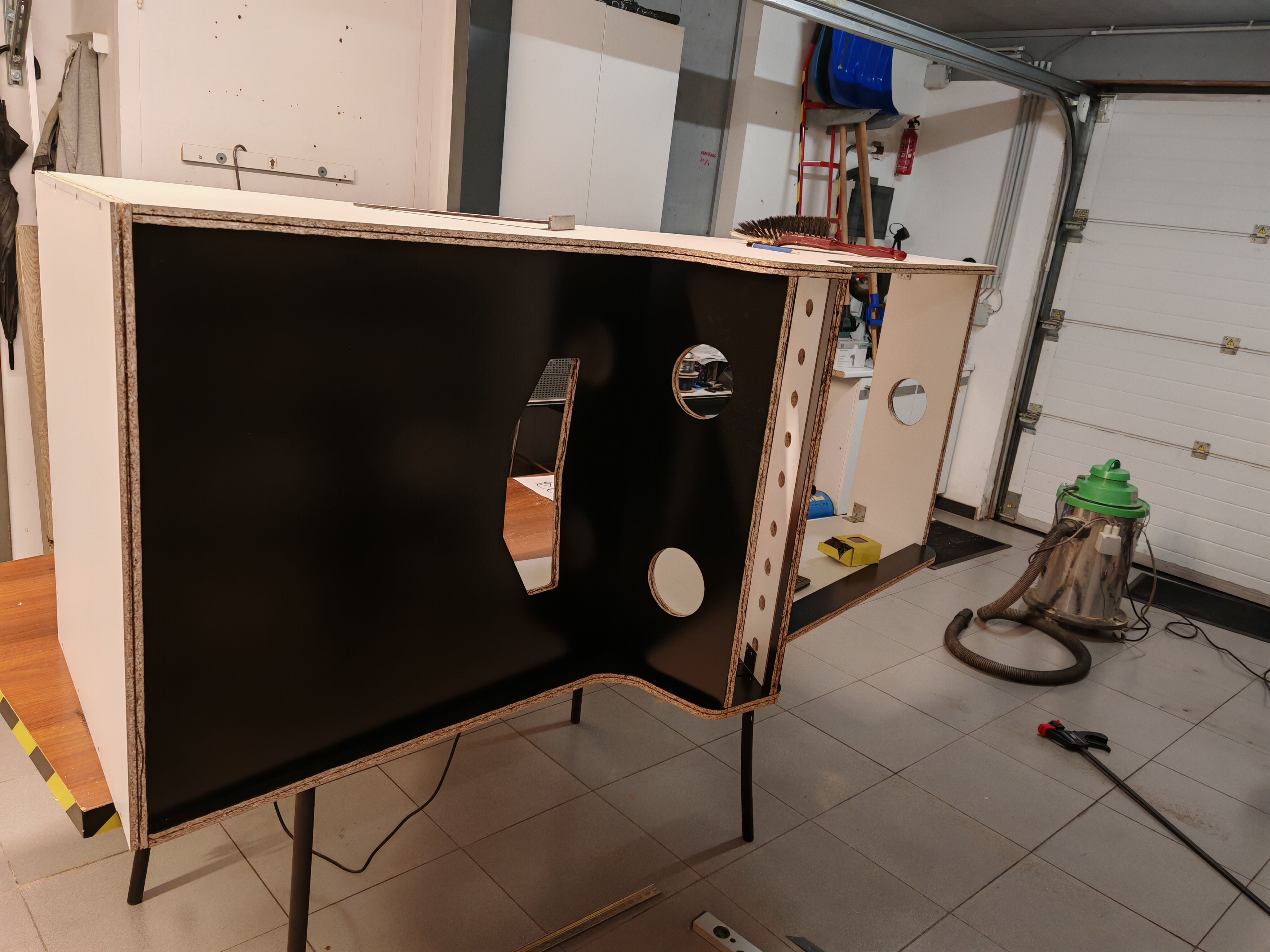

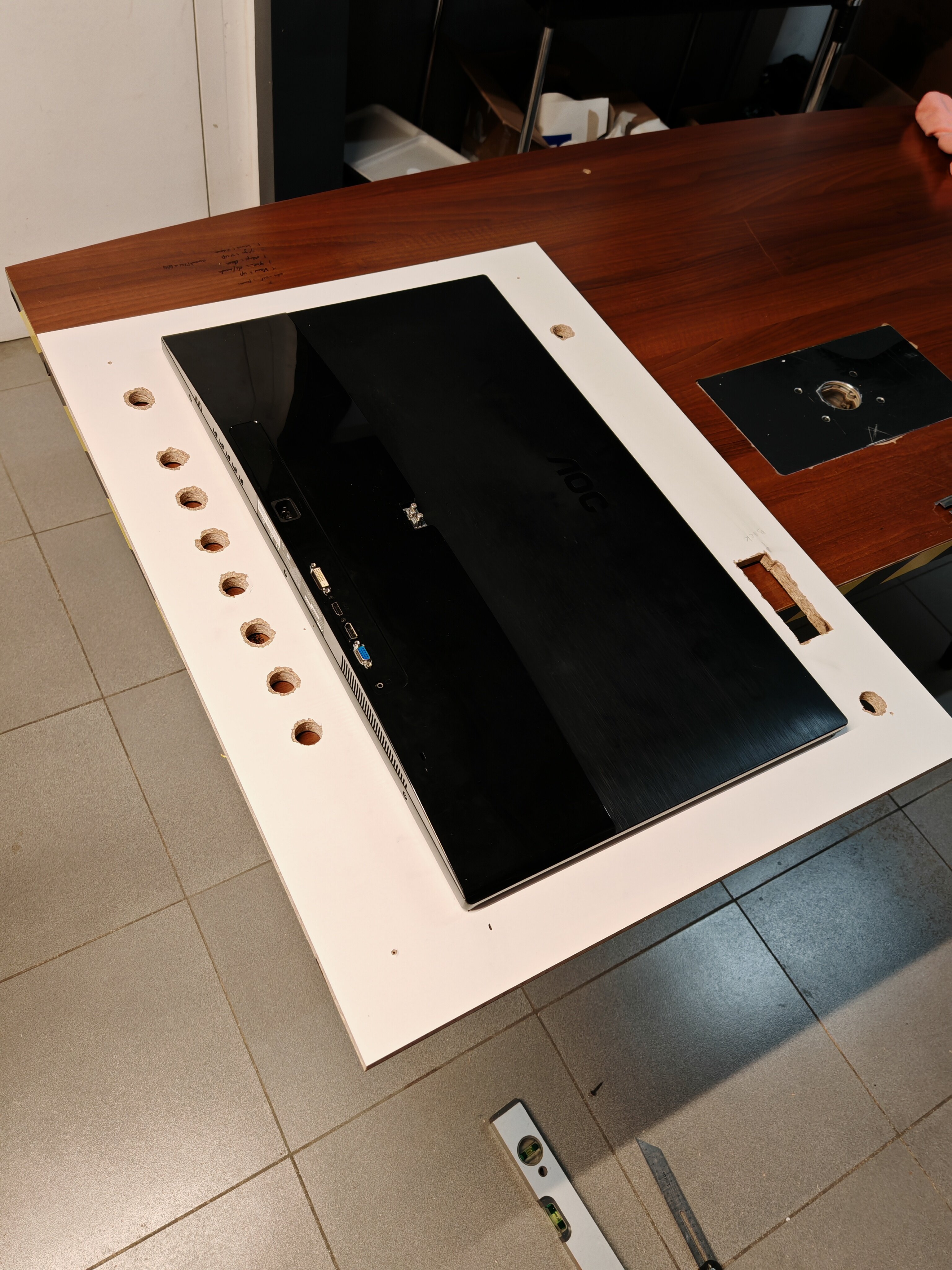

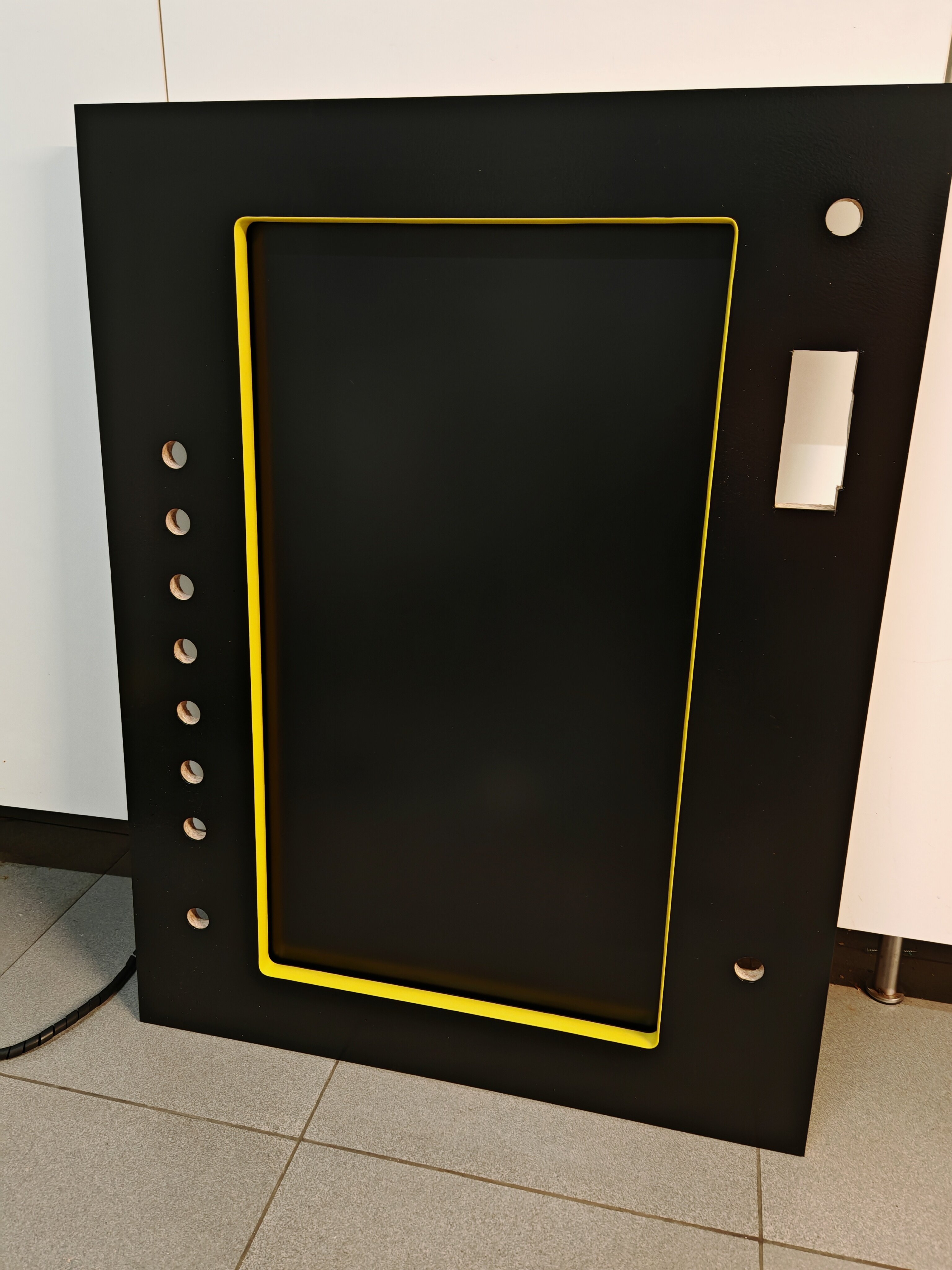

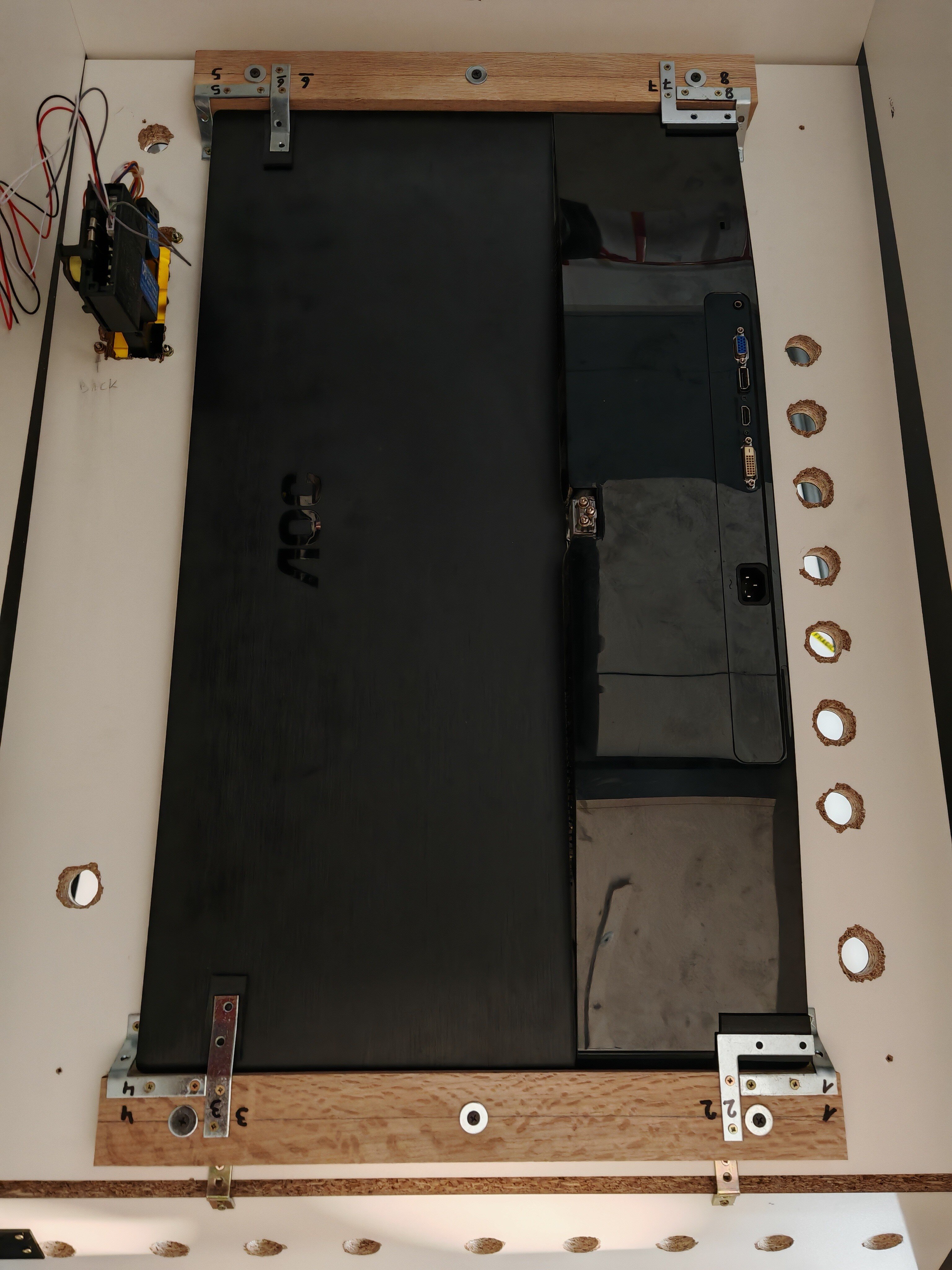

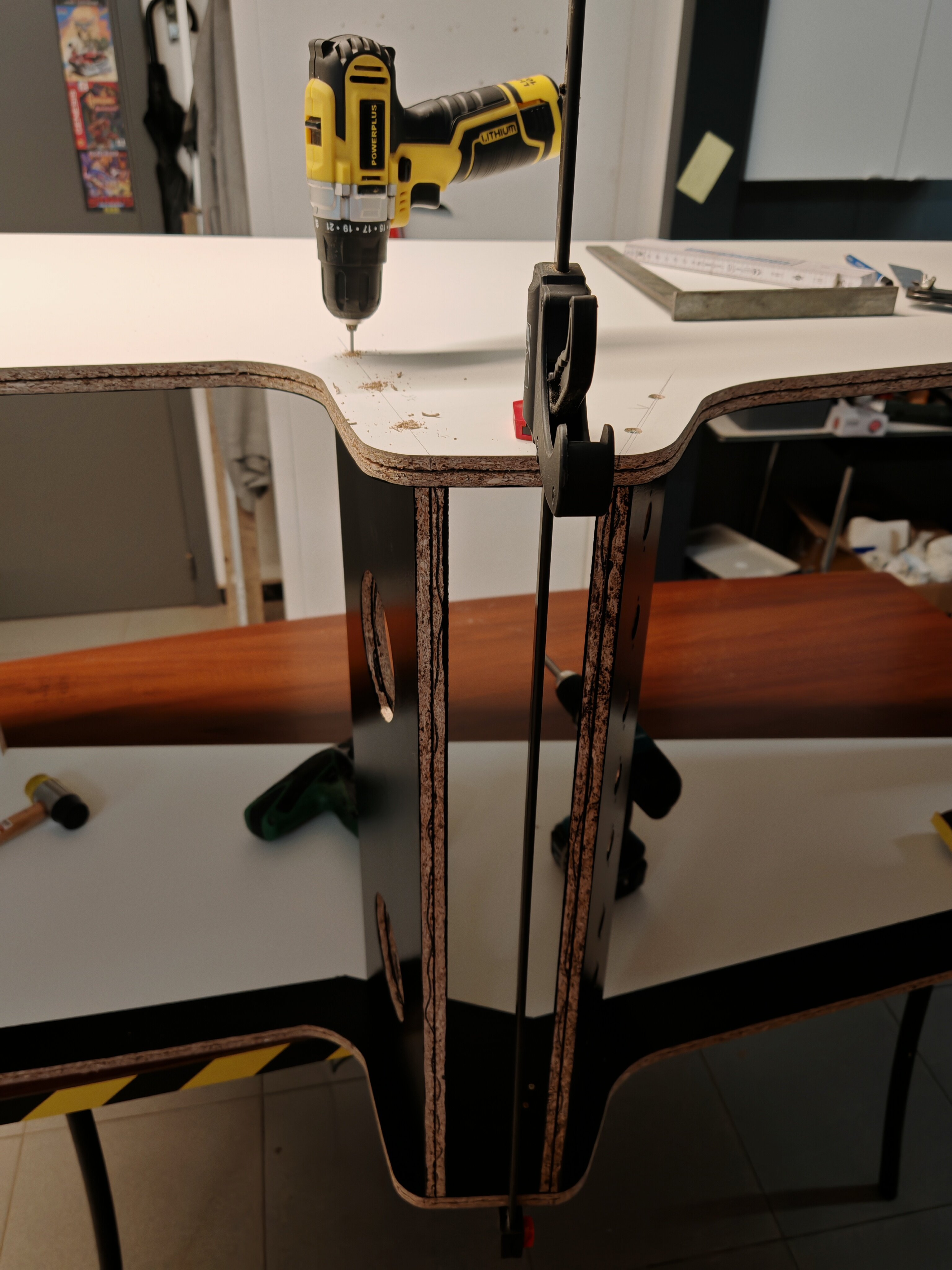

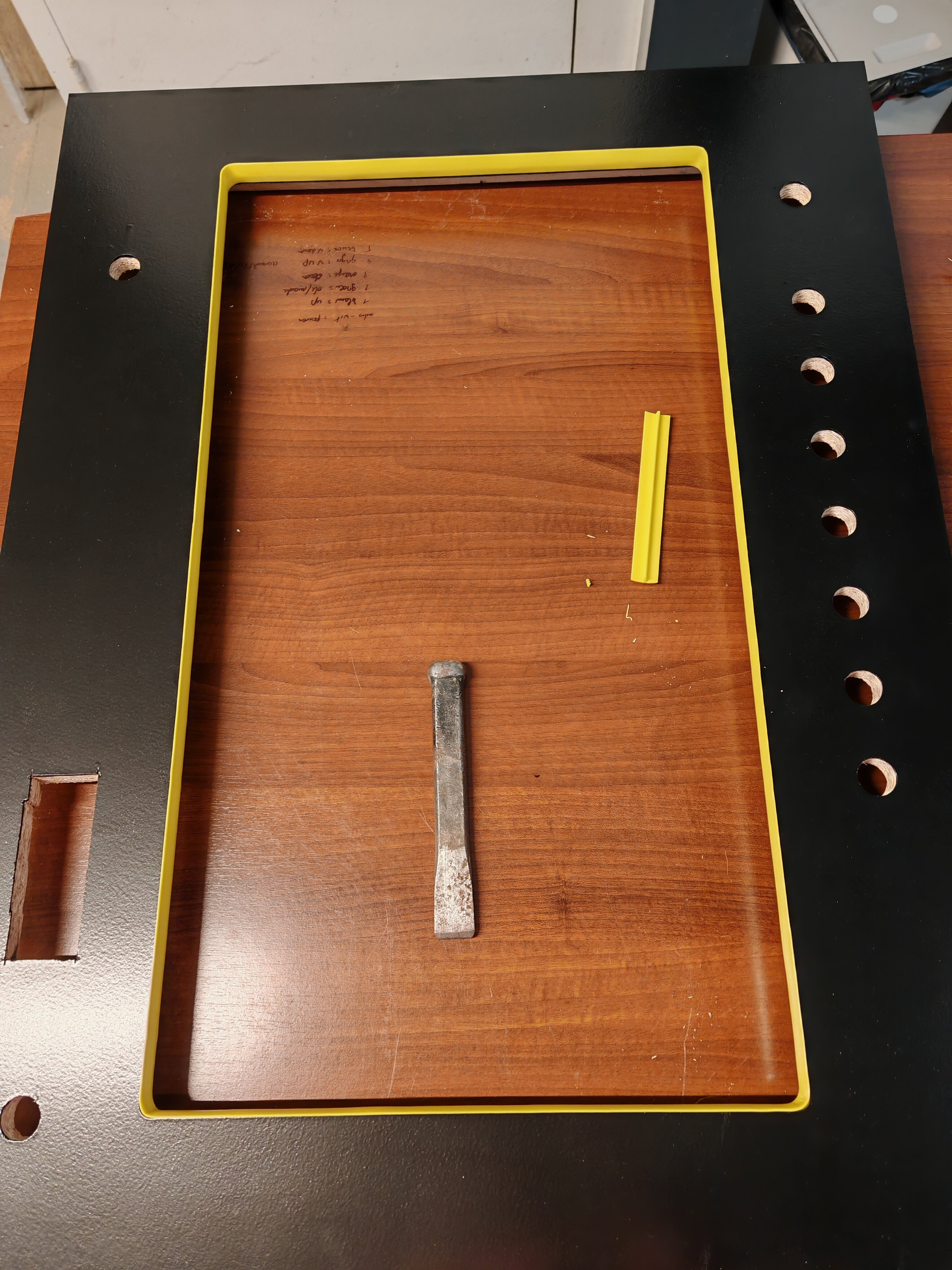

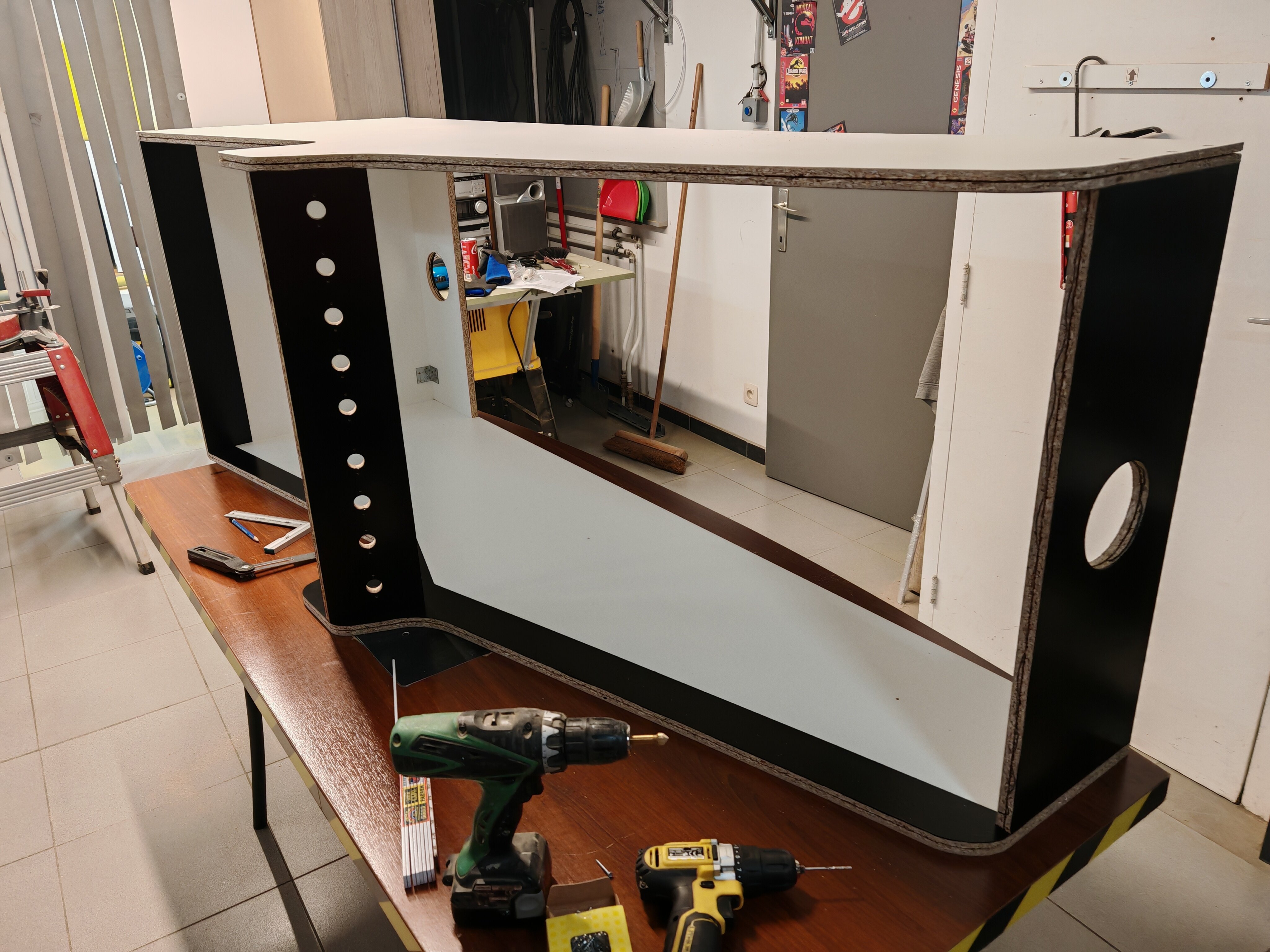

VenumX Posted January 25 Author Report Share Posted January 25 Update : Sunday 25/01/2026 Assembling the unit , measuring , pre drilling , screwing..... All the things that make a man feel good ..... And beer!! Also mounted the monitor inside the case + applying some yellow T-molding I had lying around. (Have to order some more. I forgot to paint the backdoor! Too much beer yesterday I guess.... Hope you guys like it, I'm hitting the couch for today.... Pictures are in timed order. 3 3 Link to comment Share on other sites More sharing options...

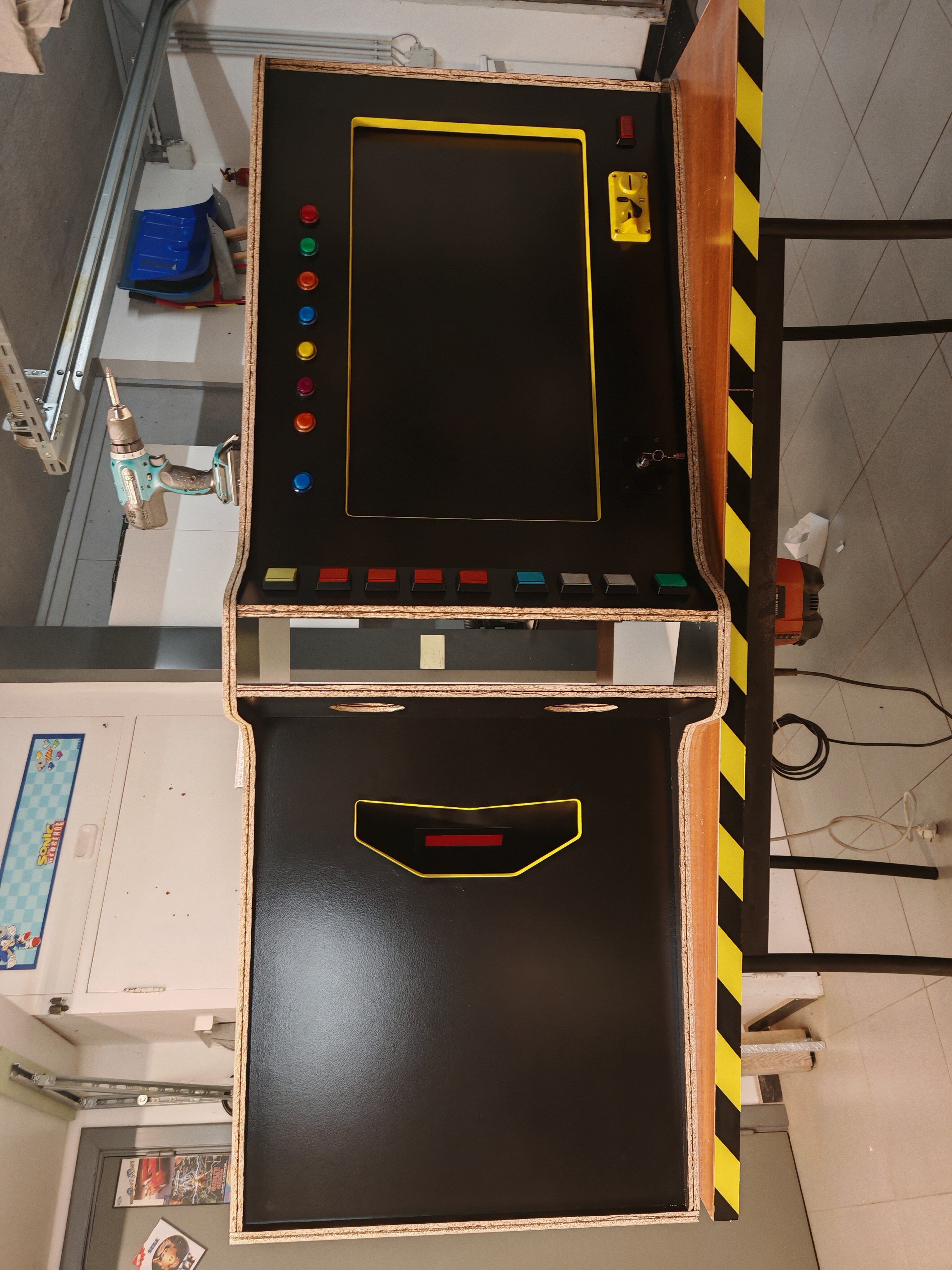

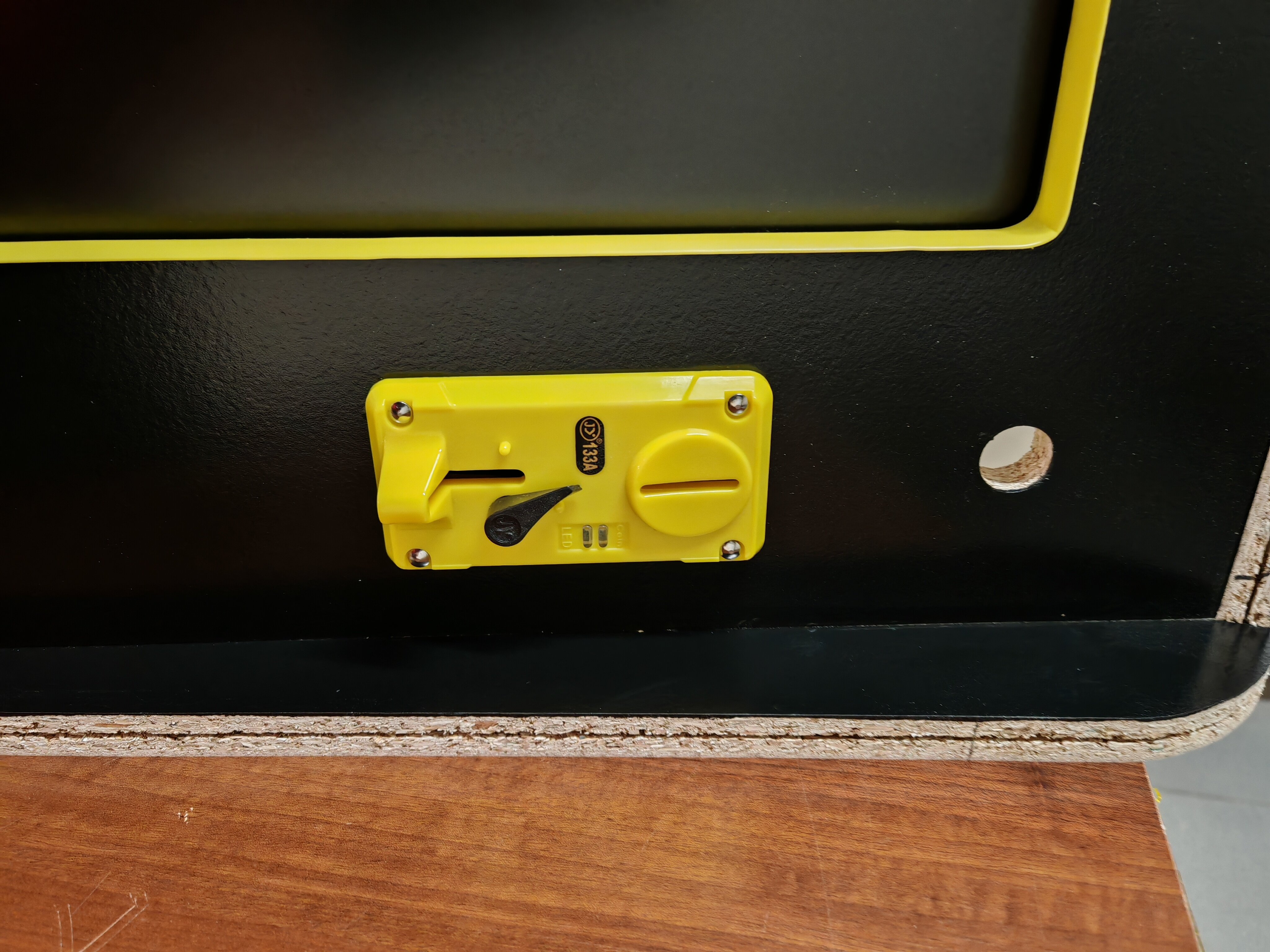

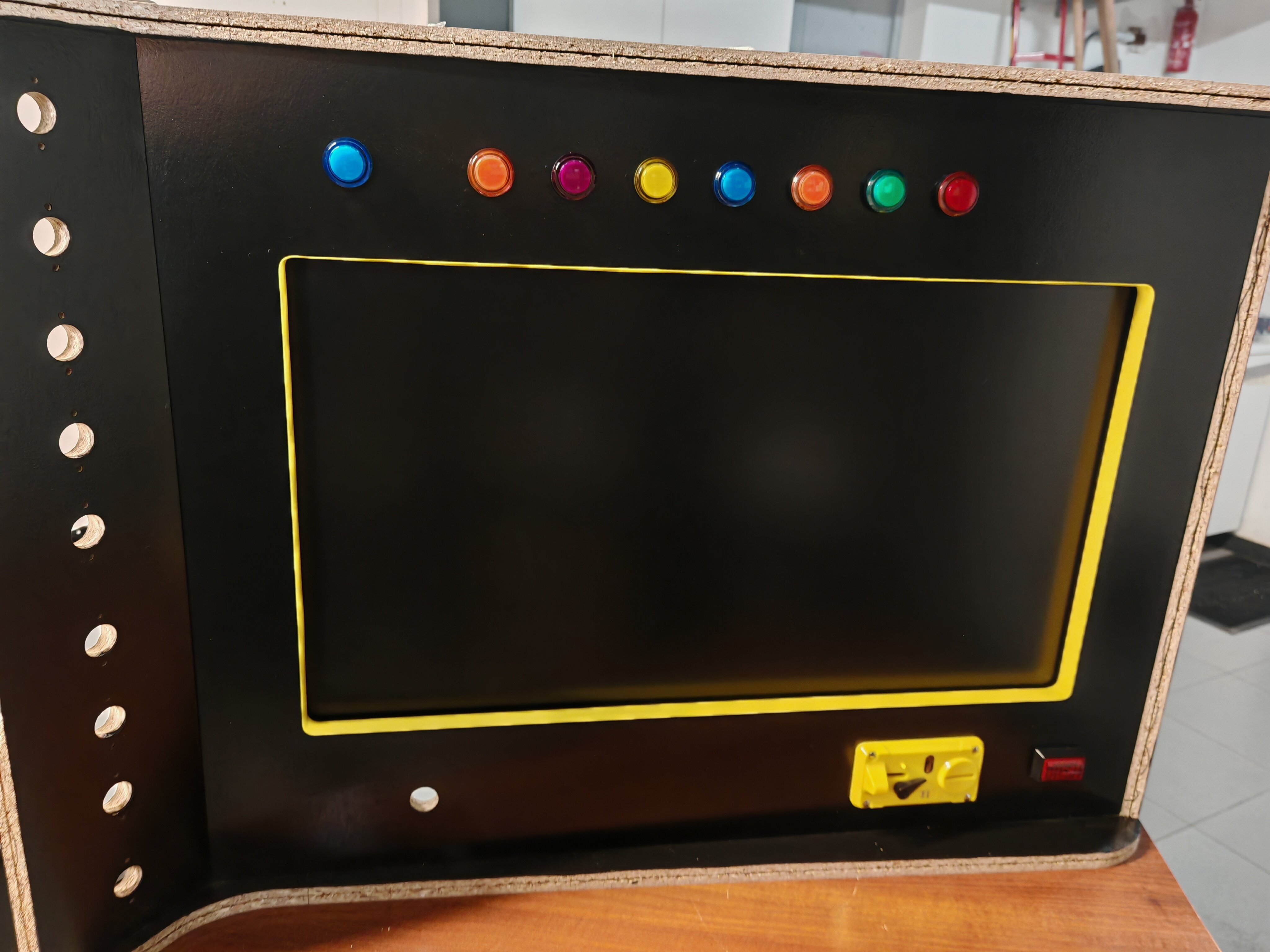

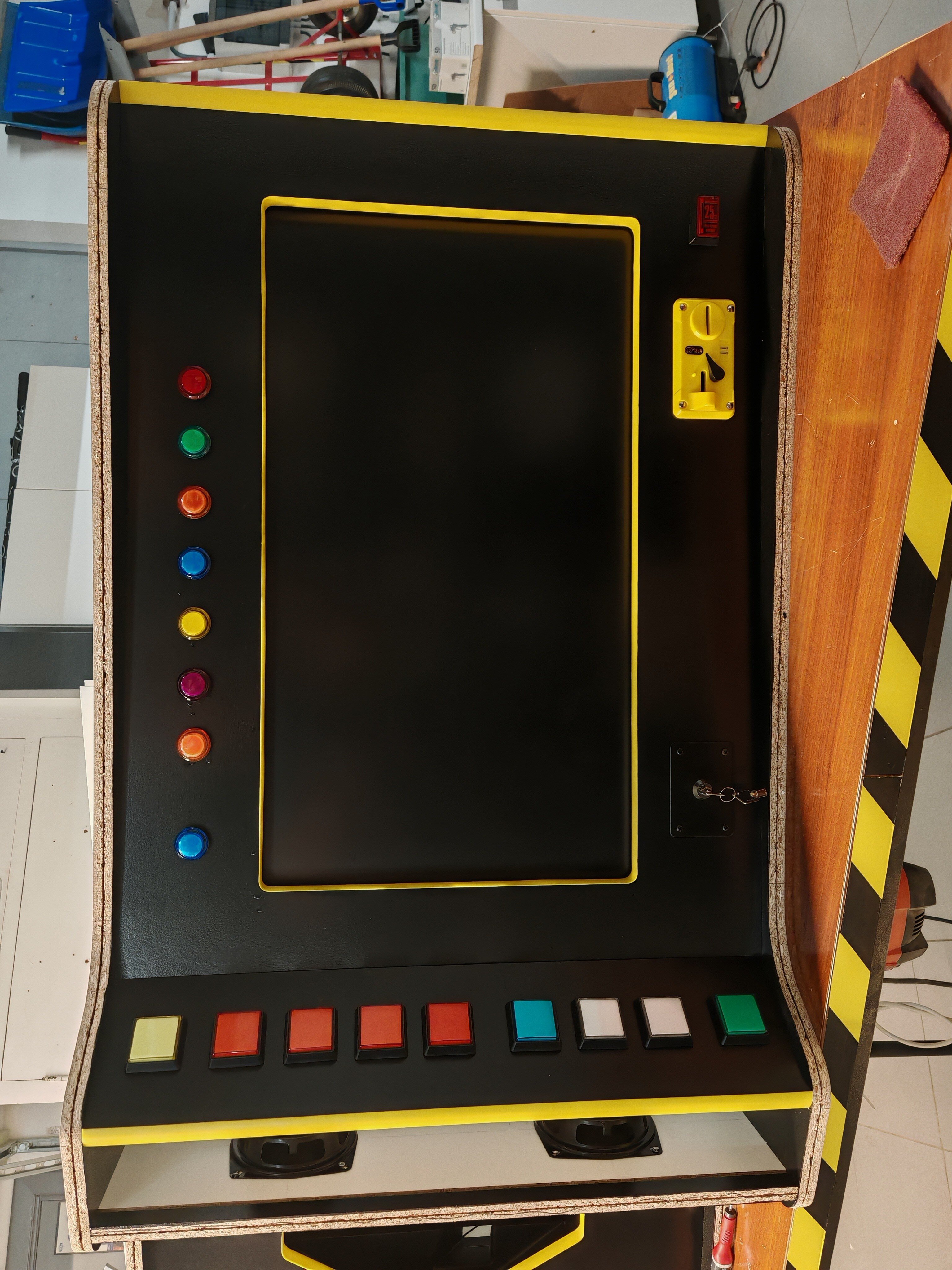

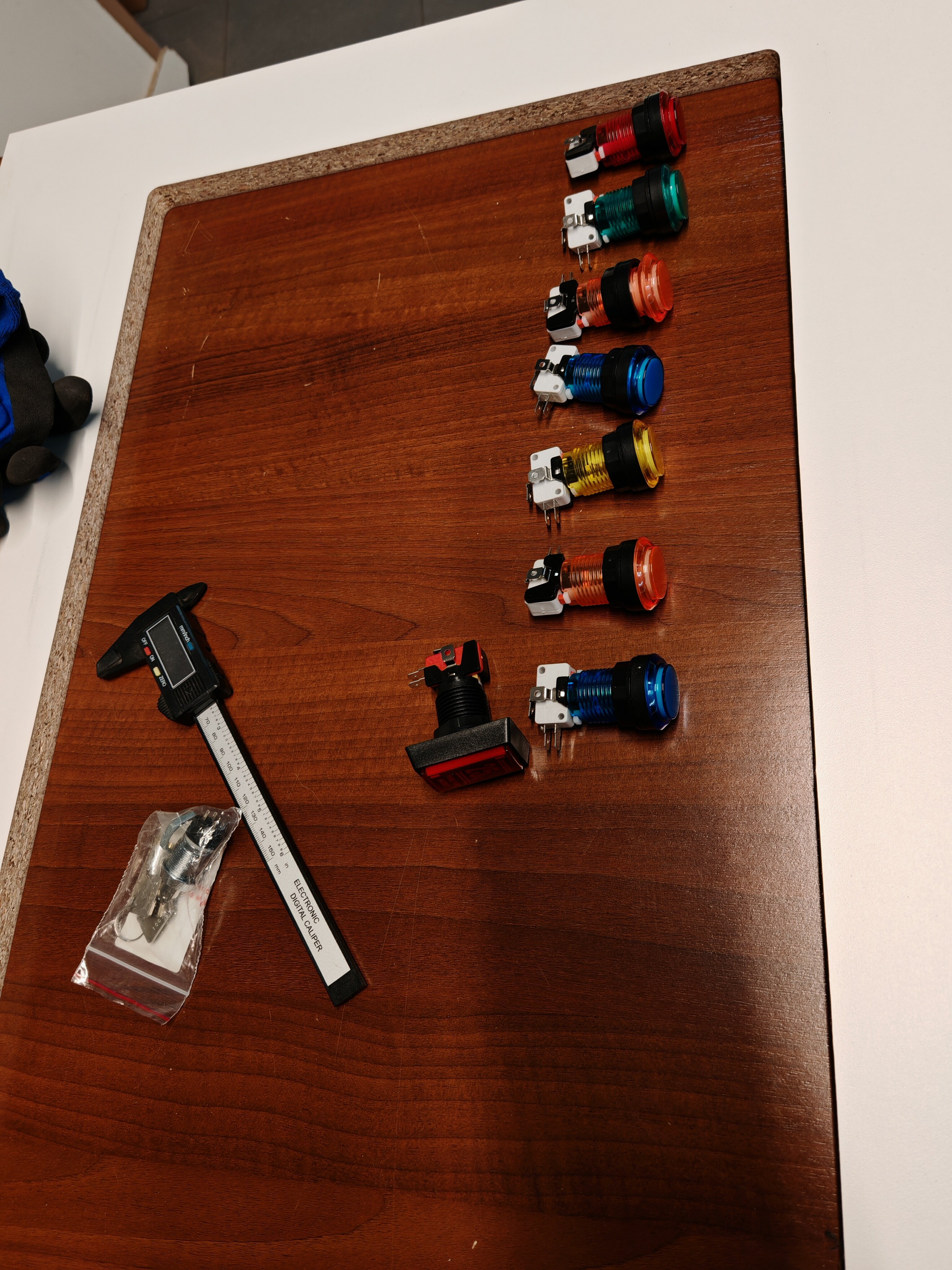

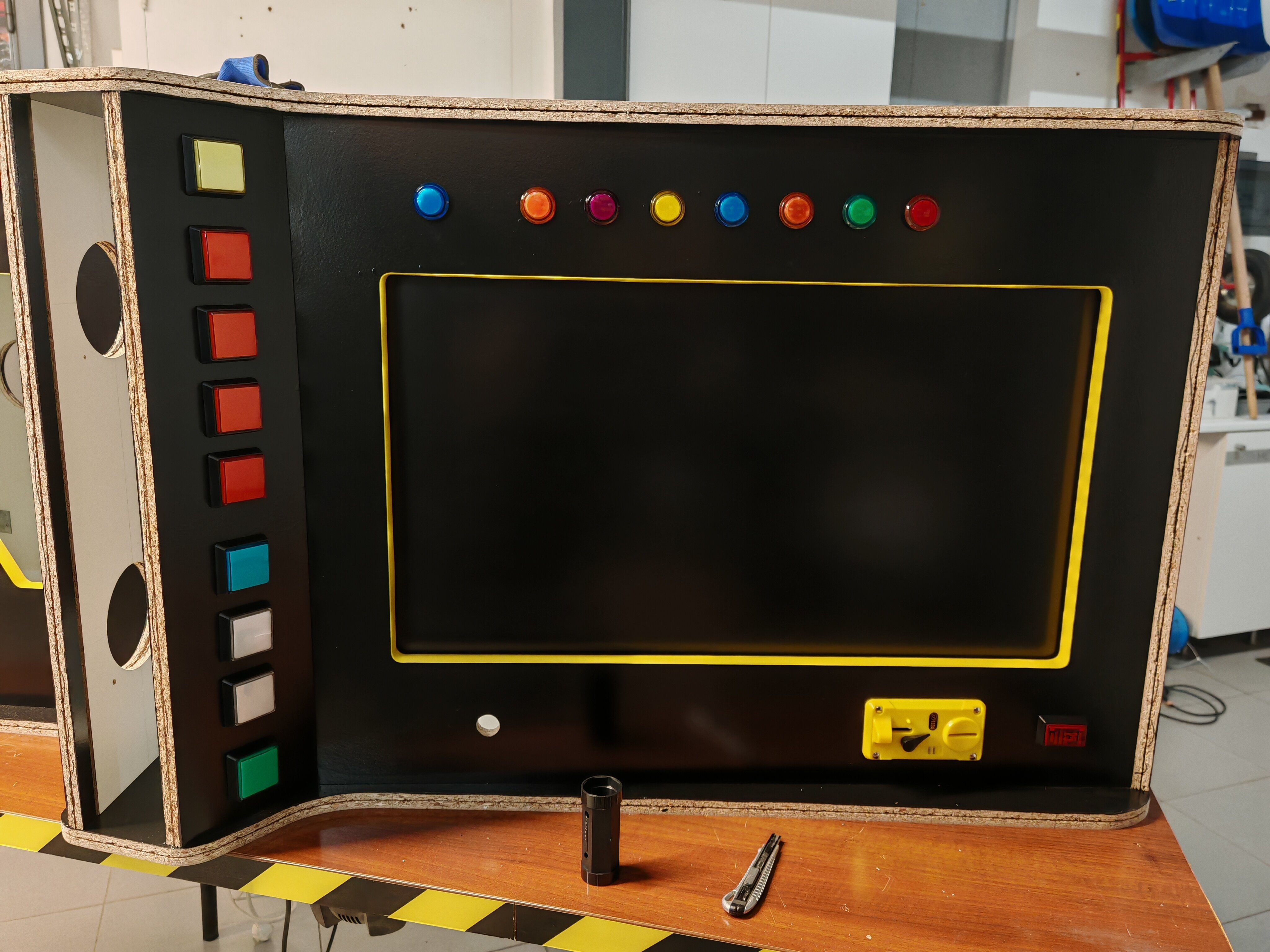

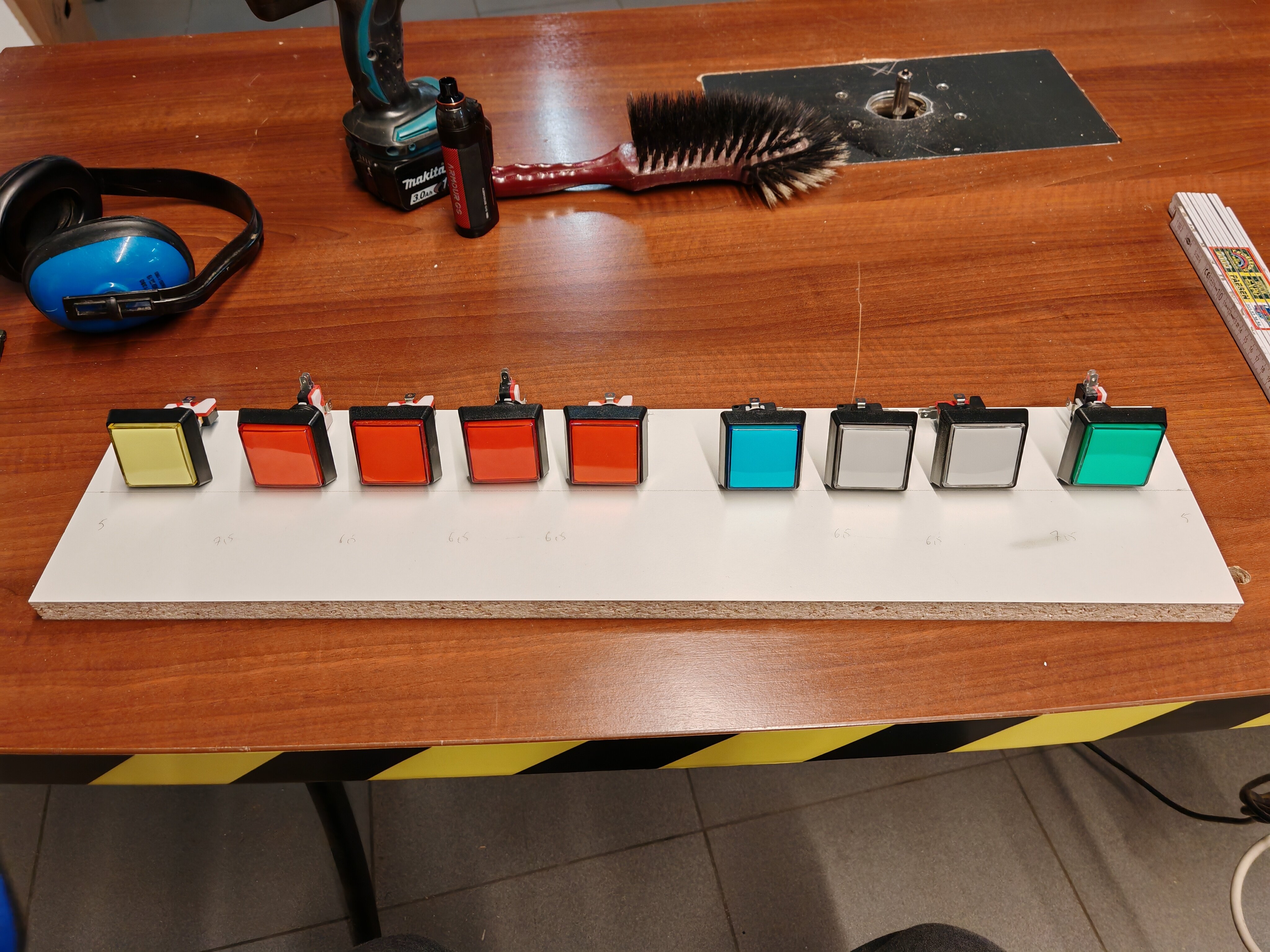

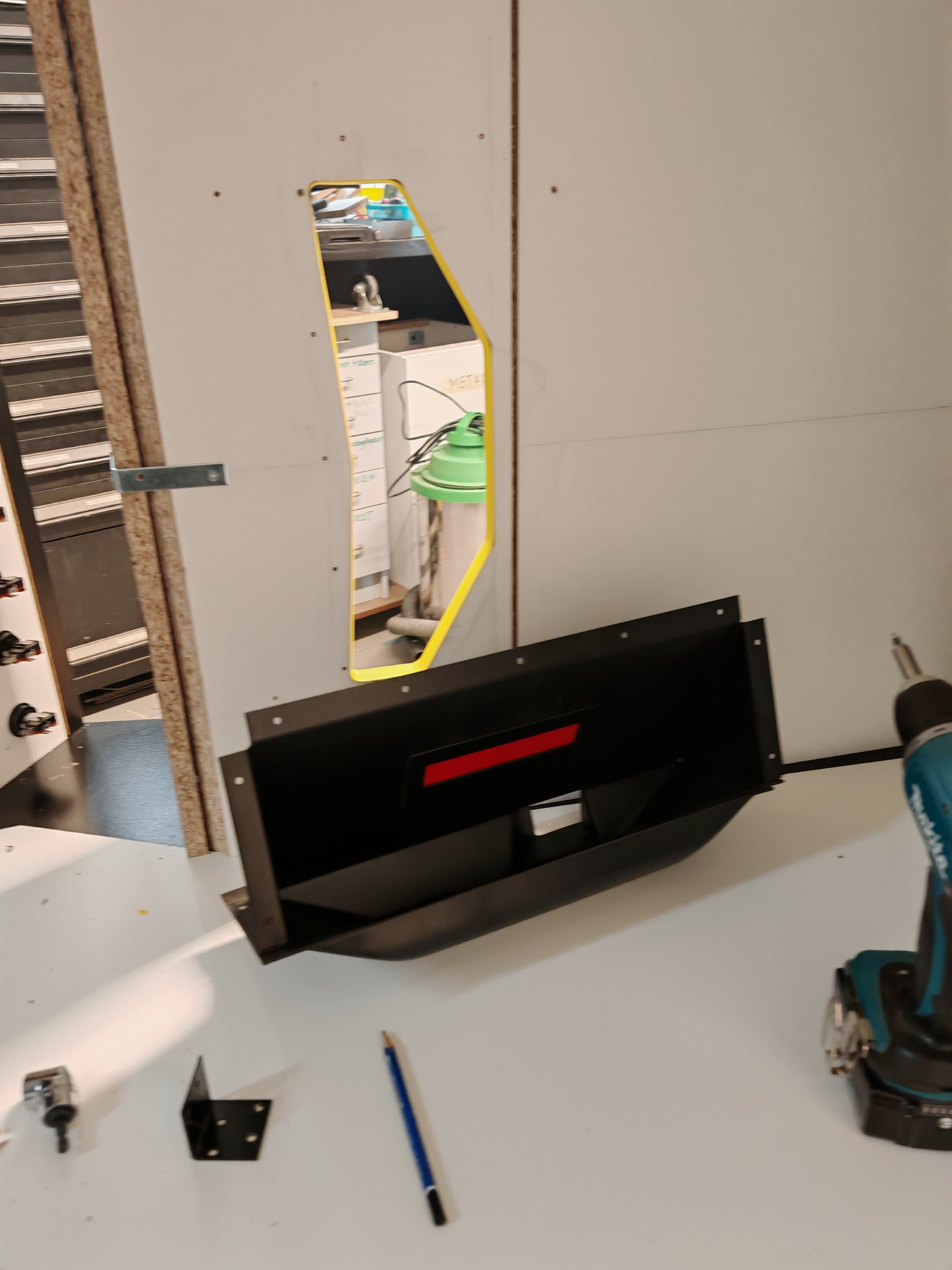

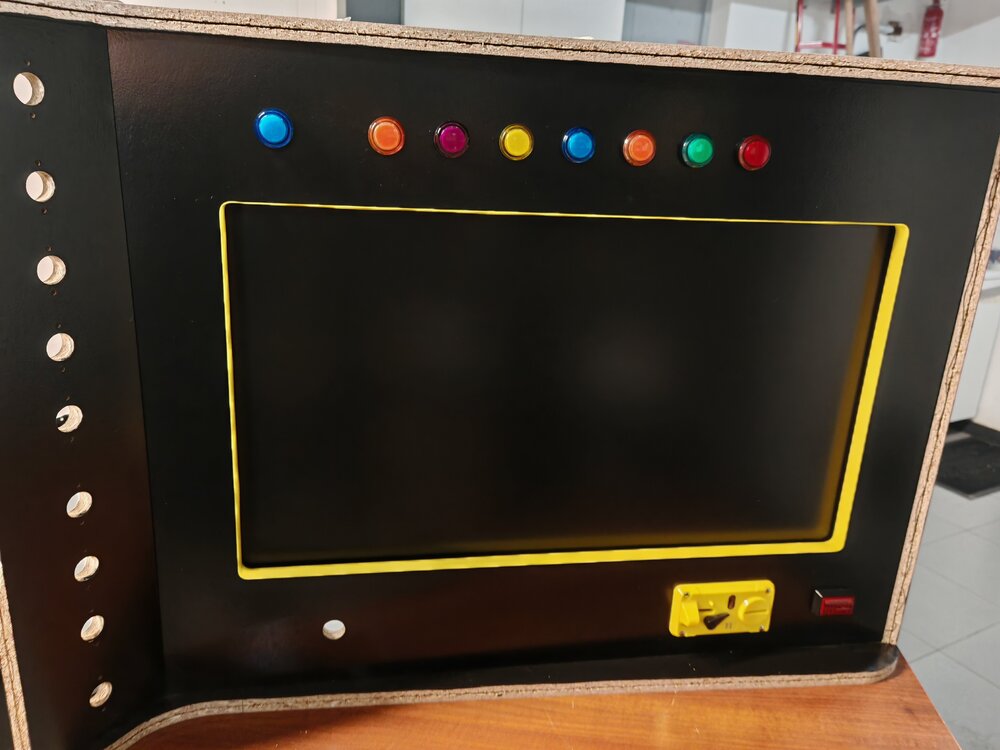

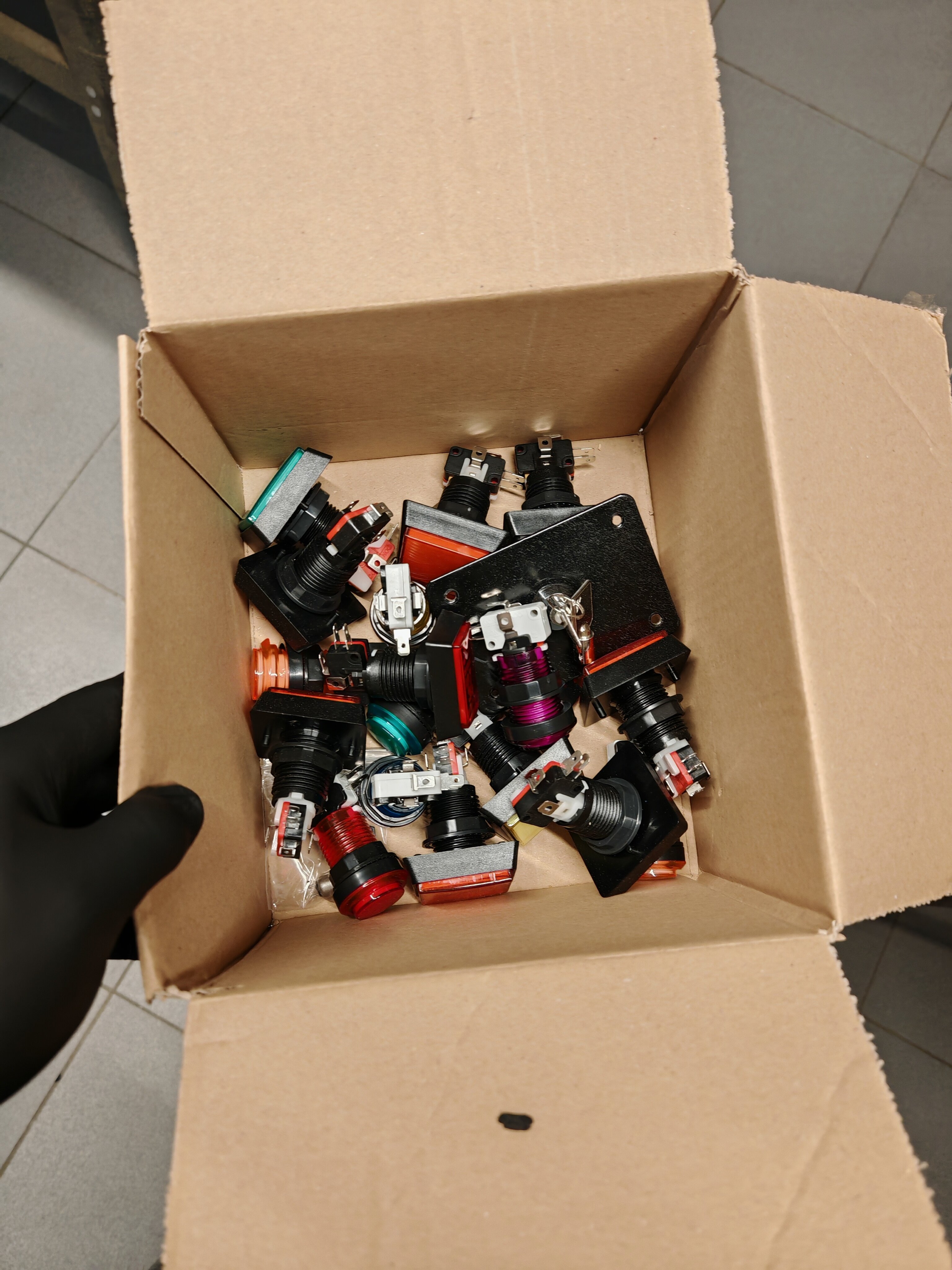

VenumX Posted January 26 Author Report Share Posted January 26 Update Monday 26/01/2026 Mounting all the buttons + the coin tray. I just realized I need more T-molding to mount the speakers and In and out Fans. So I just ordered 15meters. Didn't do much today , but it looks great I think. Have fun 6 Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 27 Report Share Posted January 27 Looking good! @VenumX 1 Link to comment Share on other sites More sharing options...
VenumX Posted January 27 Author Report Share Posted January 27 56 minutes ago, Road Hog Mad said: Looking good! @VenumX Thank you! Still waiting on the desertisland plexi glass "marquee" I ordered ... That plexi is gonna be lit up and sandwiched between the button and speakers panel. Link to comment Share on other sites More sharing options...

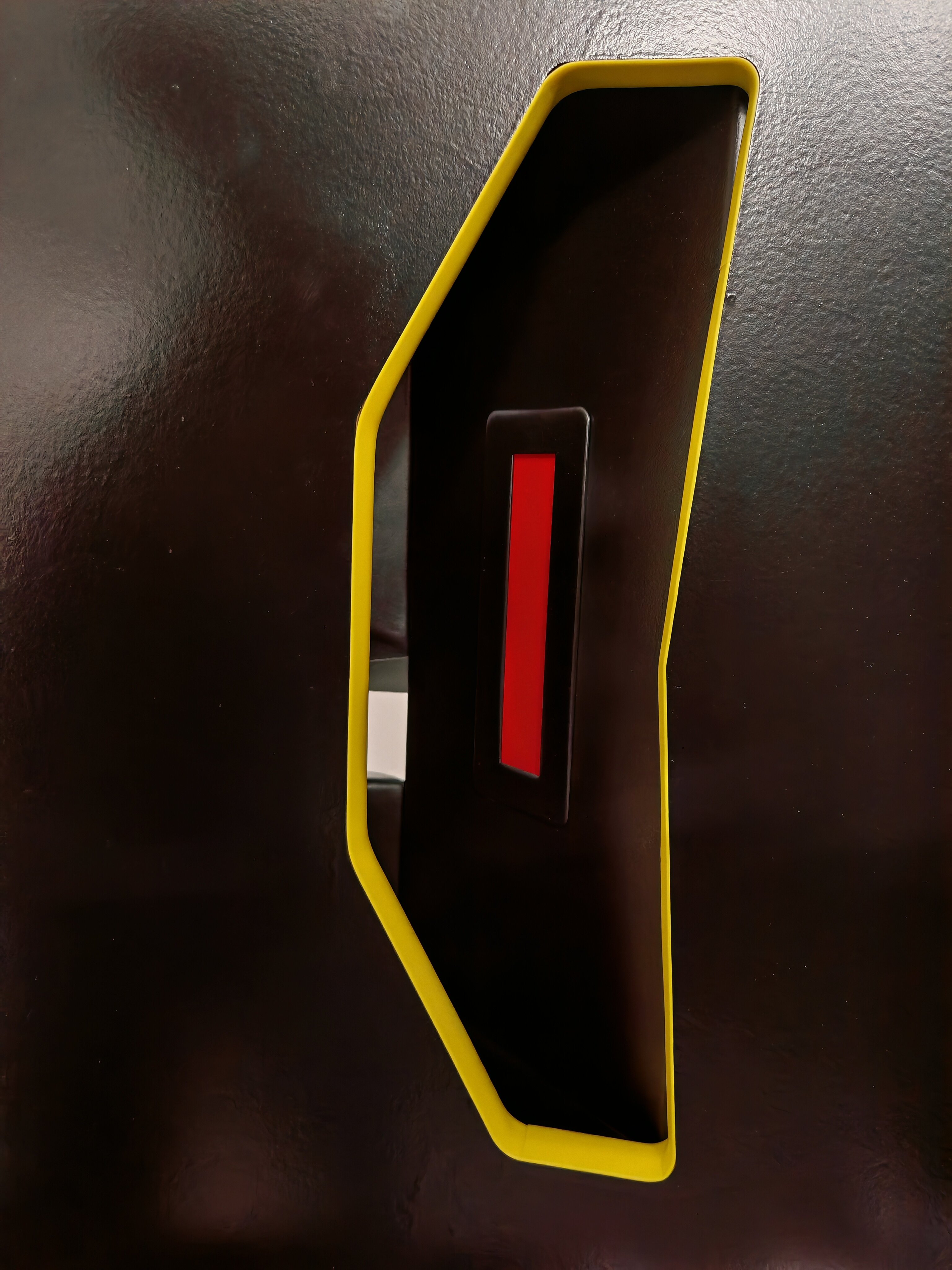

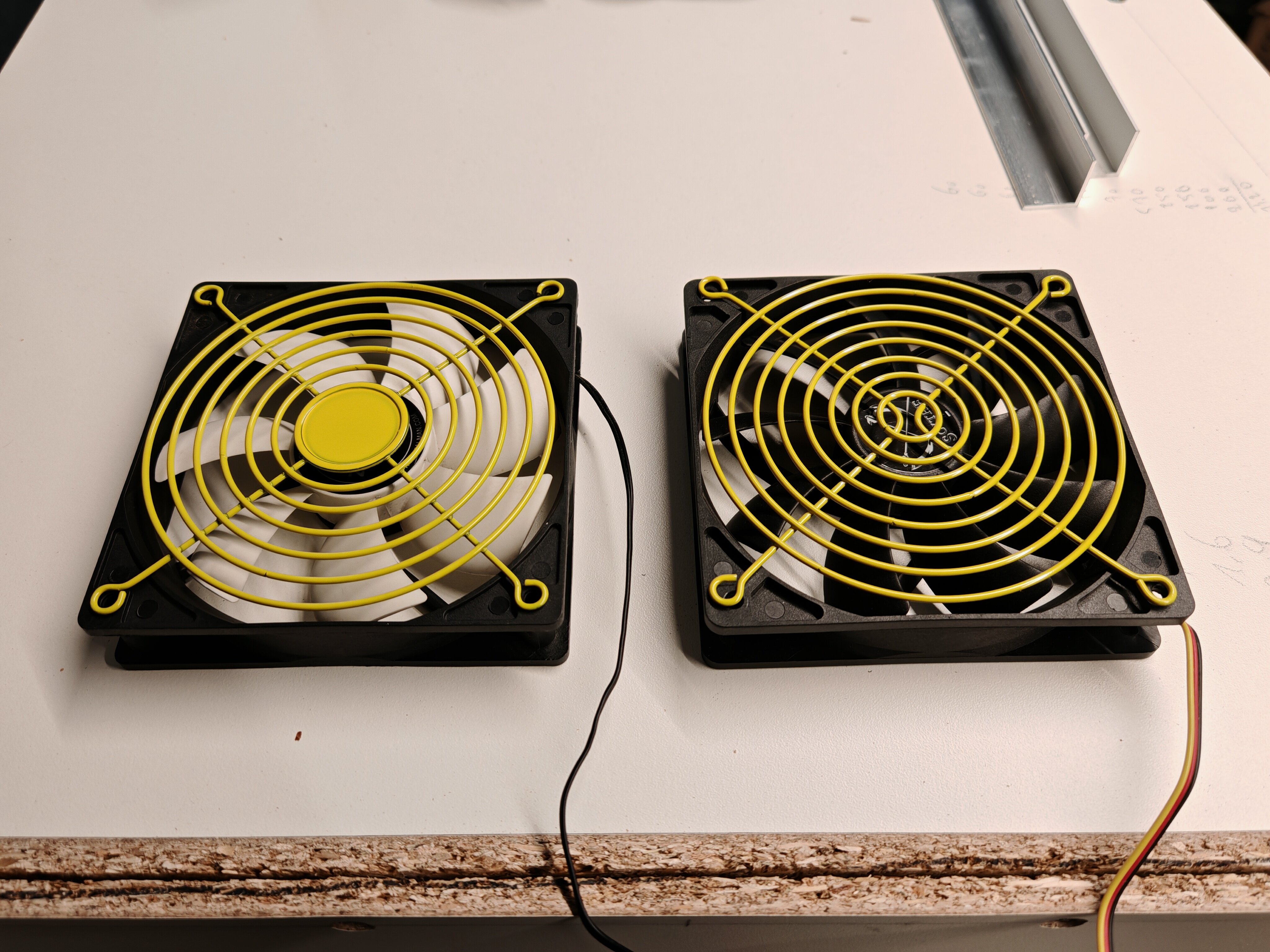

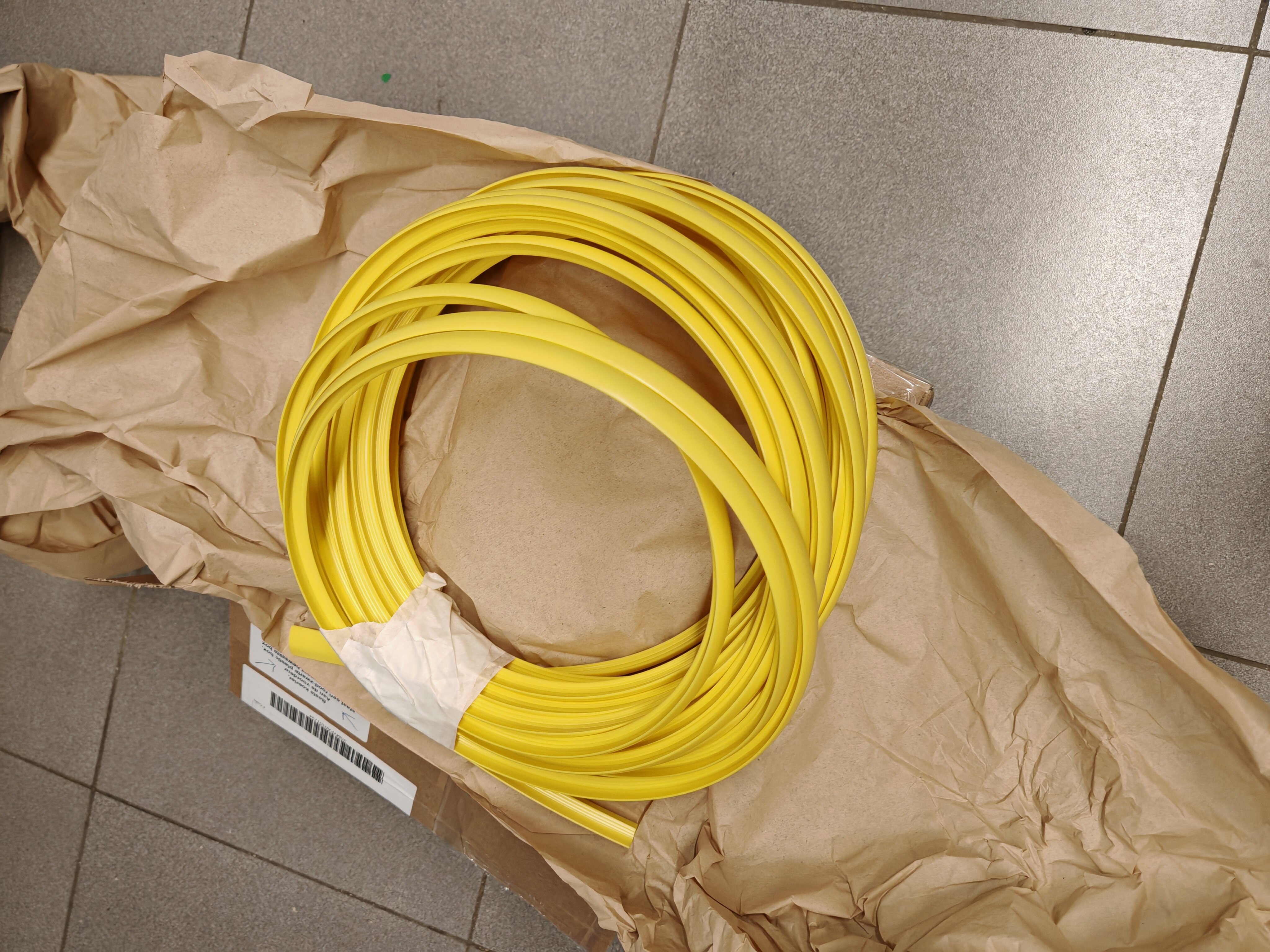

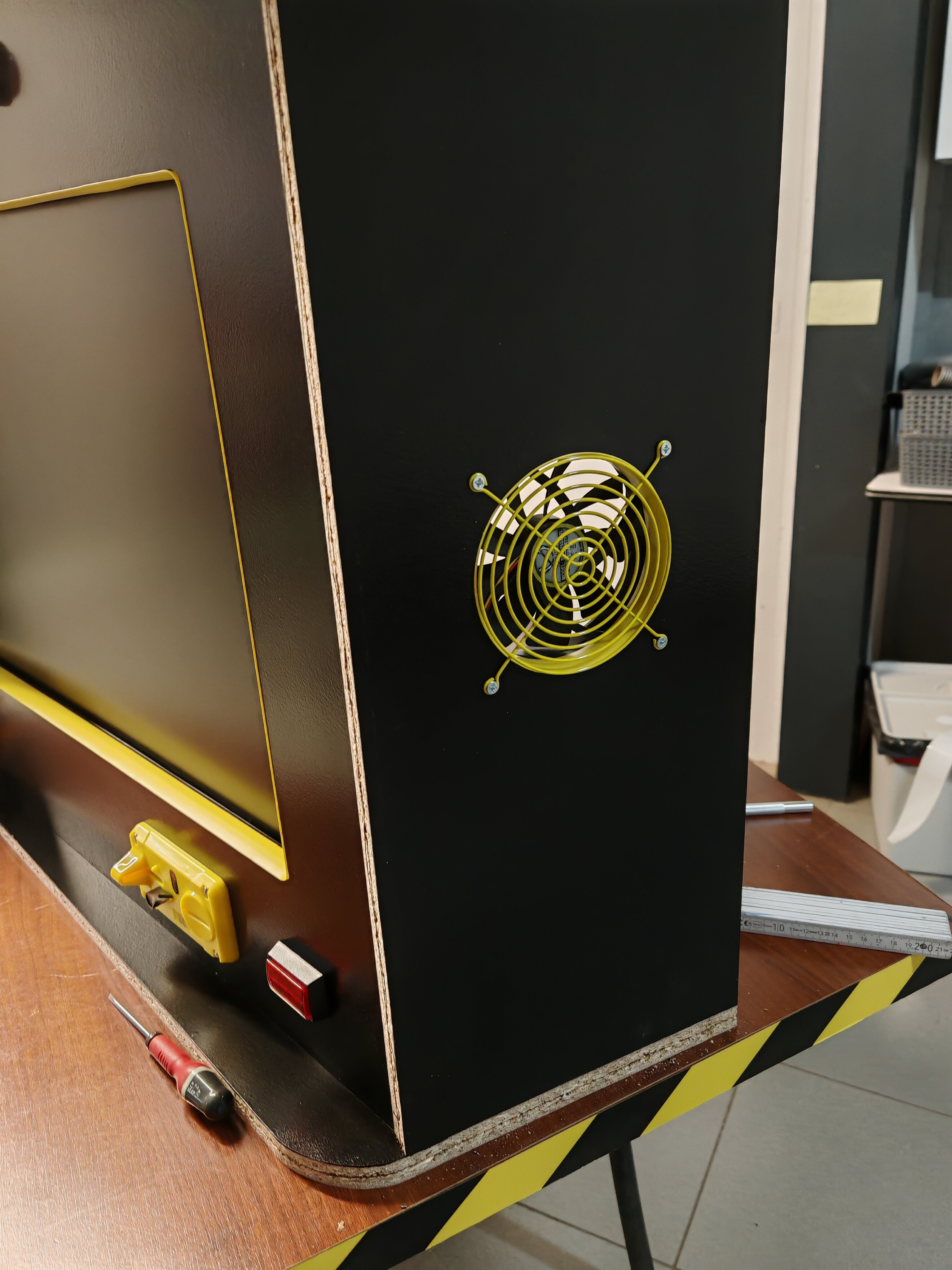

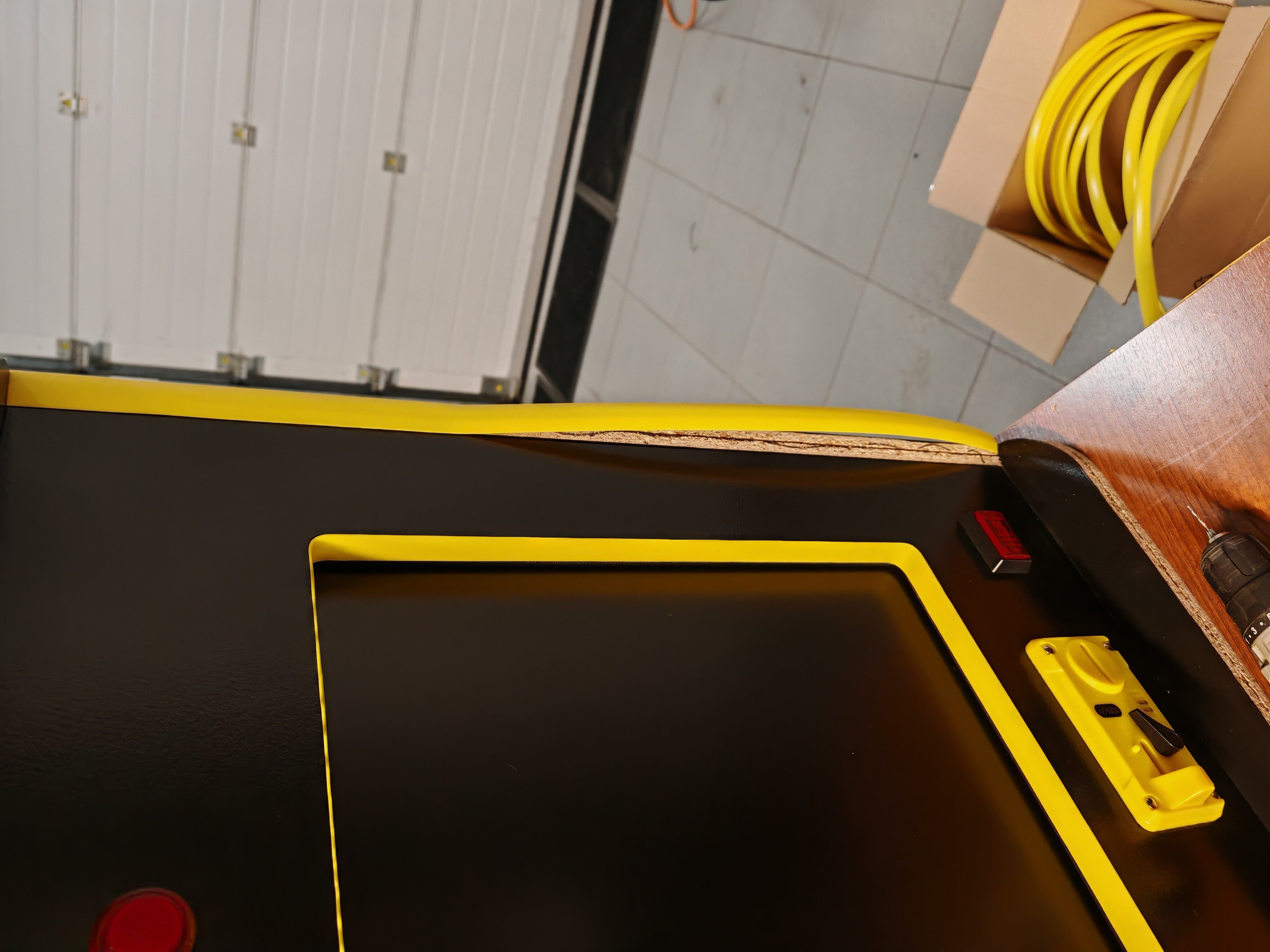

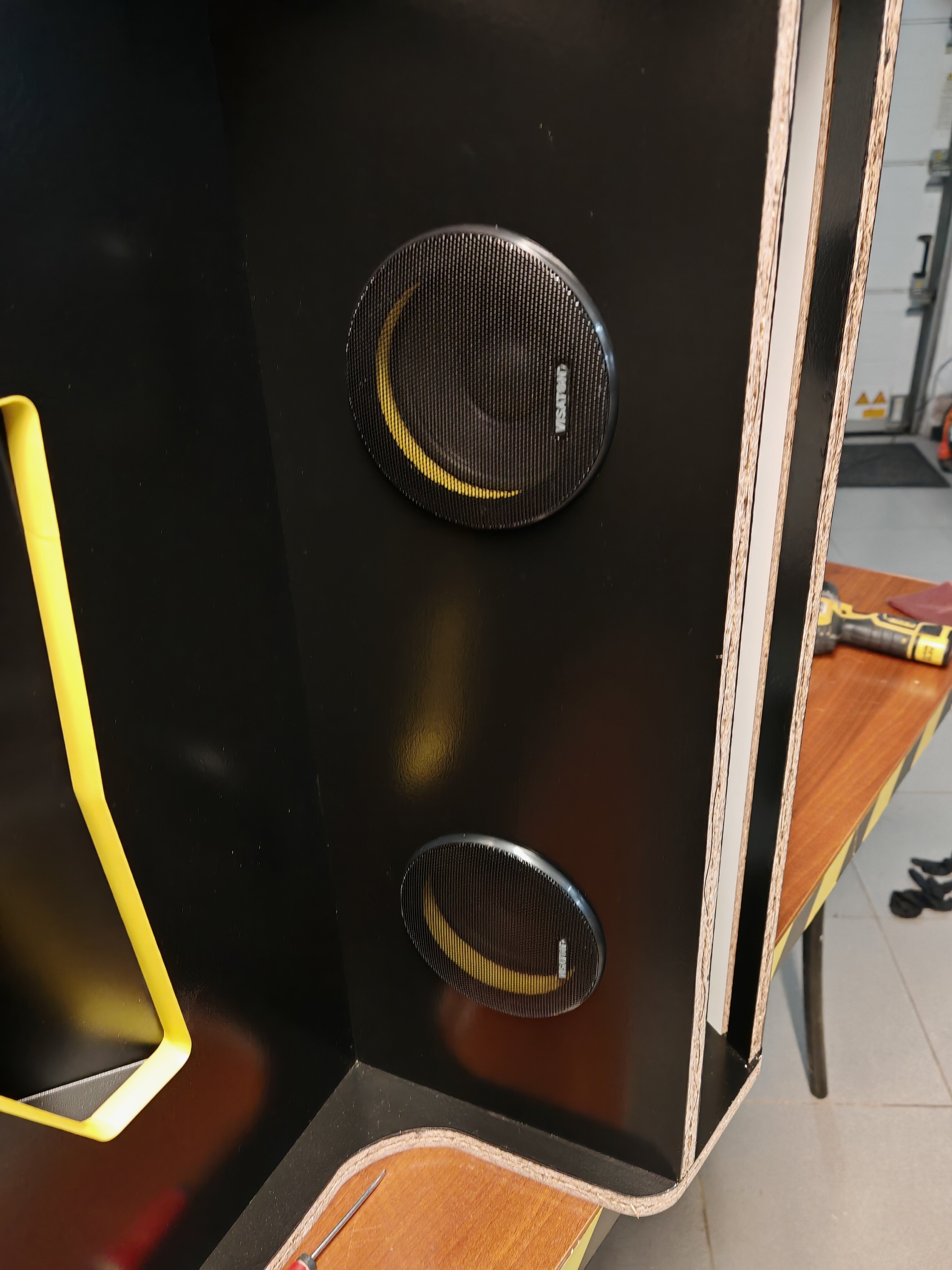

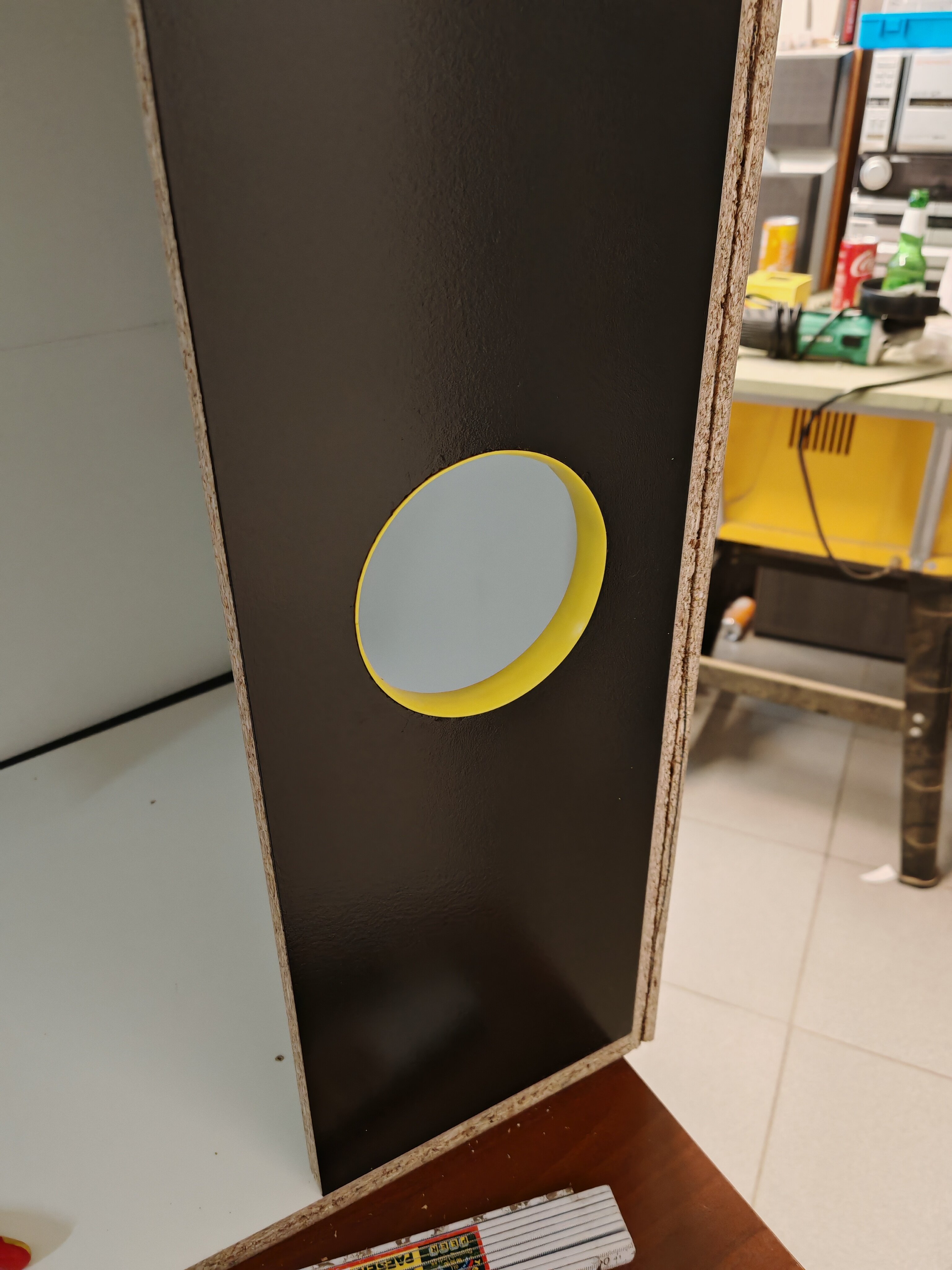

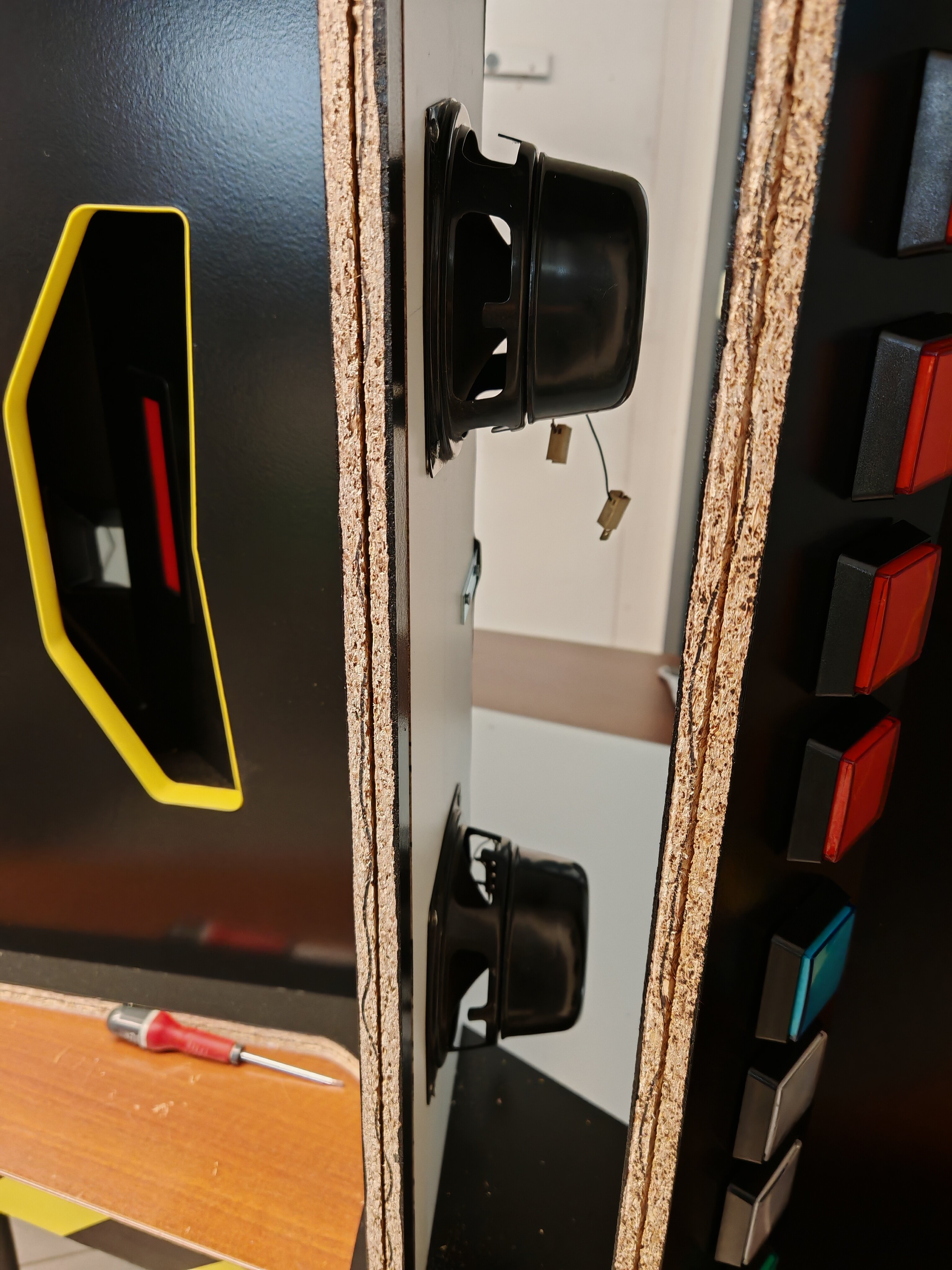

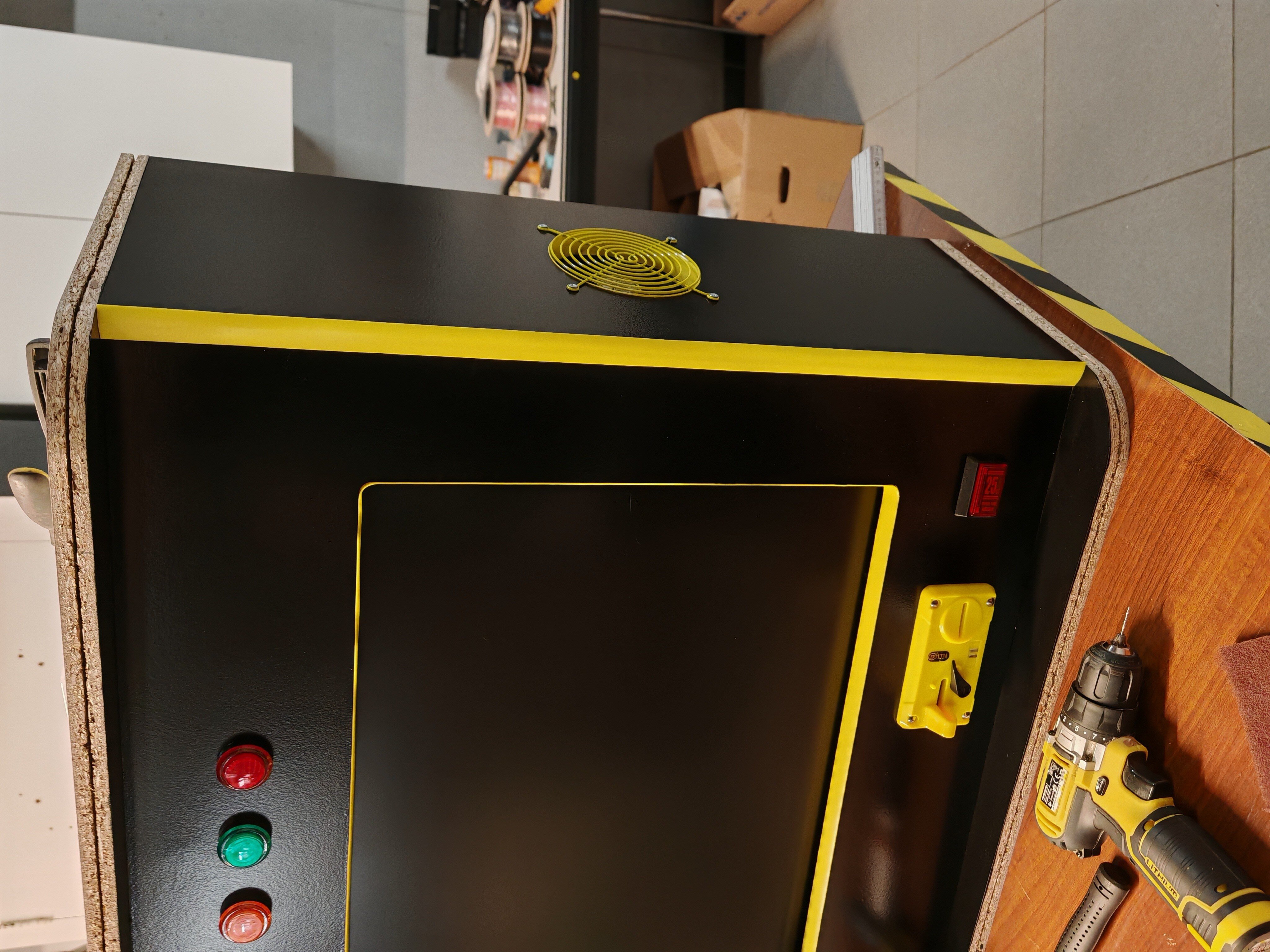

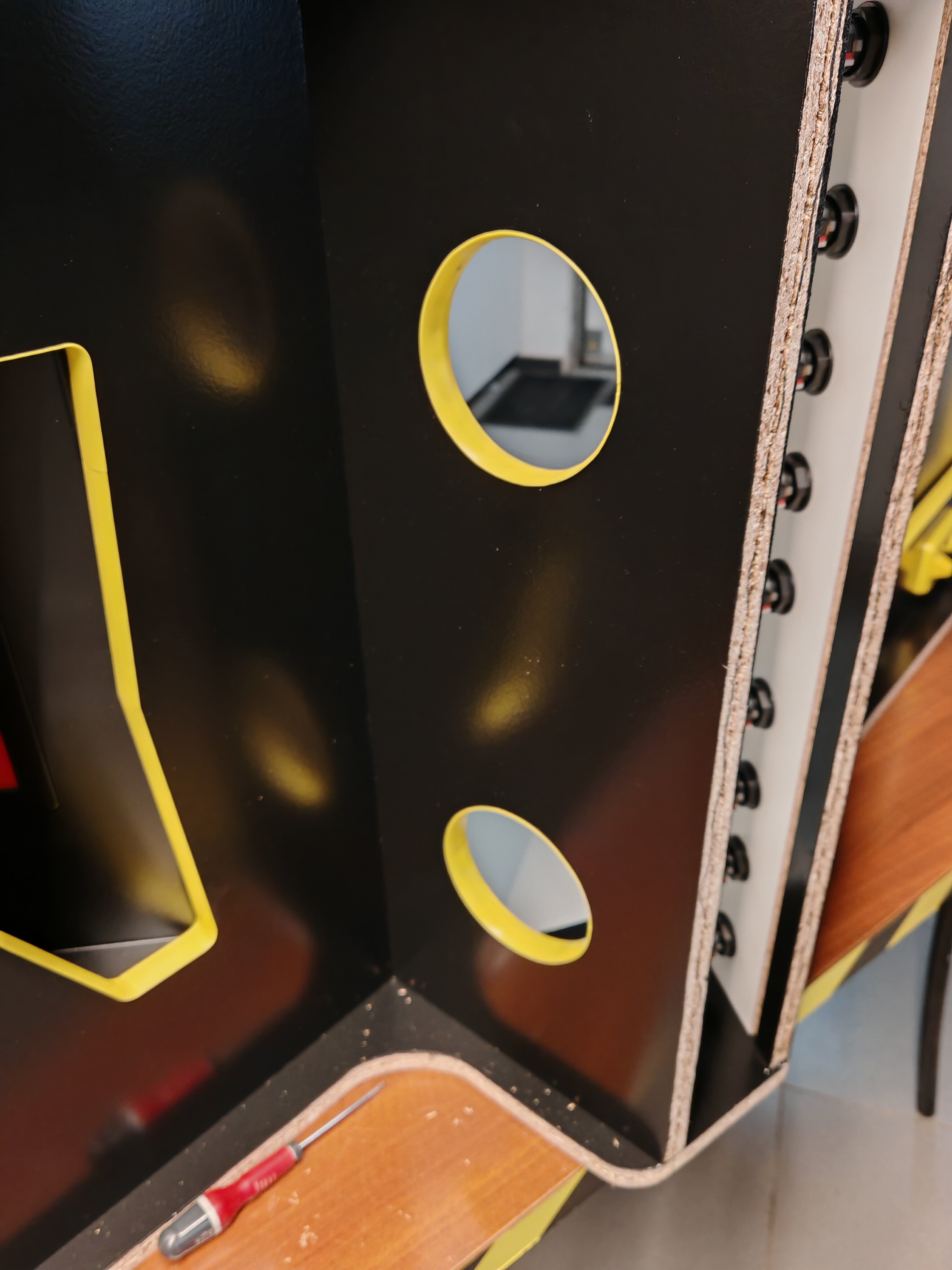

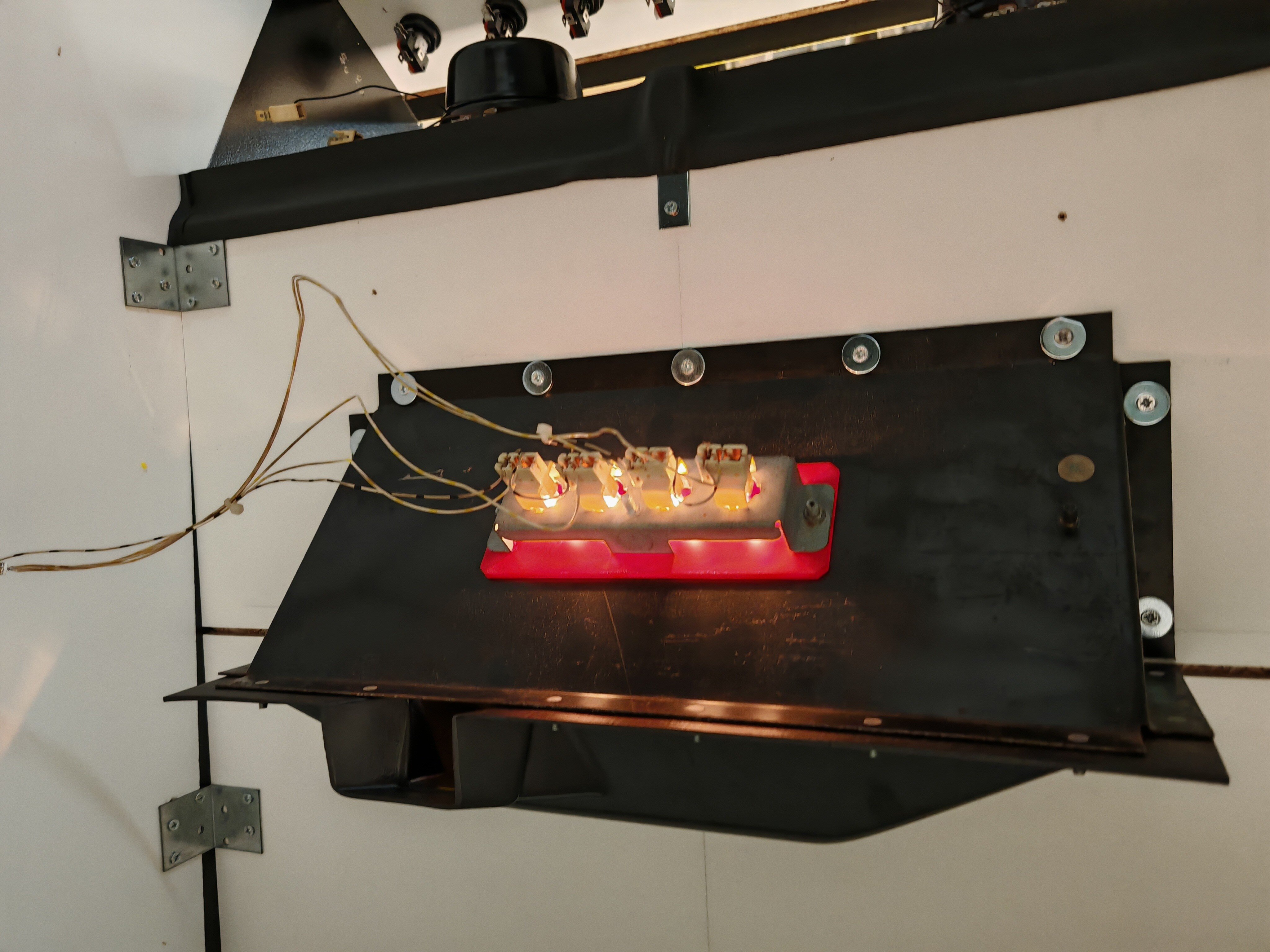

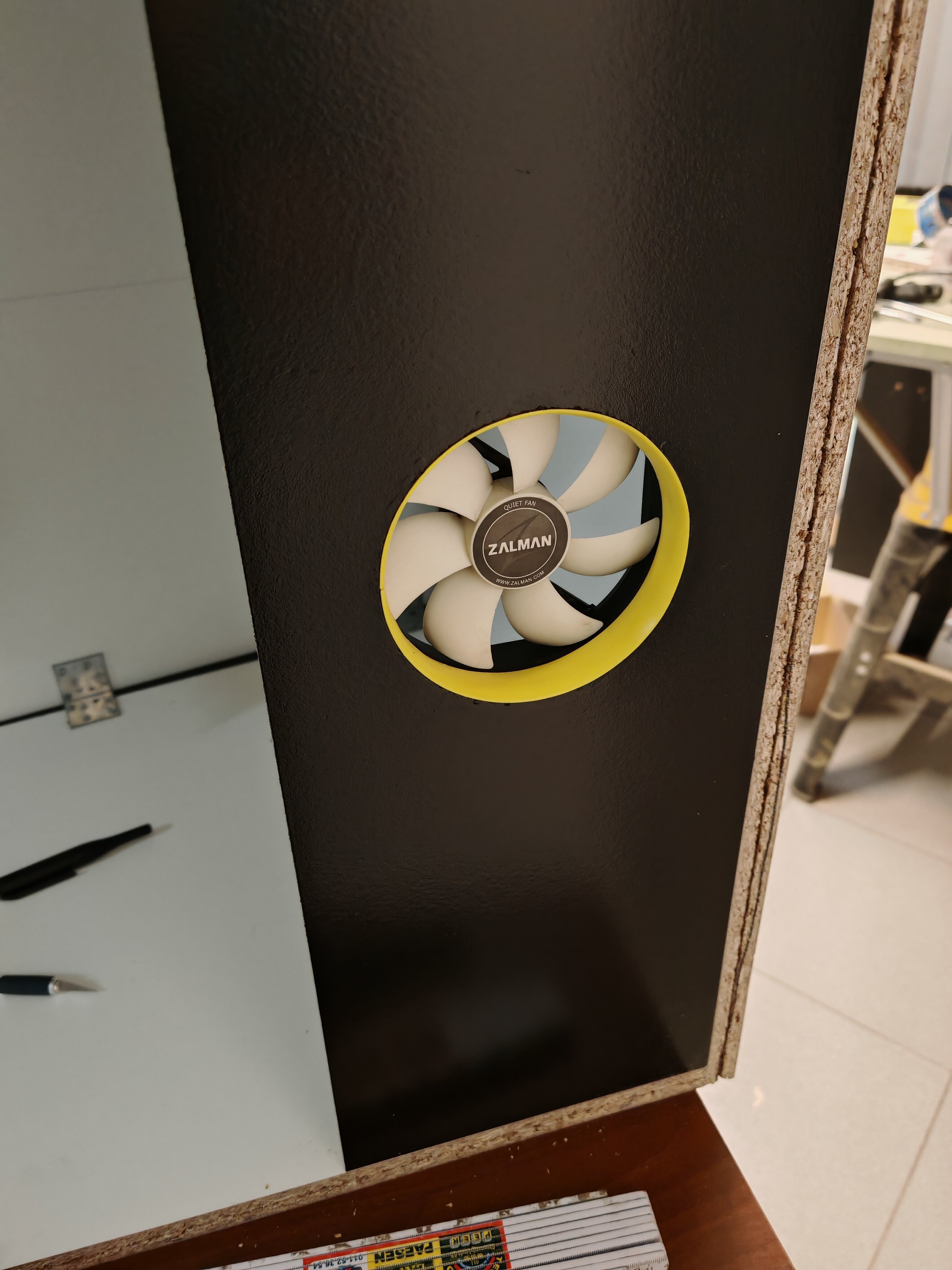

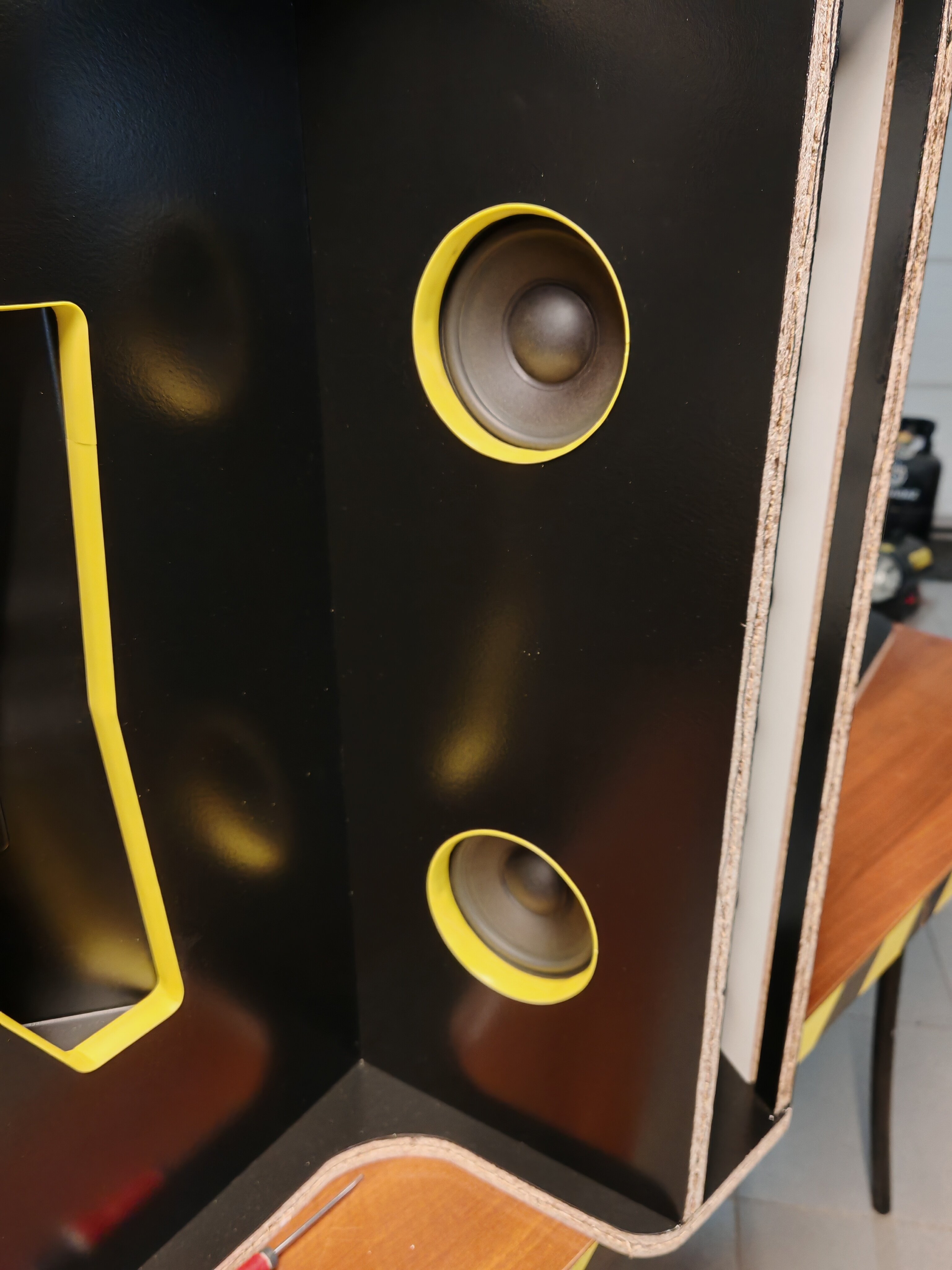

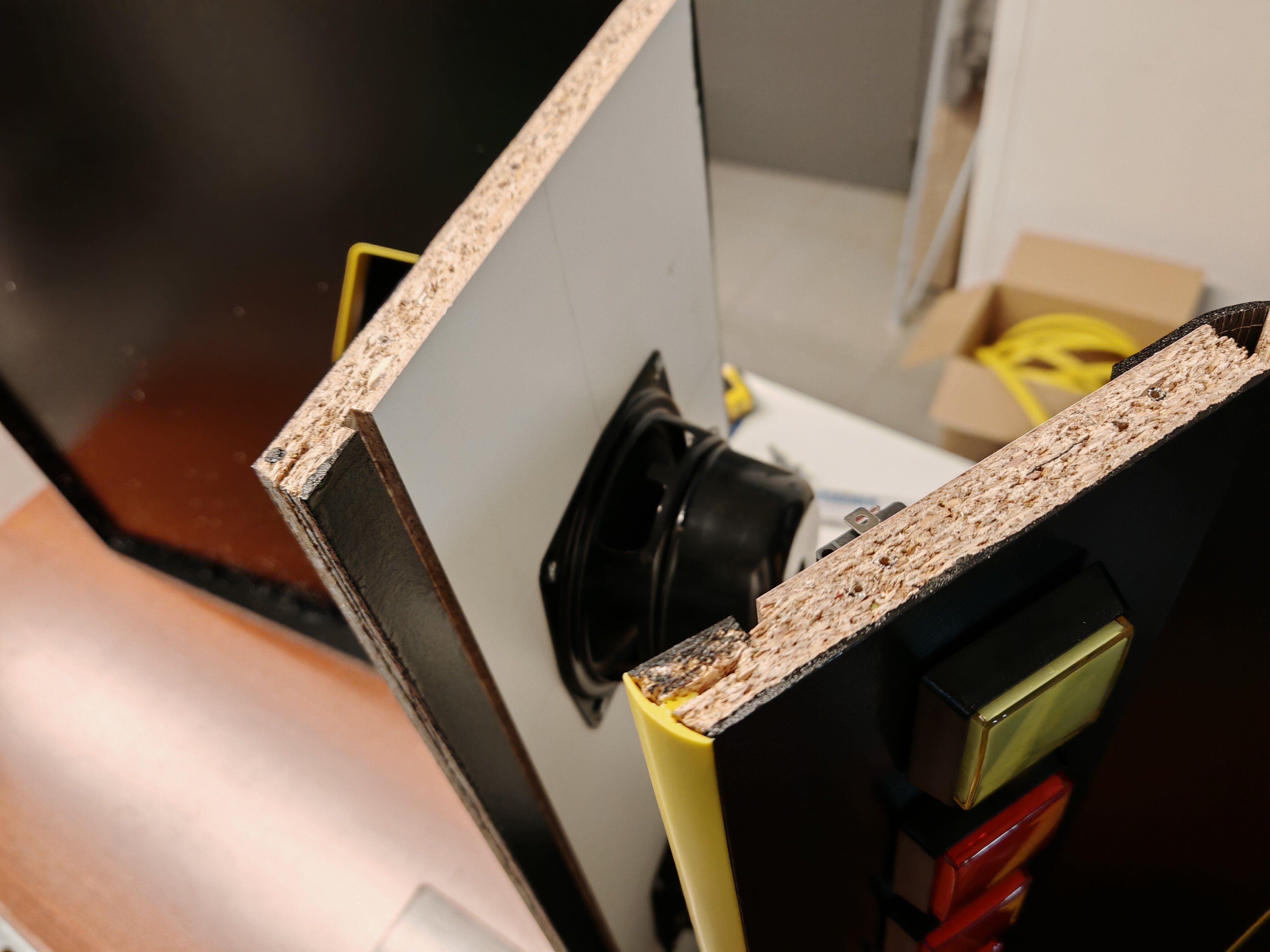

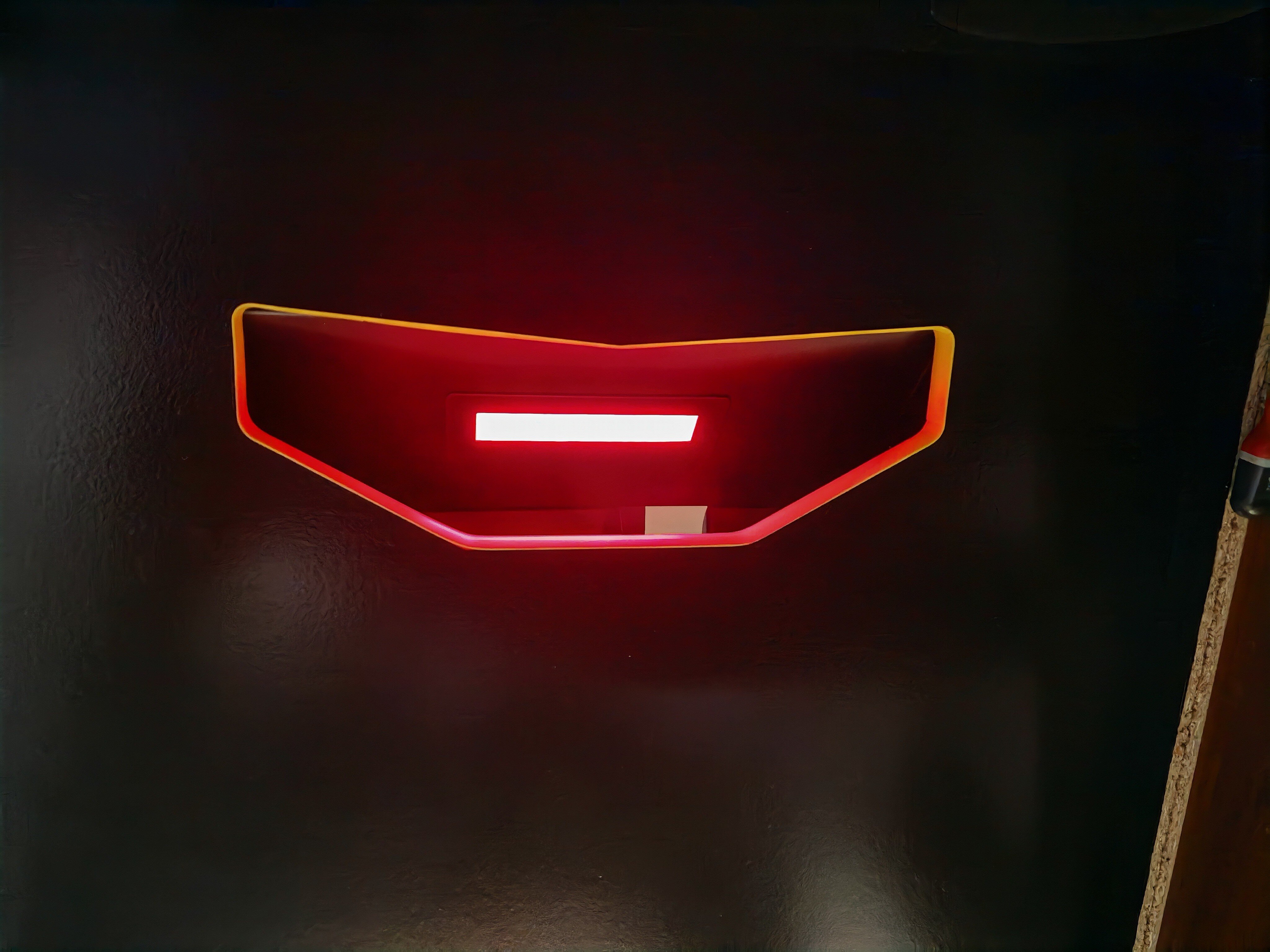

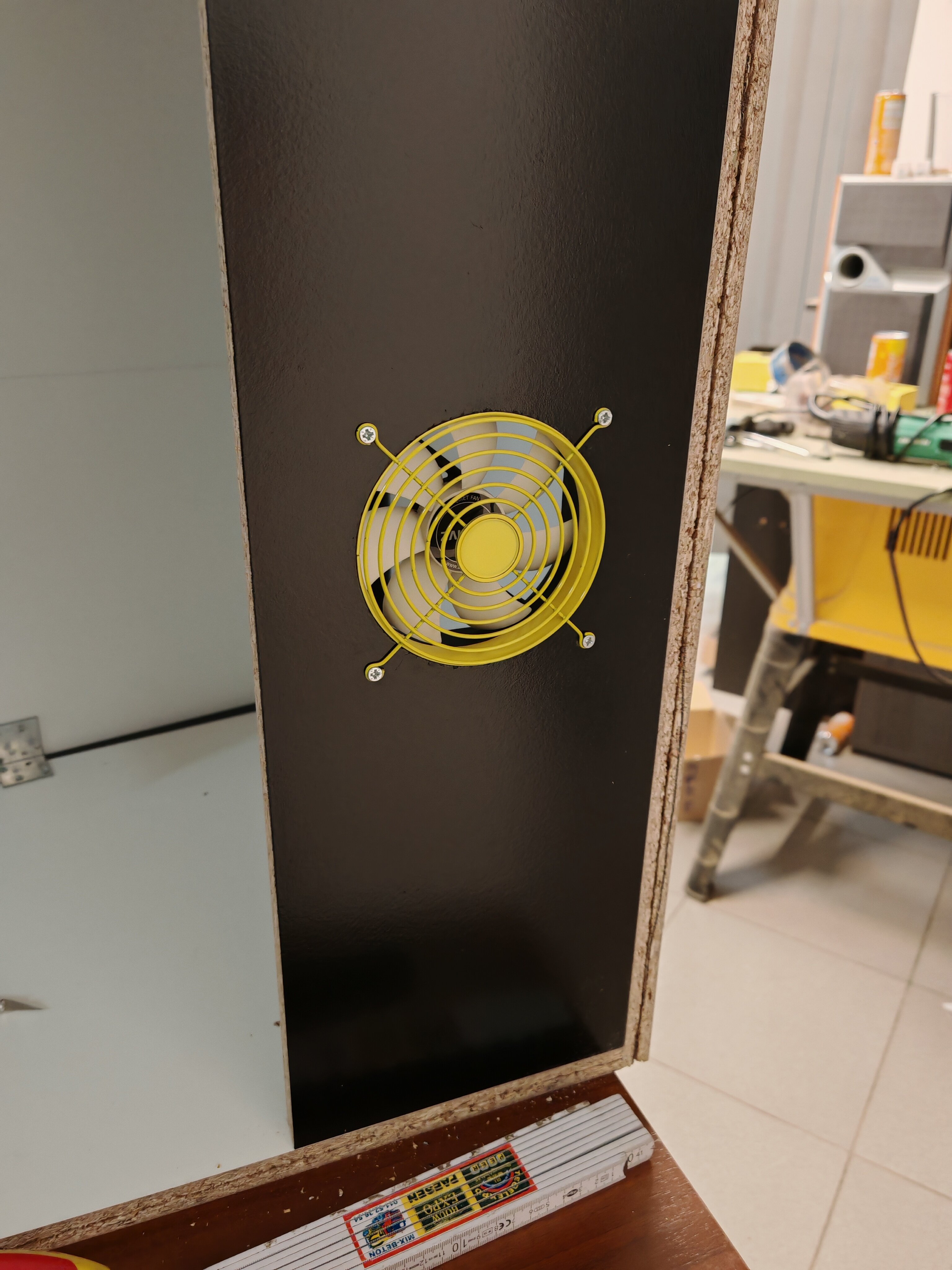

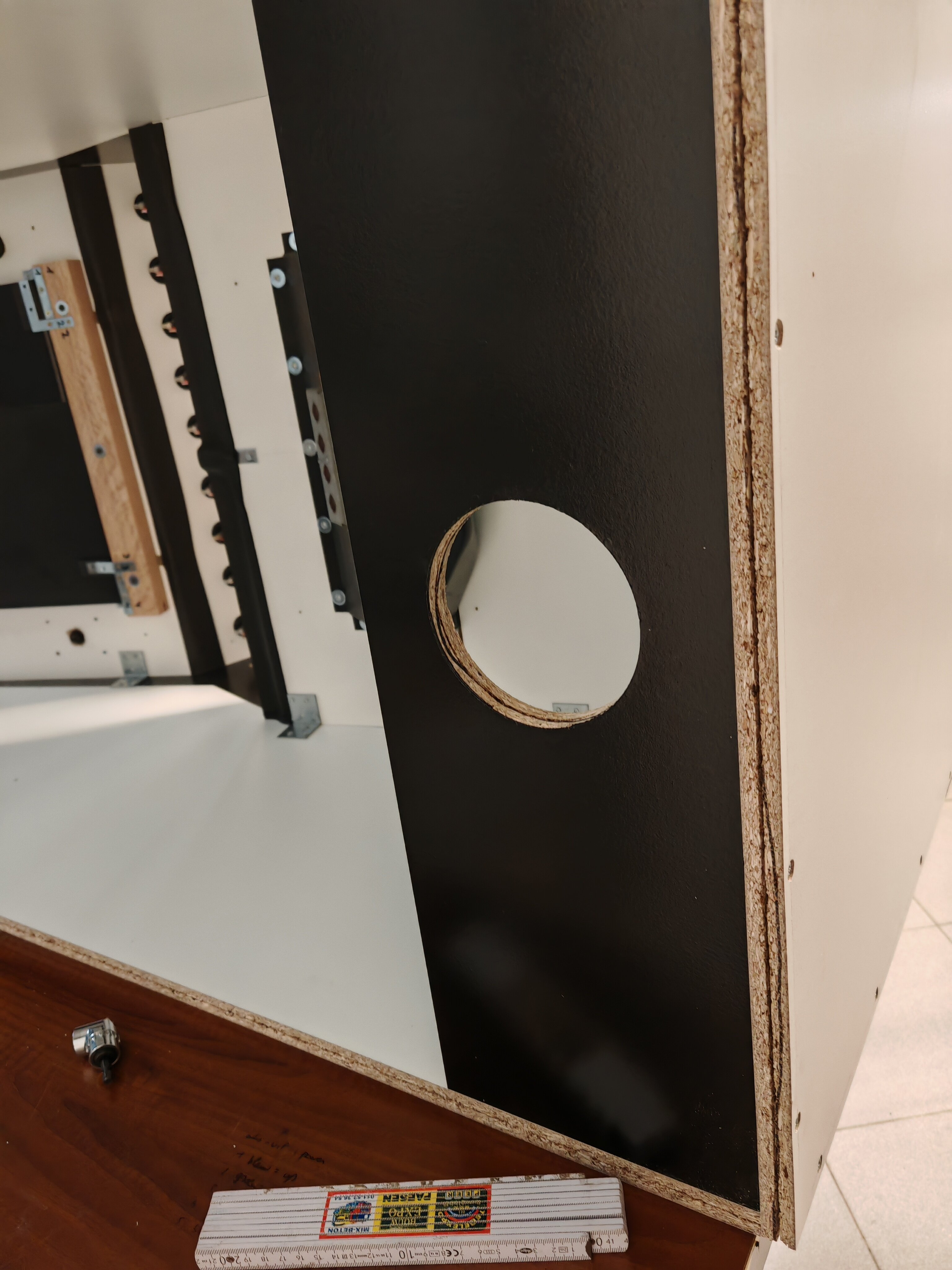

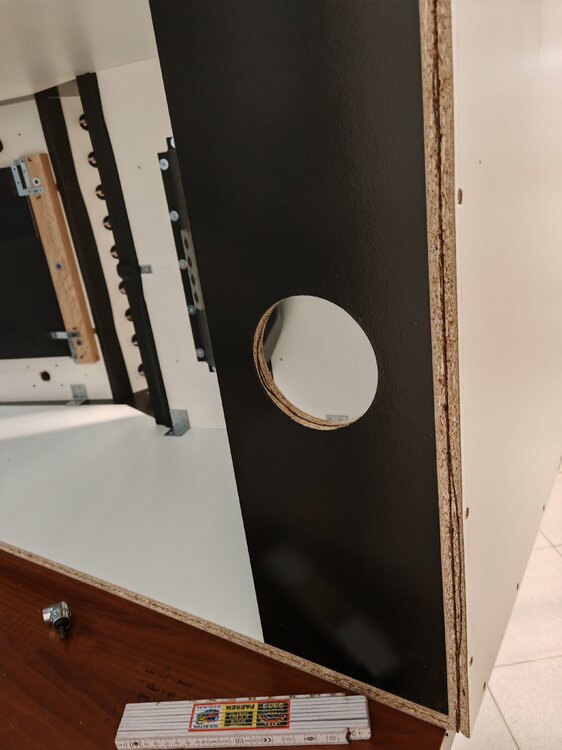

VenumX Posted January 28 Author Report Share Posted January 28 Update 28/01/2026 Package arrived today , it's the 15m. Yellow T-Molding I ordered , time to finish the fan and speakers holes. Also added some more T-Molding, but not everywhere , first the sticker needs to be applied to the sides and then I can finish the rest of the T-Molding. Also equipped the coin tray with light. Still waiting on that plexiglass I hope this is somewhat inspiring for some of you . 4 Link to comment Share on other sites More sharing options...
Altheman2004 Posted January 30 Report Share Posted January 30 This is amazing! Love seeing all the pictures documenting your build 1 Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 31 Report Share Posted January 31 Coming along nicely. 1 Link to comment Share on other sites More sharing options...
Coskey Fruits Posted February 1 Report Share Posted February 1 Brilliant, and you will be taking orders for the next build for DIF members when?? 1 Link to comment Share on other sites More sharing options...
VenumX Posted February 1 Author Report Share Posted February 1 On 30/01/2026 at 22:44, Altheman2004 said: This is amazing! Love seeing all the pictures documenting your build @Altheman2004 I hope it inspires lots of people to see you don't need a whole factory to make cabs, just a small garage and some good tools will do. (And a set of safety brains) 21 hours ago, Road Hog Mad said: Coming along nicely. Thanks @Road Hog Mad 9 hours ago, Coskey Fruits said: Brilliant, and you will be taking orders for the next build for DIF members when?? If people are willing to come and get the cabs in Belgium , I would.... 1 Link to comment Share on other sites More sharing options...
VenumX Posted February 1 Author Report Share Posted February 1 Just did some work on the startup sequence , sounds and wallpaper of the system that will be used in the cabinet..... Small preview (on a smaller screen) I would use my 31" screen but it's already inside the cabinet... I couldn't find it at first.... Forgot i installed it already 1 1 Link to comment Share on other sites More sharing options...

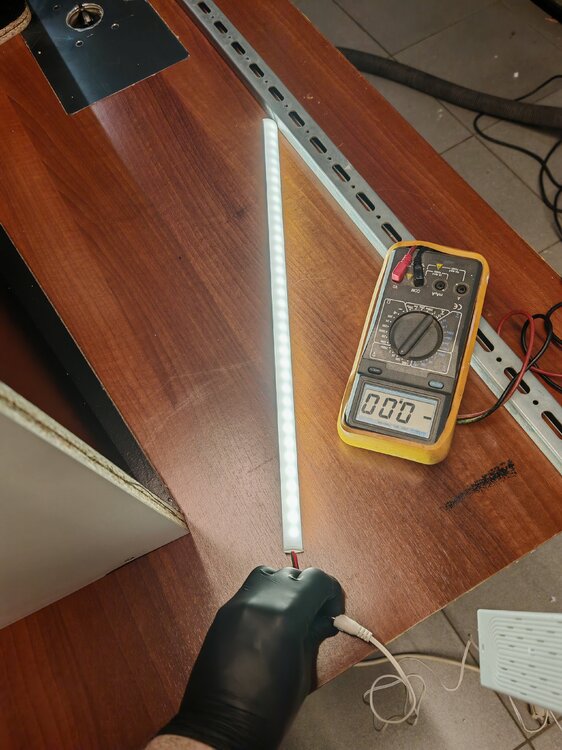

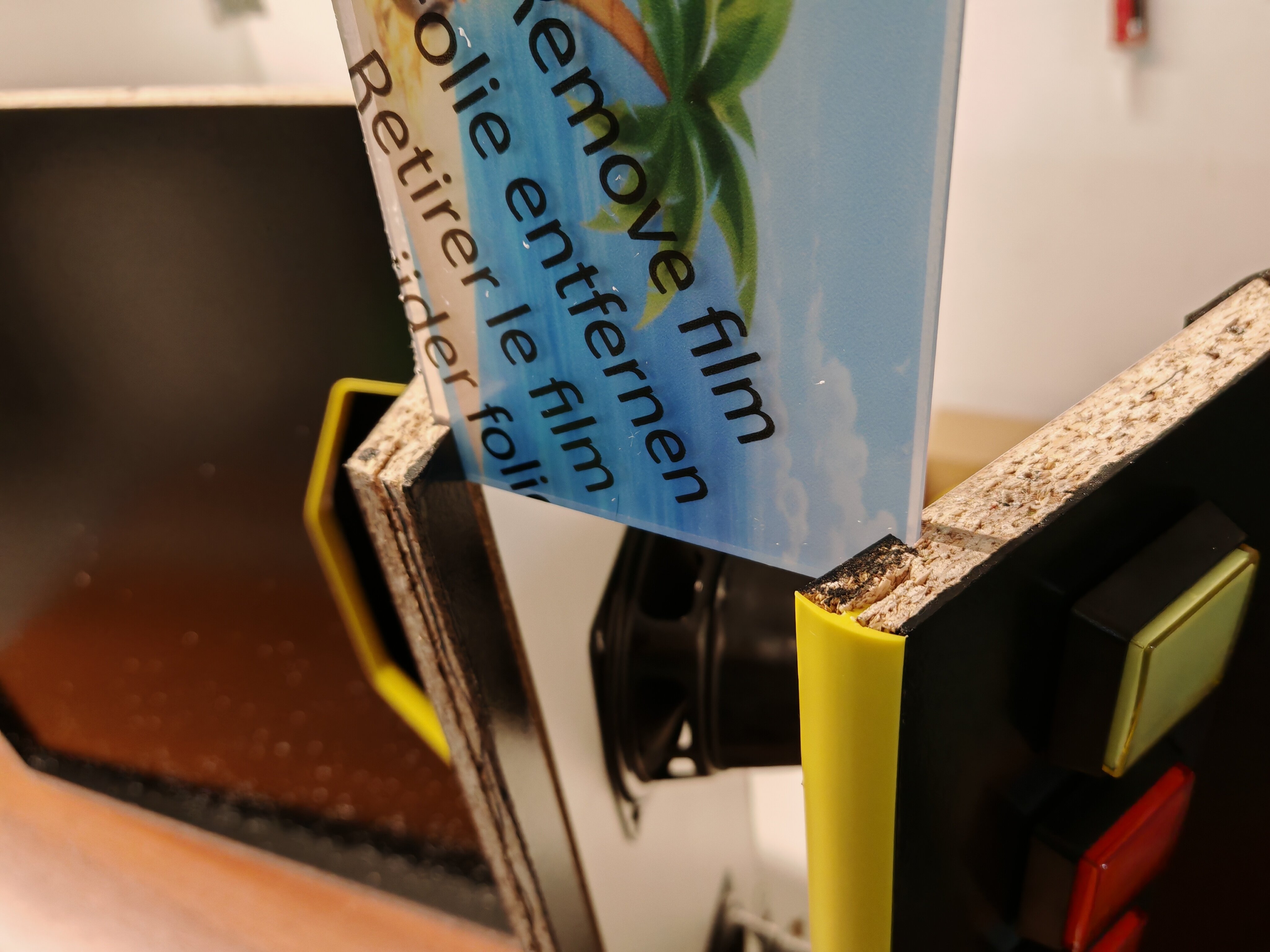

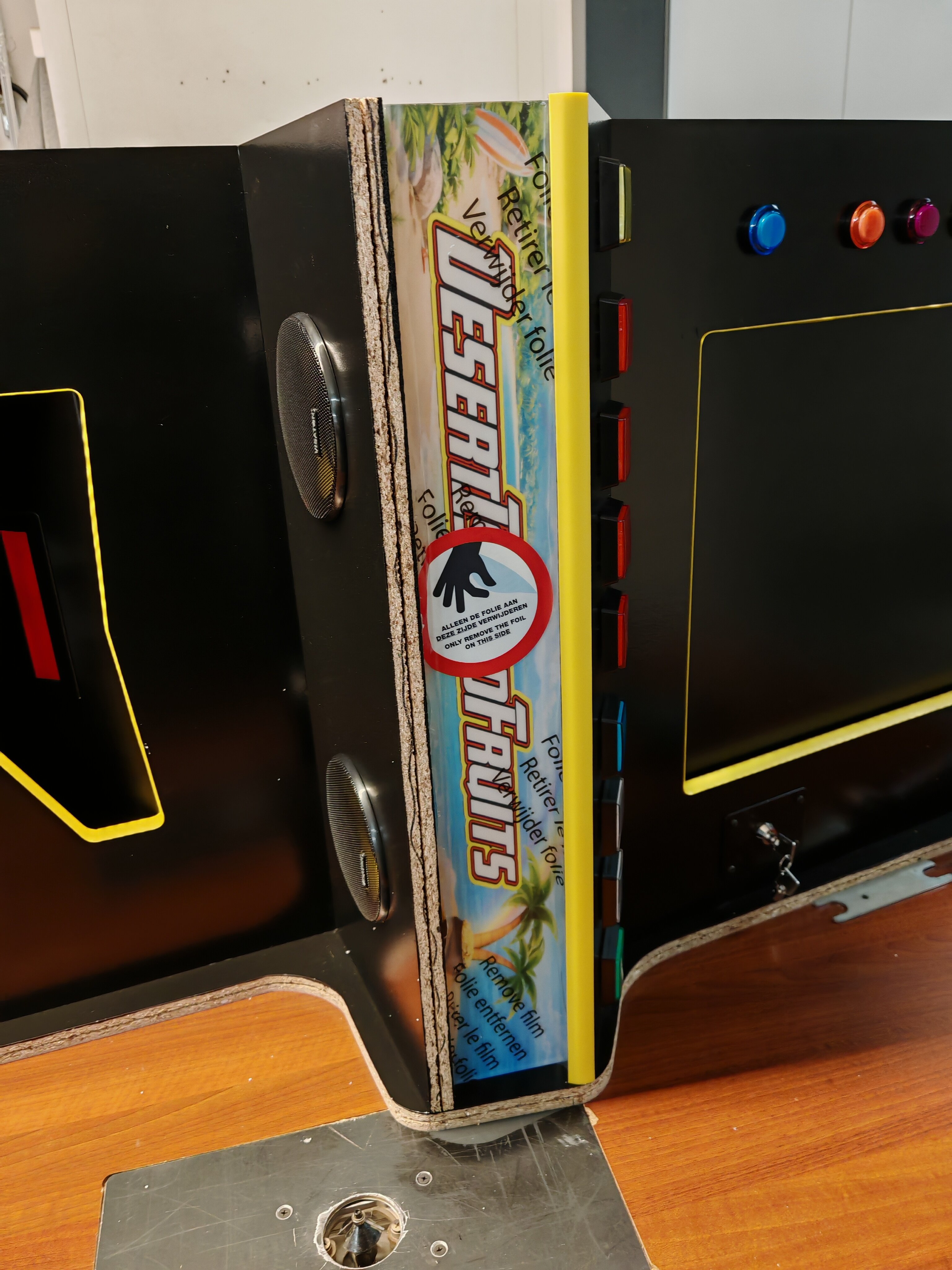

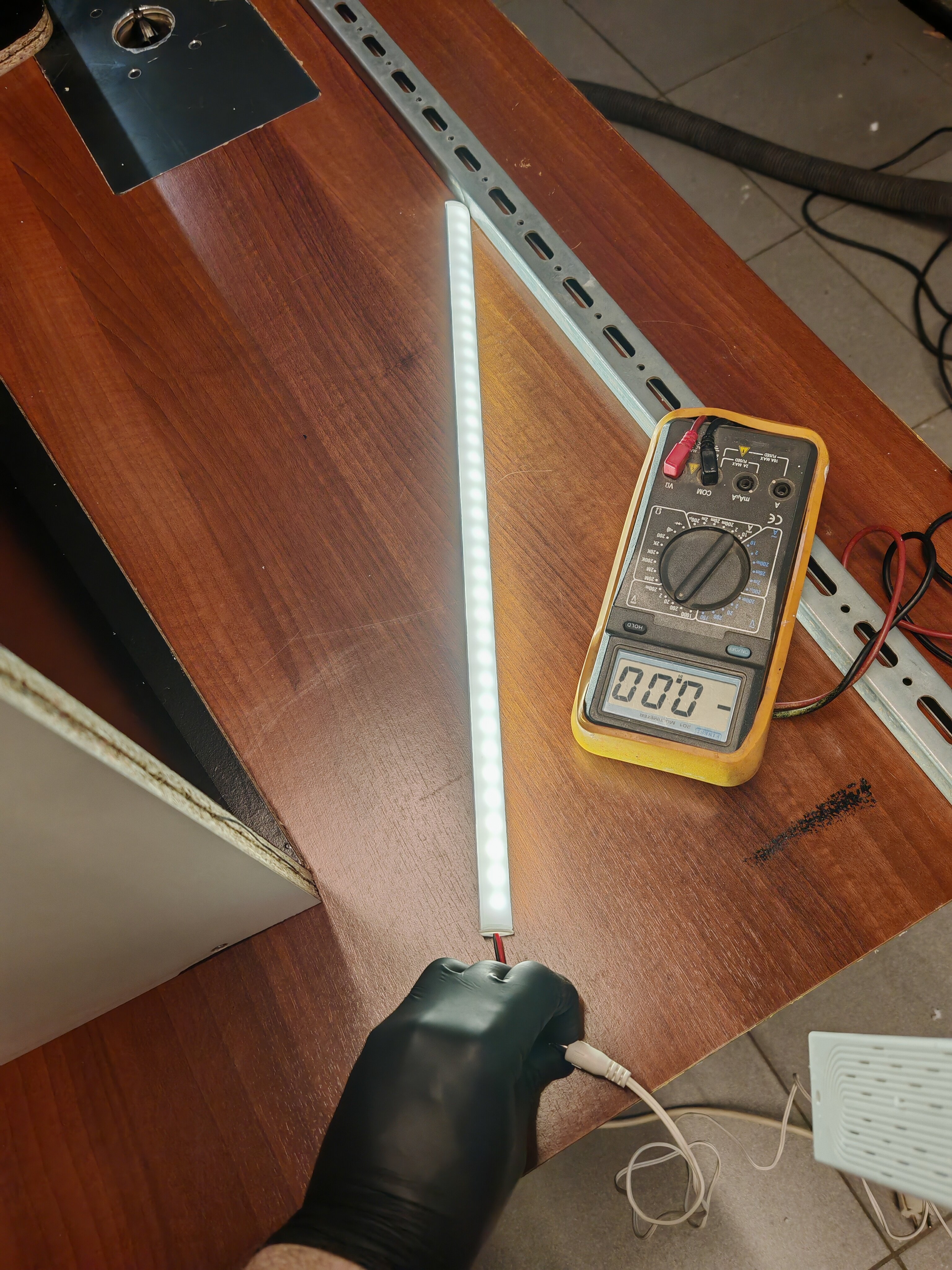

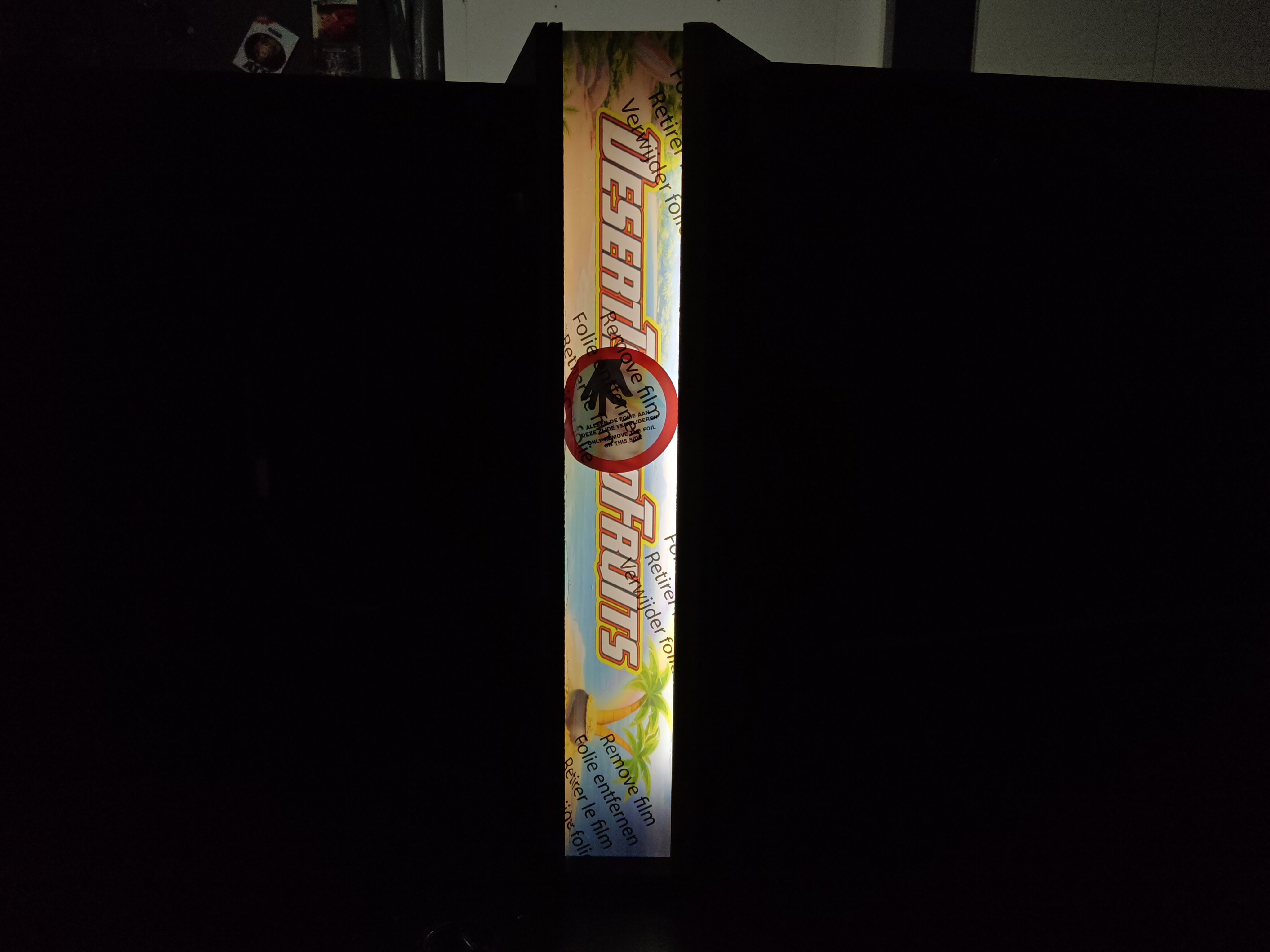

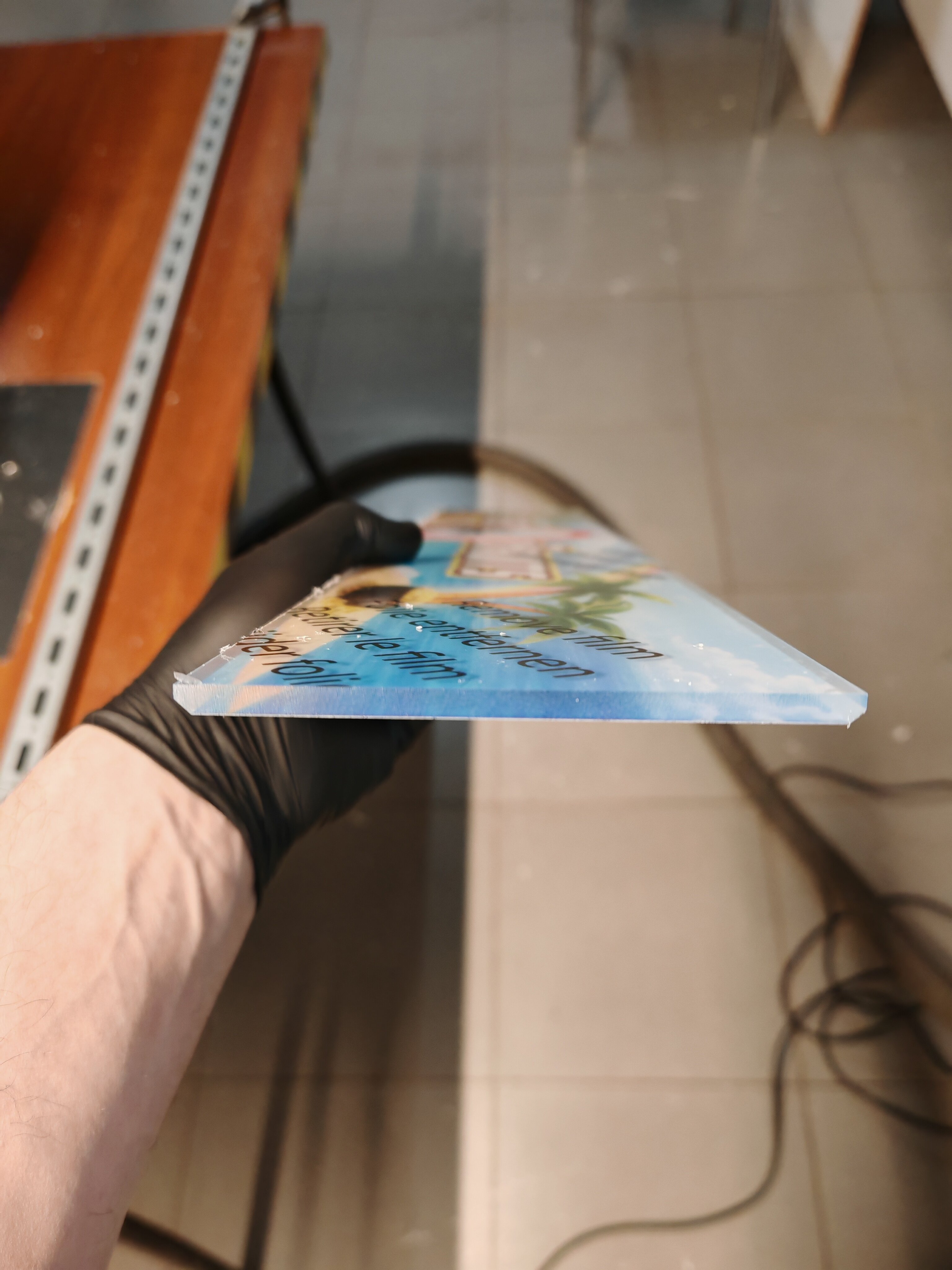

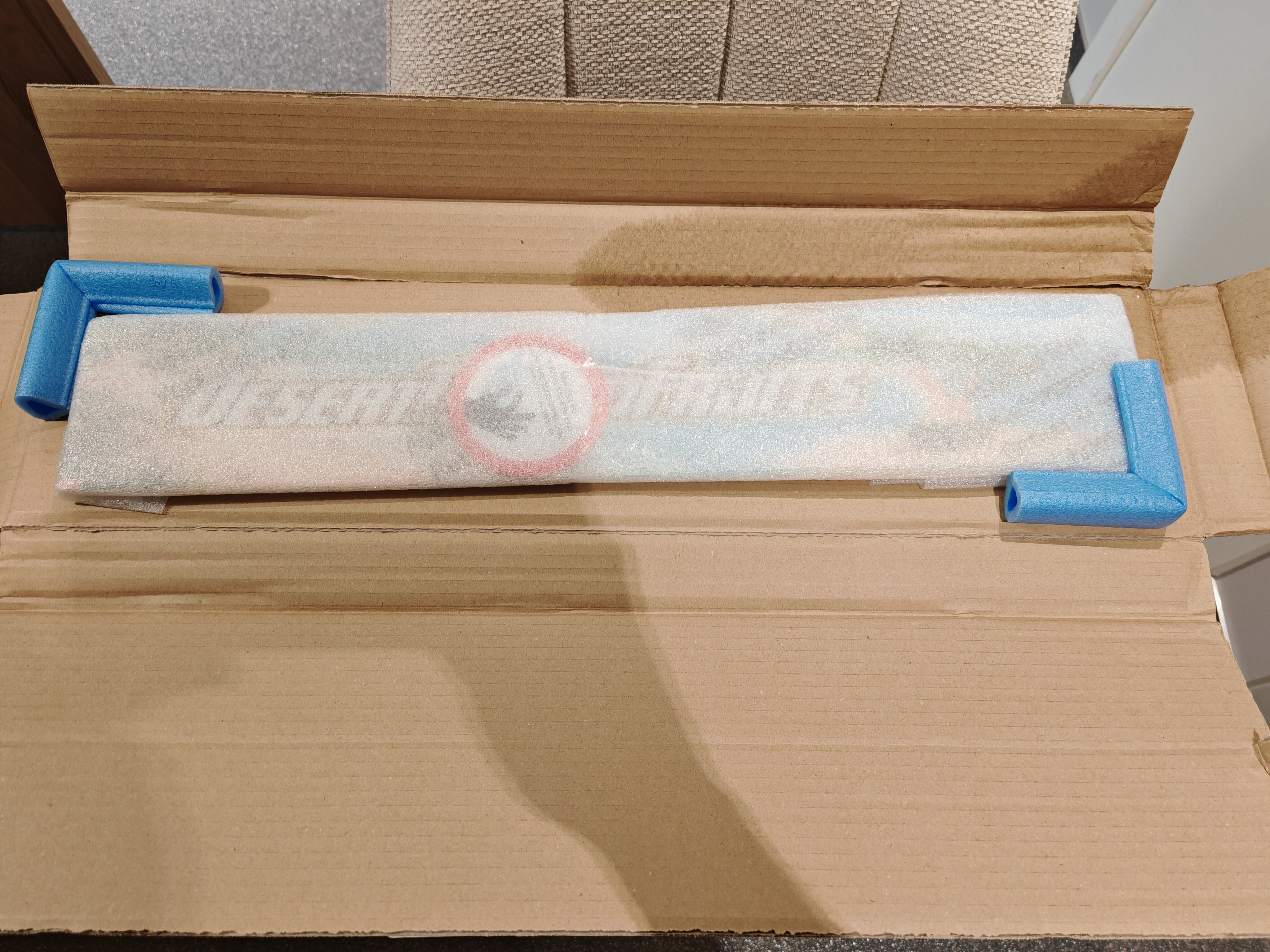

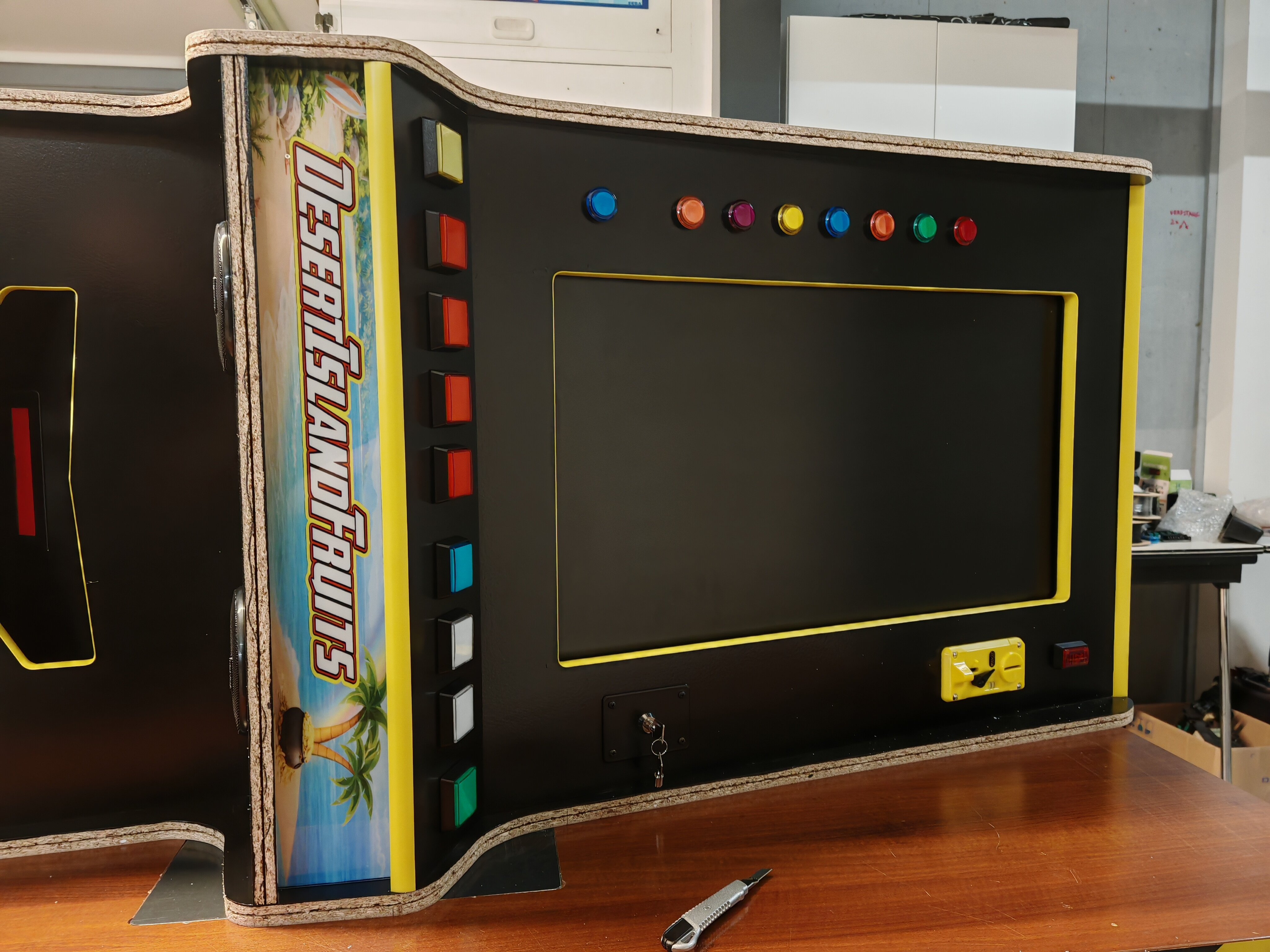

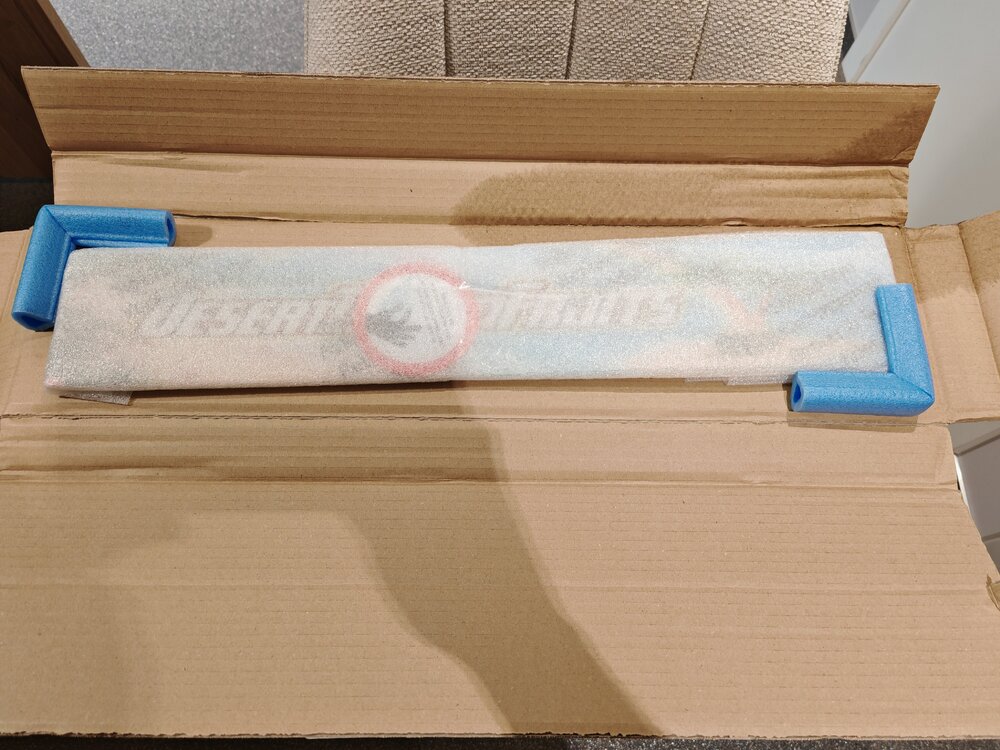

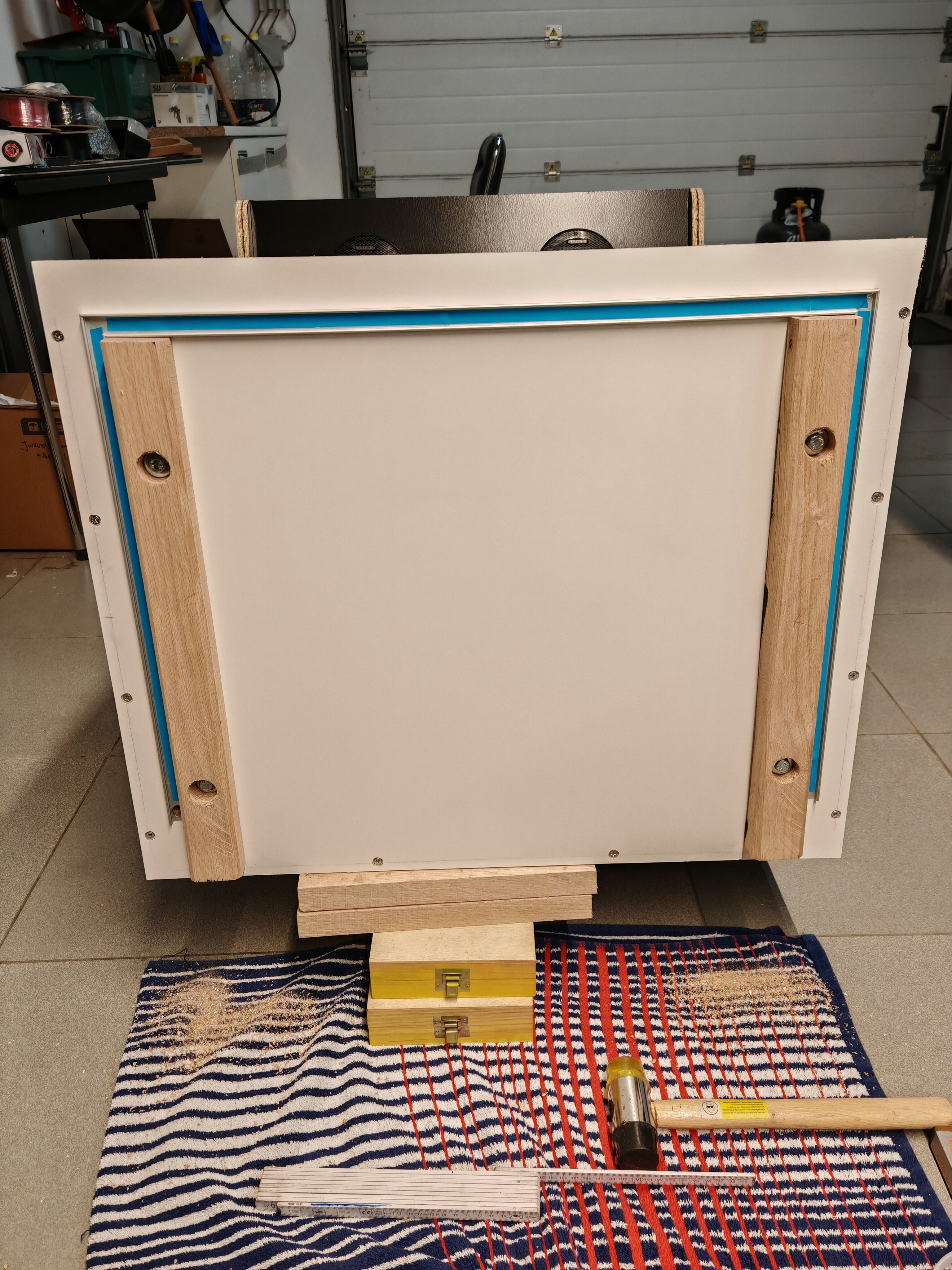

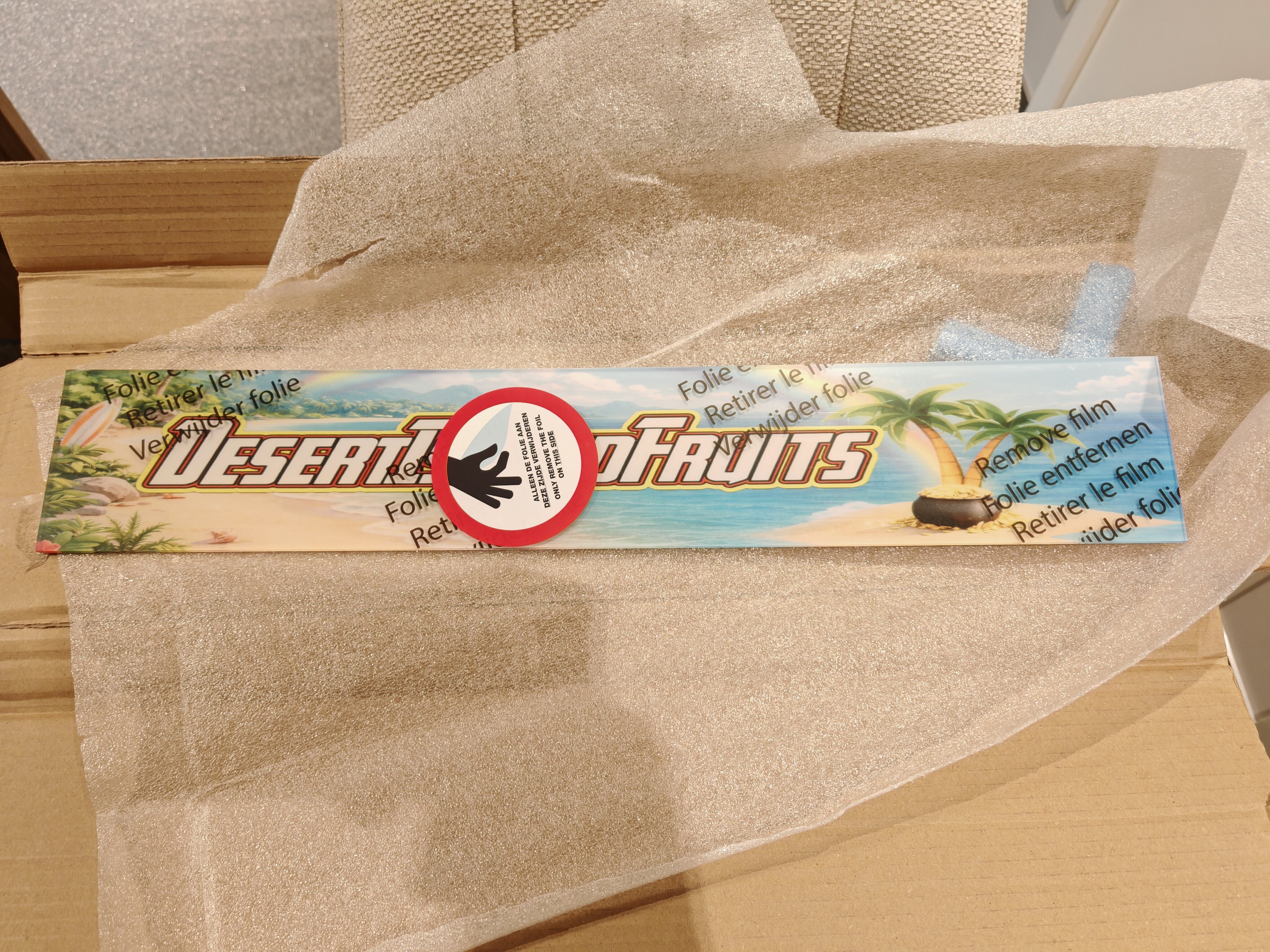

VenumX Posted February 2 Author Report Share Posted February 2 (edited) Update 02/02/2026 Received my package today. The marquee arrived (plexiglass) I hate to adjust it a little bit with my router and a special plexi bit , also i modified the edges to make it slide better into the grooves I routed. It fits perfectly! Testing the LEDs that will be used to light up the marquee,.... Since the LEDs are too close to the plexi (because of the buttons and speakers) I have chosen to light the plexi from the top , that way you don't look directly into the LEDs + it looks like there is a fluorescent tube installed behind it. Kinda old-school. Now the desertislandfruits marquee is sealed in forever! Now it's waiting for the stickers to arrive Enjoy! Edited February 2 by VenumX Typo's lol 3 1 Link to comment Share on other sites More sharing options...

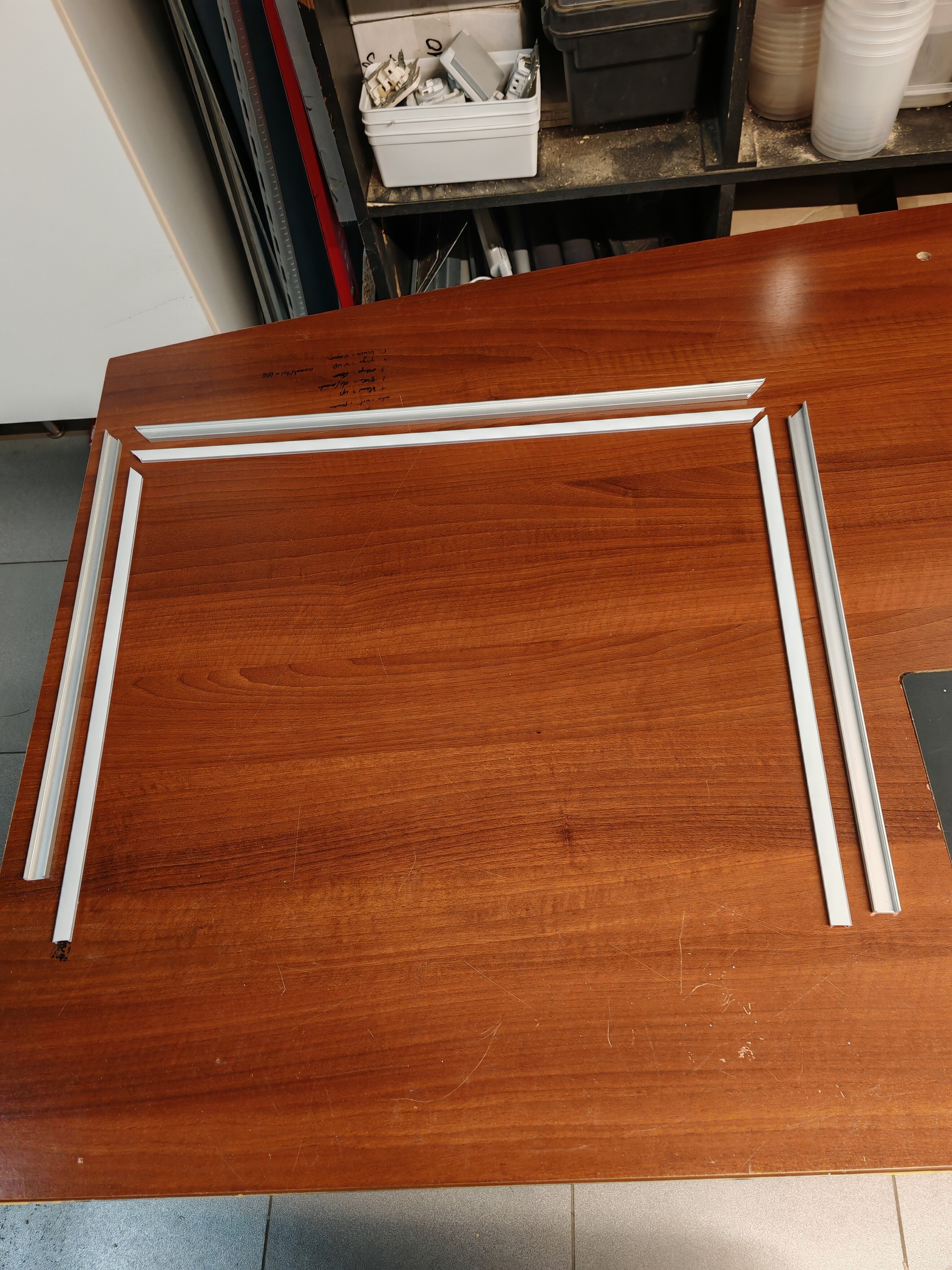

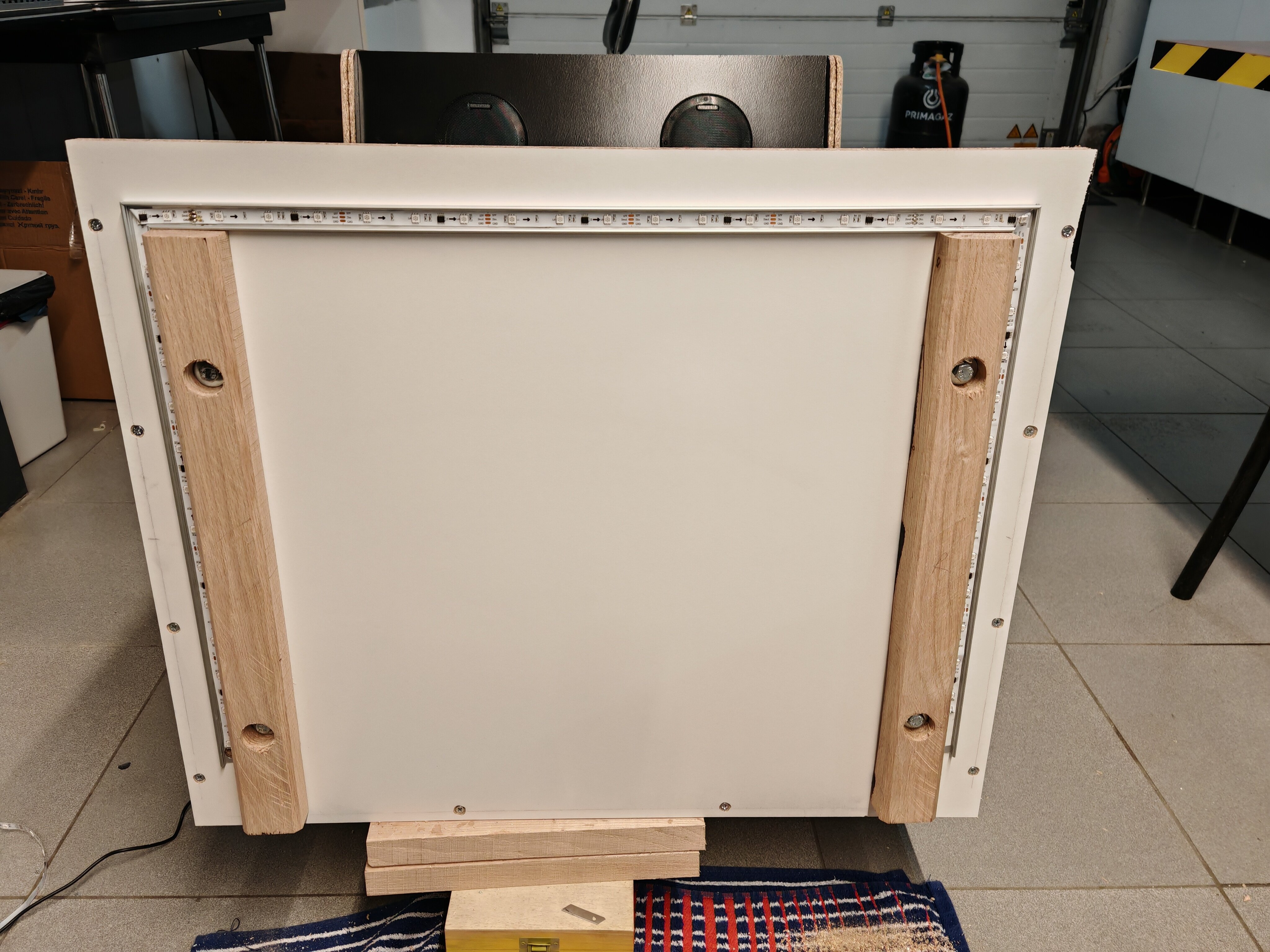

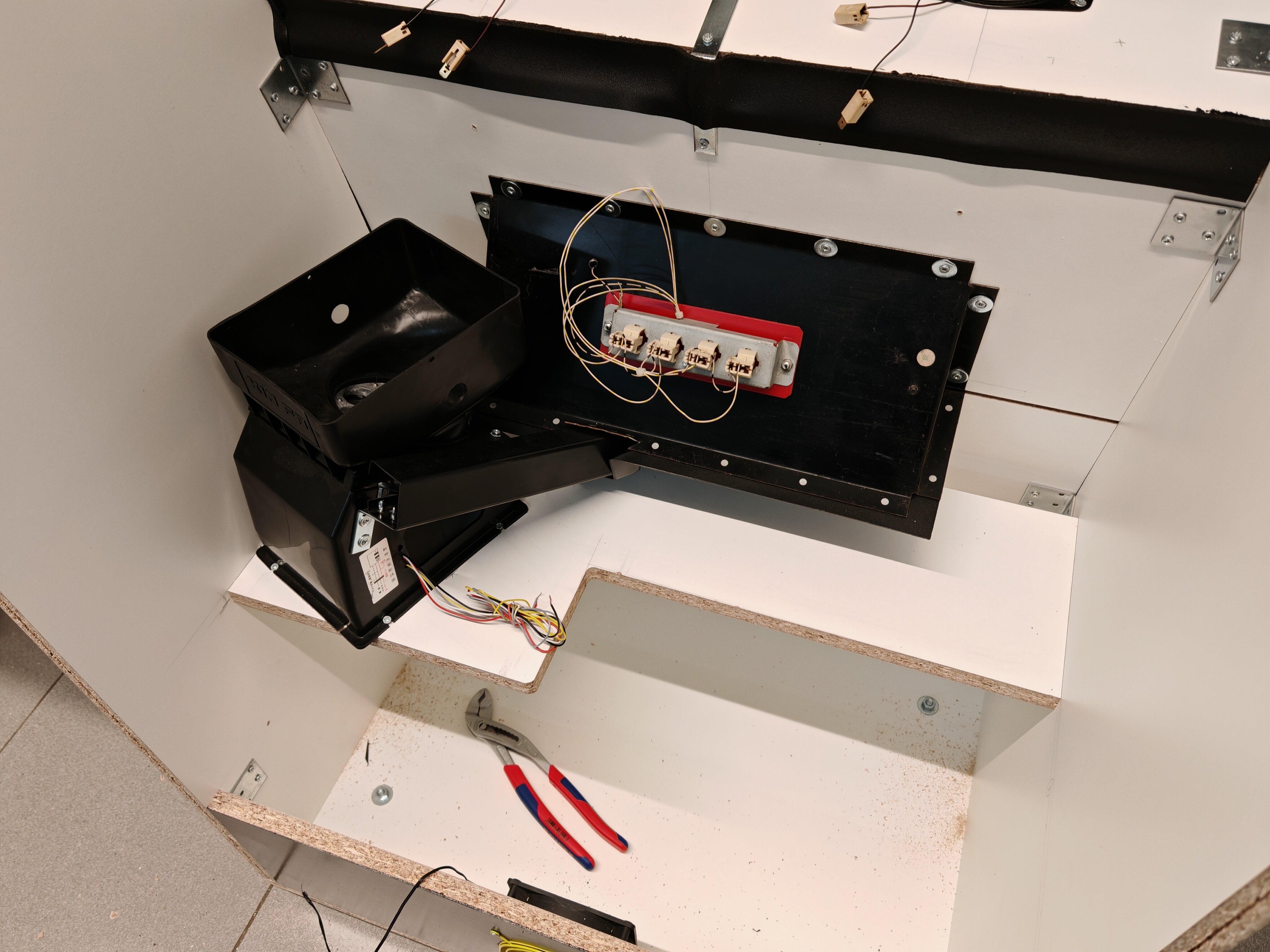

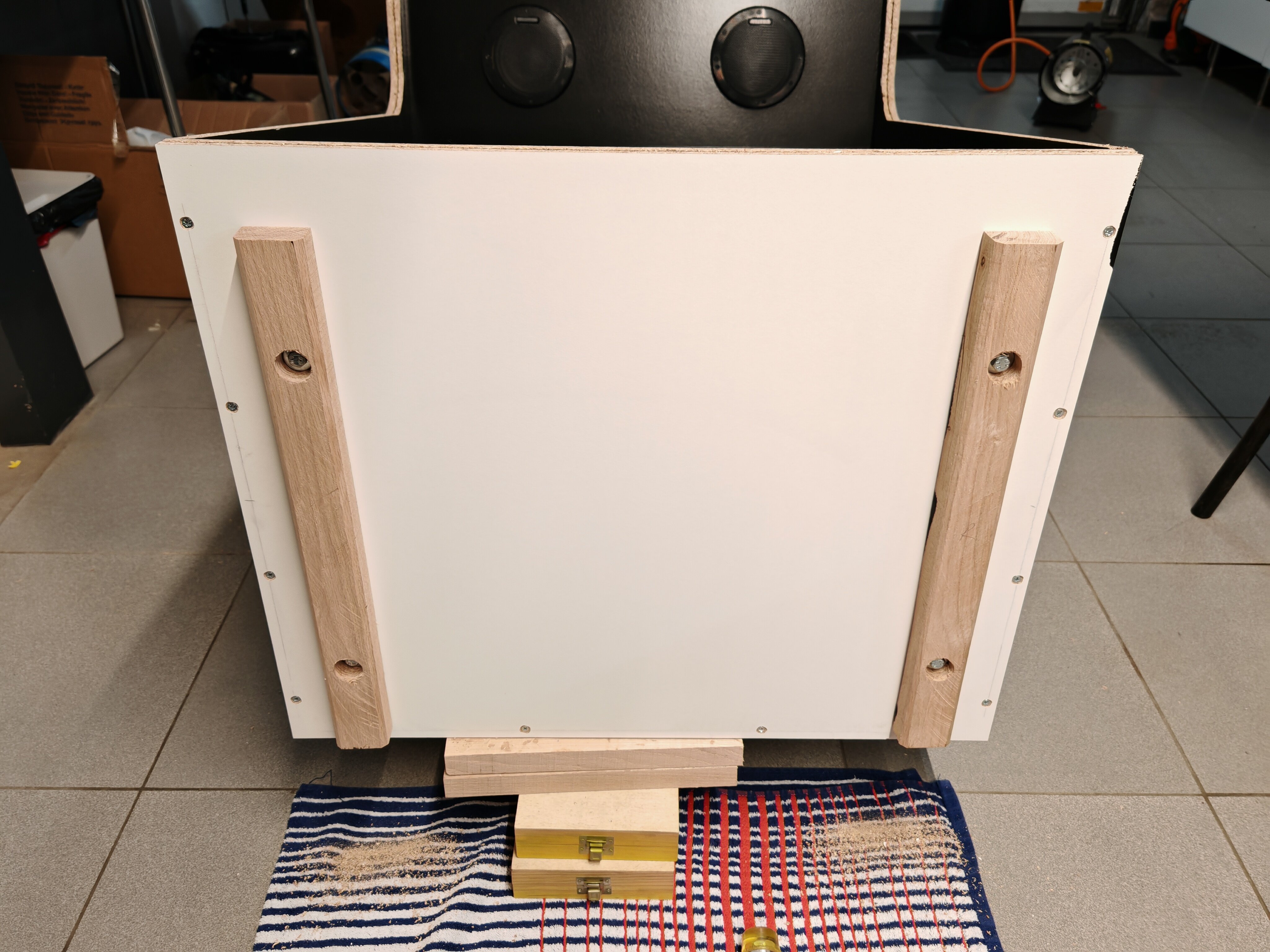

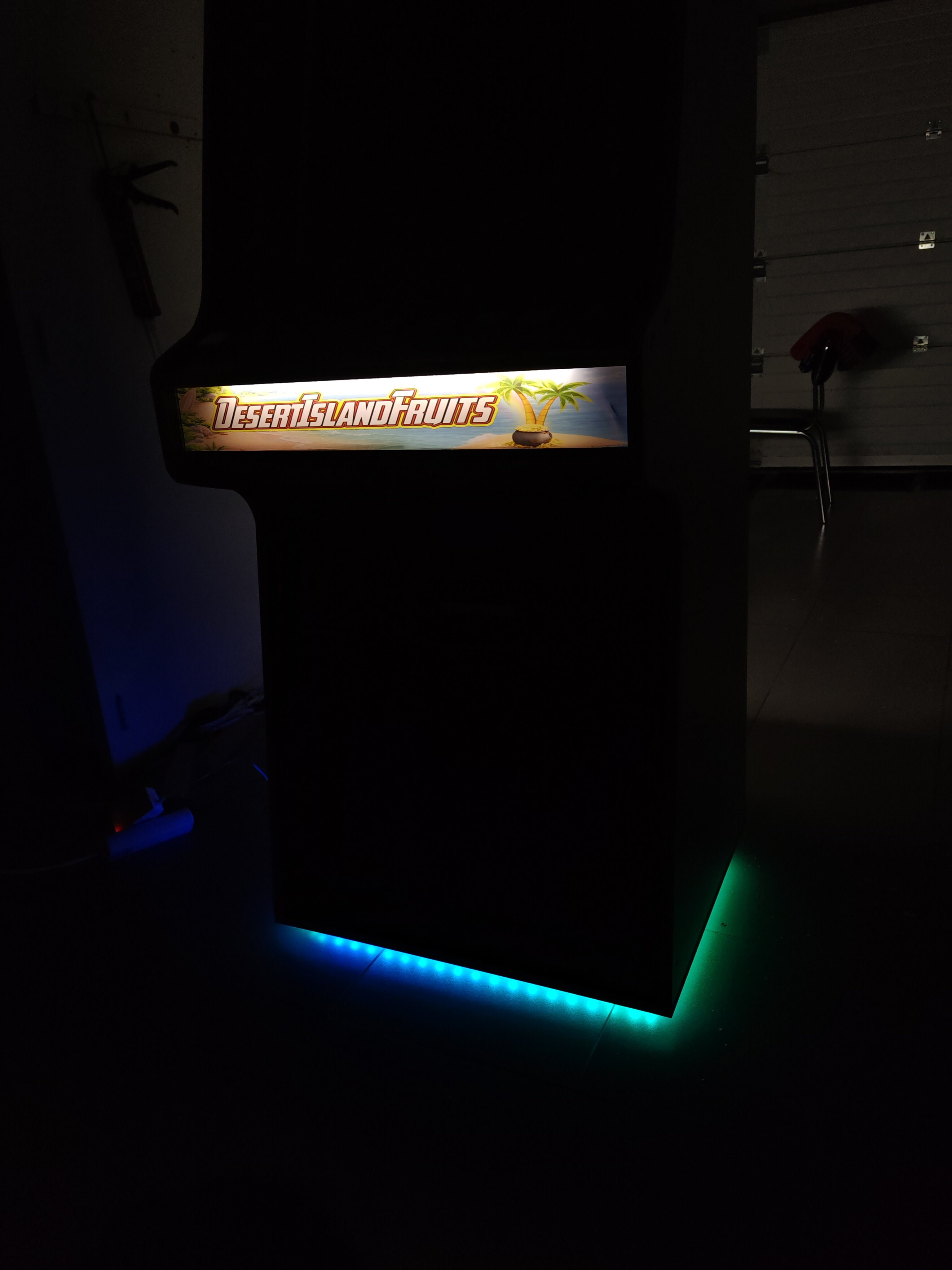

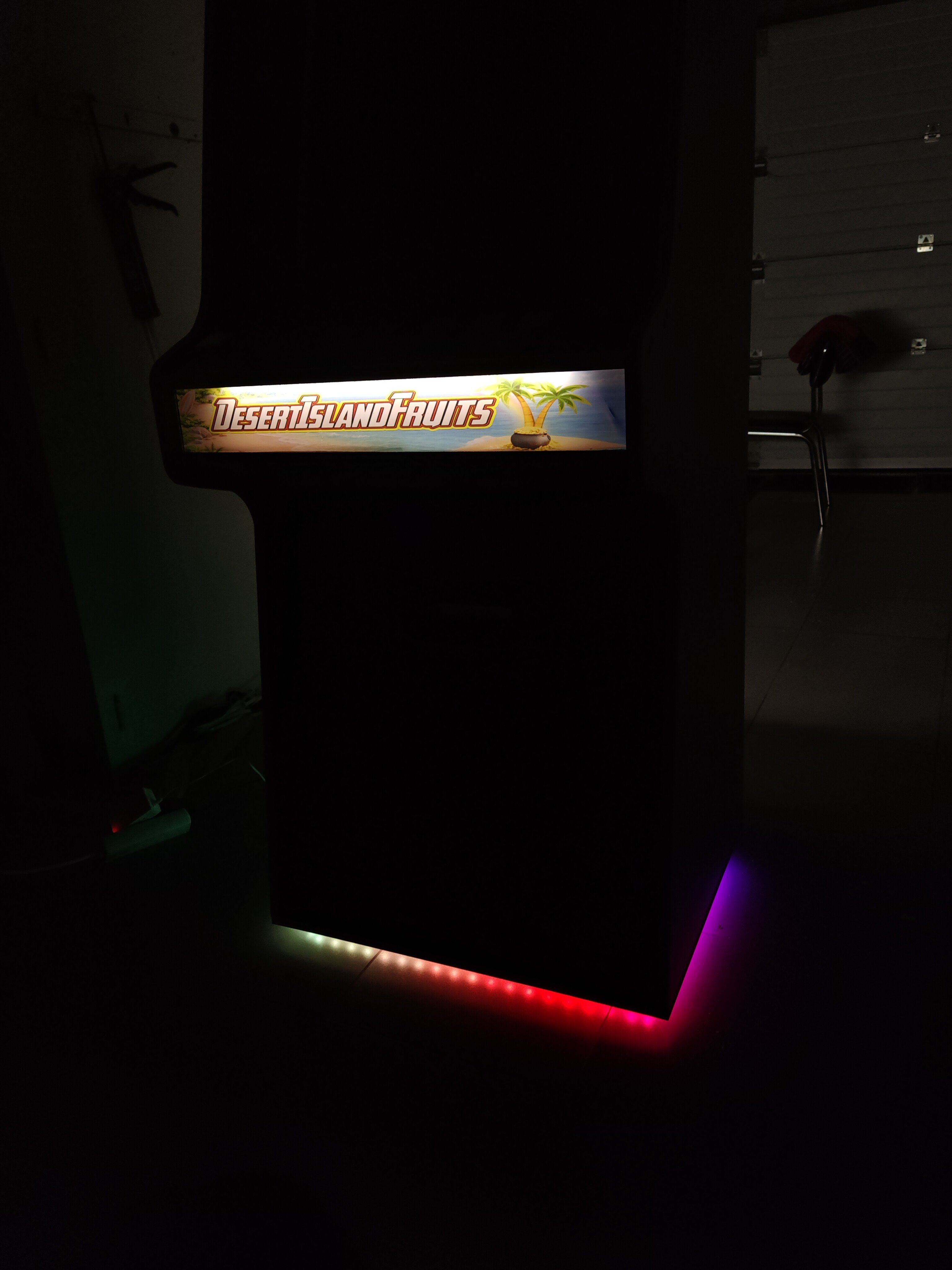

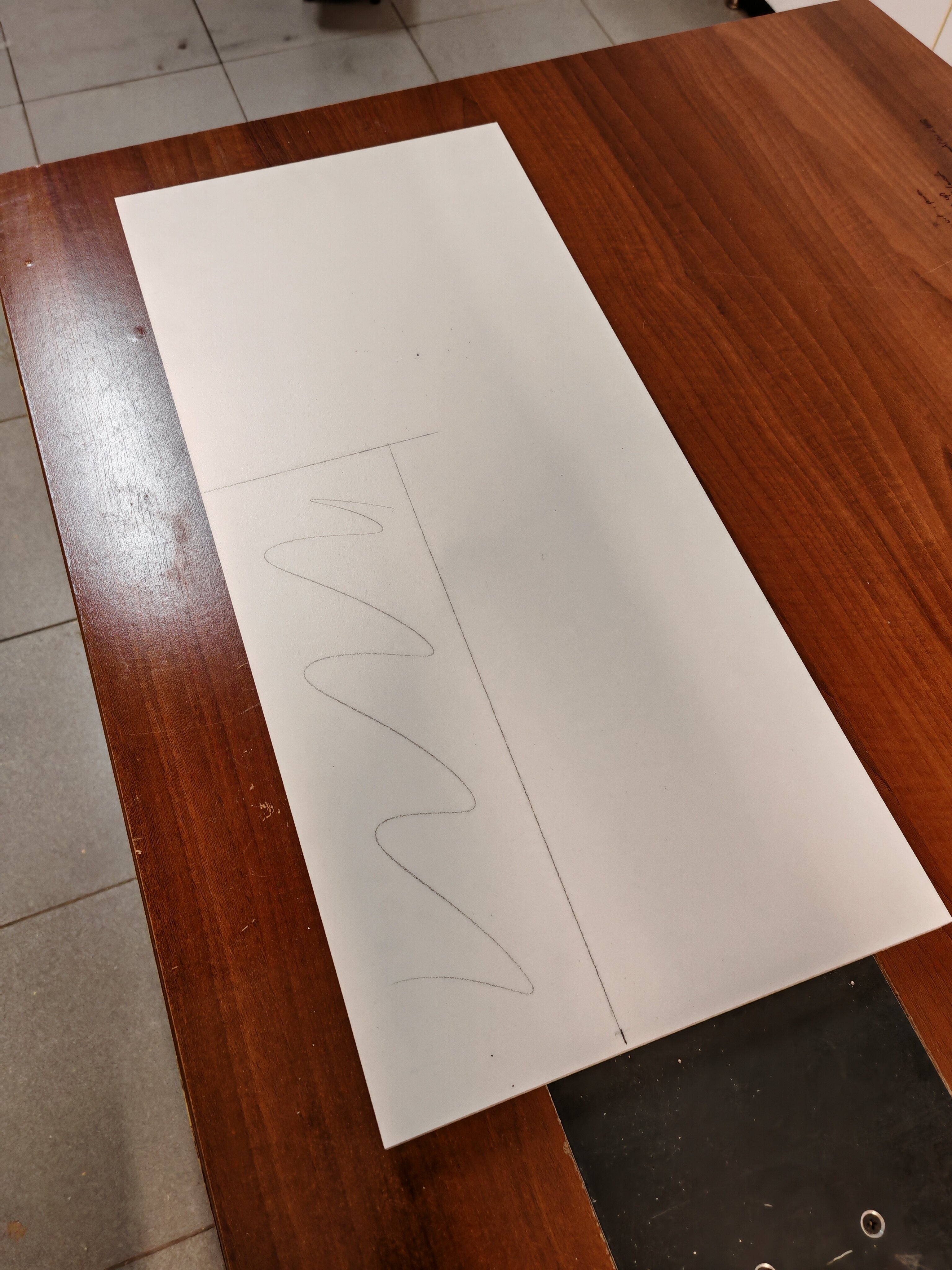

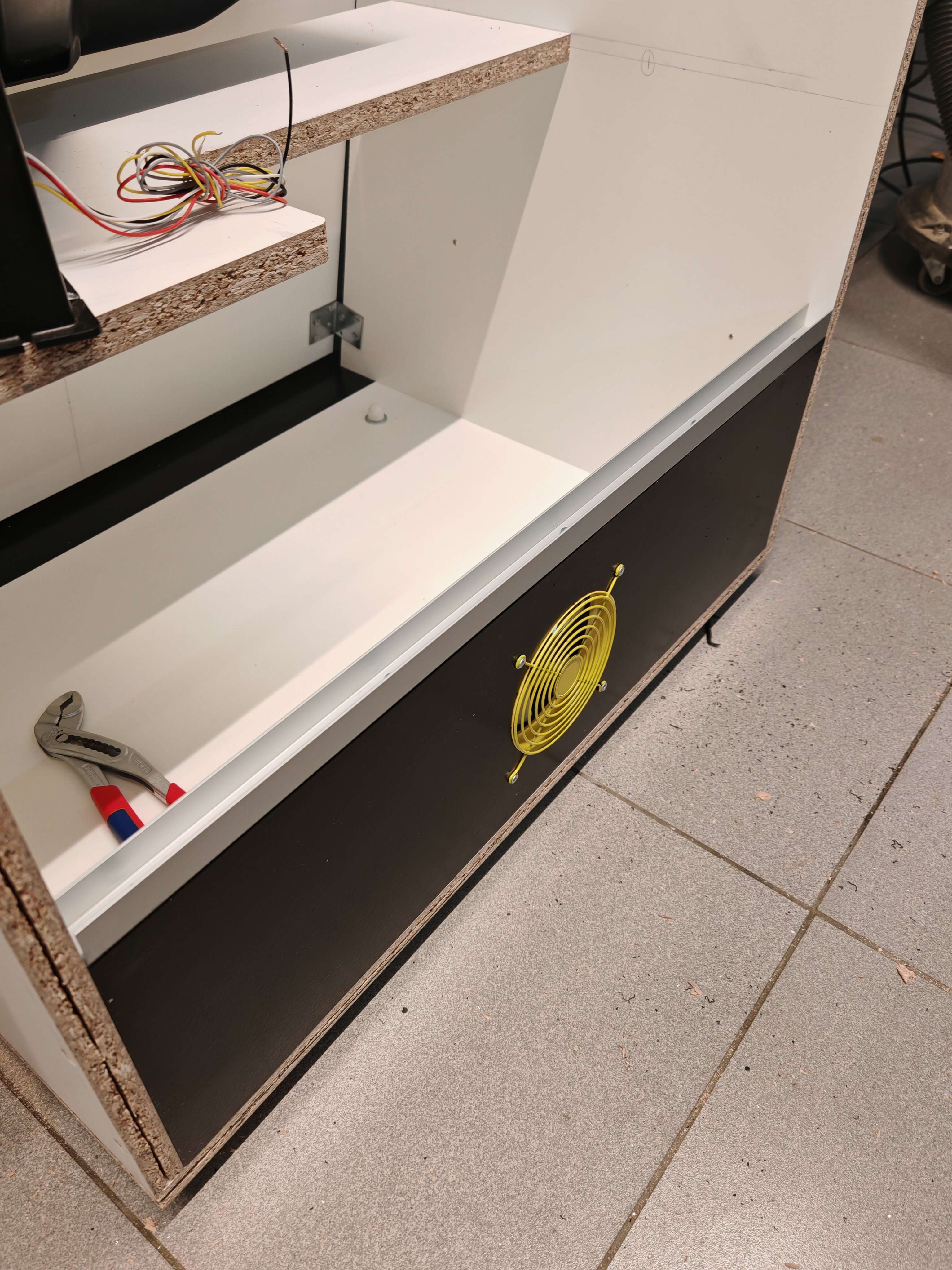

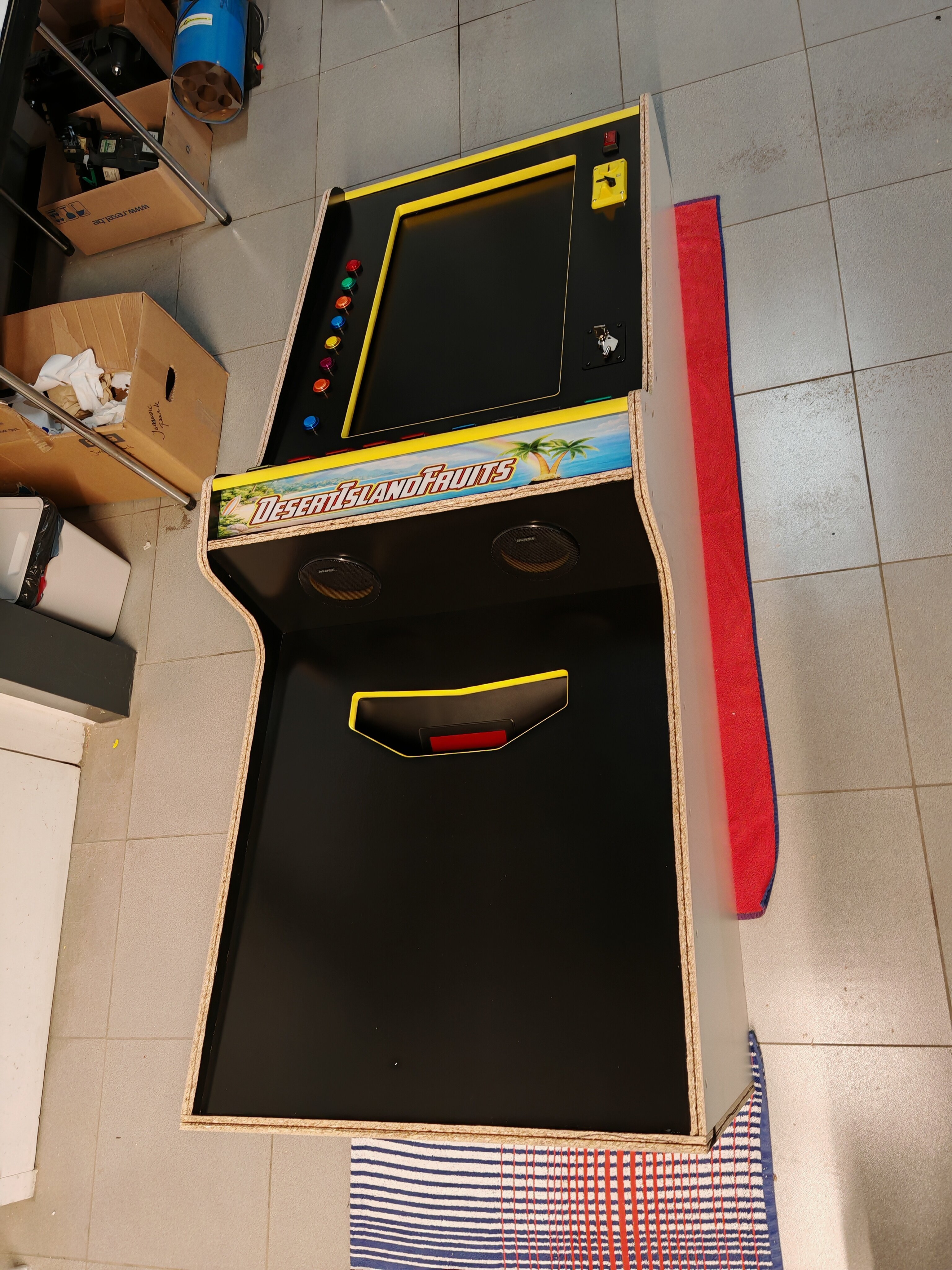

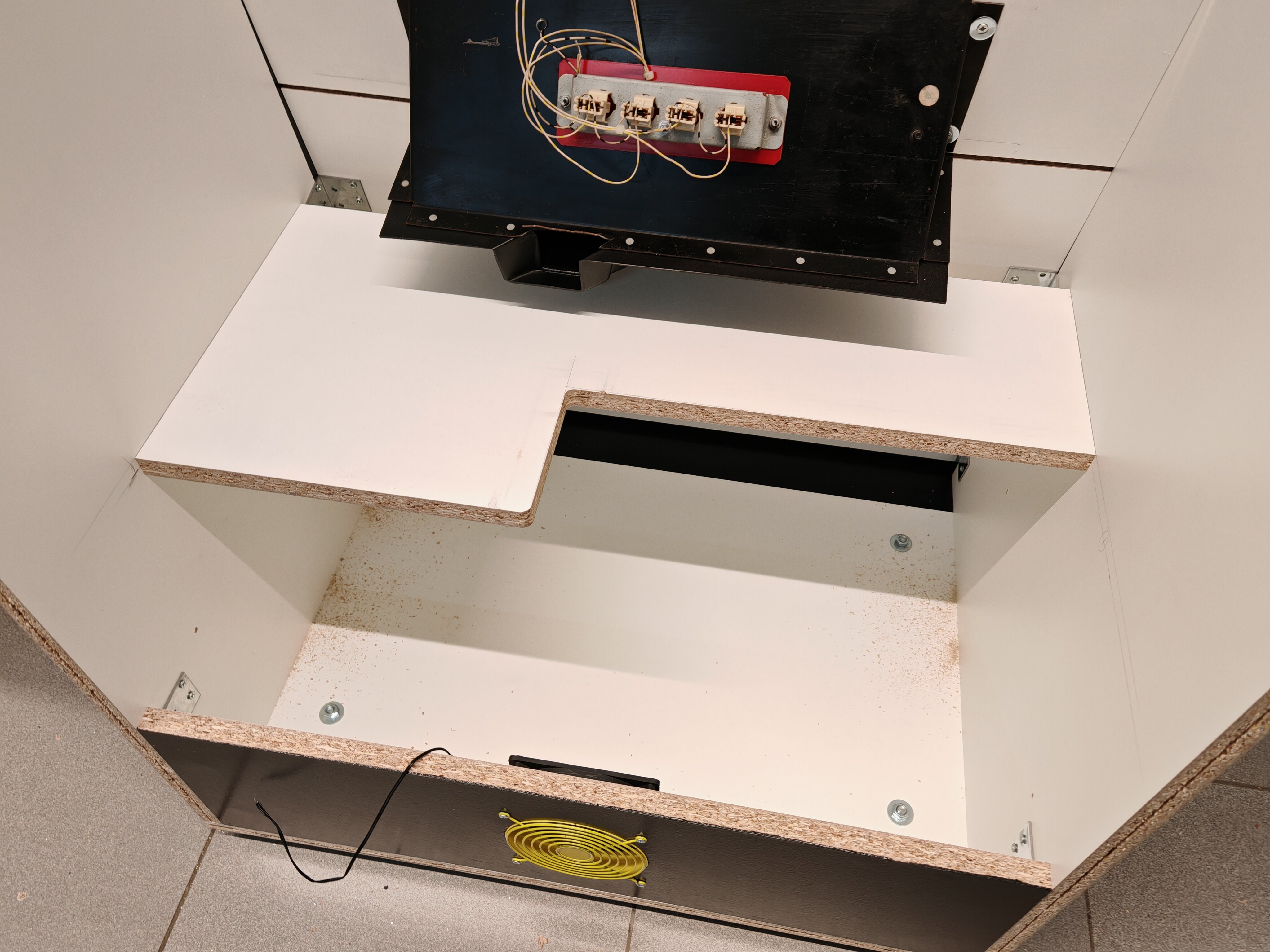

VenumX Posted February 4 Author Report Share Posted February 4 (edited) Small update 04/02/2026 I made some wooden feet out of oak wood for under the cabinet. These are not so detailed , but hey ....it's feet.... Also installed some led channel on the front and the sides beneath the cabinet for RGB lights. Could give a nice effect. It is still possible to move this cabinet with a dolly from the backside. Installed the coin hopper. Also installed the metal channel where the door slides into. Enjoy. Small RGB video : Edited February 4 by VenumX 3 1 1 Link to comment Share on other sites More sharing options...
