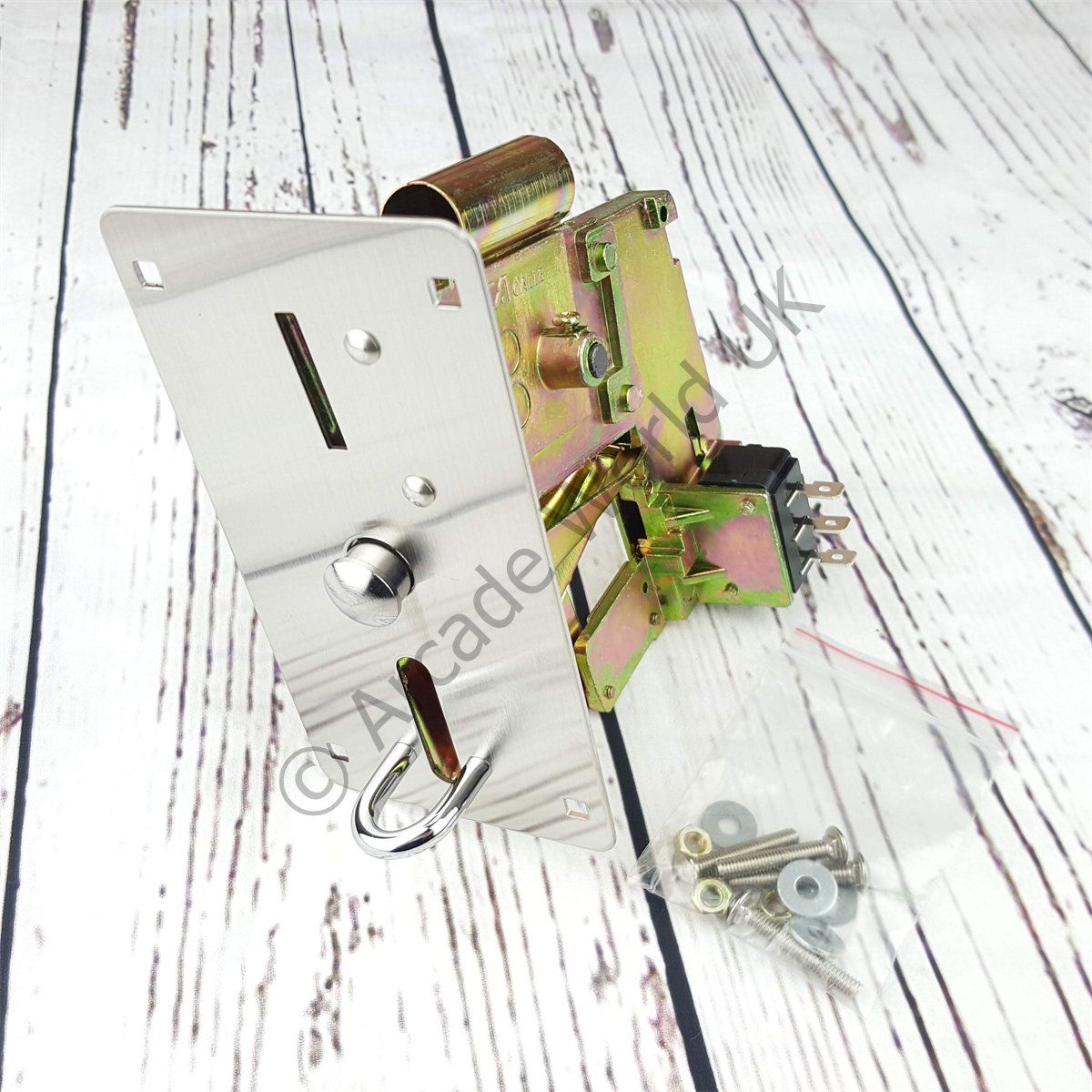

Road Hog Mad Posted January 8, 2023 Report Share Posted January 8, 2023 Hi, I just a little help understanding a microswitch. It has, C, NO, NC wrote on the microswitch and this description came with it "just take the coin signal wire from your appliance and connect to the NO (Normally Open) microswitch terminal on the back of the mech. Connect the ground wire to the CO (Common Ground) terminal on the microswitch and that's it!" Forgive me for being dumb, but am I write to say that 'NO' goes to the I-PAC for example '1UP' and the 'CO' goes to 'GND' on the I-PAC? Thanks Link to comment Share on other sites More sharing options...

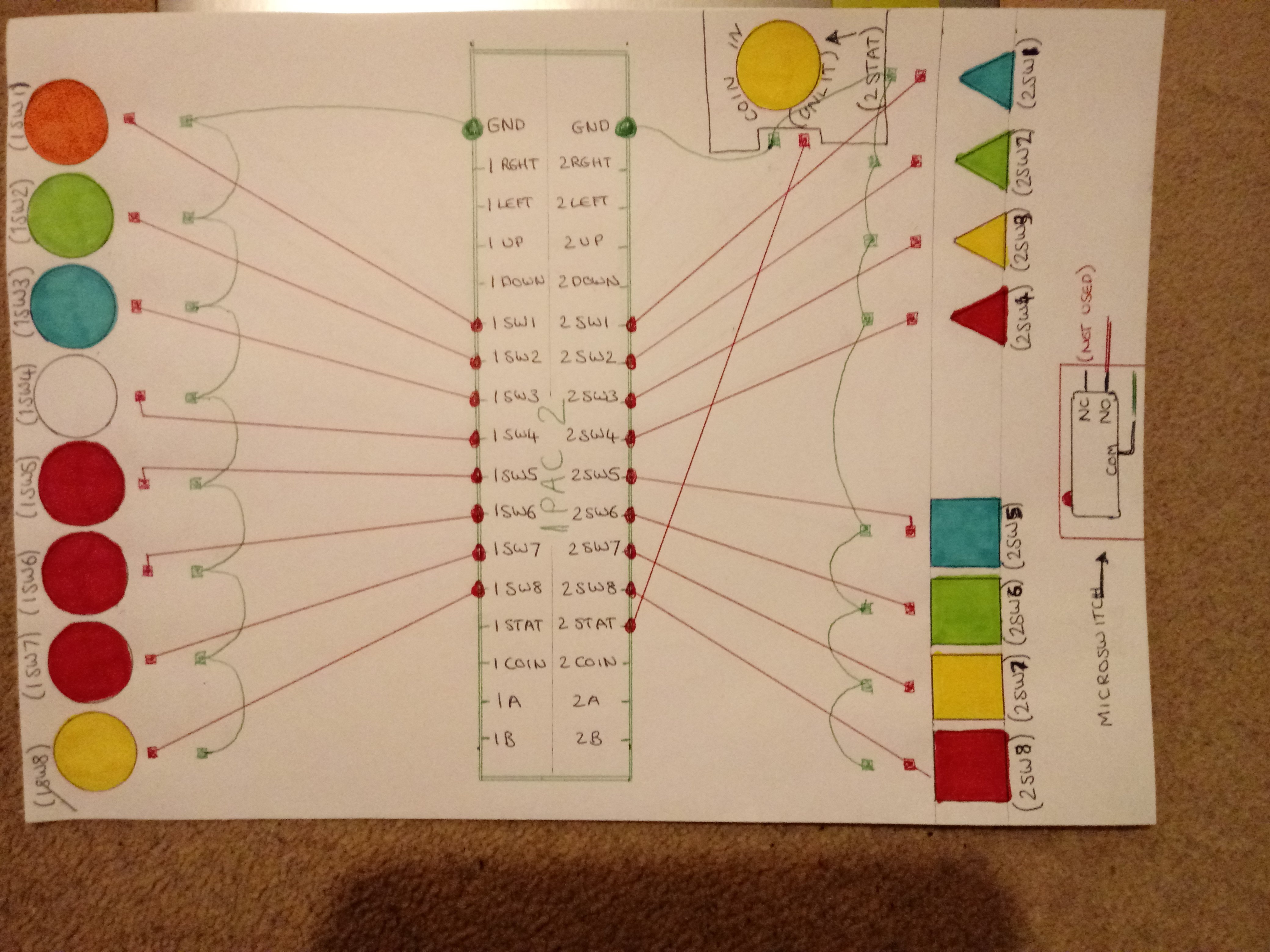

MPU_FIVE Posted January 8, 2023 Report Share Posted January 8, 2023 Hi @Road Hog Mad... I think you are correct. I haven't got a coin mech, but the buttons on my MFME Keyboard which use microswitches are wired like this diagram which i put in my thread about building my MFME Keyboard... CO = GND NO = IPAC Image attatched for reference... i drew a small pic of the microswitch at bottom of diagram as a key. Hope it helps All the best, Gary. Link to comment Share on other sites More sharing options...
Road Hog Mad Posted January 8, 2023 Author Report Share Posted January 8, 2023 Thank you! If I blow myself up I'll be doing myself a favour lol. Link to comment Share on other sites More sharing options...
