Hi everyone,

For those that are interested in these cabs, I am starting work on my 2nd build. This time I am converting a real fruit machine cabinet (Barcrest genesis cab) and turning it into a multi-fruit machine.

Seeing everyone's builds recently gave me the itch again to get stuck into another project and as I have a good friend who wants my old cab, I am selling him my old one and creating a new one for myself. These will be linked via the internet to share RAM states, so we never know what state a machine will be in. Seeing it's just between 2 friends, this will be done via a basic OneDrive account which will host the RAMs.

I have not long started the project, but I thought I'd share my progress as I go along with you.

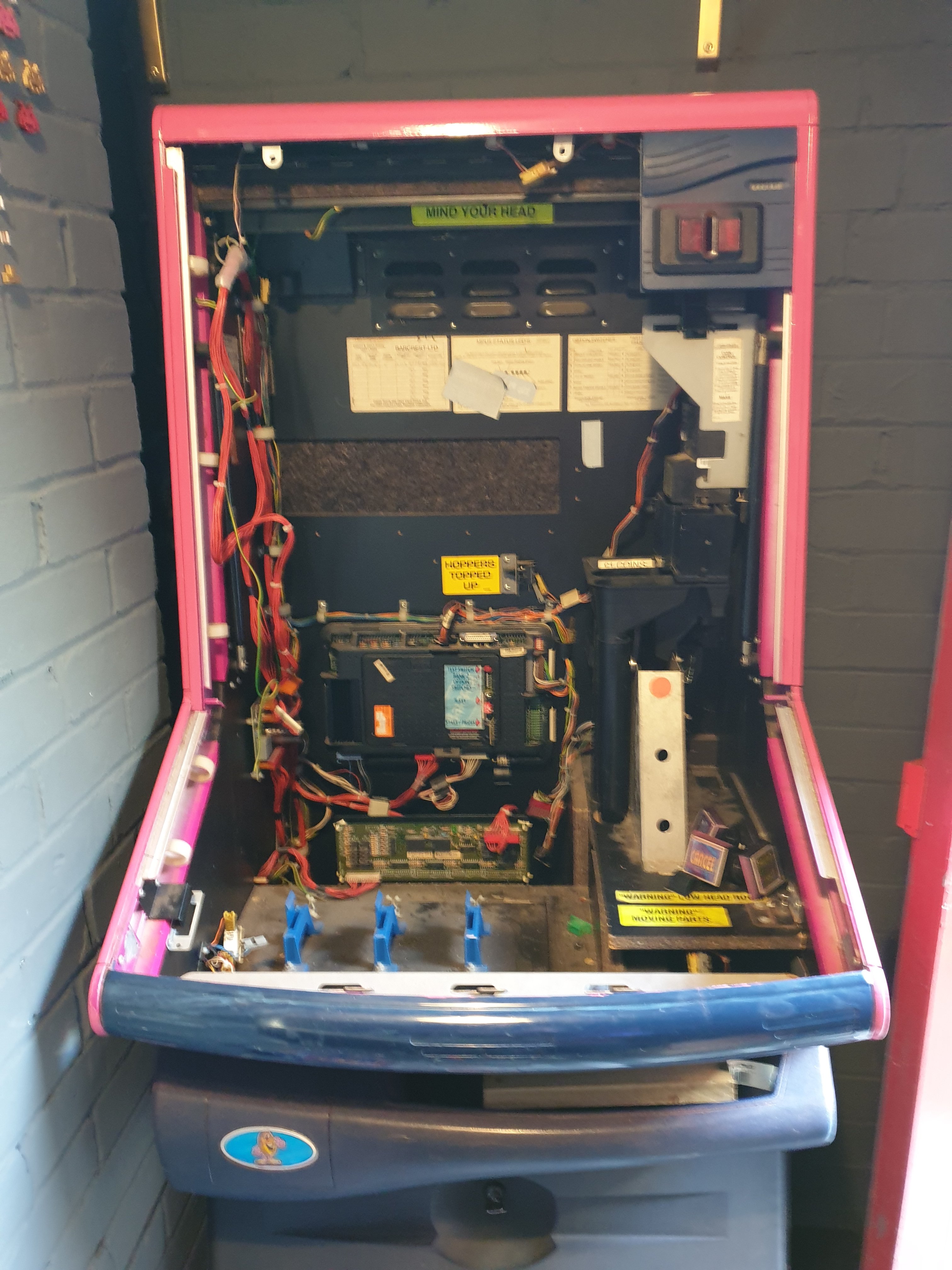

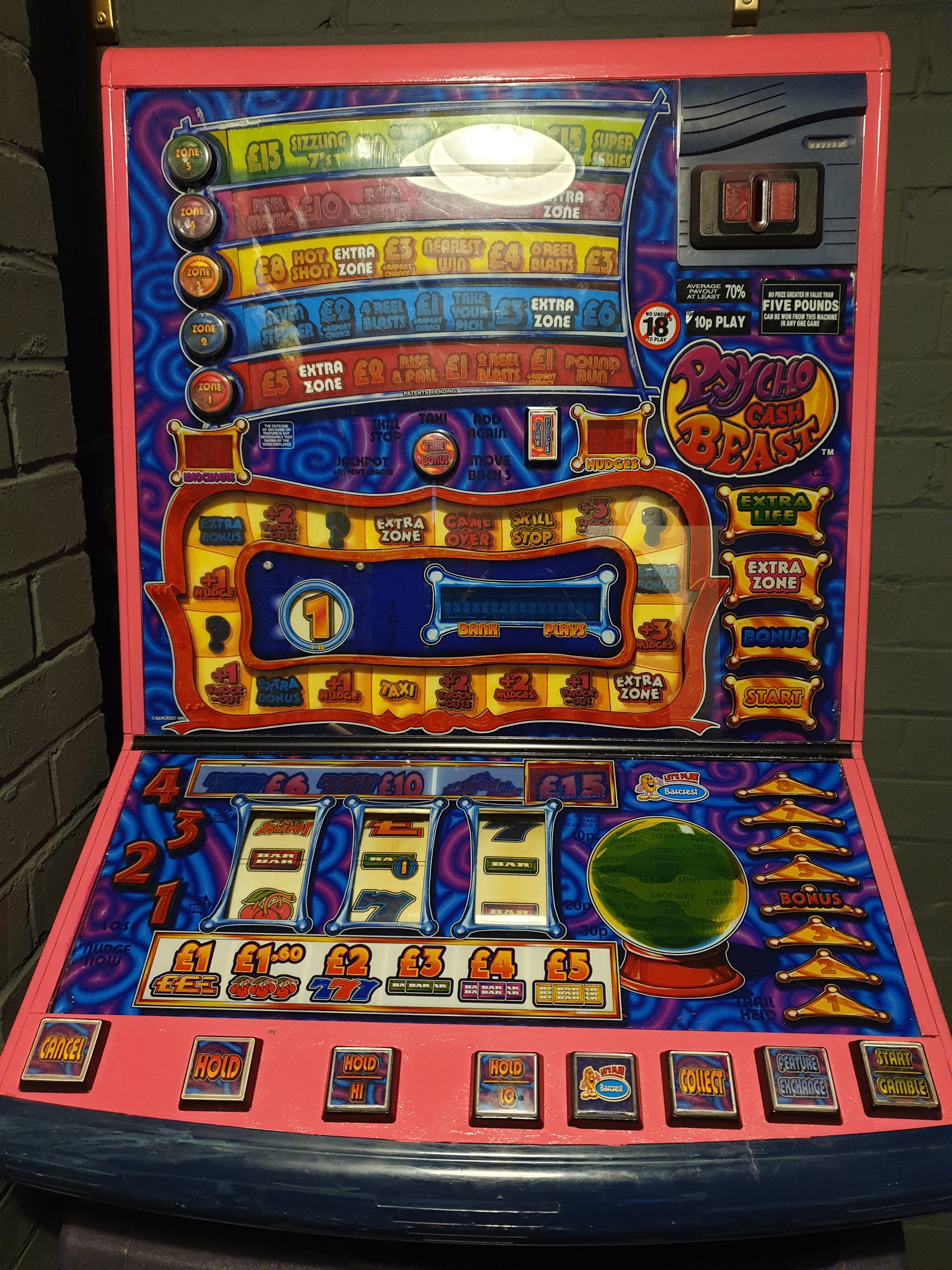

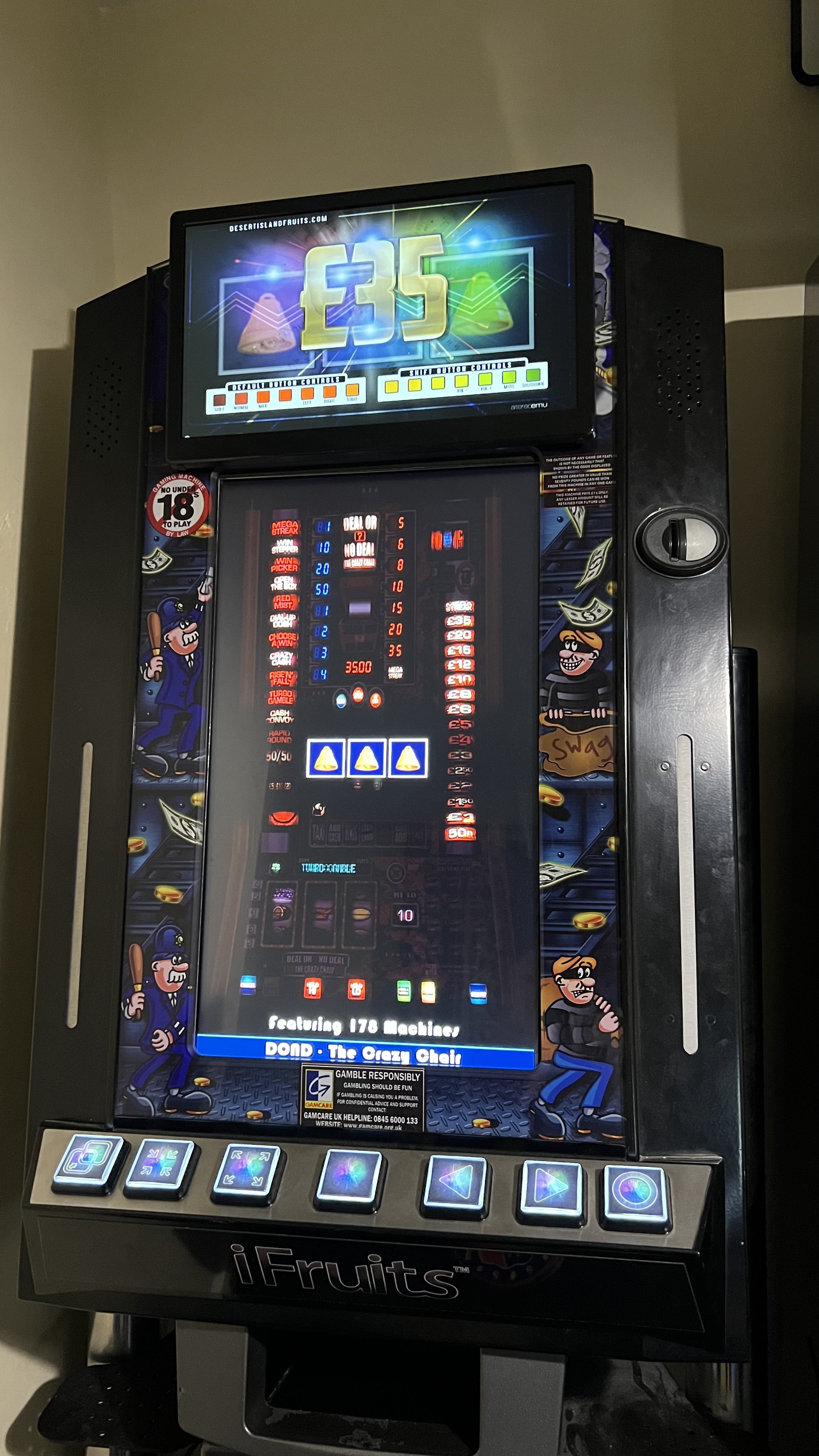

This was my original cabinet (now sold)

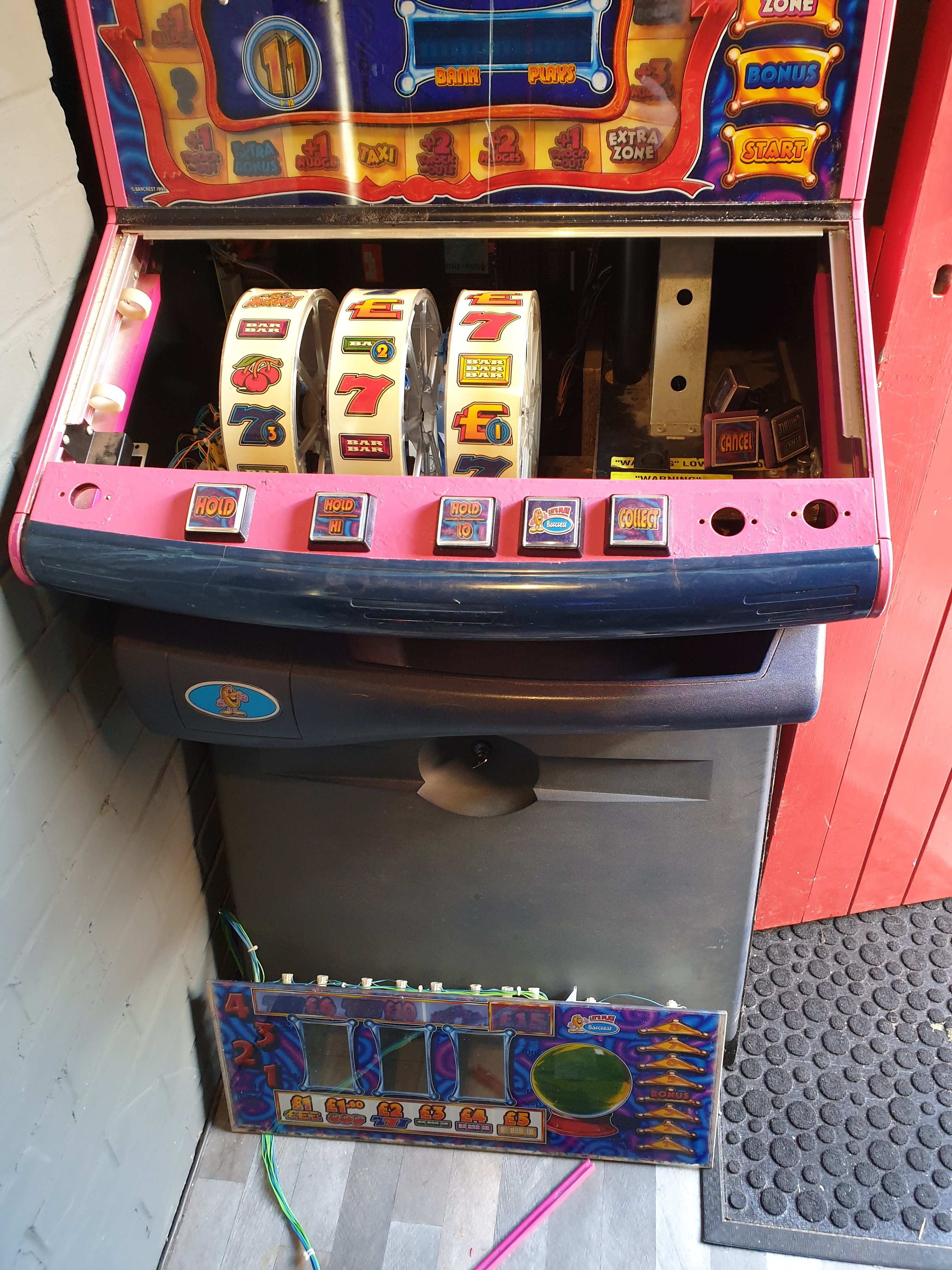

And now onto my new one.... (Please not machine was pretty beat up before this project and was not working before anyone moans about me breaking a cash beast)




So onto removing the glass. I was totally winging it here as I had NO IDEA how to remove the glass and I knew that once I'd committed to stripping stuff out, there wasn't really any going back.




Both glasses removed. Not too bad after all once you know how to remove the braces.




So I want to use 2 screens in this machine, one on the top glass (portrait) showing the actual machine, and a bottom smaller screen in landscape showing info about the machine
and also will be used to choose a machine to play.

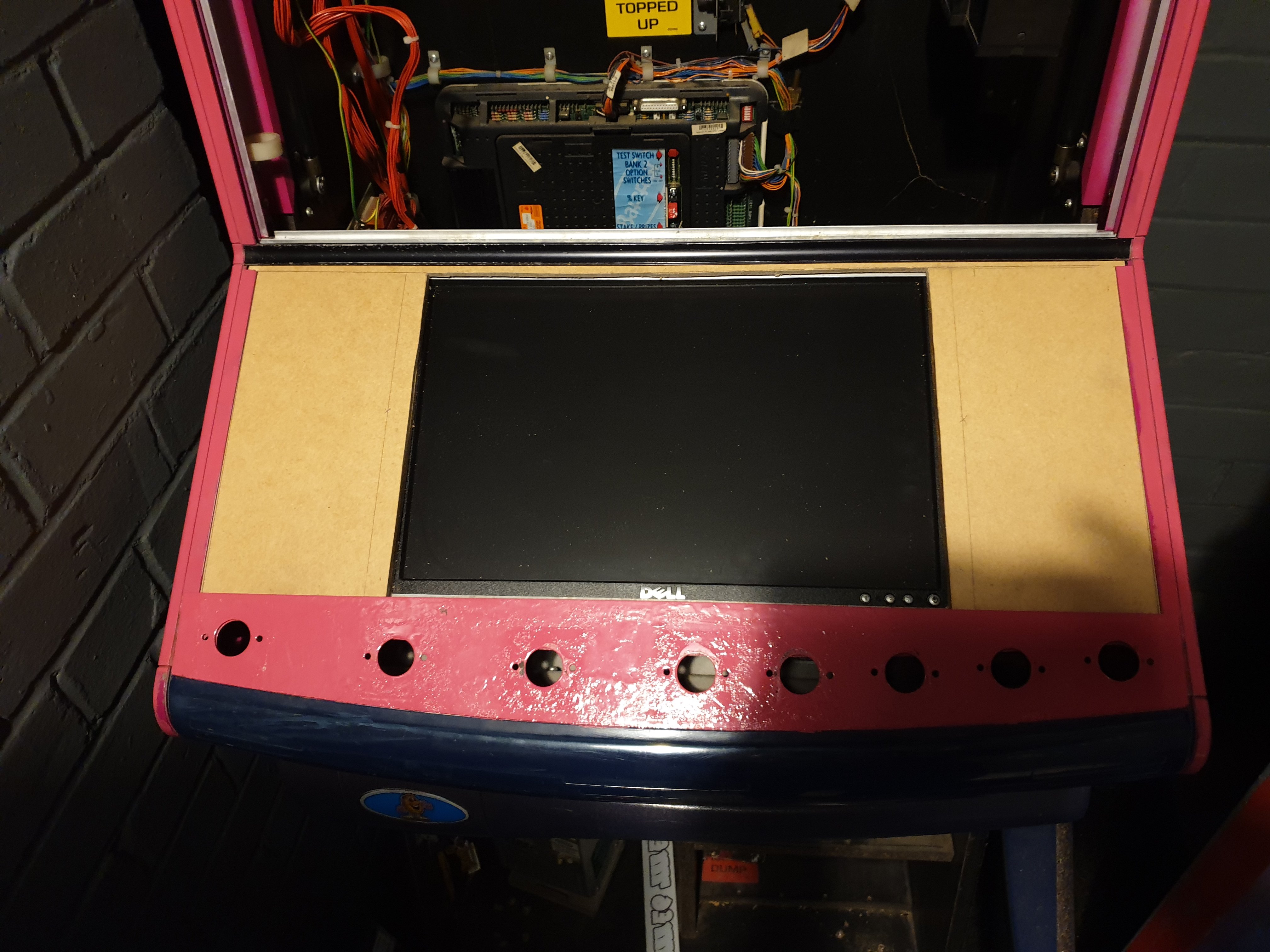

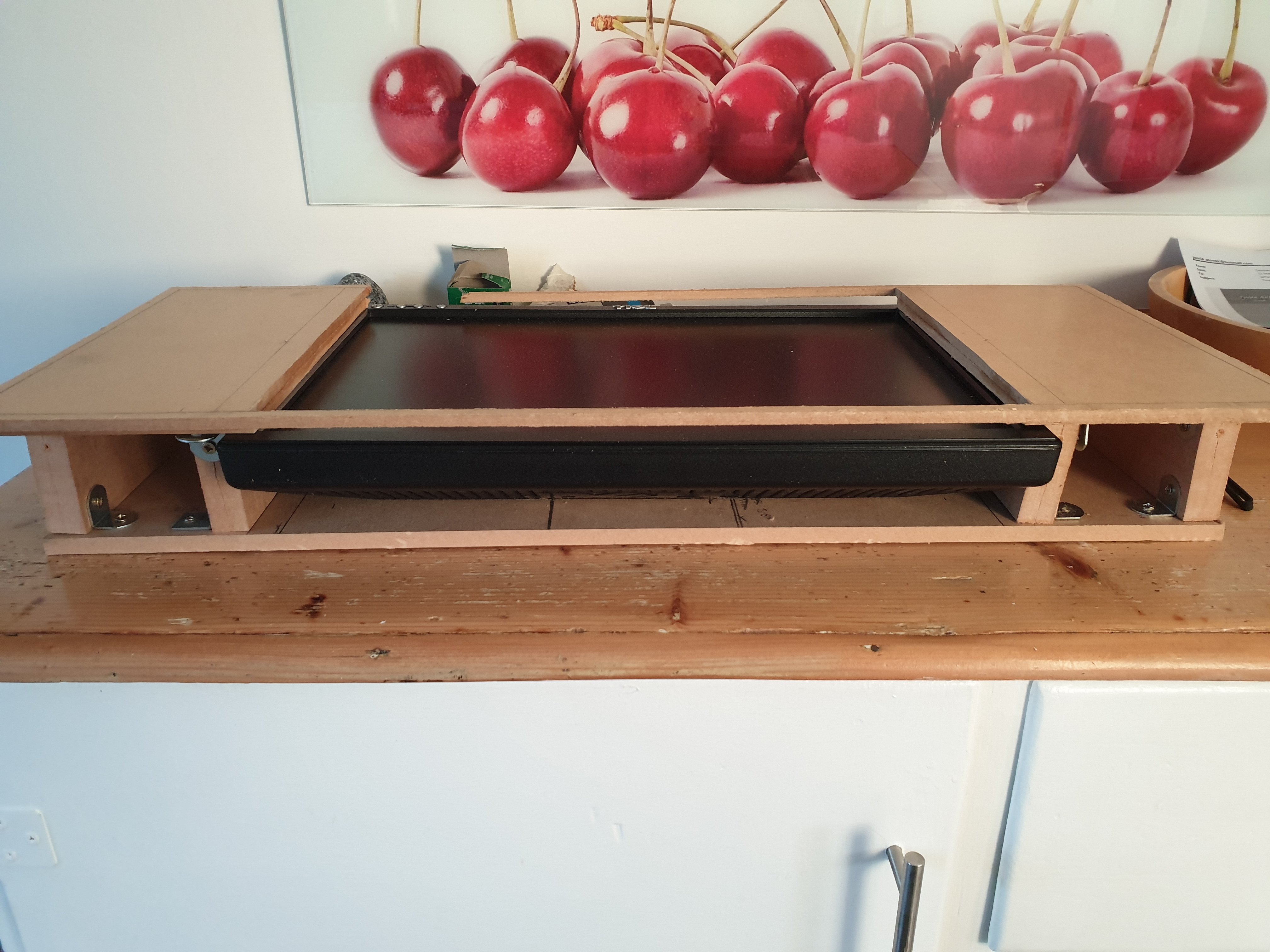

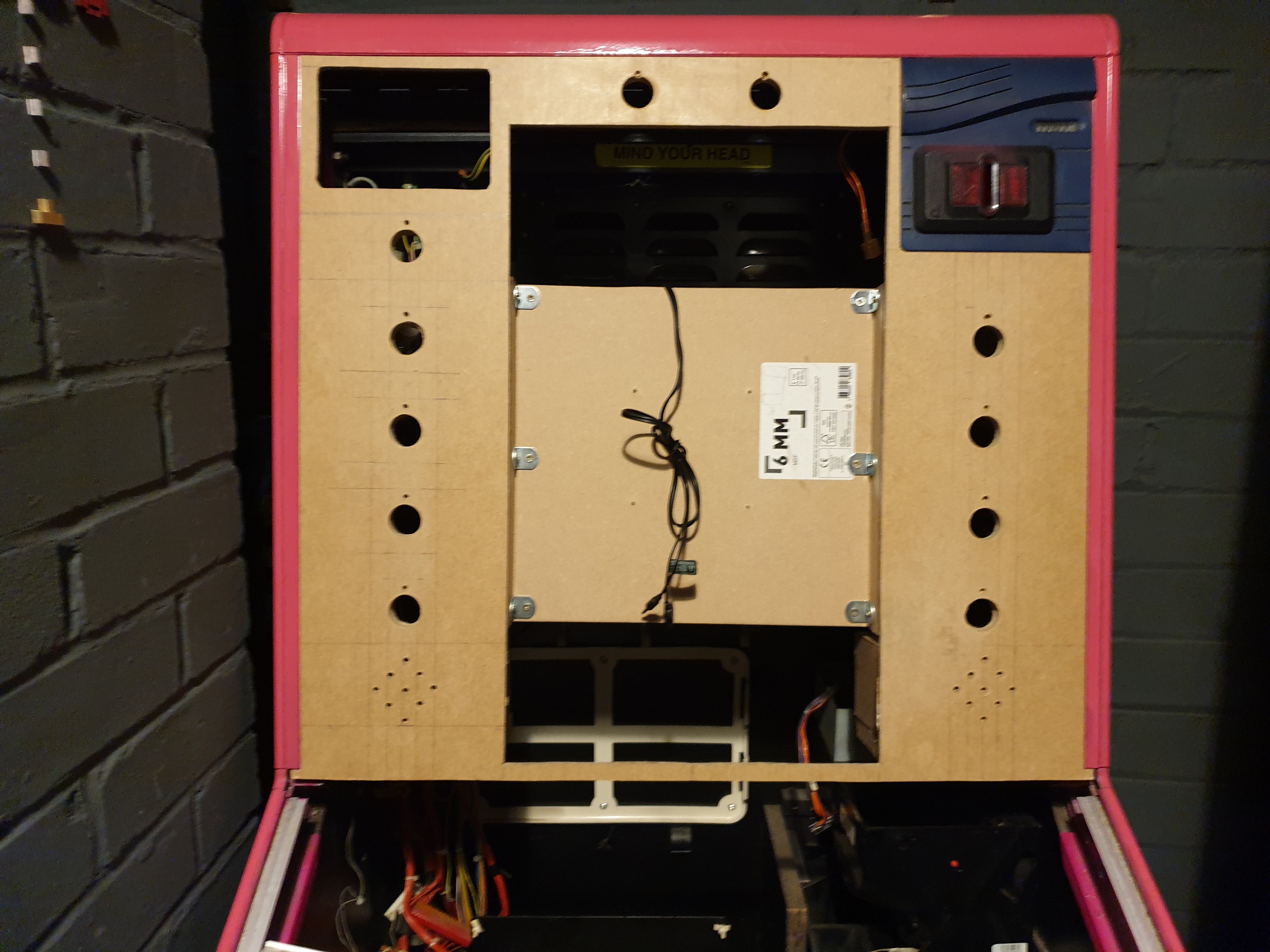

Then I tested that the panel I made would actually fit into the machine and also that it remained secure. Essentially it is 6mm hardboard supported by brackets all round, but it does have to support a fair bit of weight. I was pleasantly surprised that it felt very secure.

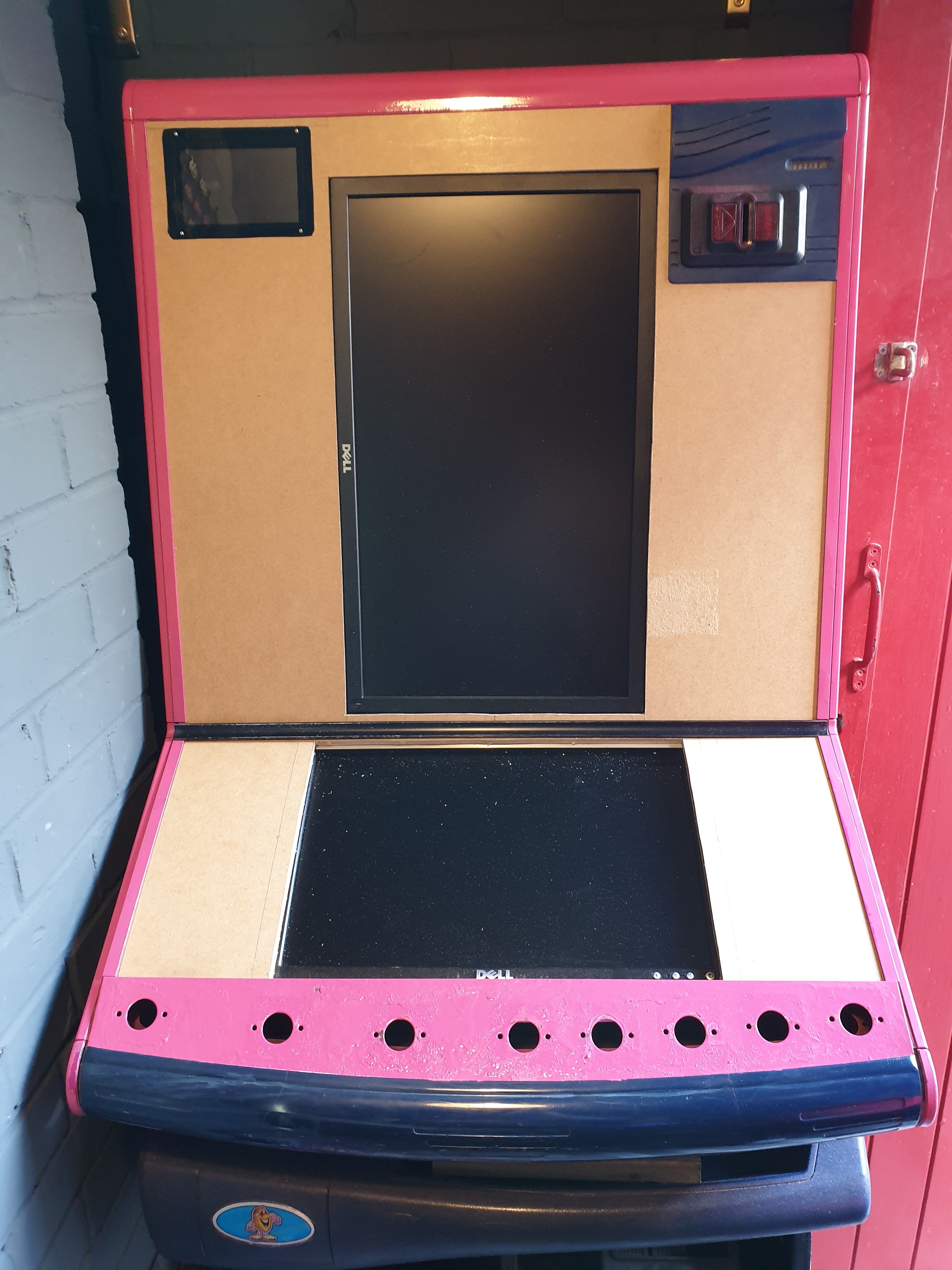

This is what it would look like when closed, obviously buttons and painting needed to make this panel complete. Not to mention pacdrives and all the wiring.




Top panel created in a similar way, this time housing a bigger monitor and also a touch screen mini monitor in the corner.. I'm hoping to be able to use this as some kind of touch screen music player of some type. Maybe linked to my spotify account. Original coin mech will remain but repainted black. The whole cab is getting resprayed black too.




Top panel all drilled out. The bottom holes are for 2 speakers that sit either side of the monitor.




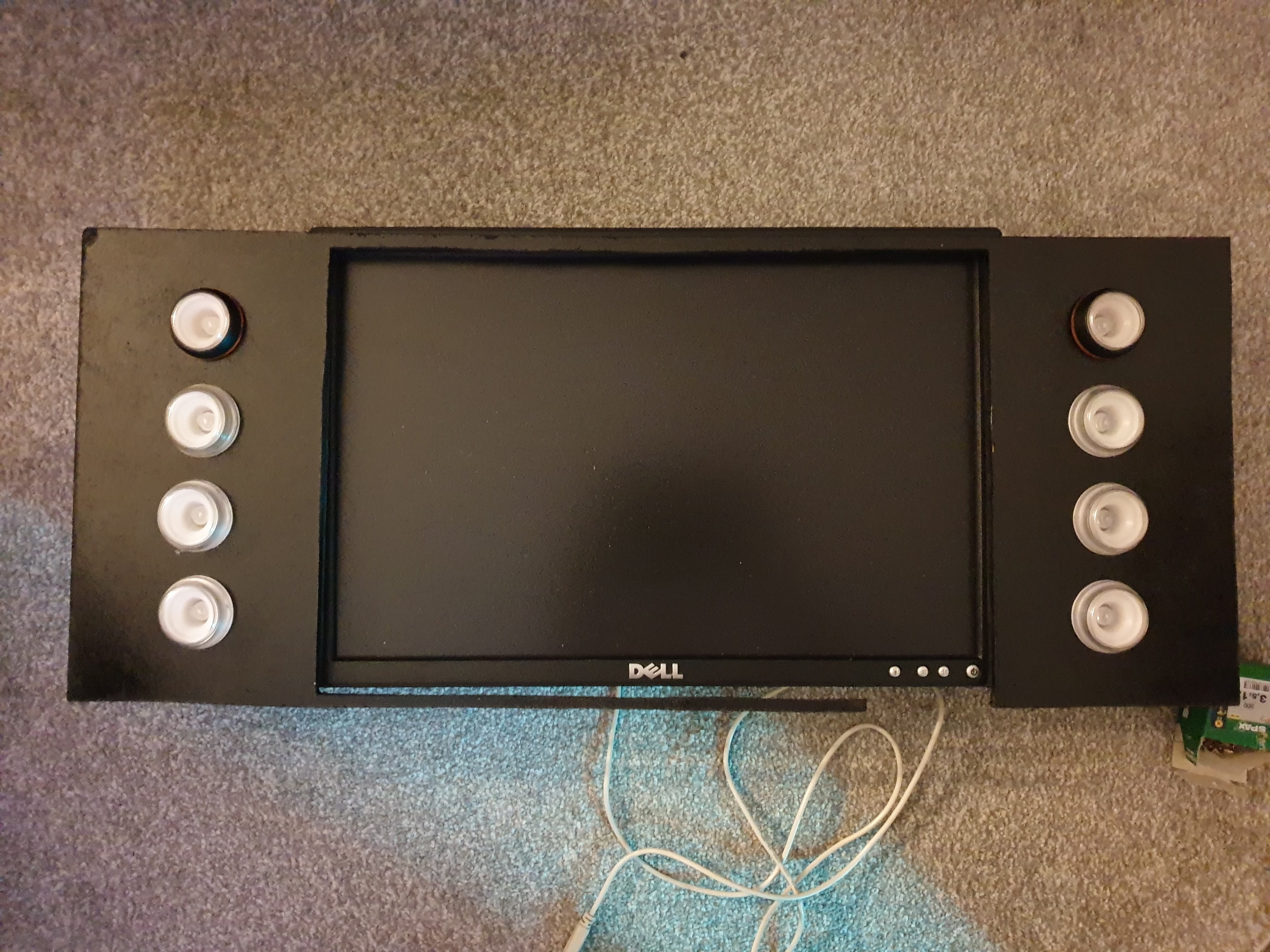

Bottom panel all painted and buttons inserted. The pic makes the buttons look 'wonky' but they are in fact straight when secured properly. The break in the wood at the bottom is because of an obstruction in the cab. This is completely hidden when in place.

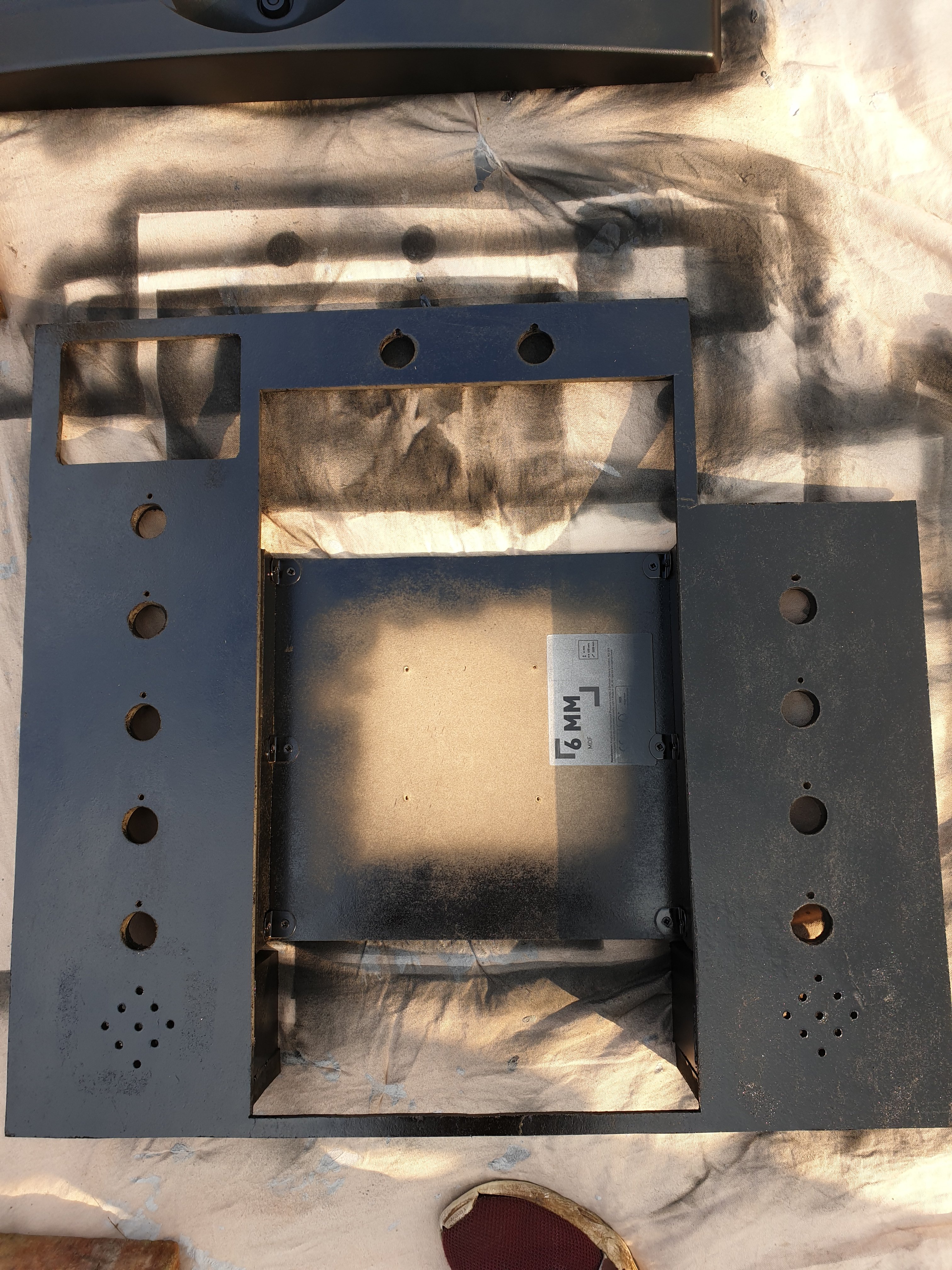

Top panel pained along with several other bits from the cab. This is now ready to be filled with buttons and wiring.




And that's where I am at the minute. I'll keep everyone updated, but I am fully respraying the cab in a few days, then putting the panels and cab all back together before wiring the whole thing up.

It will take coins with the original coin mech and slot, and payout into the existing payout tray. I have to design a base for the hoppers to sit on and put some tubes in to direct coins to the new hoppers.

I'm still yet to decide on the exact software for my front end. I did create my own for my original cab and I'm unsure yet whether I'll adapt that and use that again or use another like Fruitbar.

Thanks for reading.
